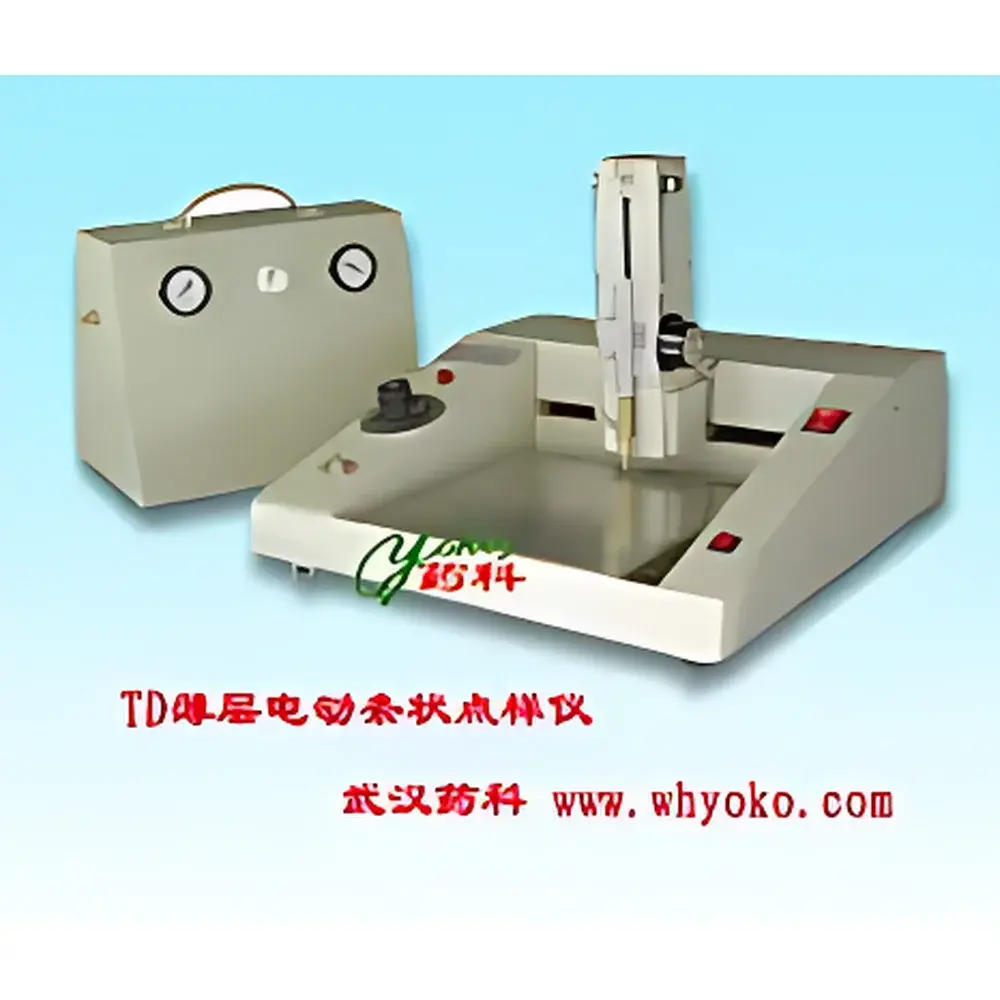

| Brand | YOKO |
|---|---|
| Model | TD-1 |
| Origin | Hubei, China |
| Type | Electrospray-based linear applicator for thin-layer chromatography (TLC) |
| Sample Delivery | Non-contact pneumatic spray |
| Spot/Strip Modes | Single-spot, multi-spot, continuous linear strip (0–180 mm) |
| Maximum Plate Size | 200 × 200 mm |
| Heating Platform | Stainless steel, 35–200 °C (±0.5 °C stability), 600 W |
| Motion Control | Synchronous stepper motors with end-stop protection (X-axis translation, Z-axis needle actuation) |
| Syringe Compatibility | 10 µL, 50 µL standard |
| Accuracy | <1.0% RSD |
| Precision (repeatability) | <1.5% RSD |
| Air Supply | Oil-free compressor, 0–0.12 MPa adjustable, gas flow 0.1–2.0 L/min |
| Power | 220 V ±10%, 50–60 Hz, 630 W |
| Dimensions (L×W×H) | 400 × 390 × 290 mm |
| Weight | 16 kg |
