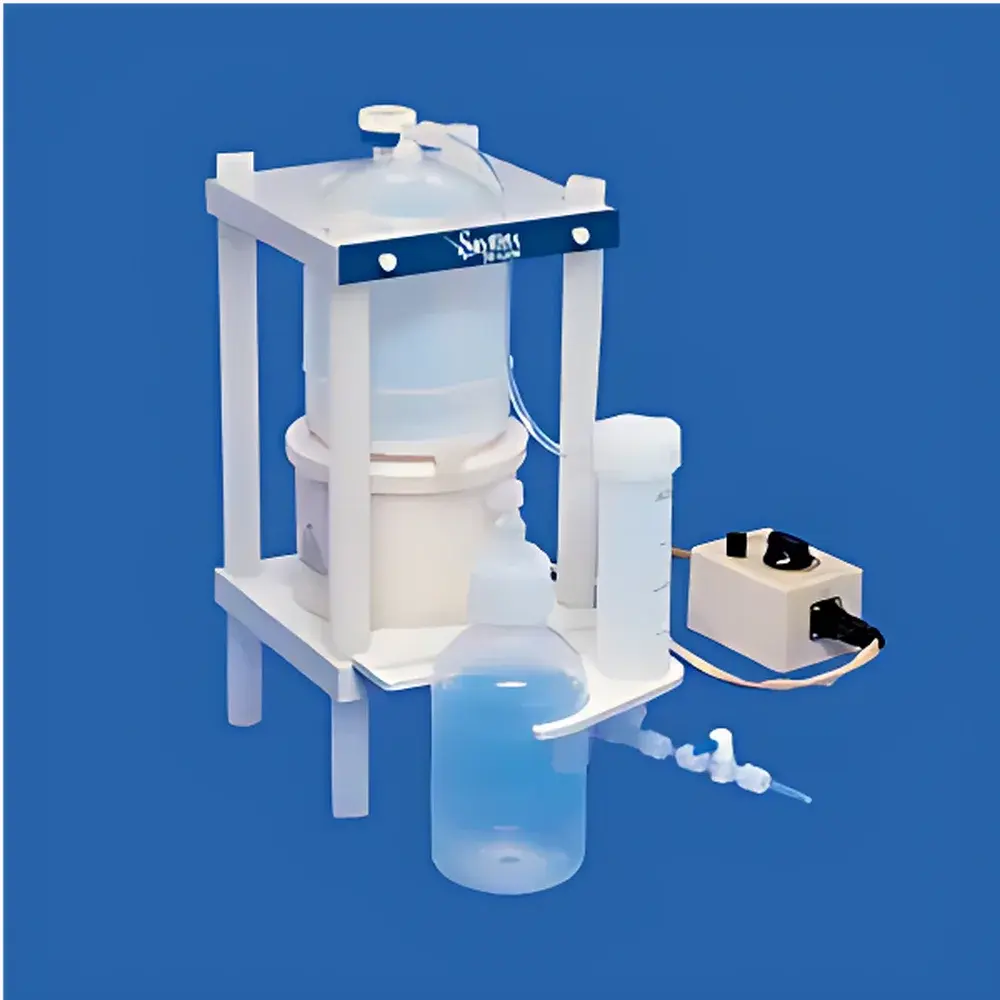

Savillex DST-1000A PFA Sub-Boiling Acid Distillation System

Overview

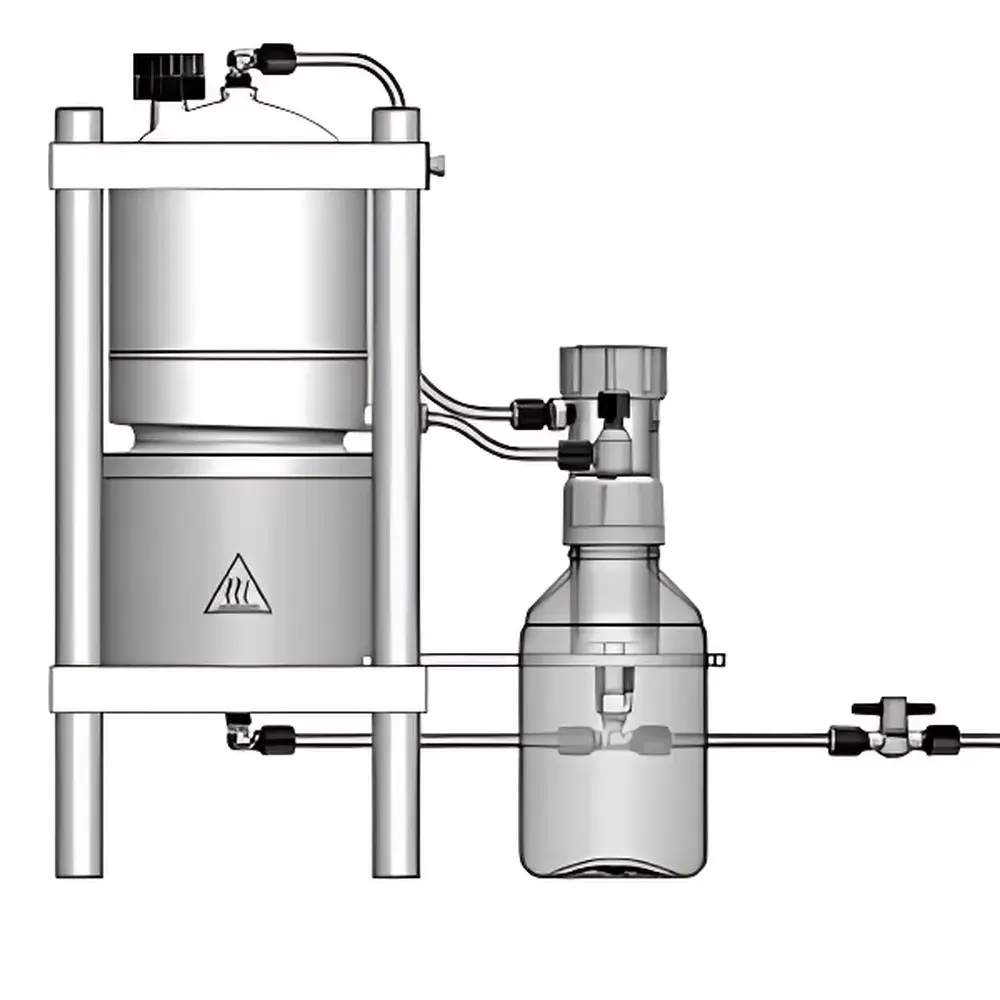

The Savillex DST-1000A is a high-purity, sub-boiling acid distillation system engineered for trace-metal analysis laboratories requiring ultra-clean reagents. It operates on the principle of controlled thermal evaporation below the boiling point of hydrochloric, nitric, hydrofluoric, and other mineral acids—minimizing volatile impurity carryover and ensuring exceptional blank integrity. Unlike conventional reflux or boiling-point distillers, the DST-1000A employs a precisely regulated resistive heating sleeve wrapped around a PFA evaporator chamber, enabling gentle, uniform heating that avoids localized hot spots and decomposition of sensitive acid matrices. Its fully enclosed, low-footprint architecture (≤0.093 m²) is designed for seamless integration into standard fume hoods without compromising ventilation efficiency or lab safety compliance. The system’s absence of water-cooling circuits eliminates condensate disposal concerns, reduces infrastructure dependency, and supports sustainable laboratory operations aligned with ISO 14001 environmental management principles.

Key Features

• 100% PFA-wetted path: All fluid-contact components—including evaporator, condenser, collection vessel, and drain channel—are injection-molded from high-purity, low-extractable PFA fluoropolymer, certified to meet ASTM D4808 and USP Class VI requirements for trace-metal applications.
• Sub-boiling thermal control: Integrated variable-temperature controller allows fine-tuned power adjustment (0–100% range), maintaining distillation temperatures significantly below atmospheric boiling points—critical for preserving acid stability and minimizing metal ion volatilization.
• Self-contained air-cooled condensation: Eliminates external chillers, recirculating water lines, or coolant reservoirs; relies on passive convection and optimized PFA surface geometry for efficient vapor-to-liquid phase transition.
• Integrated gravity-fed drainage: A built-in PFA drain channel enables safe, pump-free disposal of residual spent acid into secondary containment—reducing operator exposure and supporting OSHA 29 CFR 1910.1200 hazard communication protocols.
• Compact, modular footprint: Dimensions of 20 × 20 × 43 cm (height excluding funnel) allow installation in space-constrained analytical labs while maintaining full accessibility for maintenance and cleaning.
• Multi-voltage compatibility: Factory-configurable power modules support 100 VAC, 115 VAC, or 230 VAC inputs (±10%, 50/60 Hz), facilitating global deployment without voltage conversion hardware.

Sample Compatibility & Compliance

The DST-1000A is validated for distillation of HCl, HNO₃, HF, HBr, and aqua regia at volumes ranging from 125 mL to 1 L per cycle. Its PFA construction ensures chemical inertness toward aggressive halogenated and oxidizing media, with documented performance in accordance with ISO/IEC 17025 method validation guidelines for reagent purification. The system meets GLP documentation requirements for acid blank certification when paired with traceable calibration standards (e.g., NIST SRM 3100 series). It supports audit readiness for FDA 21 CFR Part 11–compliant workflows when integrated with electronic lab notebooks (ELNs) that record operator ID, batch number, run duration, and temperature setpoints.

Software & Data Management

The DST-1000A operates as a standalone analog-controlled instrument with no embedded firmware or digital interface. Temperature regulation is achieved via a front-panel potentiometer linked to a solid-state relay—ensuring electromagnetic immunity and long-term reliability in EMI-prone analytical environments. For laboratories requiring digital traceability, optional external data loggers (e.g., Omega OM-DAQPRO-5300) may be connected to monitor heater voltage and ambient temperature using calibrated thermocouples (Type T). All operational parameters—including run time, volume processed, and manual endpoint confirmation—are intended to be recorded manually in bound lab notebooks or LIMS-integrated forms compliant with ISO/IEC 17025 clause 7.5.2.

Applications

• Preparation of ultra-low-background acids for ICP-MS multi-element quantification (detection limits <0.1 pg/g for Cr, Fe, Ni, Cu, Zn, Cd, Pb).
• Blank reduction in EPA Method 200.8 and ISO 17294-2 compliant water and soil digestions.
• Reagent purification prior to semiconductor-grade wafer etching and photomask cleaning.
• Production of matrix-matched calibration standards for nuclear fuel cycle analysis (ASTM C1627).
• Supporting CLIA-certified clinical toxicology assays requiring sub-part-per-trillion metal contamination thresholds.

FAQ

What acids are compatible with the DST-1000A?
Hydrochloric acid (HCl), nitric acid (HNO₃), hydrofluoric acid (HF), hydrobromic acid (HBr), and aqua regia have been validated for use. Sulfuric and phosphoric acids are not recommended due to thermal decomposition risks above 150 °C.
Is the DST-1000A suitable for GMP-regulated environments?
Yes—when operated under documented SOPs and maintained with scheduled calibration of the temperature control circuit, it satisfies Annex 15 and ICH Q7 requirements for equipment qualification in pharmaceutical QC labs.
How often does the PFA evaporator require replacement?
Under normal usage (≤2 cycles/day, 1 L HNO₃ per cycle), the PFA chamber demonstrates >5 years of functional service life with no measurable leaching or dimensional degradation per ASTM D5202 testing.
Can the DST-1000A be used with automated fraction collectors?
No—the system lacks electrical output signals or mechanical actuation interfaces; fraction collection must be performed manually following visual endpoint determination.
Does Savillex provide certificates of conformance for individual units?
Yes—each DST-1000A ships with a manufacturer’s Certificate of Conformance (CoC) listing material lot numbers, PFA resin grade (DuPont Teflon® PFA 350HP), and electrical safety test results per UL 61010-1.
