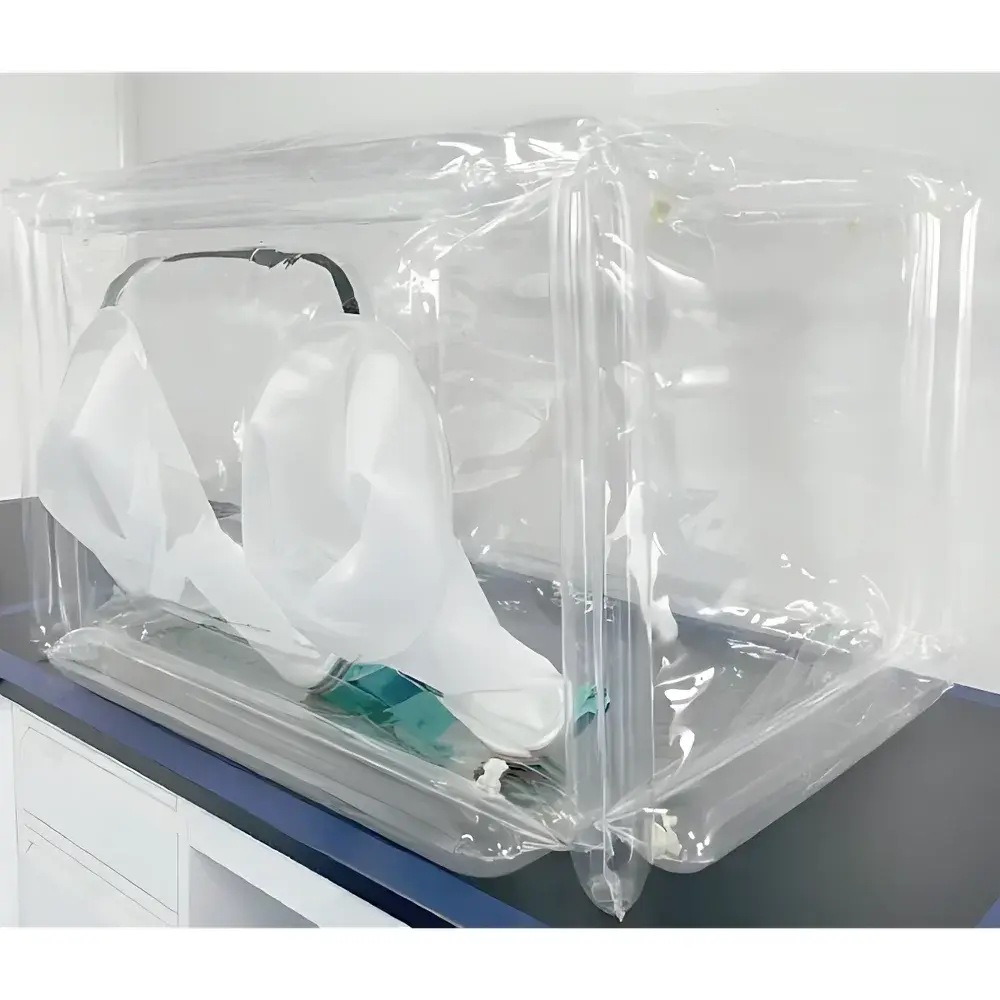

Portable Flexible Sealed Glovebox

Overview

The Portable Flexible Sealed Glovebox is an engineered containment solution designed for controlled environment applications in life science research, bioprocessing, and early-stage pharmaceutical development. Unlike rigid stainless-steel isolators, this system employs a robust, optically clear flexible barrier—constructed from medical-grade PVC or thermoplastic polyurethane (TPU)—to establish a physically isolated workspace with Class ISO 5 (Grade A) equivalent air quality when paired with integrated HEPA/ULPA filtration and positive-pressure control. Its operation relies on passive or active pressure differential management and glove-integrated manipulation, enabling safe handling of sensitive biological materials, low-to-moderate potency compounds, and sterile test samples without compromising operator safety or sample integrity. The design adheres to core principles of containment engineering defined in ISO 14644-1 (cleanroom classification), ISO 10648-2 (gas-tight enclosures), and aligns with risk-based approaches outlined in EU GMP Annex 1 (2022) for aseptic processing.

Key Features

• Lightweight, foldable architecture—enabling rapid deployment, relocation, and storage in constrained lab or cleanroom spaces
• High-flexibility TPU/PVC film with certified gas-barrier properties (O₂ transmission rate ≤ 5 cm³/m²·day·atm at 23°C/50% RH), ensuring extended inert-atmosphere maintenance when purged
• Glove ports with ergonomic, low-resistance polymer gloves (sterile or non-sterile options) compliant with ASTM D6319 and ISO 10993-5 for biocompatibility
• Integrated access ports for tubing, power, data, and process lines—equipped with quick-connect seals meeting ISO 8536-4 requirements
• Optional add-ons include internal LED lighting (3000–5000 K, CRI ≥ 80), temperature/humidity sensors (±0.5°C / ±3% RH accuracy), and real-time particulate monitoring (0.3–5.0 µm channels)
• Designed for single-use or limited-reuse protocols—eliminating validation-intensive cleaning and sterilization cycles required by hard-wall isolators

Sample Compatibility & Compliance

This glovebox supports handling of cell cultures, primary tissues, viral vectors, lyophilized biologics, and OEB (Occupational Exposure Banding) Level 2–3 compounds per ISPE Baseline Guide Volume 7. Its flexible enclosure meets the containment performance criteria for Category B (low-to-moderate hazard) as defined in ASTM E2996–21. All materials comply with USP (Biological Reactivity Tests) and EU Regulation (EC) No 1935/2004 for indirect food contact. Documentation packages support GLP/GMP traceability, including material certificates of conformance, filter integrity test records (DOP/PAO challenge), and optional IQ/OQ protocol templates aligned with FDA 21 CFR Part 11 electronic record requirements.

Software & Data Management

While the base unit operates without embedded firmware, optional digital modules integrate with facility SCADA or LIMS via Modbus RTU or Ethernet/IP. Pressure differentials, internal temperature, relative humidity, and particulate counts (if equipped) are logged with timestamped audit trails. Data export supports CSV and PDF formats; all logs retain full metadata—including user ID, event type, and system status—for regulatory review. Optional cloud-enabled edge gateway provides remote monitoring and configurable alarm thresholds (e.g., pressure drop >15 Pa over 30 s), supporting continuous improvement under ICH Q9 Quality Risk Management principles.

Applications

• Aseptic assembly of diagnostic assay kits under Grade A conditions
• Handling of CRISPR-Cas9 reagents and primary human PBMCs during CAR-T workflow staging
• OEB 2–3 compound formulation trials in preclinical development (e.g., cytotoxic small molecules, siRNA conjugates)
• Stability testing of sterile lyophilized proteins under controlled humidity and inert gas overlay
• Rapid-response biosafety containment during outbreak-related pathogen screening (BSL-2 compatible configuration)
• Training environments for aseptic technique certification—reducing consumable and facility overhead vs. permanent isolators

FAQ

Can this glovebox be validated for GMP manufacturing use?
Yes—when configured with calibrated sensors, documented filter integrity tests, and qualified purge protocols, it supports Phase-appropriate validation per ICH Q5A and EU Annex 1 Annex II. Full qualification requires site-specific IQ/OQ execution.
Is the TPU film resistant to common disinfectants such as 70% IPA or VHP?
TPU demonstrates excellent resistance to 70% isopropyl alcohol and shows no degradation after 10 cycles of vaporized hydrogen peroxide (VHP) exposure at standard decontamination parameters (≤ 1000 ppm, 60% RH, 45°C). PVC variants require IPA-only surface treatment.
What is the maximum operational duration before replacement?
Under typical laboratory use (8 hrs/day, moderate glove flexing), service life exceeds 12 months. For OEB 3 applications involving frequent chemical exposure, replacement is recommended every 3–6 months based on visual inspection and leak integrity verification.
Does the system support nitrogen or argon purging?
Yes—the enclosure includes dual-purge inlet/outlet ports with flow-controlled regulators and optional inline oxygen analyzers (detection limit 10 ppm) to achieve and verify <100 ppm O₂ for oxygen-sensitive applications.
