LaVision StrainMaster DIC Digital Image Correlation Software Platform

Overview

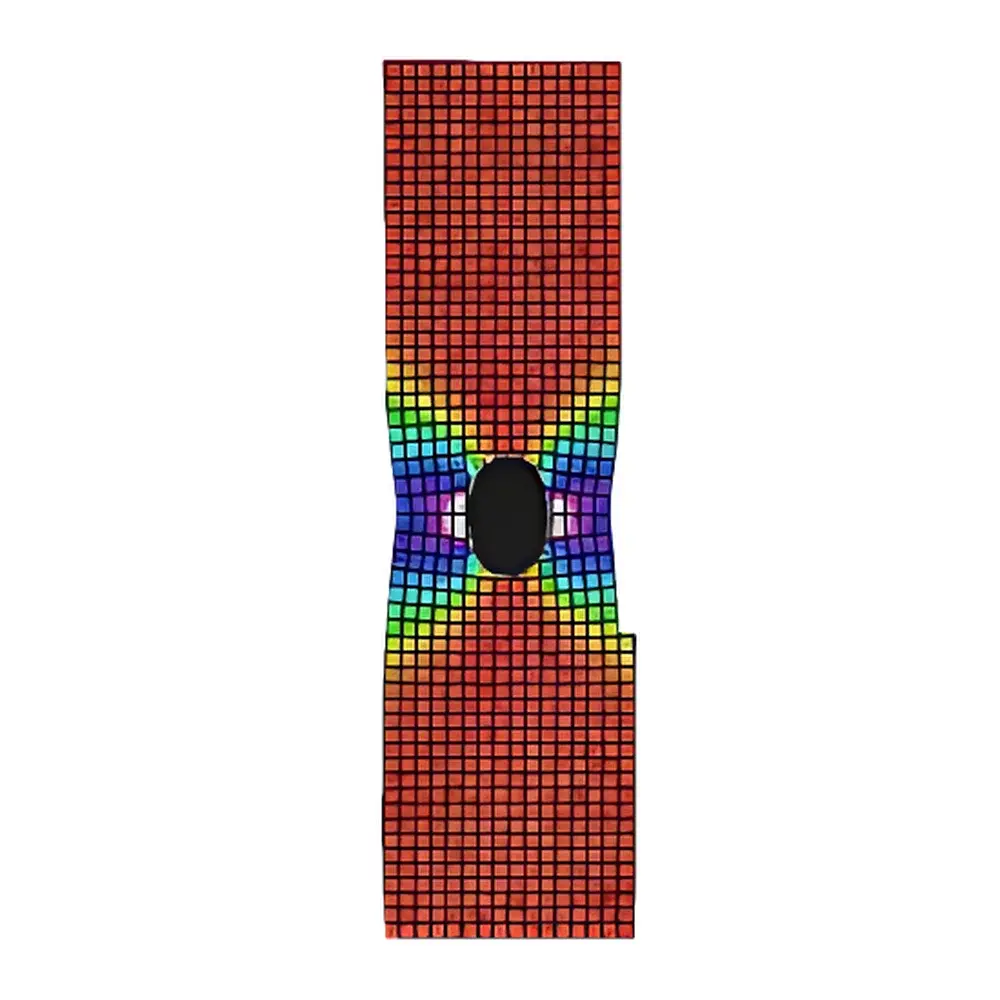

LaVision StrainMaster DIC is a rigorously engineered digital image correlation (DIC) software platform designed for quantitative, non-contact, full-field deformation analysis in materials science, mechanical testing, and structural dynamics laboratories. Built upon robust photogrammetric principles, StrainMaster DIC computes sub-pixel displacements by tracking intensity patterns across sequential high-resolution images captured under controlled illumination. The software implements advanced correlation algorithms—including inverse compositional Gauss–Newton optimization and adaptive subset selection—to deliver high spatial resolution strain maps with micron-level displacement sensitivity. Unlike point-wise measurement techniques such as extensometers or strain gauges, StrainMaster DIC generates dense vector fields of surface displacement (u, v, w), strain components (ε_xx, ε_yy, γ_xy, ε_zz), and curvature—enabling detection of localized yielding, crack initiation zones, and heterogeneous deformation behavior across complex geometries.

Key Features

• Fully integrated acquisition and post-processing workflow within a single GUI environment—no external scripting or third-party data conversion required
• Real-time monitoring of correlation quality metrics (e.g., correlation coefficient, subset convergence status, noise-to-signal ratio)
• Automated stereo calibration with checkerboard or coded target routines compliant with ISO 12233 and VDI/VDE 2634 Part 2
• Support for both 2D-DIC (single-camera planar analysis) and stereoscopic 3D-DIC (dual-camera volumetric reconstruction)
• Built-in thermal drift compensation using reference point tracking and background subtraction algorithms
• Batch processing capability for standardized test sequences (e.g., ASTM E8/E8M tensile protocols, ISO 10215 fatigue loading)
• Export formats include ASCII, HDF5, CSV, and native DaVis-compatible .dvs files for traceable data lineage

Sample Compatibility & Compliance

StrainMaster DIC is agnostic to specimen material class and loading modality. It has been validated for use with metallic alloys, polymer composites, elastomers, ceramics, biological tissues, and additively manufactured parts subjected to quasi-static, cyclic, impact, thermal expansion, or electromechanical loading. The software architecture complies with GLP (Good Laboratory Practice) documentation requirements through audit-trail logging of all user actions, parameter changes, and calibration events. While not certified as FDA 21 CFR Part 11-compliant out-of-the-box, the system supports configuration for electronic signature enforcement and data integrity controls when deployed on validated Windows Server environments per ICH GCP and ISO/IEC 17025 laboratory accreditation frameworks.

Software & Data Management

StrainMaster DIC operates as a modular extension of the DaVis imaging platform—LaVision’s unified software ecosystem for synchronized hardware control, image acquisition, and quantitative analysis. Integration with DaVis enables deterministic triggering, programmable exposure sequencing, and hardware-timed synchronization between cameras, lighting, load frames, and environmental chambers. All raw image metadata—including timestamp, exposure settings, lens distortion coefficients, and temperature logs—are embedded directly into the project file. Data provenance is preserved via hierarchical project structures, versioned analysis pipelines, and checksum-verified exports. For enterprise deployment, optional SQL-based database connectors allow integration with LIMS or PLM systems for automated report generation and cross-platform test result aggregation.

Applications

• Constitutive model validation for finite element analysis (FEA) input parameterization
• In-situ mechanical testing inside SEM, CT scanners, and environmental chambers
• Residual stress mapping following heat treatment or shot peening
• Debonding and delamination characterization in adhesive joints and laminates
• Dynamic strain evolution during drop-weight impact or Hopkinson bar experiments
• Thermo-mechanical coupling analysis in thermal barrier coatings and MEMS devices
• Educational use in advanced mechanics labs for visualizing Saint-Venant’s principle and stress concentration effects

FAQ

Does StrainMaster DIC require dedicated LaVision cameras?
No—while optimized for Imager M-lite and Imager X-lite series, the software accepts standard TIFF, BMP, or PNG image sequences from any scientific-grade camera provided metadata (pixel size, bit depth, timing) is supplied.
Can it process video at >1,000 fps?
Yes, when paired with compatible high-speed cameras and configured for lossless compression modes; real-time correlation is limited by CPU/GPU resources and subset density settings.
Is GPU acceleration supported?
Yes—OpenCL-accelerated correlation kernels are available for AMD and NVIDIA GPUs, reducing computation time by up to 7× for large ROI analyses.
How is uncertainty quantified in strain results?
StrainMaster DIC reports pixel-level uncertainty estimates derived from intensity gradient noise models and subset matching confidence intervals, consistent with the guidelines in ISO/TS 11462-2.
What training and documentation is included?
LaVision provides comprehensive installation guides, DIC theory primers, ASTM-compliant validation procedures, and remote application engineering support packages upon license activation.
