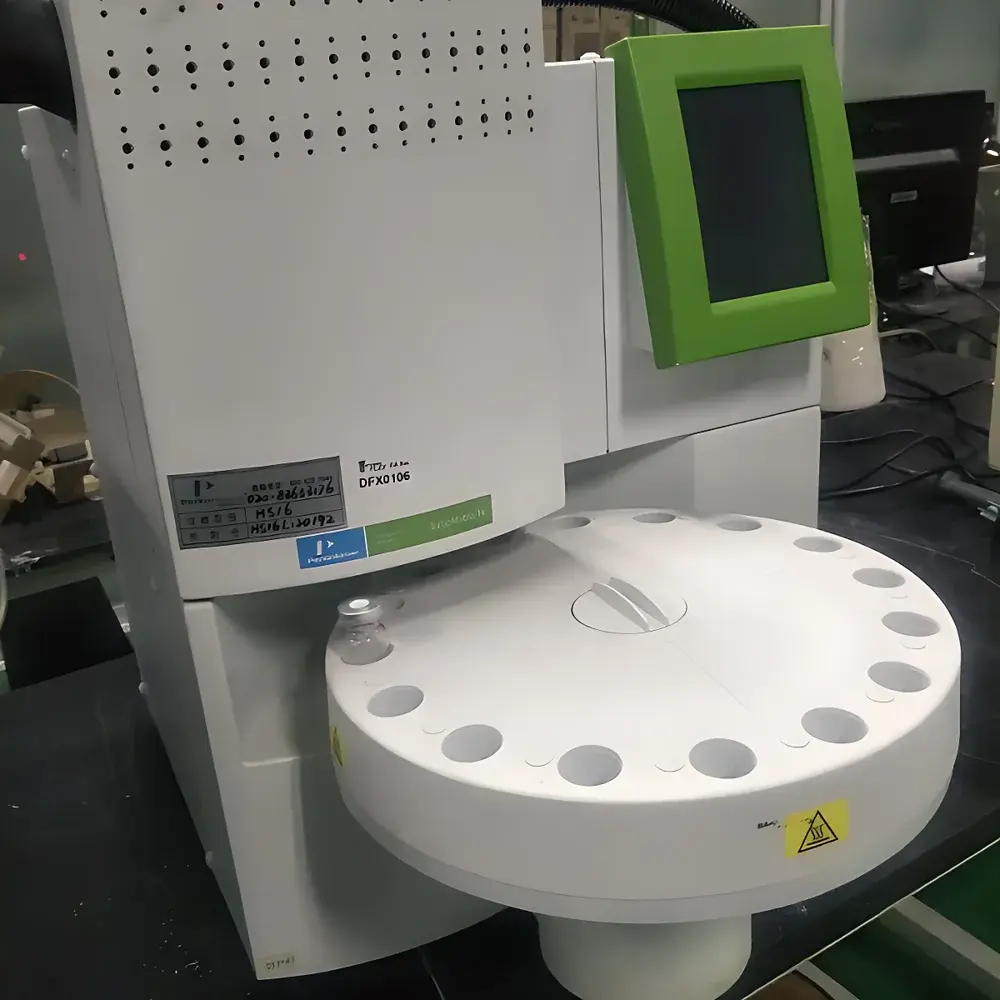

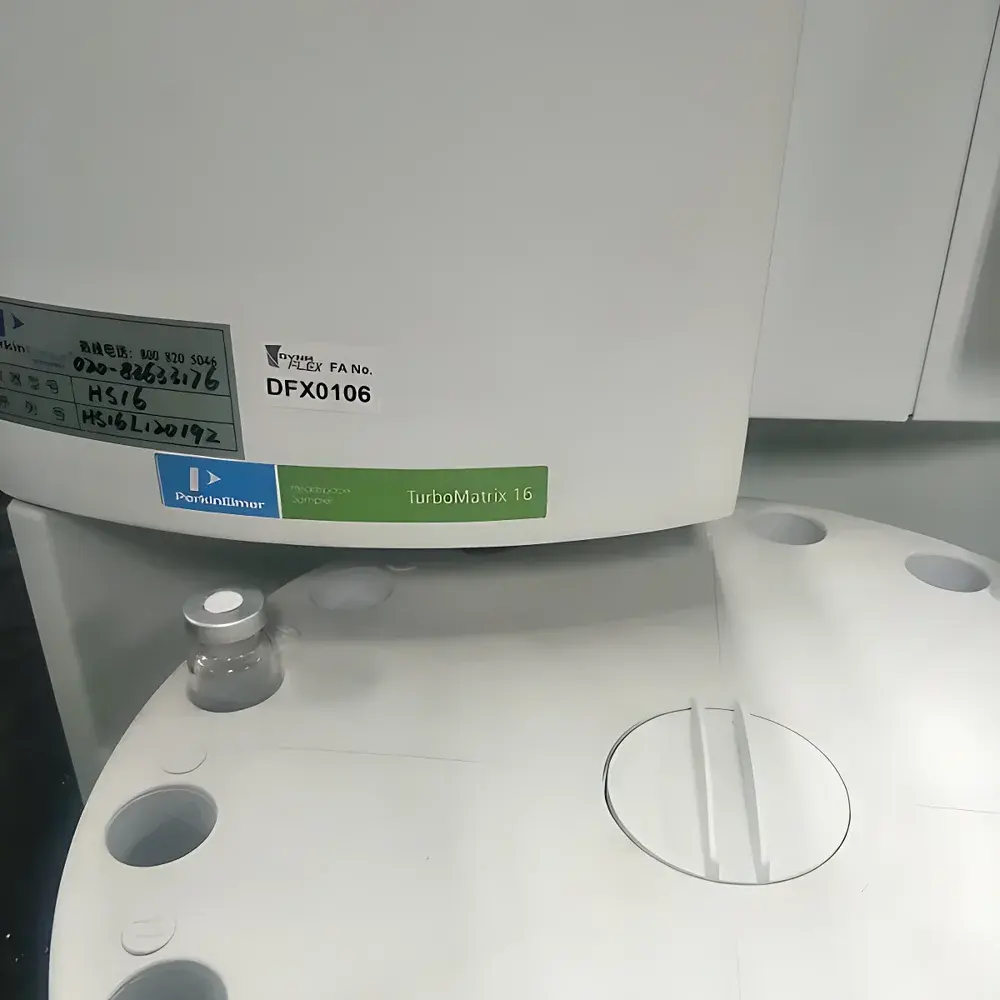

PerkinElmer TurboMatrix 16 Used Headspace Sampler

Overview

The PerkinElmer TurboMatrix 16 Used Headspace Sampler is a precision-engineered, benchtop static headspace autosampler designed for robust integration with gas chromatography (GC) systems. It operates on the principle of equilibrium-based volatile compound partitioning between liquid/solid matrix and the overlying vapor phase—enabling quantitative analysis of trace-level volatiles without solvent extraction or derivatization. Its pressure-balanced injection mechanism ensures zero sample dilution during transfer, preserving analyte integrity and delivering sharp, reproducible chromatographic peaks. The system is widely deployed in environmental testing (e.g., VOCs in drinking water per EPA Method 502.2 and 624), pharmaceutical residual solvent analysis (ICH Q3C), forensic toxicology, and food & beverage quality control—where regulatory compliance, method ruggedness, and inter-laboratory reproducibility are critical.

Key Features

• 16-position heated sample carousel with independent vial temperature control (35–210 °C, adjustable in 1 °C increments) and precise incubation timing
• Pressure-balanced headspace transfer using a fully enclosed, inert capillary pathway—eliminating carrier gas dilution and analyte dispersion
• Integrated cryo-trap option for pre-concentration of low-abundance volatiles, enabling sub-ppb detection limits (e.g., ≤1 ppb benzene in aqueous matrices)
• Multi-mode operation: standard static headspace, multiple headspace extraction (MHE), and auto-overlap heating (simultaneous thermal conditioning of up to 12 vials)
• Two injection quantification methods: time-based volume delivery and programmable loop-fill volume control for method flexibility
• Intuitive 7-inch color touchscreen GUI supporting eight languages (English, Spanish, French, Italian, German, Russian, Japanese, Chinese) with context-sensitive help and real-time status monitoring
• Dual gas control architecture: field-upgradable from manual pressure regulation (0–60 psig) to electronic pneumatic control (PPC) for enhanced method transferability and retention time stability

Sample Compatibility & Compliance

The TurboMatrix 16 accommodates standard 10–22 mL headspace vials (crimp-top or screw-cap), including those with PTFE-silicone septa. It maintains compatibility with all major GC platforms via universal analog/digital I/O interfaces (RS-232, Ethernet, dry-contact triggers). The system meets foundational requirements for regulated environments: its operational parameters—including method files, run logs, and calibration records—are fully exportable for inclusion in 21 CFR Part 11-compliant data workflows when paired with validated GC software (e.g., Chromeleon, Empower, or PerkinElmer Turbochrom). While the unit itself does not embed audit trail functionality, its deterministic sequence execution, timestamped event logging, and parameter-locking capabilities support GLP and GMP audit readiness. It adheres to ASTM D3699 (gasoline hydrocarbons), ISO 15678 (water VOCs), and USP residual solvents methodology frameworks.

Software & Data Management

Instrument control and method development are executed through the native TurboMatrix Console software, which runs on Windows-based host PCs. All methods—including vial equilibration profiles, oven ramp rates, injection dwell times, and trap desorption protocols—are stored as encrypted binary files with version metadata. Raw instrument logs capture every hardware state change (valve actuation, heater activation, pressure transients) at millisecond resolution. Data export is supported in CSV and XML formats for LIMS integration. When operated under validated laboratory informatics infrastructure, the system supports full traceability: user logins, electronic signatures for method changes, and immutable run history archives—all aligned with ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available).

Applications

• Environmental: Quantification of BTEX, chlorinated solvents, and trihalomethanes in groundwater per EPA Methods 502.2, 524.4, and 624
• Pharmaceutical: Residual solvent profiling in APIs and drug products per ICH Q3C guidelines (Classes 1–3), including acetone, dichloromethane, and ethanol
• Food Safety: Ethanol fermentation monitoring, off-flavor compound screening (e.g., geosmin, 2-methylisoborneol), and packaging migration studies
• Forensics: Blood alcohol content (BAC) determination and ignitable liquid residue (ILR) identification in arson investigations
• Materials Science: Volatile organic emissions testing from polymers, adhesives, and composites per ASTM D7358 and ISO 16000-9

FAQ

Is this unit factory-reconditioned or dealer-refurbished?
This TurboMatrix 16 is a professionally serviced used instrument, verified for mechanical integrity, thermal accuracy, pressure stability, and valve timing consistency against PerkinElmer OEM specifications. Full service documentation—including leak test reports and temperature calibration certificates—is available upon request.
Can it be integrated with Agilent or Thermo GC systems?
Yes. The TurboMatrix 16 uses industry-standard TTL/relay triggers and analog voltage signals for GC synchronization. Integration kits and protocol guides for Agilent 7890/8890, Thermo ISQ/TRACE series, and Shimadzu GC-2030 are provided by PerkinElmer and third-party application specialists.
What maintenance is required prior to deployment?
Recommended pre-use verification includes septum replacement, vial crimper calibration, carrier gas line purge, and a three-point temperature validation across the 50–180 °C range using NIST-traceable probes.
Does the 6-month warranty cover electronics and pneumatic components?
Yes. The warranty covers all functional subsystems—including touchscreen controller, heater circuits, solenoid valves, pressure sensors, and PPC modules—subject to standard terms excluding consumables and damage from improper installation or ambient conditions outside 15–32 °C.
