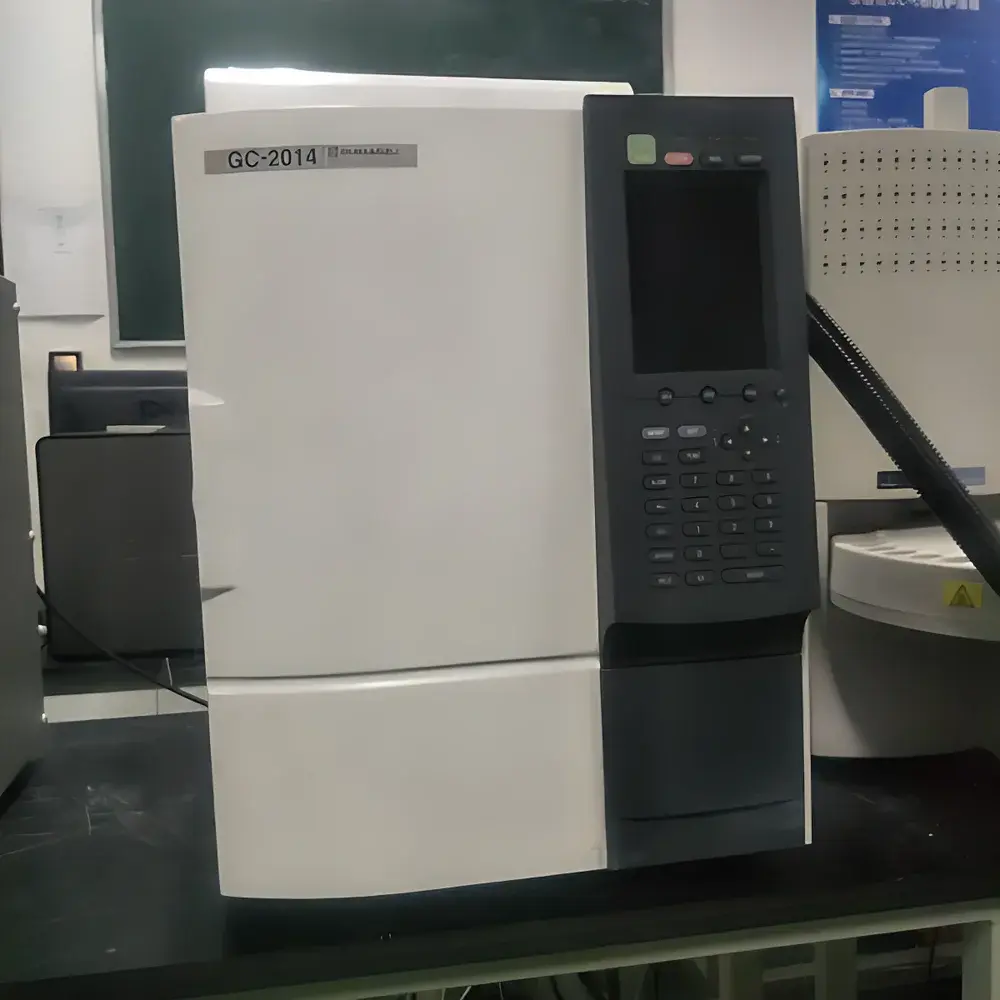

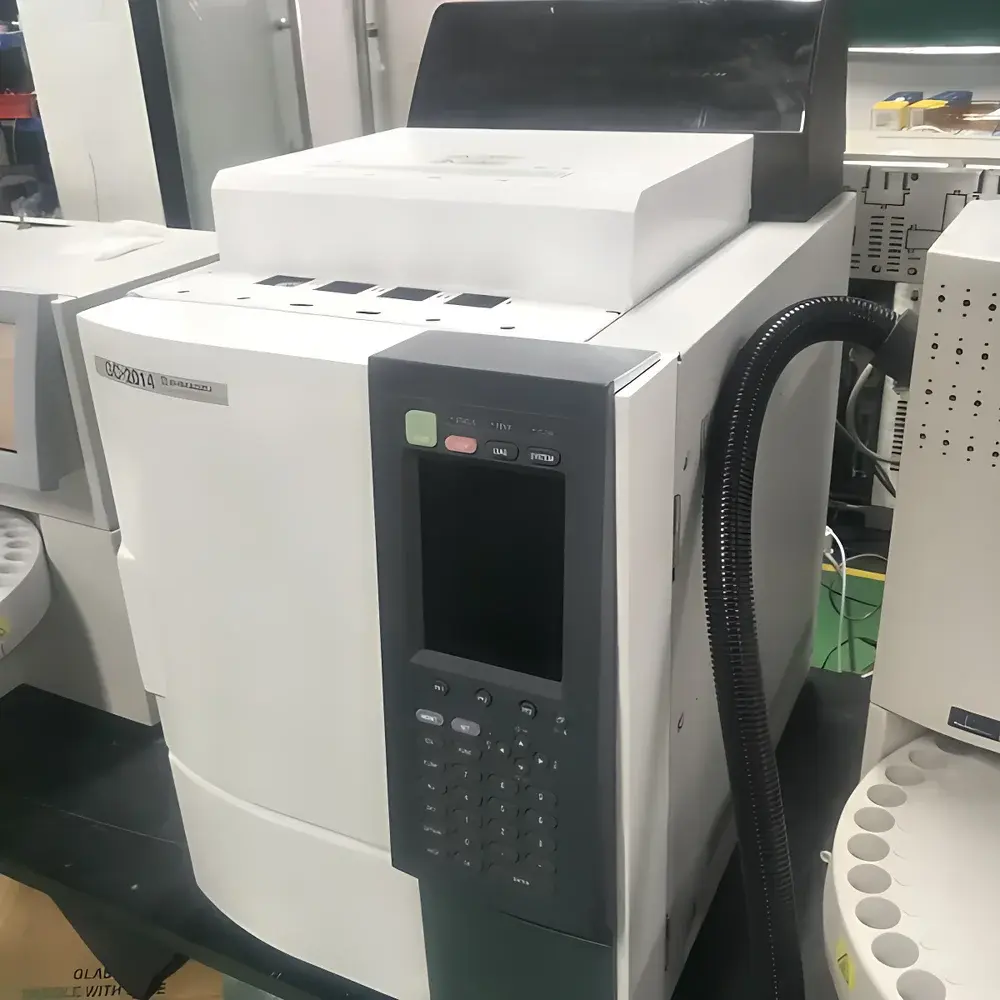

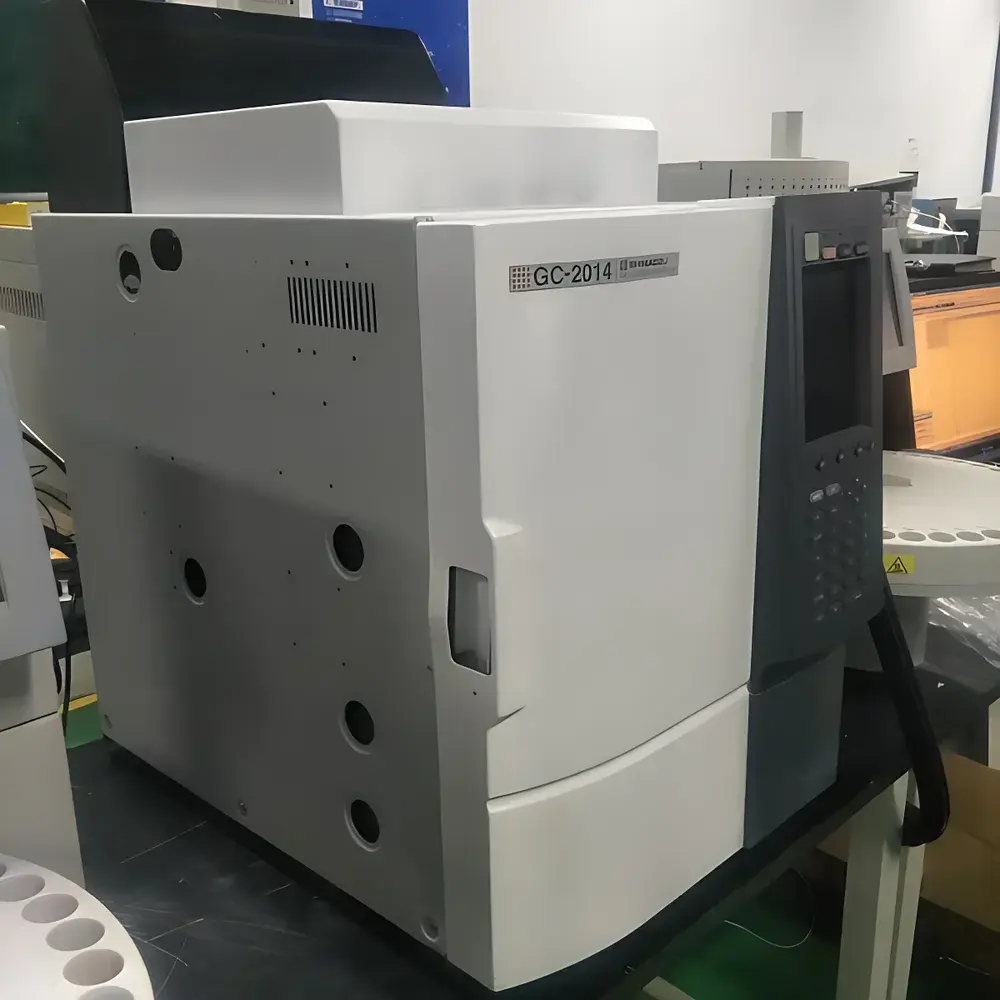

Shimadzu GC-2014 Used Gas Chromatograph
| Brand | Shimadzu |
|---|---|
| Origin | Japan |
| Model | GC-2014 |
| Instrument Type | Laboratory Gas Chromatograph |
| Temperature Control Range | Ambient +4 °C to 450 °C |
| Oven Ramp Rate | 0.1–40 °C/min |
| Cooling Rate | 450 °C to 50 °C |
| Carrier Gas Flow Range & Control | 0–1200 mL/min |
| Carrier Gas Pressure Range & Control | 0–970 kPa |
| Injector Maximum Operating Temperature | 450 °C |
| Injector Pressure Setting Range | 0–970 kPa |
| Injector Total Flow Setting Range | 0–1200 mL/min |
Overview
The Shimadzu GC-2014 is a robust, benchtop gas chromatograph engineered for precision separation and quantitative analysis of volatile and semi-volatile organic compounds. Based on proven packed and capillary column chromatography principles, it employs temperature-programmed oven control, pressure- and flow-regulated carrier gas delivery, and thermally stable inlet systems to ensure high reproducibility across routine and method-developed applications. Designed and manufactured in Japan, the GC-2014 complies with fundamental instrumental requirements outlined in ISO 17025-accredited laboratories and supports method validation frameworks aligned with USP Chromatography (USP <621>), ASTM D3699 (hydrocarbon analysis), and EPA Method 8021B (halogenated organics). Its modular architecture allows integration with flame ionization detection (FID), thermal conductivity detection (TCD), or electron capture detection (ECD) — all operated under dedicated, digitally stabilized power supplies.
Key Features
- Programmable oven with precise temperature control from ambient +4 °C to 450 °C, enabling broad analyte volatility coverage including high-boiling pesticides and PAHs
- Linear ramp rate control from 0.1 to 40 °C/min, supporting both fast screening and high-resolution separations
- Independent carrier gas pressure and flow regulation (0–970 kPa / 0–1200 mL/min) for method transfer consistency and retention time stability
- High-temperature injector (up to 450 °C) compatible with split/splitless, on-column, and PTV injection modes
- Integrated electronic pneumatic control (EPC) module for real-time pressure/flow feedback and automated method execution
- Compact footprint and low power consumption optimized for shared lab environments and QC/QA workflows
Sample Compatibility & Compliance
The GC-2014 accommodates standard 0.1–0.53 mm ID fused-silica capillary columns and packed stainless-steel or glass columns. It is routinely deployed in regulated environments where trace-level quantification is required — including pharmaceutical residual solvent testing (ICH Q2(R2)), environmental water and soil extract analysis (EPA SW-846), and food contaminant screening (EU Regulation 2023/2053). While the instrument itself does not include built-in 21 CFR Part 11 compliance features, its analog/digital I/O ports support connection to validated third-party data systems that provide audit trail, electronic signature, and user access control capabilities consistent with GLP and GMP documentation standards.
Software & Data Management
Original Shimadzu Class GC software (v3.x or later) provides full instrument control, sequence management, peak integration, calibration curve generation, and report export (PDF, CSV, XML). Raw data files (.gcw) are stored in a structured hierarchical format supporting retrospective reprocessing and metadata tagging. The system supports LIMS integration via ASTM E1384-compliant ASCII export and optional OPC UA server modules for enterprise-level connectivity. All software installations must be performed using licensed media; no cloud-based or subscription licensing is embedded in the GC-2014 platform.
Applications
- Residual solvent analysis in active pharmaceutical ingredients (APIs) per ICH Q3C guidelines
- VOC profiling in indoor air, drinking water, and industrial effluents (EPA TO-17, EPA 502.2)
- Fatty acid methyl ester (FAME) composition in biodiesel feedstocks (ASTM D6584)
- Pesticide multiresidue screening in fruits, vegetables, and cereals (EN 15662:2018)
- Hydrocarbon group-type analysis (HTGA) in petroleum products (ASTM D5186)
- Monomer purity assessment in polymer manufacturing (e.g., vinyl chloride, styrene)
FAQ
Is the GC-2014 compatible with modern capillary columns and detectors?
Yes — it supports industry-standard 0.1–0.53 mm ID fused-silica columns and interfaces seamlessly with FID, TCD, and ECD detectors via standardized electrical and mechanical connections.
Does the system include factory calibration certificates or performance verification reports?
Each refurbished unit undergoes operational verification per Shimadzu’s internal GC-2014 PQ checklist, including temperature accuracy, retention time repeatability, and detector linearity testing; formal calibration certificates require third-party metrology services.
Can the GC-2014 be integrated into an existing LIMS environment?
Yes — through ASCII data export, ODBC drivers, or optional OPC UA gateway modules, enabling bidirectional communication with compliant laboratory information management systems.
What maintenance documentation and spare parts availability can be expected?
All units ship with service history logs, consumables inventory list (septa, liners, ferrules), and access to Shimadzu’s global parts catalog; critical spares (injector components, oven heaters, EPC solenoids) remain available through authorized distributors.
