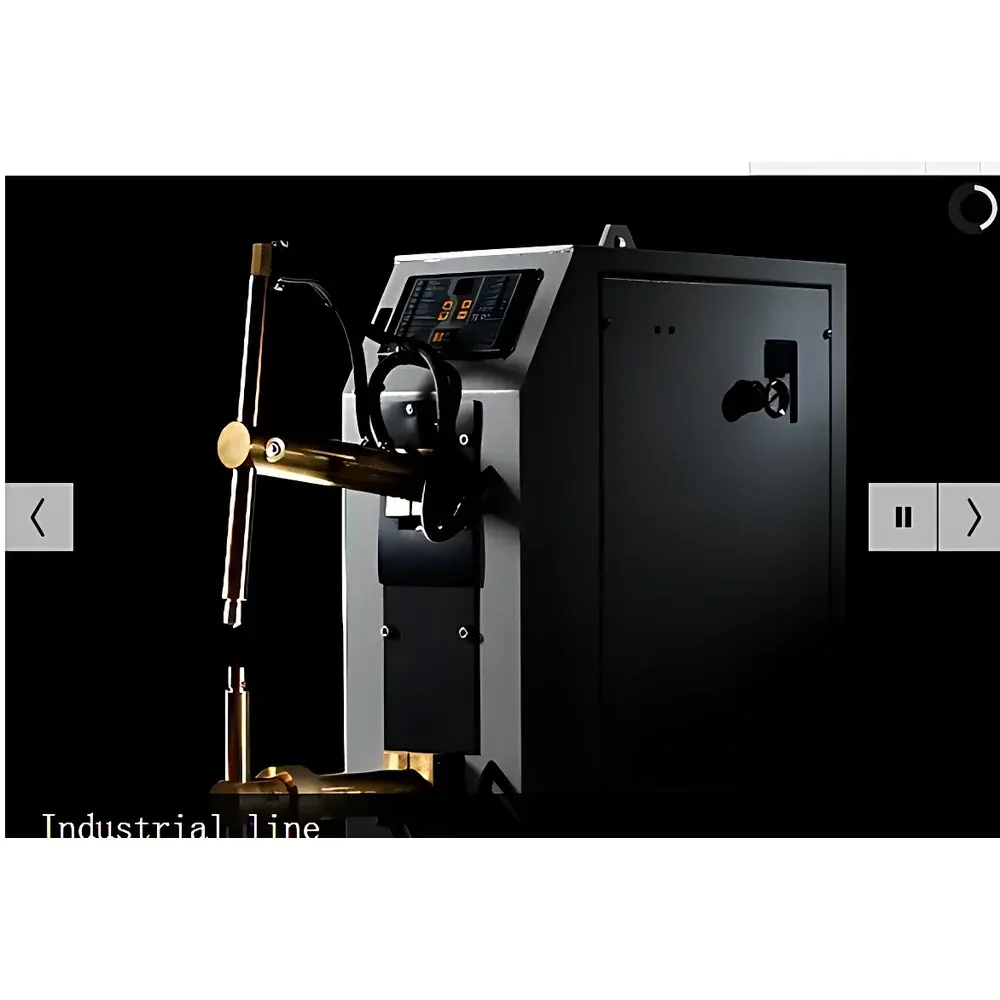

Tecna Spot Welding Machines, Balancers & Side-Positioning Systems
| Origin | UK |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | TECNA Series |
| Pricing | Available Upon Request |
Overview
Tecna spot welding machines, balancers, and side-positioning systems are engineered for high-reliability resistance welding in industrial manufacturing, automotive repair, and sheet metal fabrication environments. These systems operate on the principle of resistance spot welding (RSW), where controlled electrical current passes through overlapping metal sheets under mechanical pressure, generating localized Joule heating at the interface to form a metallurgical bond. The TECNA series encompasses a comprehensive range of configurations—including single-phase linear-actuation units (16–150 kVA), DC-powered welders (35–315 kVA), three-phase linear-action systems with integrated transformers (100–630 kVA), and mid-frequency inverter-based guns (56–140 kVA)—designed to meet varying thermal mass, joint geometry, and production throughput requirements. All units comply with IEC 60974-1 (arc welding equipment safety) and IEC 62829 (resistance welding machine performance standards), and support integration into ISO 9001-certified quality management workflows.
Key Features
- Modular architecture enabling configuration flexibility: dual-spot, rocker-arm, linear-actuation, and portable standalone variants
- Integrated transformer designs for compact footprint and reduced secondary impedance—critical for stable nugget formation in high-conductivity alloys
- Pneumatically actuated suspension guns with precision force control (±2% repeatability) and adjustable stroke length (up to 120 mm)
- Mid-frequency inverter technology (1 kHz) delivering superior current regulation, reduced power consumption, and improved electrode life versus conventional 50/60 Hz systems

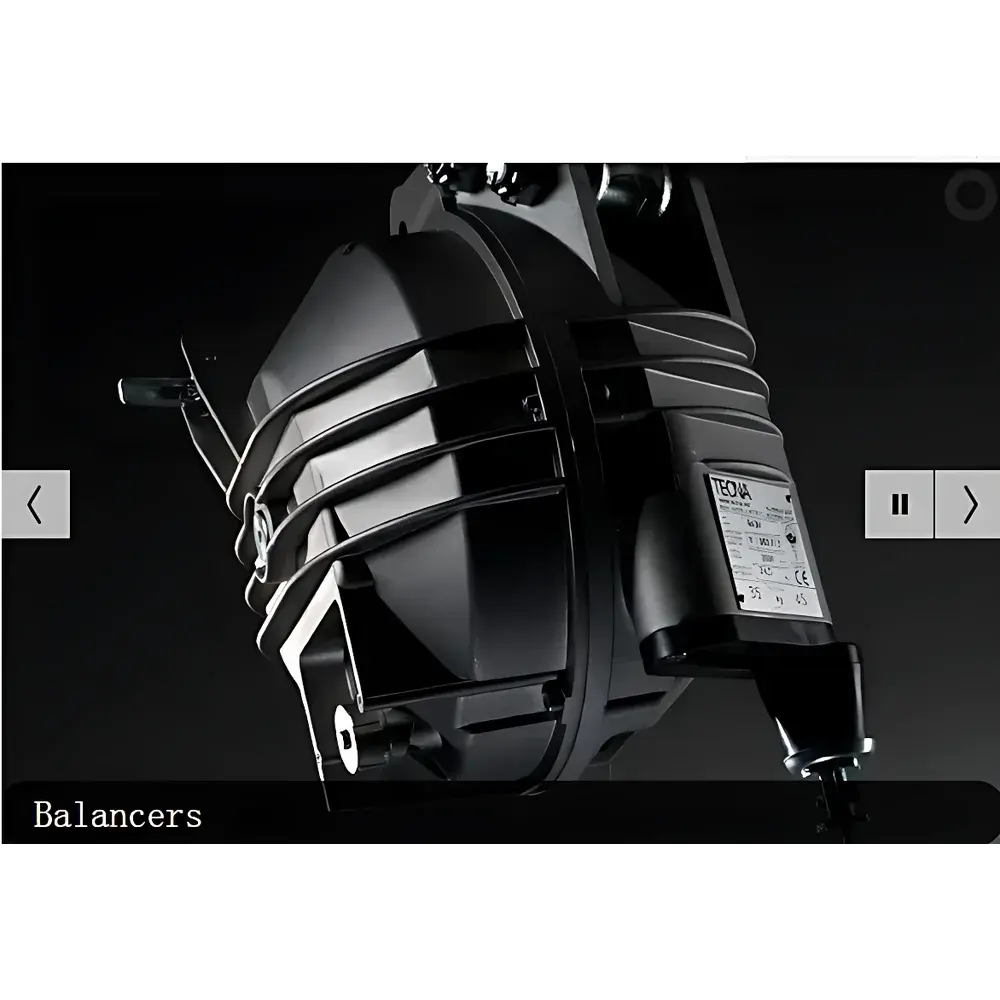

- Robust mechanical balance systems for ergonomic operator use during extended manual welding cycles; compliant with EN 1005-3 (safety of machinery – human physical limitations)
- Side-positioning fixtures with ±0.1 mm positional repeatability, designed for precise alignment of asymmetrical or deep-draw components prior to clamping
Sample Compatibility & Compliance
The TECNA platform accommodates ferrous and non-ferrous sheet materials from 0.5 mm to 3.0 mm thickness, including low-carbon steel, galvanized steel, stainless steels (AISI 304, 430), aluminum alloys (5xxx and 6xxx series), and coated laminates. Electrode tip geometries (truncated cone, domed, flat) are selected per material stack-up and surface condition per AWS D8.9M guidelines. All systems support traceable process parameter logging aligned with automotive OEM requirements (e.g., VW 60310, Ford WSS-M99P1111-A). Electrical safety certification includes CE marking under the Machinery Directive 2006/42/EC and Low Voltage Directive 2014/35/EU.
Software & Data Management
Tecna welding controllers feature embedded programmable logic with up to 100 stored weld schedules, each configurable for preheat, main weld, post-weld hold, and adaptive current ramping. Optional Ethernet/IP or PROFINET interfaces enable real-time data exchange with MES platforms (e.g., Siemens Opcenter, Rockwell FactoryTalk). Audit trail functionality records timestamped parameter changes, operator ID, and fault events—supporting compliance with FDA 21 CFR Part 11 when deployed in regulated medical device assembly lines. Data export is available in CSV and XML formats for SPC analysis using Minitab or JMP.
Applications
- Automotive body-in-white (BIW) assembly: door hinges, roof rails, subframes
- Aftermarket collision repair shops requiring portable, single-phase-capable units (2–20 kVA) for on-site chassis reinforcement
- Aerospace component repair: localized joining of aluminum skin patches with minimal heat-affected zone (HAZ)
- White goods manufacturing: drum assemblies, compressor brackets, and control panel enclosures
- Electrical cabinet fabrication: grounding lug attachment, busbar interconnects, and EMI shield bonding
FAQ
What certifications do TECNA welding systems carry for European deployment?
All units are CE-marked and conform to EN 60204-1 (electrical equipment of machines), EN 61000-6-2 (EMC immunity), and EN 61000-6-4 (EMC emissions). Documentation includes EU Declaration of Conformity and technical files available upon request.
Can TECNA systems be validated for GMP-regulated environments?
Yes—when equipped with optional audit-trail firmware and user access controls, systems meet baseline requirements for IQ/OQ documentation under ASTM E2500 and can be included in facility-wide 21 CFR Part 11 validation protocols.
Is remote diagnostics supported?
Standard RS-485 Modbus RTU communication enables basic status monitoring; optional Ethernet modules support secure remote firmware updates and diagnostic log retrieval via TLS-encrypted connections.
What electrode cooling options are available?
Air-cooled, recirculating water-cooled, and closed-loop chiller-integrated solutions are offered—selection depends on duty cycle, material conductivity, and ambient temperature per ISO 5826 recommendations.
Do side-positioning systems integrate with robotic cells?
Yes—precision-machined mounting interfaces and digital I/O signals allow synchronization with ABB, KUKA, and FANUC robot controllers via standard PROFIBUS or DeviceNet gateways.
