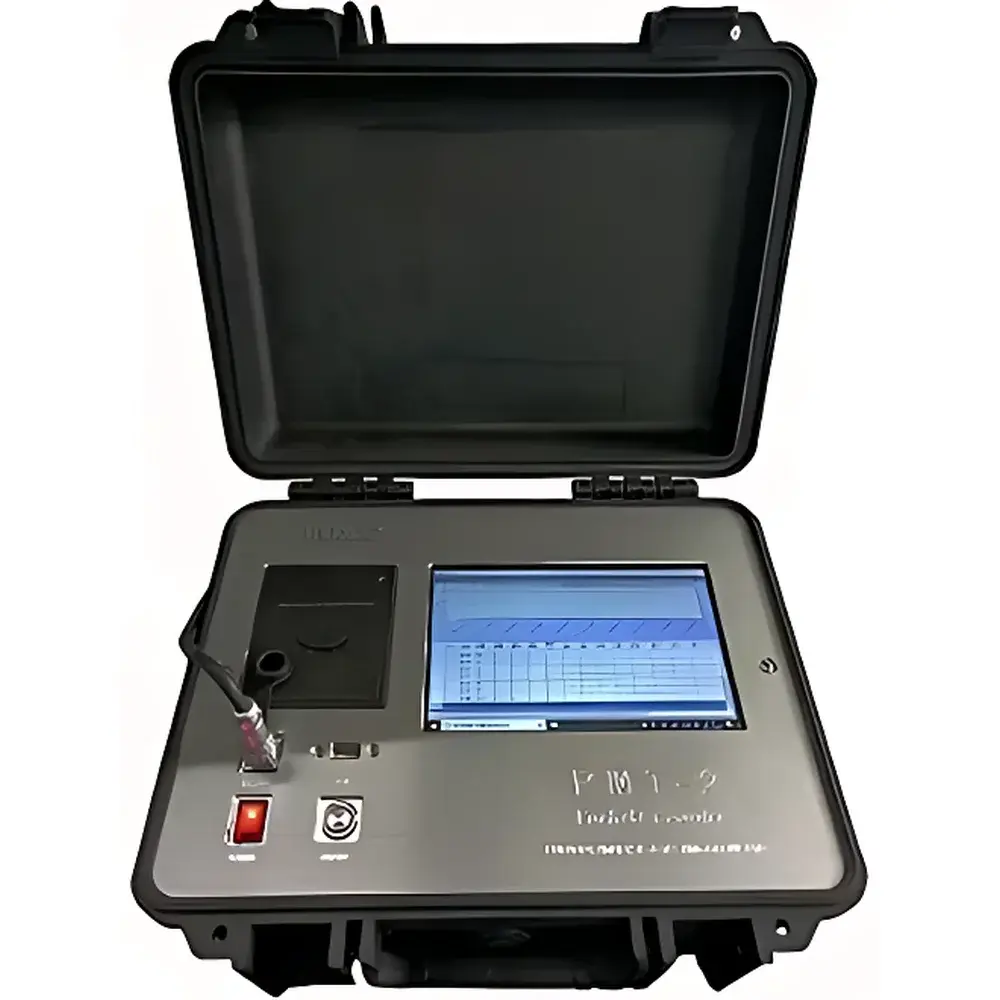

PULUODY PMT-2-8 Power Plant Oil Particle Contamination Analyzer

Overview

The PULUODY PMT-2-8 Power Plant Oil Particle Contamination Analyzer is a precision-engineered light obscuration (LO) particle counter designed specifically for high-integrity fluid condition monitoring in critical power generation infrastructure. Built upon the proprietary 7th-generation dual-laser narrow-beam optical sensing architecture licensed from UK-based PULUODY technology foundations, the instrument delivers traceable, repeatable quantification of solid particulate contamination across a broad dynamic range—from sub-micron nucleation sites to coarse wear debris. Its core measurement principle adheres strictly to ISO 11500 and DL/T 432, utilizing calibrated photodetector arrays to convert transient light blockage events into volumetric particle counts per milliliter (particles/mL), subsequently mapped to internationally recognized cleanliness codes including ISO 4406:1999/2017, NAS 1638, and SAE AS4059D. The system is purpose-built for continuous or discrete assessment of insulating oils (e.g., transformer oil), turbine oils (steam/gas), hydraulic fluids, and lubricants within thermal, nuclear, hydroelectric, and renewable energy facilities—where particulate-induced dielectric breakdown, valve stiction, or bearing surface fatigue directly impact grid reliability and asset lifecycle.

Key Features

• 7th-generation dual-laser narrow-beam sensor with real-time signal discrimination, minimizing coincidence error and enhancing resolution below 1 µm
• Configurable detection thresholds: standard 4–70 µm(c) and 2–100 µm ranges compliant with ISO 11171 (MTD calibration) and ISO 4402 (ACFTD traceability)
• 1000 programmable size bins enabling granular distribution analysis; user-definable reporting on any 16 channels (e.g., ≥4 µm(c), ≥6 µm(c), ≥14 µm(c), ≥21 µm(c), ≥25 µm(c), ≥38 µm(c), ≥50 µm(c), ≥68 µm(c))
• Integrated industrial-grade control architecture: embedded ruggedized PC or optional external IPC interface with Windows IoT support
• Full compliance with metrological traceability requirements: certified calibration per GB/T 18854, ISO 4402, and ISO 11171; validated by National Northwest Metrology Testing Center (civil) and CALIBRATION STATION NO.116, Commission of Science, Technology and Industry for National Defense (military)
• Robust online operation: pressure-rated up to 50 MPa (with integrated pressure-reducing valve), fluid temperature tolerance 0–80 °C, viscosity handling up to 500 mm²/s
• Automated sample delivery via precision metering pump; independent cleaning cycle (20–150 mL/min) minimizes carryover between analyses

Sample Compatibility & Compliance

The PMT-2-8 supports offline laboratory analysis, portable field deployment (with optional sampling chamber), and permanent online installation in pressurized lube-oil or sealed hydraulic circuits. It is validated for use with mineral-based, synthetic, and bio-derived oils—including transformer oil (IEC 60296), turbine oil (ASTM D4379), hydraulic fluid (ISO 11158), gear oil (API GL-5), and aviation fuels (JP-5, Jet A-1). All reported data meet regulatory and quality system requirements for ISO/IEC 17025-accredited laboratories, GLP-compliant environments, and GMP-aligned maintenance programs. Instrument firmware and software architecture support full audit trail functionality, electronic signature capability, and 21 CFR Part 11 readiness when deployed with validated P6.4 software configuration.

Software & Data Management

The P6.4 Integrated Analysis Suite provides unified control, acquisition, statistical evaluation, and report generation across both embedded and PC platforms. It includes automated pass/fail grading against user-loaded standards (e.g., ISO 4406 Class 12/9/6), trend analysis with Weibull and histogram overlays, batch comparison tools, and customizable PDF/Excel export templates. Raw pulse data logging enables retrospective reprocessing without re-sampling. System memory retains ≥20,000 test records; external storage via USB flash drive allows unlimited archival. Communication protocols include Modbus RTU (RS485), ASCII over RS232, and native USB CDC, facilitating integration into SCADA, CMMS, and enterprise asset management (EAM) systems.

Applications

• Real-time contamination monitoring of transformer oil in substation and generator step-up (GSU) transformers
• Condition-based maintenance of steam turbine control oil systems and gas turbine hydraulic actuators
• Wear debris trending in gearbox sumps and circulating lubrication systems for wind turbine gearboxes
• Pre-commissioning verification of hydraulic fluid cleanliness per ISO 4406 Class 13/10 prior to turbine startup
• Root cause analysis of insulation failure events through correlation of particle morphology and concentration shifts
• Validation of filtration efficiency during oil reclamation and purification processes
• Compliance testing for DL/T 1096 (power plant oil cleanliness specifications) and GJB 420B (military aircraft hydraulic fluid standards)

FAQ

Does the PMT-2-8 comply with ISO 4406:2017 and NAS 1638?
Yes. The instrument reports results directly in ISO 4406 code format (e.g., 18/16/13) and NAS class numbers, with full adherence to counting statistics defined in ISO 4402 and ISO 11171.
Can it measure particles smaller than 4 µm?
Yes. The optical architecture detects particles down to 0.03 µm; however, reporting below 4 µm(c) requires MTD calibration validation and is typically applied in research-grade lubricant formulation studies.
Is the system suitable for online installation in high-pressure turbine lube oil lines?
Yes. With the integrated pressure regulator, the unit operates continuously at line pressures up to 50 MPa and temperatures up to 80 °C.
How is calibration traceability maintained?
Calibration uses NIST-traceable ISO MTD reference materials, verified annually by CALIBRATION STATION NO.116 or National Northwest Metrology Testing Center, with certificates issued per ISO/IEC 17025.
What data security and audit capabilities does the P6.4 software provide?
P6.4 supports role-based user access, electronic signatures, immutable audit trails, and 21 CFR Part 11-compliant configurations when deployed in regulated environments.
