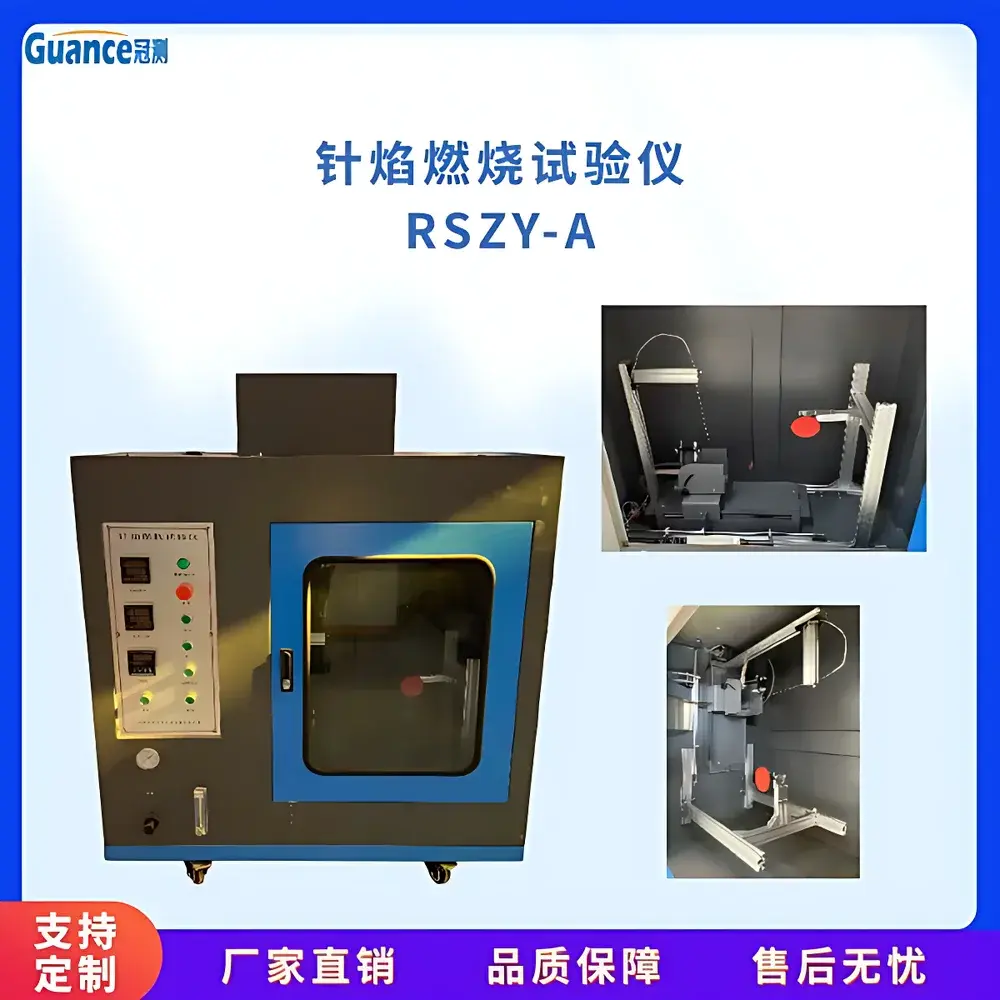

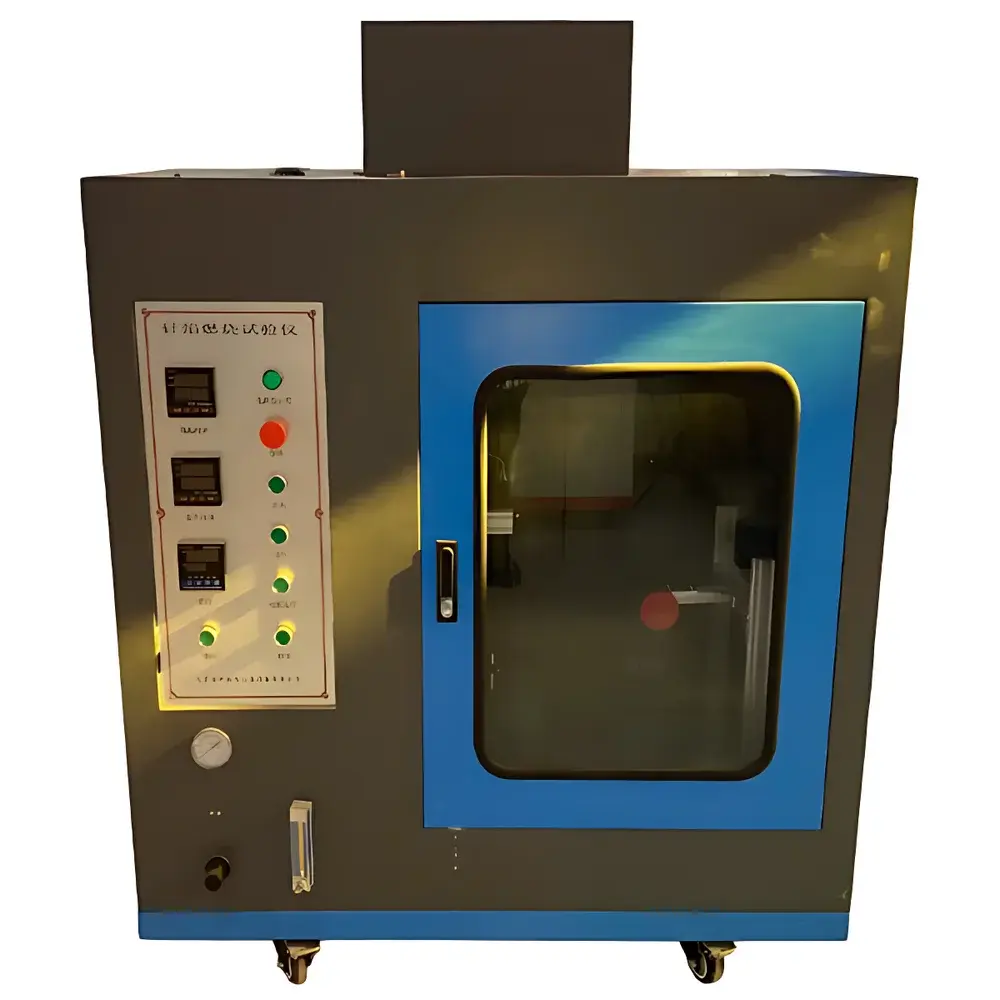

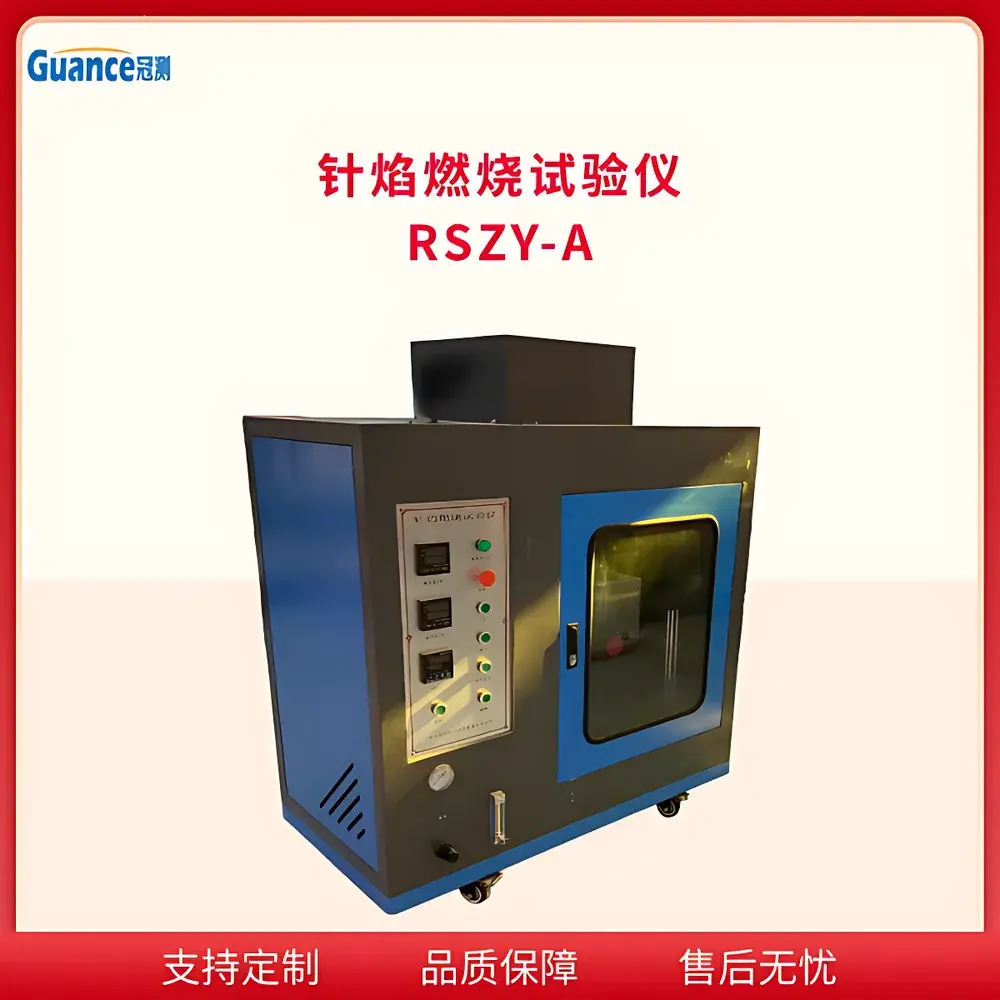

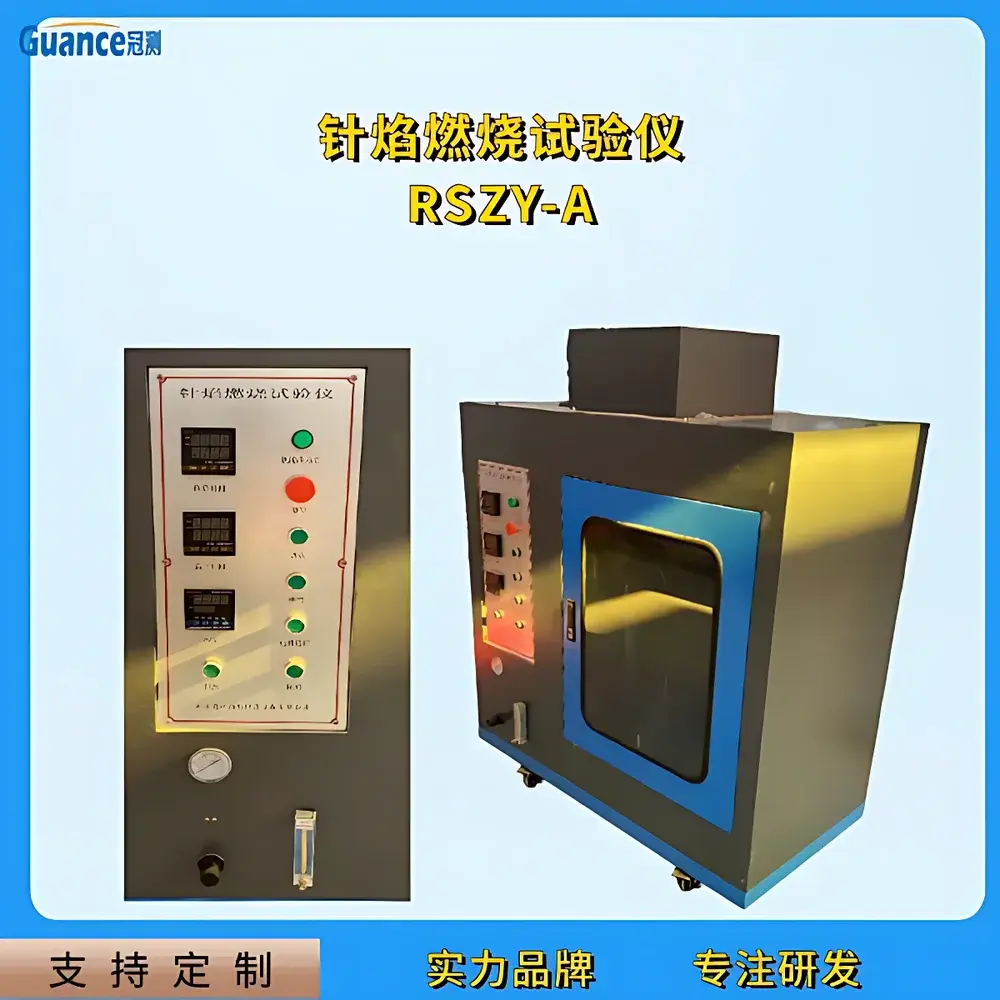

GuanCe Instruments RSZY-A.2 Needle Flame Test Chamber

Overview

The GuanCe Instruments RSZY-A.2 Needle Flame Test Chamber is a precision-engineered apparatus designed to perform needle flame tests in strict accordance with international fire safety standards—including IEC 60695-2-2:2021, GB/T 5169.5–2008, UL 746A, and ASTM D3874–2004. It implements the needle flame test method, wherein a calibrated luminous flame from a precisely dimensioned burner (Ø0.5 mm ±0.1 mm internal diameter) is applied to a test specimen for a defined duration (1–999.9 s). The instrument measures whether the specimen ignites, sustains combustion, or propagates flame beyond specified boundaries—critical parameters for determining compliance with end-product fire hazard classifications in consumer electronics, household appliances, and industrial control equipment. Unlike open-flame or glow-wire testing, the needle flame test simulates localized thermal stress from fault-induced arcing or overheating in low-energy circuits, making it essential for evaluating material resistance to ignition under realistic failure scenarios.

Key Features

• Stainless steel chamber construction (304 grade) ensures corrosion resistance, structural rigidity, and long-term dimensional stability under repeated thermal cycling.
• Adjustable burner assembly supporting dual orientation: vertical (for flame height calibration at 12 mm ±1 mm) and 45° tilt (for standardized specimen exposure per IEC 60695-2-2).
• Integrated high-accuracy pressure-regulated gas delivery system with digital flow indication, calibrated LPG/iso-butane (≥95% purity) supply, and fail-safe shutoff valves.
• Automated burner positioning mechanism: motor-driven carriage returns burner to home position post-test, minimizing operator intervention and enhancing repeatability.
• Dedicated temperature verification subsystem (optional): includes K-type armored thermocouple (Ø0.5 mm, insulated, Class 1 tolerance), certified copper reference mass (0.58 ±0.01 g), and real-time thermal gradient monitoring (100 °C ±2 °C → 700 °C ±3 °C in 23.5 s ±1.0 s).
• Independent ventilation and LED illumination systems maintain consistent ambient oxygen concentration and visual clarity during observation without interfering with flame dynamics.

Sample Compatibility & Compliance

The RSZY-A.2 accommodates flat, rigid, or semi-rigid specimens up to 150 mm × 150 mm × 50 mm, including printed circuit boards (PCBs), insulating housings, connectors, and encapsulated components. Liquid dielectric samples are evaluated using standardized absorbent substrates (10 mm pine board covered with 12–30 g/m² silk paper per IEC 60695-2-2 Annex A). All operational protocols support full traceability for GLP and ISO/IEC 17025-accredited laboratories. The system meets mechanical and procedural requirements for audit readiness under FDA 21 CFR Part 11 (when paired with compliant data logging software), and aligns with the test execution clauses of IEC 60335-1, IEC 60950-1, and IEC 62368-1.

Software & Data Management

While the base RSZY-A.2 operates via front-panel digital timer and manual gas control, optional firmware upgrade enables USB-connected PC interface for automated test sequence logging, timestamped event capture (ignition onset, flame extinction, drip ignition), and CSV export. All stored records include operator ID, ambient temperature/humidity (via external sensor input), gas pressure trace, and calibrated flame duration—enabling full alignment with ISO/IEC 17025 Clause 7.7 (result reporting) and facilitating internal QA review or third-party certification audits.

Applications

• Flammability screening of polymeric enclosures, cable jackets, and terminal blocks used in Class II appliances.
• Validation of flame-retardant additives in thermoplastics (e.g., ABS, PC/ABS, PBT) per UL 94 V-0/V-1/V-2 classification prerequisites.
• Qualification of potting compounds and conformal coatings for automotive ECUs and medical device PCBs.
• Pre-compliance testing prior to formal IEC 60695-2-2 certification at notified bodies (e.g., TÜV Rheinland, SGS, Intertek).
• Root-cause analysis of field failures linked to thermal runaway propagation in power supply modules.

FAQ

What gases are compatible with the RSZY-A.2?
The chamber is calibrated for 95% pure butane (reference gas per IEC 60695-2-2); propane may be used with documented correction factors applied to flame temperature validation.
Is flame temperature verification mandatory before each test?
Per IEC 60695-2-2 Clause 7.2, temperature calibration must be performed at least daily or prior to any test series—verified using the optional thermocouple and copper mass system.
Can the RSZY-A.2 be integrated into an automated test lab environment?
Yes: RS-232 and USB TTL interfaces support SCPI command sets for remote start/stop, duration presetting, and pass/fail status polling—compatible with LabVIEW, Python-based test orchestration, and MES integration.
Does the unit meet CE or UKCA marking requirements?
The RSZY-A.2 complies with EN 61000-6-3 (EMC) and EN 61000-6-2 (immunity); CE declaration is provided upon request—UKCA requires additional UK-appointed responsible person registration.
What maintenance intervals are recommended?
Burner nozzle inspection every 50 tests; pressure regulator recalibration annually; thermocouple verification before each calibration session using NIST-traceable reference sources.
