| Brand | TAITEC |
|---|---|
| Origin | Japan |
| Model | VC-36R / VC-96R |
| Instrument Type | Vacuum Centrifugal Concentrator |
| Temperature Range | +4°C to +70°C |
| Temperature Control Accuracy | ±0.1°C |
| Sample Capacity | 2.0 mL × 96 (VC-96R) |
| Rotational Speed | 300–2000 rpm (max 440 × g with 36A rotor) |
| Vacuum Range | 0 to –0.1 MPa |
| Timer | 1 min to 99 h 59 min (digital) |
| Chamber Material | SUS304 stainless steel with PTFE coating |
| Lid Material | PVC |
| Vacuum & Vent Nozzle Diameters | Exhaust Φ14 mm, Vent Φ6 mm, Cooling Water Φ12 mm |
| Safety Features | Overcurrent protection, automatic shutdown upon lid opening (heater/rotor/vacuum pump), real-time thermal and motor diagnostics with non-volatile memory logging |
| Brand | TAITEC |
|---|---|
| Origin | Japan |
| Model | VC-96W |
| Instrument Type | Vacuum Centrifugal Concentrator |
| Temperature Range | Room Temperature +5°C to +65°C |
| Temperature Control Accuracy | ±0.1°C |
| Maximum Sample Capacity | 200 mL |
| Rotational Speed | 100–2600 rpm (up to 800 × g with 96S swing rotor) |
| Timer Range | 1–99 min |
| Chamber Material | SUS316 stainless steel with PTFE coating |
| Lid Material | PVC |
| Vacuum Gauge | 0 to –0.1 MPa (Bourdon tube) |
| Vacuum Release | Manual |
| Heating Method | Far-infrared heater |
| Safety Features | Lid interlock power cutoff, independent overheat protection sensor, motor circuit breaker, real-time anomaly display (power failure, rotation error, lid open) |
| Brand | TAITEC |
|---|---|
| Origin | Japan |
| Manufacturer Type | Authorized Distributor |
| Product Origin | Imported |

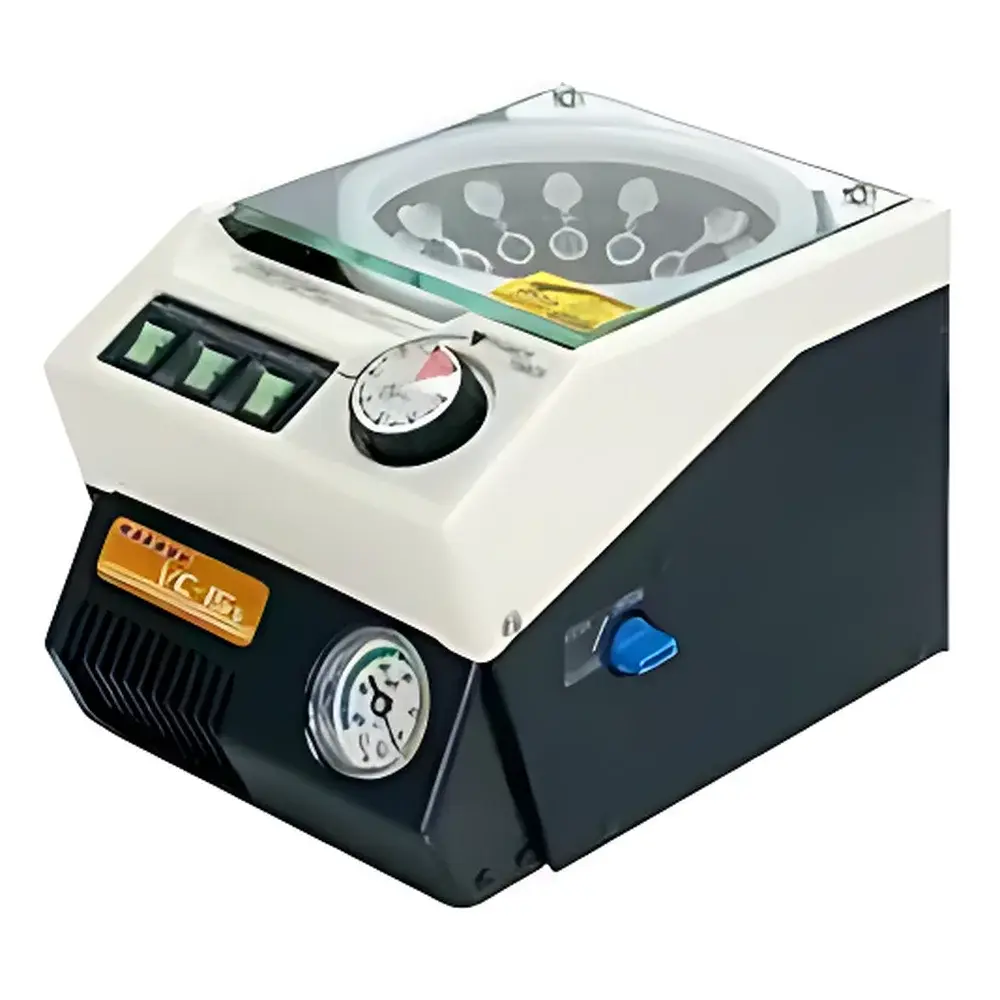

| Model | VC-15S |
| Instrument Type | Vacuum Centrifugal Concentrator |
| Temperature Range | +55 °C |
| Temperature Control Accuracy | ±0.1 °C |
| Sample Capacity | 100 mL |
| Brand | Taitec |
|---|---|
| Origin | Japan |
| Model | TC-8F / TC-8G |
| Instrument Type | Automated Quantitative Vacuum Concentrator |
| Temperature Range | Ambient to +60 °C |
| Temperature Control Accuracy | ±0.2–0.3 °C |
| Sample Capacity | 8 × 50 mL tubes (TC-8F requires full 8-tube loading |
| Heating Power | 150 W |
| Vacuum Requirement | Compatible with Q-1 water aspirator pump (6–7 L/min, ultimate vacuum 3.2–38.7 kPa depending on solvent and coolant temperature) |
| Dimensions (TC-8F) | 190 × 285 × 355 mm (W×D×H) |
| (TC-8G) | 230 × 285 × 355 mm |
| Weight | ~10.5 kg |
| Power Supply | AC 220 V, 1 A |
