| Brand | Amptek |
|---|---|
| Origin | USA |
| Model | MCA8000D |
| Detector Interface | Analog Pulse Input (Unipolar/Bipolar) |
| ADC | 100 MHz, 16-bit |
| Channel Count | Up to 8192 (8K) |
| Differential Nonlinearity | < ±0.6% |
| Integral Nonlinearity | < ±0.02% |
| Peak Pileup Rejection | Dual TTL-compatible Gate Inputs (GATE1/GATE2) |
| Communication Interfaces | USB 2.0 Full-Speed (12 Mbps), RS-232 (115 kbps), 10BASE-T Ethernet (10 Mbps) |
| Input Voltage Range | 0–1 V or 0–10 V (software-selectable) |
| Input Impedance | 1 kΩ or 100 kΩ (factory-configurable) |
| Minimum Pulse Height | 5 mV |
| Pulse Peaking Time | ≥500 ns (200 ns shaping) |
| Conversion Time | 10 ns |
| Sliding-Scale Linearization | Yes |
| Operating Temperature | –20 °C to +60 °C |
| Dimensions | 125 × 71 × 20 mm |
| Weight | 165 g |
| Power | +4–5.5 V DC, ≤2 W (USB or external AC/DC adapter) |
| Brand | Amptek |
|---|---|
| Origin | USA |
| Model | PA-210/PA-230 |
| Power Supply Requirements | +5 VDC / −5 VDC (±50 mV ripple, 15 mA each) |
| HV Input Range | +100 to +200 V (Si-PIN), −90 to −260 V (SDD/CdTe) |
| TEC Drive | 3.5 V / 350 mA (max), <0.1 Vpp noise |
| Temperature Sensing | 160 µA-biased diode output (calibrated to 230 K minimum operating point) |
| Connector | 10-pin micro coaxial (0.025" pitch) |
| Mechanical Form Factors | Cylindrical (PA-210, Ø18 mm × 40 mm) and Flexible PCB-mount (PA-230) |
| Compliance | Designed for OEM integration into ISO/IEC 17025-compliant XRF, XRD, and EDX systems |
| Brand | Amptek |
|---|---|
| Origin | USA |

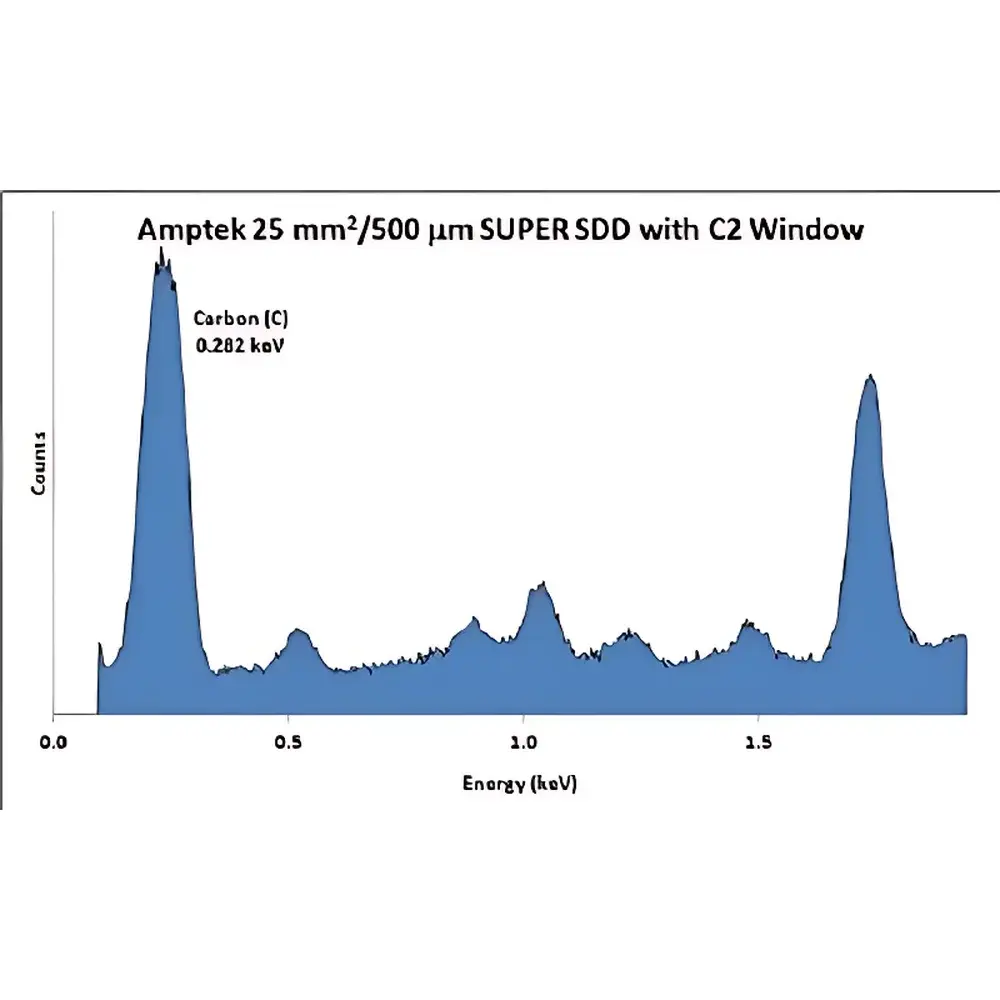

| Model | C1/C2 |
| Window Substrate | Silicon Nitride (Si₃N₄) |
| Front Coating | Aluminum |
| Thickness | C1 ≈ 80 nm, C2 ≈ 150 nm |
| Compatible Detectors | SuperSDD®, standard SDDs (25 mm² / 50 mm² active area) |
| Energy Range Enhancement | Extended low-energy response down to boron (B, 183 eV) and carbon (C, 277 eV) |
| Compliance | RoHS-compliant, vacuum-compatible, TEM-grid compatible |
| Mounting | Standard 3.5 mm or 5.0 mm diameter window frames |
| Brand | Amptek |
|---|---|
| Origin | USA |
| Model | XRT-450 |
| Target Anode | Ag (customizable) |
| Window | Be, 125 µm |
| Focal Spot Size | <150 µm FWHM |
| Beam Divergence | 120° |
| Operating Voltage | 5–50 kV |
| Max Tube Current | 250 µA |
| Max Output Power | 6 W |
| Input Voltage | 20 VDC |
| HV Polarity | Anode Grounded |
| Cooling | Conduction or Convection |
| Mounting | Threaded Nozzle |
| Weight | 400 g |
| Operating Temperature | –10 °C to +50 °C |
| Radiation Shielding Compliance | IEC 62495 |
| RoHS Compliance | RoHS3 |
| Warranty | 2 years or 4000 operating hours |
