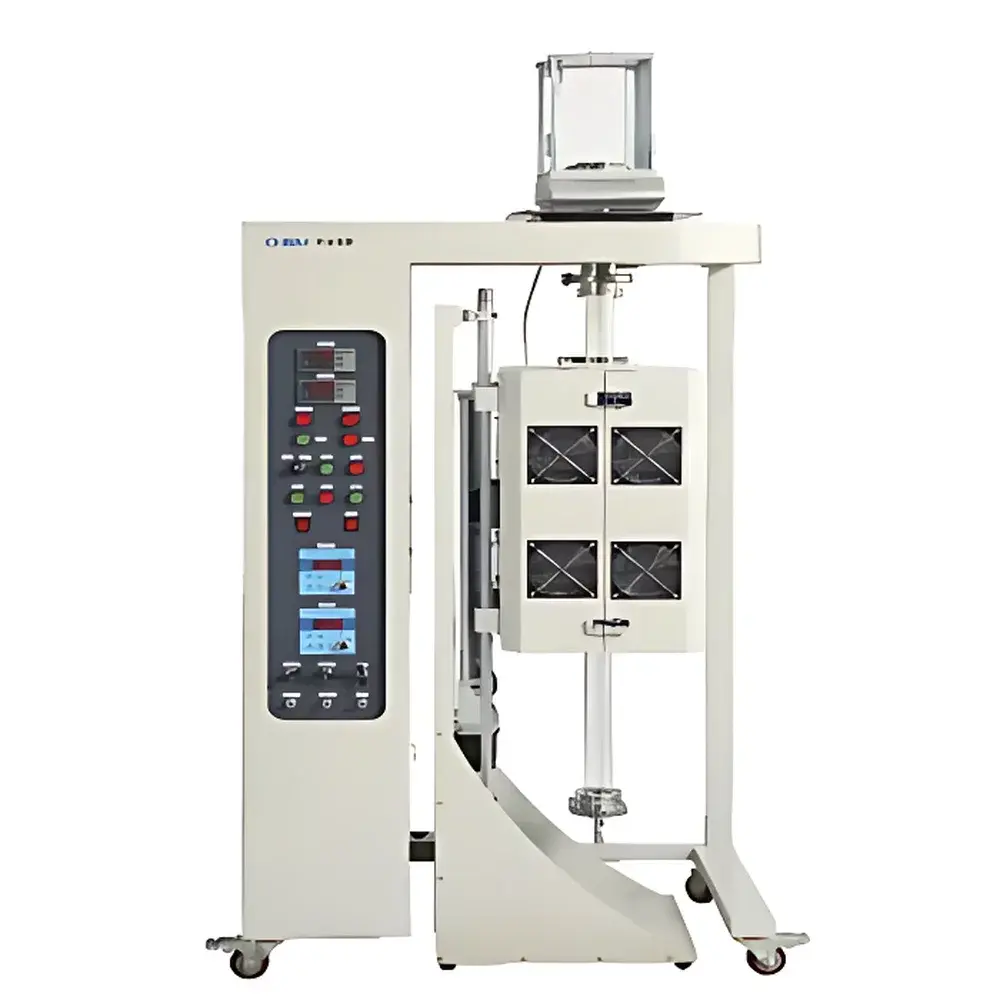

| Brand | CHEMn |
|---|---|
| Origin | Anhui, China |
| Model | TFD-1200-50-II-200-RZ |
| Max Temperature | 1200 °C |
| Temperature Control Accuracy | ±1 °C |
| Max Power | 1.5 kW |
| Heating Rate (to Max Temp) | ≤10 °C/min |
| Heating Method | Resistance Wire Heating |
| Chamber Configuration | Dual Independent Temperature Zones (ΔT ≤ 200 °C) |
| Internal Dimensions | Customizable |
| Instrument Type | Vertical Lift-Type TGA Furnace |
| Core Function | High-Temperature Atmosphere-Controlled Mass Change Monitoring |
| Brand | Ahkemi |
|---|---|
| Origin | Anhui, China |
| Model | TFG-1200-50-I-220 |
| Instrument Type | Vertical Tube Furnace |
| Max Temperature | 1100 °C |
| Temperature Control Accuracy | ±1 °C |
| Max Power | 2.0 kW |
| Heating Rate (to Max Temp) | ≤10 °C/min |
| Heating Method | Resistance Wire |
| Internal Chamber Dimensions | 660 × 320 × 580 mm |
| Tube ID × Length | 50 × 450 mm |
| Sample Boat Capacity | 10 mL (customizable) |
| Sample Boat Diameter | 30 mm |
| Heated Zone Length | 220 mm |
| Mass Flow Range (Rotameter) | 30–200 mL/min (customizable) |
| Control System | Dual-Channel Intelligent Programmable Controller with Color Touchscreen |
| Power Supply | AC 220 V, 50/60 Hz |
| Weight | 35 kg |
| Brand | Ahkemi |
|---|---|
| Origin | Anhui, China |
| Model | TFH-1500-50-I-400 |
| Max Temperature | 1500 °C (short-term), 1400 °C (rated) |
| Temperature Control Accuracy | ±1 °C |
| Max Power | 6 kW |
| Heating Rate | ≤10 °C/min (up to 1400 °C) |
| Heating Element | SiC Rods |
| Internal Dimensions | 670 × 580 × 750 mm |
| Tube Diameter | φ50 mm or φ60 mm × 1000 mm (customizable) |
| Heating Zone Length | 390 mm |
| Control System | Yudian AI-3756P touchscreen controller with 30-segment programmable PID, fuzzy logic auto-tuning, over-temperature & thermocouple failure alarms |
| Thermocouple Type | S-type |
| Vacuum/Atmosphere Compatibility | Yes (with 316L stainless steel quick-release flanges and dual-ring sealing) |
| Cooling | Dual-layer forced-air cooling (surface temp ≤60 °C) |
| Weight | 75 kg |
| Power Supply | AC 220 V, 50/60 Hz |
| Brand | Ahkemi |
|---|---|
| Origin | Anhui, China |
| Model | TFD-1100-70-RZ |
| Max Temperature | 1100 °C |
| Rated Temperature | 1000 °C |
| Temperature Control Accuracy | ±1 °C |
| Heating Rate (to max temp) | ≤10 °C/min |
| Heating Method | Resistive Wire Heating |
| Internal Dimensions | 800 × 500 × 1550 mm |
| Tube Dimensions | φ70 × φ50 × 350 mm (customizable) |
| Heating Zone Length | 220 mm |
| Rated Power | 3.5 kW |
| Dual-Zone Variant Power | 4.5 kW |
| Dual-Zone Heating Length | 2 × 200 mm |
| Gas Flow Control | Two Mass Flow Controllers (N₂ & CO₂, 0–2 SLM each) |
| Balance Range | 0–220 g |
| Balance Readability | 0.1 mg |
| Cooling | Dual-layer forced-air cooling |
| Surface Temperature | ≤60 °C |
| Temperature Programming | 30-segment programmable controller (Yudian PID with K-type thermocouple) |
| Brand | Ahkemi |
|---|---|
| Origin | Anhui, China |
| Model | TFP-1200-51-I-440-NH3 |
| Max. Temperature | 1000 °C |
| Temp. Control Accuracy | ±1 °C |
| Max. Power | 1.5 kW |
| Heating Rate (to max temp) | 10 °C/min |
| Heating Element | MoSi₂ (1800-grade) |
| External Dimensions | 1250 × 650 × 1330 mm |
| Tube ID/OD/Length | Ø45 / Ø51 / 1000 mm |
| Tube Material | GH202 nickel-based superalloy |
| Max. Operating Pressure | 10 MPa (≤800 °C) |
| Pressure Monitoring | Dual 0–16 MPa transducers + triple mechanical gauges |
| Gas Flow Control | Inlet MFC (0–500 sccm), Outlet MFC (0–1000 sccm) |
| Oxygen Detection | 0–1000 ppm trace O₂ analyzer (H₂-compatible) |
| Safety | High-temp solenoid valve (15 MPa rating), audible overpressure alarm, NH₃-specific exhaust scrubber |

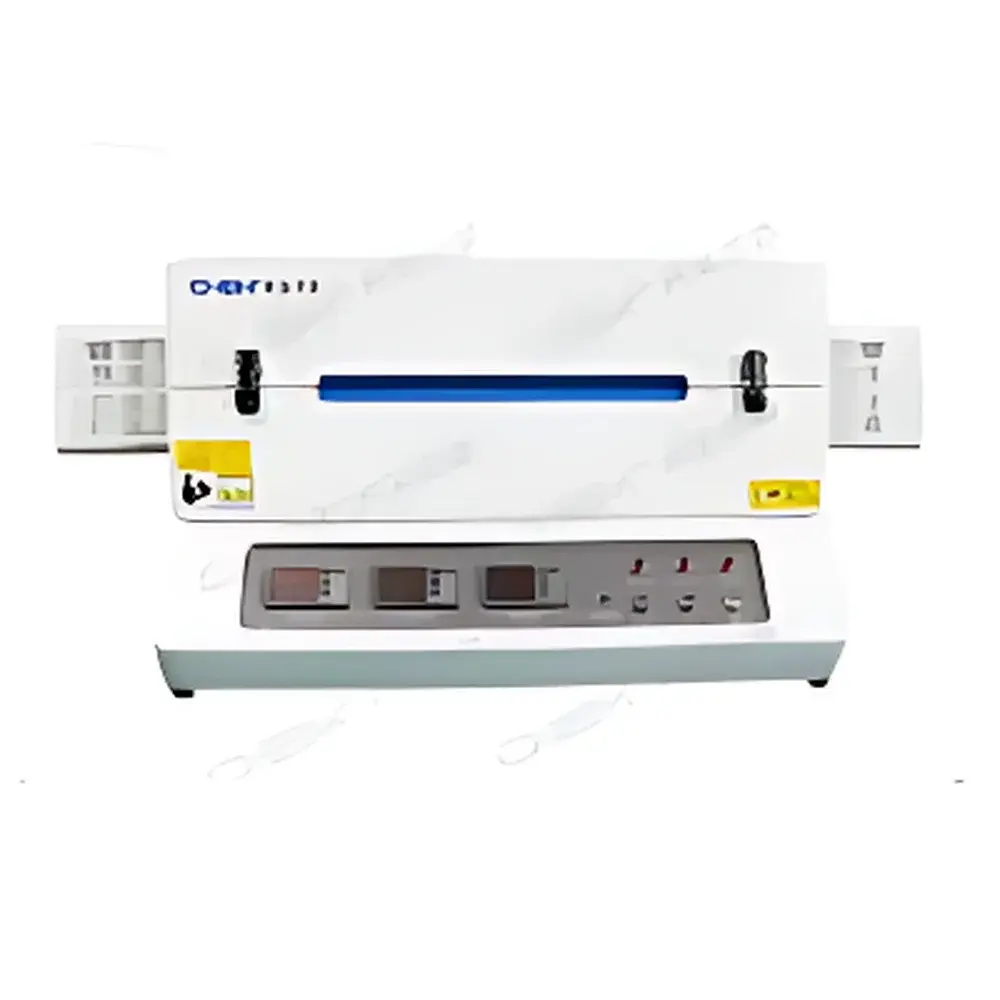

| Brand | CHEMn |
|---|---|
| Origin | Anhui, China |
| Model | TFH-1200-50-III-200 |
| Maximum Temperature | 1200 °C (short-term) |
| Rated Operating Temperature | 1100 °C |
| Temperature Control Accuracy | ±1 °C |
| Heating Zones | 3 independent zones (each 200 mm) |
| Uniform Temperature Zone Length | 400 mm |
| Tube Dimensions | Φ50 mm (OD) × 1000 mm (L) |
| Chamber Internal Dimensions | 1350 × 420 × 520 mm |
| Max. Power Consumption | 6 kW |
| Ramp Rate to Max Temp | ≤10 °C/min |
| Heating Element | HRE resistance wire (Shougang, Beijing) |
| Insulation Material | High-purity alumina microcrystalline fiber, vacuum-formed |
| Cooling System | Dual-layer forced-air cooling |
| Surface Temperature | ≤60 °C |
| Control System | Yudian AI-3756P 7-inch color touchscreen controller with 30-segment programmable ramp-soak profiles |
| Temperature Sensor | K-type thermocouple |
| Atmosphere Compatibility | Vacuum and inert/reducing/reactive gas environments (via quartz tube + stainless steel flanges) |
| Data Interface | USB port for real-time data logging and export |

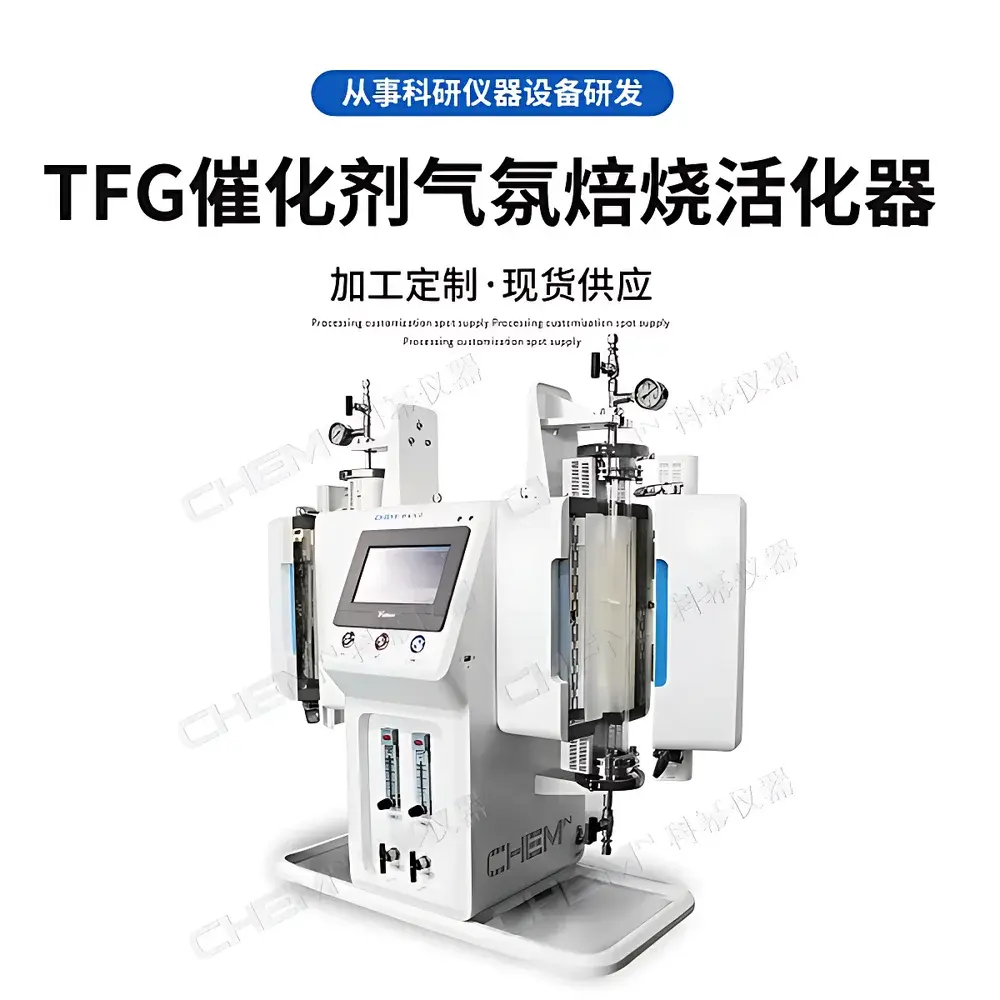

| Brand | Chemn |
|---|---|
| Origin | Anhui, China |
| Model | TFG-1200-50-220 |
| Instrument Type | Vertical Tube Furnace |
| Max. Temperature | 1100 °C |
| Temperature Control Accuracy | ±1 °C |
| Max. Power | 2.0 kW |
| Heating Rate (to Max Temp) | ≤10 °C/min |
| Heating Method | Resistance Wire |
| Internal Chamber Dimensions | 660 × 320 × 580 mm |
| Tube Diameter | 30 mm |
| Sample Boat Capacity | 10 mL (customizable) |
| Heating Zone Length | 220 mm |
| Mass Flow Range (Rotameter) | 30–200 mL/min (customizable) |
| Control System | Dual-Channel Intelligent Programmable Controller with Color Touchscreen |
| Power Supply | AC 220 V, 50/60 Hz |
| Weight | 35 kg |
| Brand | Ahkemi |
|---|---|
| Origin | Anhui, China |
| Model | BEC-1500-8L |
| Max Temperature | 1400 °C |
| Temperature Uniformity | ±1 °C |
| Rated Power | 5.2 kW |
| Heating Rate | 10 °C/min (≤1400 °C) |
| Heating Element | 1500-grade U-shaped SiC rods |
| Internal Dimensions | 180 × 250 × 180 mm |
| Chamber Volume | 8 L |
| Control System | 30-segment programmable fuzzy PID with auto-tuning, over-temperature & thermocouple break protection |
| Voltage | AC 220 V, 50/60 Hz |
| External Dimensions | 590 × 580 × 780 mm |
| Net Weight | 80 kg |
| Brand | Chemn |
|---|---|
| Origin | Anhui, China |
| Manufacturer Type | Authorized Distributor |
| Equipment Type | Box-Type Muffle Furnace |
| Model | BFC-1200-1L |
| Maximum Temperature | 1200 °C (short-term), 1000 °C (continuous) |
| Temperature Uniformity | ±1 °C |
| Rated Power | 1 kW |
| Heating Rate to Max Temp | 10 °C/min |
| Heating Method | Resistive Wire (HRE Alloy, Beijing Shougang) |
| Chamber Dimensions | 100 × 100 × 100 mm (1 L nominal volume) |
| Thermocouple Type | K-type |
| Input Voltage | AC 220 V, 50/60 Hz |
| External Dimensions | 290 × 270 × 450 mm |
| Net Weight | 14 kg |
| Brand | Ahkemi |
|---|---|
| Origin | Anhui, China |
| Model | TFH-1700-25-290 |
| Maximum Temperature | 1700 °C |
| Temperature Control Accuracy | ±1 °C |
| Heating Power | 5.5 kW |
| Heating Rate | ≤10 °C/min (≤1400 °C), ≤5 °C/min (1400–1600 °C), ≤2 °C/min (>1600 °C) |
| Heating Element | Grade-1800 Molybdenum Disilicide (MoSi₂) Rods |
| Tube Dimensions | OD 25 mm × ID 19 mm × L 1000 mm (customizable) |
| Heating Zone Length | 290 mm |
| Thermocouple Type | Type B (Platinum-Rhodium) |
| Control System | 30-Stage Programmable PID with Auto-Tuning, Touchscreen HMI (Yudian AI-3756P, 7″ color) |
| Cooling Design | Dual-layer air-cooled housing, surface temperature ≤60 °C |
| Insulation | Dual-layer high-purity polycrystalline mullite fiber vacuum-formed chamber |
| Vacuum/Atmosphere Compatibility | Equipped with quick-release flanges, needle valves, analog vacuum gauges, and standard hose ports (upgradable to KF-25 or 1/4″ VCR fittings) |
| Data Interface | USB real-time data export, optional PC software for live monitoring (separately ordered) |
| Brand | ahkemi |
|---|---|
| Origin | Anhui, China |
| Model | TFP-1200-50-440 |
| Instrument Type | High-Pressure Tube Furnace |
| Max Temperature | 1100°C |
| Temperature Control Accuracy | ±1°C |
| Max Power | 1.5 kW |
| Heating Rate (to Max Temp) | 10°C/min |
| Heating Method | Resistive Wire Heating |
| Tube Dimensions | φ50 mm OD × φ42 mm ID × 1000 mm L |
| Tube Material | GH3128 High-Temperature Alloy Steel |
| Max Internal Pressure | ≤9 MPa (derated with temperature) |
| Cooling System | Dual-layer air-cooled housing + flange-mounted axial fans |
| Insulation | High-Purity Al₂O₃ Fiber |
| Controller | PID-based with Over-Temperature & Thermocouple Break Protection |
| Optional PC Software | Real-time logging, programmable ramp/soak profiles, CSV export |
| External Dimensions | 1400 × 600 × 1200 mm |
| Brand | Ahkemi |
|---|---|
| Origin | Anhui, China |
| Model | TFR-1200-30-I-220 |
| Maximum Temperature | 1200 °C |
| Temperature Control Accuracy | ±1 °C |
| Rated Power | 1.5 kW |
| Heating Rate (to max temp) | ≤10 °C/min |
| Heating Method | Resistance Wire (HRE alloy) |
| Internal Chamber Dimensions | Φ80 × 220 mm |
| Tube Dimensions | Ø30 × 700 mm or Ø50 × 150 mm (customizable) |
| Heating Zone Length | 220 mm |
| Uniform Temperature Zone Length | 60 mm |
| Thermocouple Type | K-type |
| Power Supply | AC 220 V, 50/60 Hz |
| Net Weight | 20 kg |
| External Dimensions | 340 × 300 × 380 mm |

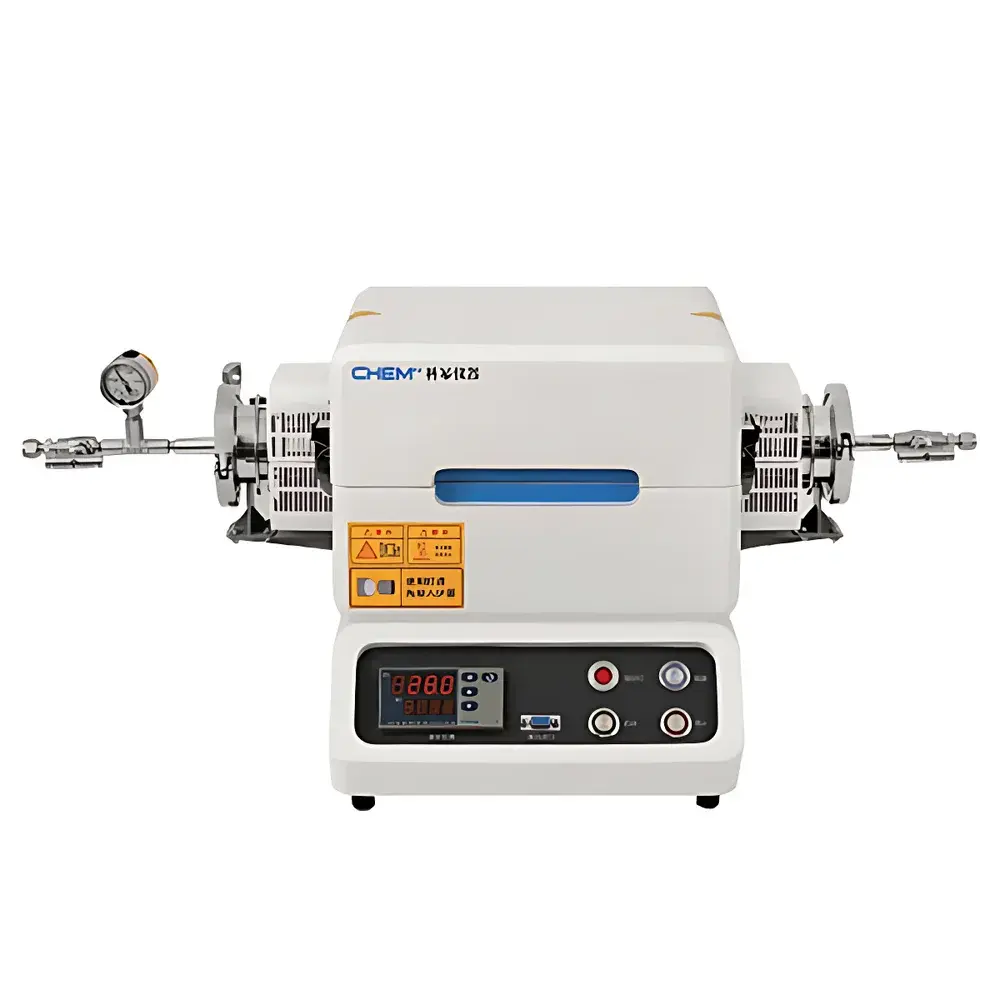

| Brand | Chemn |
|---|---|
| Origin | Anhui, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | TFH-1200-30-220 |
| Instrument Type | Horizontal Tube Furnace |
| Max Temperature | 1200 °C (short-term), 1100 °C (rated) |
| Temperature Control Accuracy | ±1 °C |
| Max Power | 1.5 kW |
| Heating Rate (to max temp) | ≤10 °C/min |
| Heating Method | Resistance Wire (HRE alloy, supplied by Shougang Beijing) |
| Chamber Dimensions | Φ80 × 220 mm |
| Hot Zone Length | 220 mm |
| Uniform Temperature Zone Length | 60–80 mm |
| Tube Compatibility | Φ30 mm or Φ50 mm × 500 mm quartz/ceramic tubes |
| External Dimensions | 340 × 320 × 380 mm |
| Net Weight | 16 kg |
| Cooling | Forced-air dual-shell system |
| Surface Temp (at 1100 °C operation) | <60 °C |
| Atmosphere Options | Air, inert (N₂, Ar), reducing (H₂/N₂), vacuum (with optional pump) |
| Temperature Programming | 30-segment ramp/soak profiles |
| Brand | Ahkemi |
|---|---|
| Origin | Anhui, China |
| Model | TFH-1200-I-50 |
| Maximum Temperature | 1200 °C |
| Temperature Control Accuracy | ±1 °C |
| Rated Power | 3 kW |
| Heating Rate (to Max Temp) | ≤10 °C/min |
| Heating Method | Resistance Wire Heating |
| Internal Dimensions | 580 × 500 × 520 mm |
| Tube Diameter | Φ50 mm (OD) × 1000 mm (L), customizable |
| Heating Zone Length | 440 mm |
| Control System | Yudian AI-3756P 7-inch Color Touchscreen Controller with 30-Stage Programmable Ramp/Soak |
| Thermocouple Type | K-type |
| Power Supply | AC 220 V, 50/60 Hz |
| Net Weight | 45 kg |
| Cooling | Dual-layer Air-Cooled Housing (Surface Temp ≤60 °C) |
| Tube Material | Fused Quartz |
| Sealing | Stainless Steel Flanges with Vacuum/Atmosphere Compatibility |
| Insulation | High-Purity Alumina Microcrystalline Fiber Vacuum-Formed Crucible Liner |
| Brand | Ahkemi |
|---|---|
| Origin | Anhui, China |
| Model | TFV-1200-50-I-440 |
| Max Temperature | 1200 °C (inert atmosphere required) |
| Temperature Control Accuracy | ±1 °C |
| Max Power | 3 kW |
| Recommended Ramp Rate | ≤10 °C/min |
| Max Ramp Rate | 20 °C/min |
| Heating Element | Mo-doped Fe-Cr-Al alloy |
| Internal Chamber Dimensions | 460 × 400 × 890 mm |
| Tube Diameter Options | 50 / 60 / 80 / 100 mm × 900 mm |
| Heating Zone Length | 450 mm |
| Uniform Temperature Zone | 200 mm (±3 °C) |
| Control System | 30-segment programmable PID with auto-tuning, over-temperature & thermocouple break alarms |
| Thermocouple Type | K-type |
| External Surface Temp | ≤60 °C |
| Insulation | High-purity alumina microfiber vacuum-formed ceramic fiber |
| Brand | Ahkemi |
|---|---|
| Origin | Anhui, China |
| Model | BFW-1200-4.5L |
| Max Temperature | 1200 °C |
| Long-Term Operating Temp | 1100 °C |
| Temperature Control Accuracy | ±1 °C |
| Rated Power | 3 kW |
| Heating Rate (to max temp) | ≤10 °C/min |
| Heating Method | Resistance Wire |
| Chamber Dimensions | 200 × 50 × 150 mm (L×W×H) |
| Nominal Volume | 4.5 L |
| Observation Window Size | 40 × 40 mm (customizable, min 3 mm aperture) |
| External Dimensions | 350 × 380 × 550 mm |
| Weight | 35 kg |
| Cooling System | Dual-layer forced-air cooling |
| Surface Temperature | ≤60 °C |
| Controller | Yudian programmable PID controller with 30-segment ramp-soak profile |
| Thermocouple Type | K-type |
| Power Supply | AC 220 V, 50/60 Hz |
| Brand | Ahkemi |
|---|---|
| Origin | Anhui, China |
| Model | TFR-1200-60-I-440 |
| Maximum Temperature | 1200 °C |
| Rated Operating Temperature | 1100 °C |
| Temperature Control Accuracy | ±1 °C |
| Heating Zone Length | 440 mm |
| Tube Dimensions | φ60 mm or φ100 mm × 1000 mm (custom-shaped) |
| Rotation Speed Range | 0–10 rpm (adjustable) |
| Power Rating | 3 kW |
| Heating Method | Resistance Wire Heating |
| External Dimensions | 880 × 420 × 520 mm |
| Net Weight | 50 kg |
| Cooling System | Dual-layer forced-air cooling |
| Surface Temperature at Max Temp | ≤60 °C |
| Control System | Fuzzy PID with auto-tuning + 30-segment programmable ramp-soak profile |
| Safety Features | Over-temperature alarm, thermocouple break detection, emergency stop button |
| Vacuum/Atmosphere Compatibility | Yes (via 316L stainless steel flanges, vacuum gauge, needle valve, and flexible hose fittings) |
| Insulation Material | High-purity alumina microcrystalline fiber, vacuum-formed |
| Power Supply | AC 220 V, 50/60 Hz |
| Brand | CHEMn |
|---|---|
| Origin | Anhui, China |

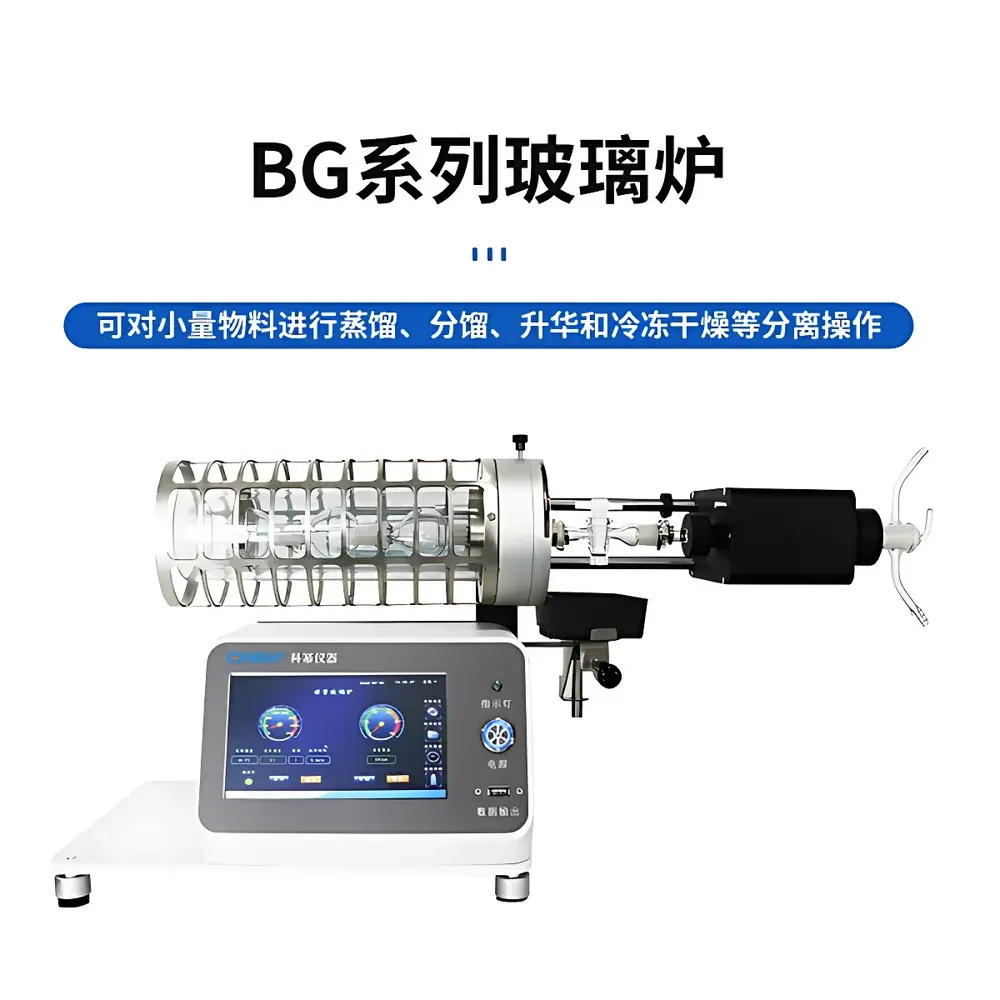

| Model | BG-350 |
| Instrument Type | Tube Furnace |
| Max Temperature | 300 °C (short-term) |
| Operating Temperature Range | 50–280 °C |
| Temperature Control Accuracy | ±5 °C (at furnace center, ≤280 °C) |
| Max Power | 1 kW |
| Heating Method | Resistive Wire |
| Internal Dimensions | 600 × 260 × 300 mm |
| Nominal Capacity | 10–60 mL per tube |
| Rotational Speed | 0–50 rpm |
| Vacuum Limit | 30 mbar |
| Tube Quantity | 2–4 (configurable by individual tube volume) |
| Weight | 15 kg |
| Power Supply | AC 220 V, 50/60 Hz |
| Brand | Ahkemi |
|---|---|
| Origin | Anhui, China |
| Model | BFC-1200-7.2L |
| Maximum Temperature | 1200 °C |
| Temperature Uniformity | ±1 °C |
| Rated Power | 2.5 kW |
| Heating Rate (to max temp) | 5–20 °C/min |
| Internal Dimensions | 200 × 300 × 120 mm (7.2 L) |
| Heating Element | Resistance Wire (3-sided: left, right, top) |
| Insulation | Vacuum-formed alumina fiber |
| Cooling | Dual-layer air-cooled jacket |
| Surface Temperature at Max Operation | <60 °C |
| Control System | Fuzzy PID with auto-tuning |
| Programmability | 30-segment intelligent ramp-soak profile |
| Safety Features | Over-temperature alarm, thermocouple break detection, emergency stop button |
| Input Voltage | AC 220 V, 50/60 Hz |
| External Dimensions | 440 × 500 × 600 mm |
| Brand | Ahkemi |
|---|---|
| Origin | Anhui, China |
| Model | BFV-1200-7.2L |
| Max Temperature | 1200 °C (short-term), 1150 °C (rated) |
| Control Accuracy | ±1 °C |
| Power Rating | 2.5 kW |
| Heating Rate | 20 °C/min (to max temp) |
| Chamber Dimensions | 200 × 300 × 120 mm (7.2 L nominal volume) |
| Vacuum Level | <1000 Pa |
| Heating Method | Resistive wire (3-sided: left, right, top) |
| Control System | Fuzzy PID with auto-tuning, 30-segment programmable ramp-soak profile |
| Safety Features | Over-temperature alarm, thermocouple break detection, emergency stop button |
| Input Power | AC 220 V, 50/60 Hz |
| External Dimensions | 450 × 500 × 610 mm |
| Net Weight | 80 kg |
| Brand | Chemn |
|---|---|
| Origin | Anhui, China |

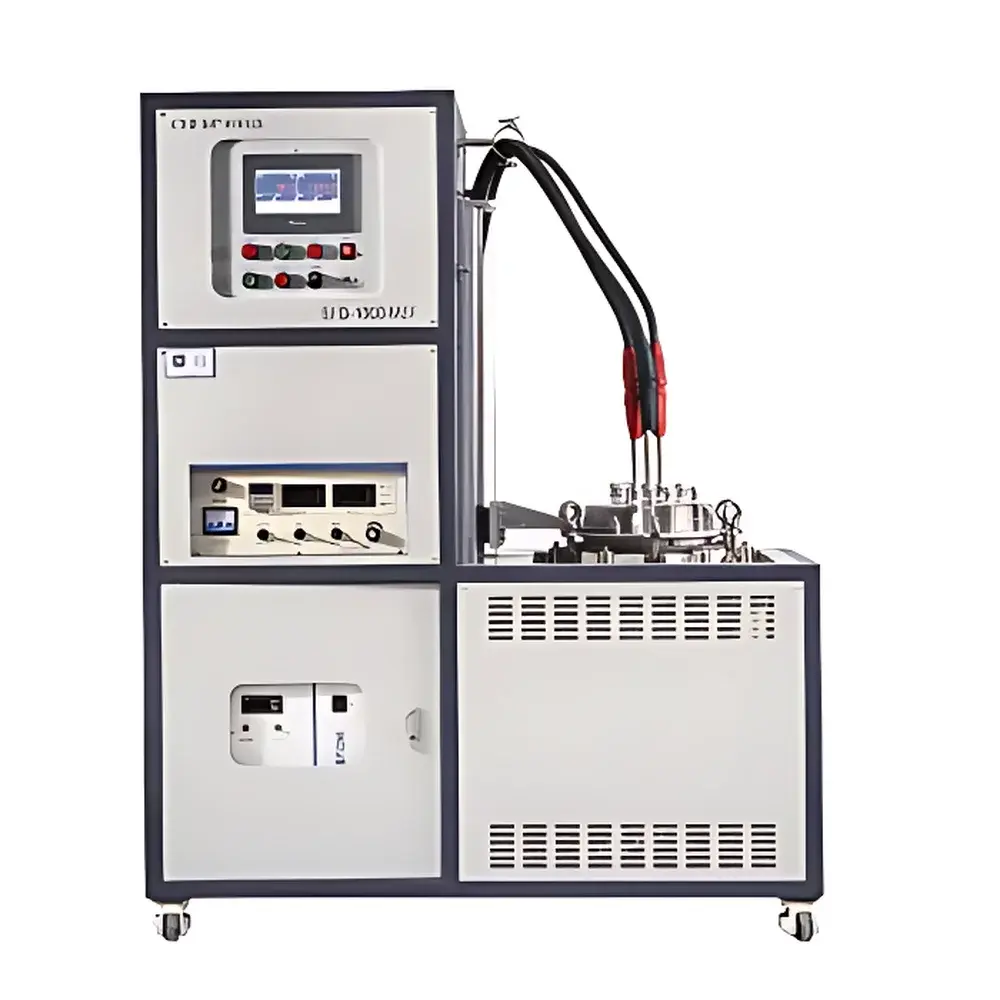

| Model | BFD-1000-MSF |
| Max Temperature | 1000 °C |
| Temperature Control Accuracy | ±1 °C |
| Max Power | 1.5 kW |
| Heating Rate (to Max Temp) | 10 °C/min |
| Furnace Type | Crucible Furnace |
| Internal Dimensions | Customizable |
| Brand | Ahkemi |
|---|---|
| Origin | Anhui, China |
| Model | TFH-1500-50-I-260 |
| Maximum Temperature | 1500 °C (rated), 1450 °C (short-term) |
| Temperature Control Accuracy | ±1 °C |
| Heating Element | Silicon Carbide Rods |
| Power Rating | 6 kW |
| Max Heating Rate (to max temp) | ≤10 °C/min |
| Internal Chamber Dimensions | 260 × 130 × 190 mm |
| Heating Zone Length | 260 mm |
| Uniform Temperature Zone Length | 100 mm |
| Tube Diameter Options | Φ30/50/60/80 × 1000 mm |
| Tube Material Compatibility | Quartz, Alumina, Stainless Steel (316L) |
| Control System | Yudian Programmable PID Controller with 30-Stage Ramp-Soak Profile |
| Thermocouple Type | S-Type (Platinum/Rhodium) |
| Sealing System | Dual-Ring 316L Stainless Steel Quick-Release Flange |
| External Dimensions | 510 × 560 × 640 mm |
| Net Weight | 60 kg |
| Brand | Ahkemi |
|---|---|
| Origin | Anhui, China |
| Model | TFH-1200-30-I-220 |
| Max Temperature | 1200 °C |
| Temperature Control Accuracy | ±1 °C |
| Max Power | 1.5 kW |
| Heating Rate (to Max Temp) | ≤10 °C/min |
| Heating Method | Resistive Wire Heating |
| Internal Chamber Dimensions | Φ80 × 220 mm |
| Programmable Ramp/Soak Segments | 30 |
| Cooling Method | Forced Air |
| Surface Temperature (at Max Temp) | <60 °C |
| Insulation Material | Polycrystalline Alumina Fiber |
| Brand | Ahkemi |
|---|---|
| Origin | Anhui, China |

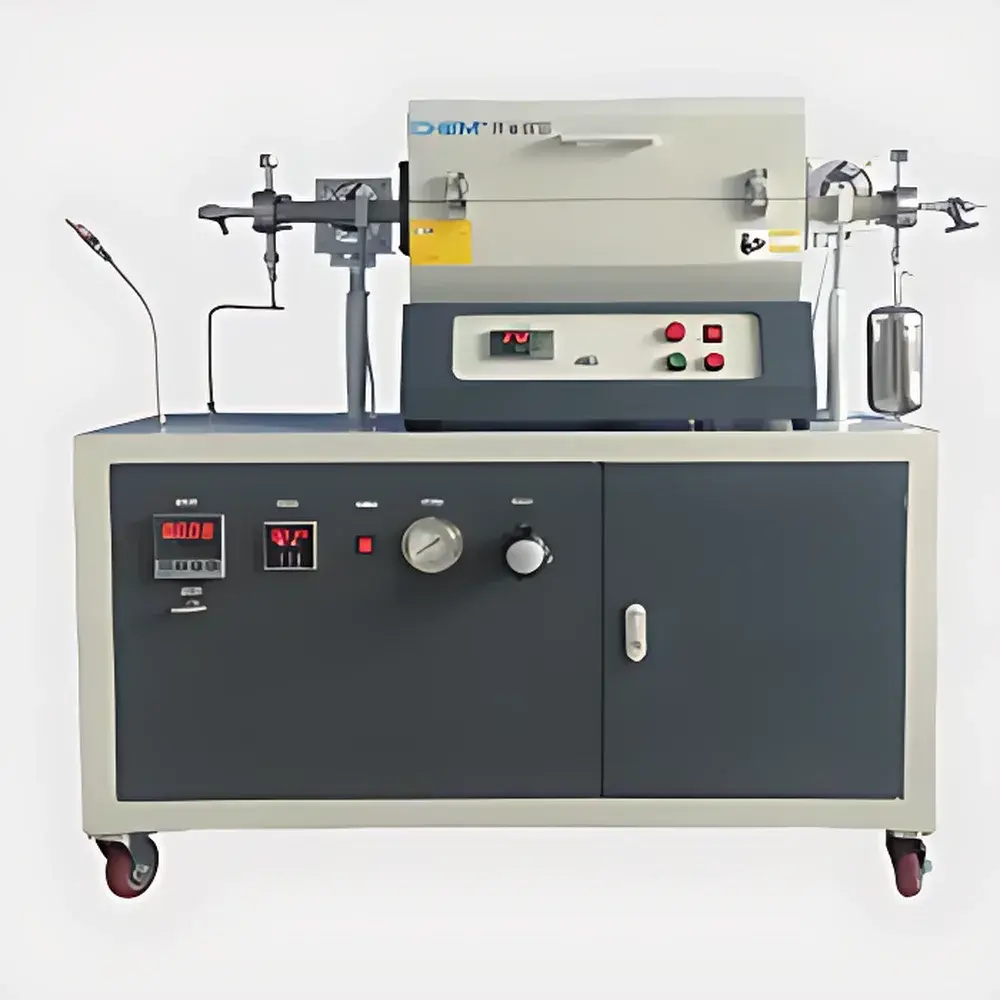

| Model | TFP-1200-50-I-440 |
| Maximum Temperature | 1200 °C |
| Temperature Control Accuracy | ±1 °C |
| Heating Rate (to Max Temp) | ≤10 °C/min |
| Heating Method | Resistance Wire Heating |
| Internal Dimensions | φ50 mm (ID) × φ42 mm (OD) × 1000 mm (L) |
| Cooling System | Dual-layer air-cooled housing with axial fans |
| Insulation Material | High-purity alumina fiber furnace chamber |
| Safety Features | PID temperature control with over-temperature and thermocouple failure protection |
| Optional Software Interface | PC-based temperature programming and real-time curve logging |
Show next
