| Brand | Chemn |
|---|---|
| Origin | Anhui, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | CFRF-L1G3-600-100 |
| Reaction Pressure | 10 MPa |
| Maximum Reaction Temperature | 800 °C |
| Catalyst Loading Capacity | 0.5–5 mL |
| Heating Configuration | Triple-Zone Electric Furnace (for floor-standing unit) / Oil-Jacketed Bath (for benchtop unit, max 300 °C) |
| Display | 10.1" TFT Touchscreen HMI |
| Remote Control | Yes, via PC-based SCADA software |
| Safety Features | Dual-stage over-temperature/over-pressure interlock, combustible gas monitoring, automatic shutdown |
| Brand | CHEMn |
|---|---|
| Origin | Anhui, China |
| Model | TFG-1200-100-II-300 |
| Max. Operating Temperature | 1200 °C |
| Max. Working Pressure | 100 kPa (gauge) |
| Catalyst Loading Capacity | Customizable |
| Compliance | Designed for laboratory-scale catalyst activation under controlled atmospheres |
| Brand | Chemn |
|---|---|
| Origin | Anhui, China |
| Model | CFRF-L1G3-600 |
| Design Temperature | 600 °C |
| Design Pressure | 6 MPa (60 bar) |
| Catalyst Bed Volume | 1–5 mL |
| Heating Zone Configuration | Triple-Zone Furnace (80 mm isothermal length per zone) |
| Reactor Tube Material | Hastelloy C-276 |
| Gas Inlets | 3 independent mass-flow-controlled channels |
| Liquid Inlet | 1 precision syringe pump or HPLC-grade liquid delivery channel |
| Safety Systems | Integrated pressure relief valve, dual-stage overtemperature/overpressure alarms, combustible gas detector with audible/visual alert |
| Power Supply | 220 V, 50 Hz |
| Dimensions (W×D×H) | 1000 mm × 500 mm × 1830 mm |
| Data Interface | Local HMI touchscreen + Ethernet-enabled remote PC control (Modbus TCP / OPC UA compatible) |
| Brand | Chemn |
|---|---|
| Model | KMCFRF-G3-900 |
| Origin | Anhui, China |
| Reactor Type | Benchtop Fixed-Bed Catalytic Reactor |
| Maximum Operating Pressure | 10 MPa |
| Maximum Operating Temperature | 1000 °C |
| Catalyst Bed Volume | 0.5–5 mL |
| Heating Configuration | Triple-Zone Electric Furnace |
| Safety Features | Dual-Stage Pressure/Temperature Alarm & Interlock Protection |
| Remote Control | PC-based Software Interface with Real-Time Monitoring & Actuation |
| Gas Boosting Capability | Integrated Air-Driven Gas Booster (Up to 19 MPa) with 4–10 L Storage Tank |
| Construction | Powder-Coated Steel Frame |
| Reaction Tube Material | Hastelloy C-276 Outer Tube + Internally Nested Constricted Quartz Liner |
| Flow Control | High-Pressure Mass Flow Controllers (MFCs) with Back-Pressure Regulation |
| Modular Design | Customizable Reactor Tube Length & Inner Diameter |
| Compliance | Designed for GLP-compliant catalyst screening under ISO 17025-aligned laboratory practices |
| Brand | Chemn |
|---|---|
| Origin | Anhui, China |
| Model | CFRD-L2G2-500 |
| Max Operating Pressure | 10 MPa(a) |
| Max Operating Temperature | 500 °C |
| Catalyst Bed Volume per Channel | 1–5 mL |
| Heating Zone Length | 240 mm |
| ±2 °C Isothermal Zone Length | 50 mm |
| Footprint | 0.6 m² |
| Remote Control | Yes (Web-based HMI via Ethernet/WiFi) |
| Brand | Chemn |
|---|---|
| Origin | Anhui, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | KMCFRF-L2G3-300 |
| Pressure Rating | 10 MPa |
| Maximum Reaction Temperature | 300 °C |
| Catalyst Bed Volume | 1–5 mL |
| Heating Configuration | Triple-Zone Electric Furnace (for main reactor) / Oil-Jacketed Bath (for desktop variant) |
| Control Interface | 10.1″ TFT Touchscreen + PC-Based Remote Software |
| Safety Compliance | Dual-Stage Over-Temperature/Over-Pressure Interlock, Real-Time H₂ & Combustible Gas Monitoring |
| Modularity | Fully Modular Reactor Tube, Customizable Length & ID |
| Online Sampling | Integrated Liquid Phase Online Sampling Valve System |
| Remote Operation | Yes, via Ethernet-connected SCADA-grade control software |
| Brand | Chemn |
|---|---|
| Origin | Anhui, China |
| Manufacturer Type | Authorized Distributor |
| Product Category | Domestic |
| Model | Chemn Multi-Functional Benchtop Continuous Flow Reactor / Fixed-Bed Reactor (Window-Type, Customizable) |
| Price Range | USD 11,200 – 28,000 (based on configuration) |
| Catalyst Bed Volume | 0.5–5 mL |
| Max Design Temperature | 800 °C |
| Max Design Pressure | 100 bar |
| Gas/Liquid Feed Channels | 1–4 (configurable) |
| Gas MFC Accuracy | ±1.5% FS, Repeatability: ±0.2% FS |
| High-Pressure Liquid Pump Range | 0–10 mL/min, Max Outlet Pressure: 42 MPa, Control Precision: ±1% |
| System Dimensions (W×D×H) | ~650×1000×900 mm |
| Weight | ~180 kg |
| Control System | Siemens S7-1200 PLC + 10.2″ MCGS HMI |
| Power Supply | 200–240 V AC, 50–60 Hz |
| Reactor Materials | 316L SS, Hastelloy C-276, Inconel 600 (customer-specified) |
| Brand | Ahkemi |
|---|---|
| Origin | Anhui, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |

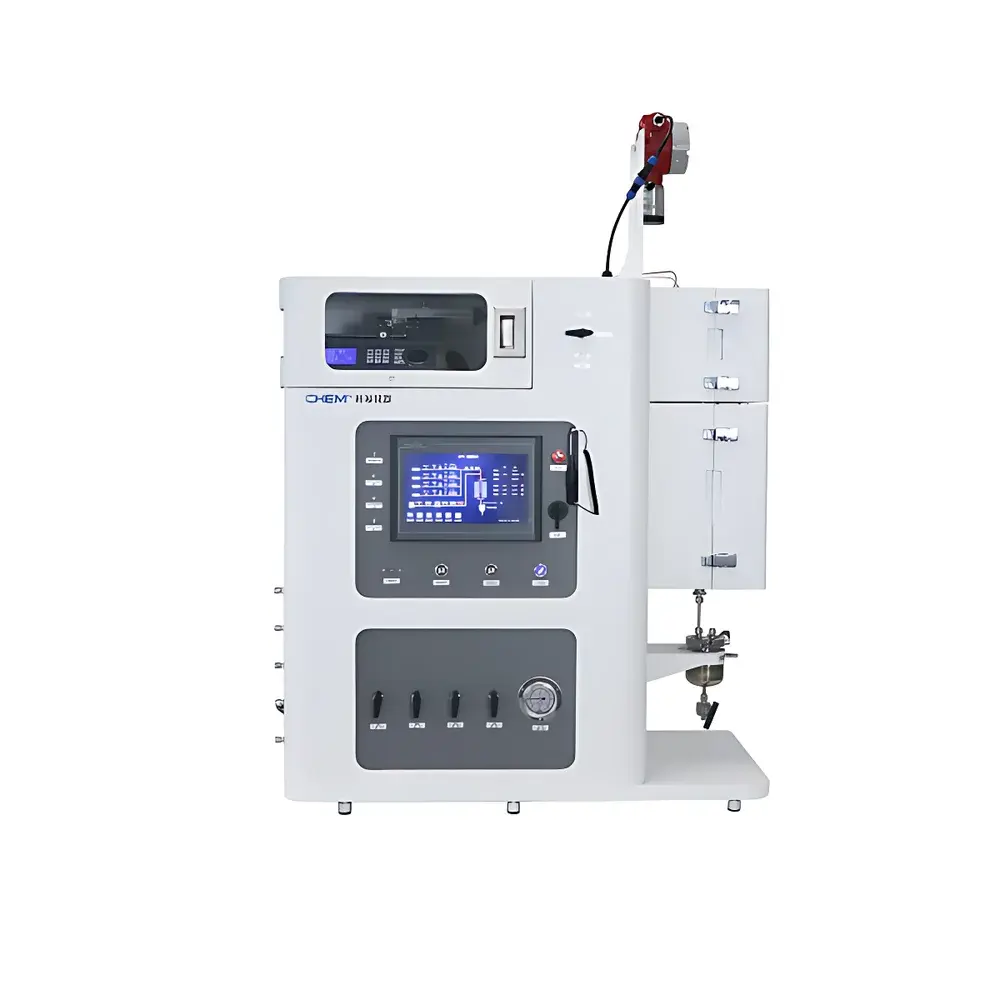

| Model | CFRD |
| Price Range | USD 1,400 – 14,000 (FOB) |
| Maximum Operating Pressure | 10 MPa (100 bar) |
| Maximum Operating Temperature | 800 °C |
| Catalyst Bed Volume | 0.5–5 mL |
| Brand | Ahkemi |
|---|---|
| Origin | Anhui, China |
| Model | CFRF-FT-L0G3 |
| Maximum Operating Pressure | 10 MPa |
| Maximum Operating Temperature | 600 °C |
| Catalyst Bed Volume | 0.5–5 mL |
| Heating Zone Length | 240 mm |
| ±2 °C Isothermal Zone Length | 50 mm |
