| Brand | Ahkemi |
|---|---|
| Origin | Anhui, China |

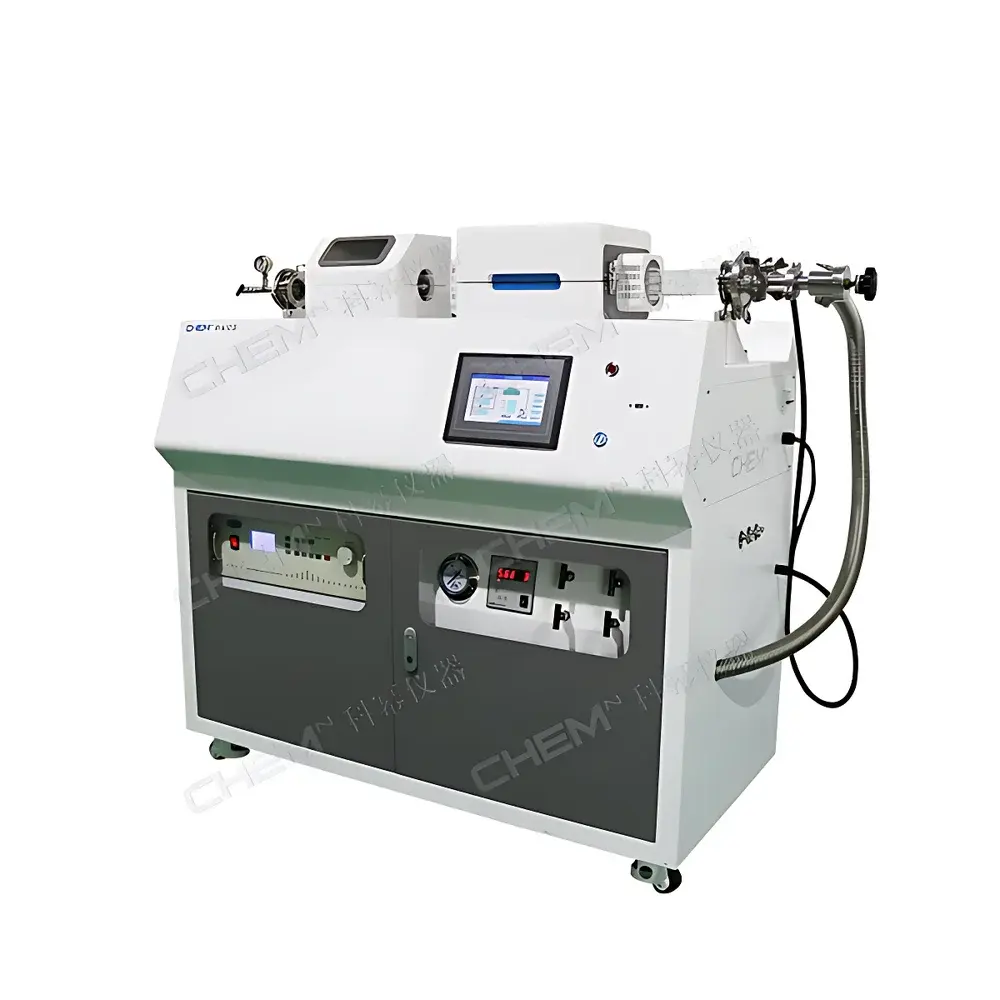

| Model | TFE-1200-50-I-220 |
| Maximum Operating Temperature | 1150 °C (short-term), 1100 °C (rated) |
| Temperature Control Accuracy | ±1 °C |
| Heating Zone Length | 220 mm |
| Uniform Temperature Zone Length | 80 mm |
| Tube Dimensions | Φ30/50/60 × 1200 mm |
| Furnace Chamber Diameter × Height | Φ80 × 220 mm |
| RF Power Range | 5–500 W |
| RF Frequency | 13.56 MHz |
| Gas Delivery | 3-channel MFC-controlled (0–500 sccm per channel, customizable) |
| Vacuum System | Dual-stage rotary vane pump (optional diffusion or turbomolecular pump upgrade) |
| Rated Heating Power | 3 kW |
| Recommended Ramp Rate | ≤10 °C/min |
| External Dimensions | 1250 × 510 × 810 mm |
