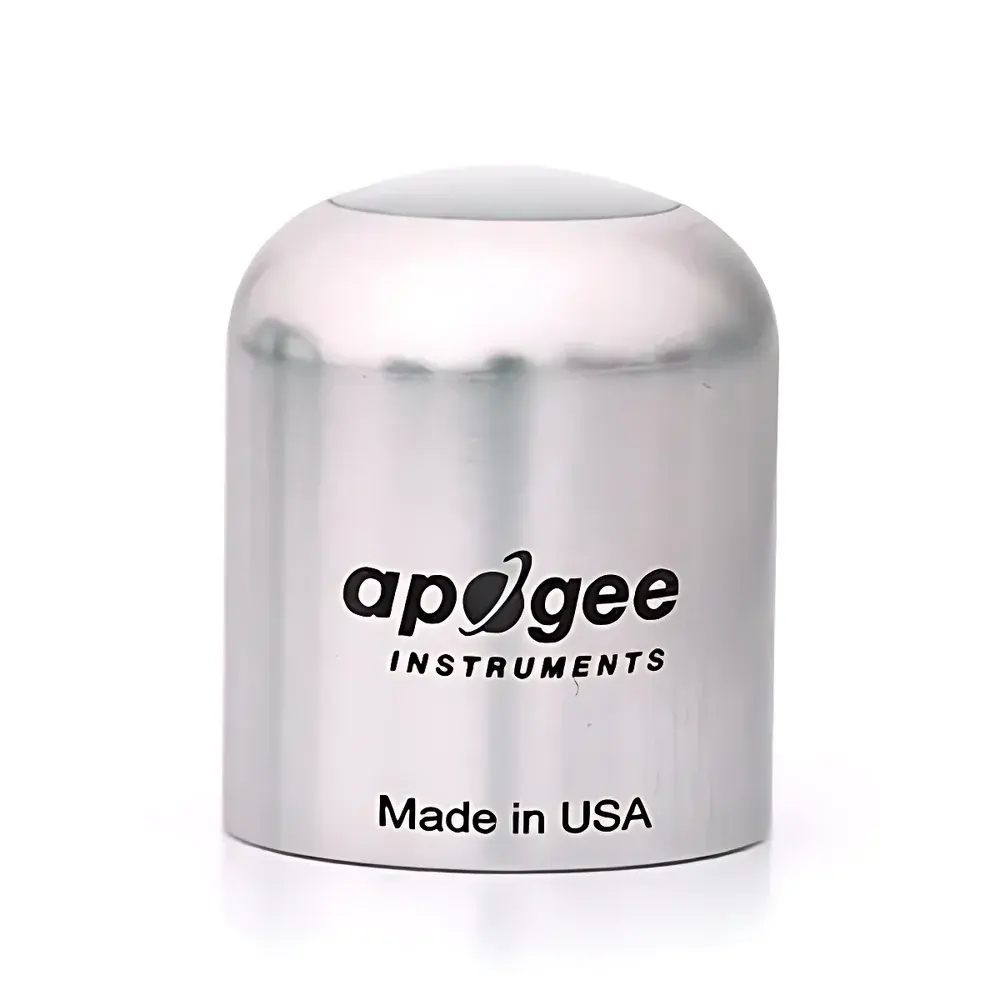

| Brand | Apogee |
|---|---|
| Origin | USA |
| Model | SU-200-SS / SU-202-SS / SU-205-SS |
| Spectral Range | 300–400 nm |
| Output Types | 0–10 mV (SU-200-SS), 0–2.5 V (SU-202-SS), 0–5 V (SU-205-SS) |
| Calibration Unit | W·m⁻² (irradiance) |
| Measurement Range | 0–100 W·m⁻² |
| Spectral Bandwidth | 300–400 nm |
| Wavelength Accuracy | ±5% |
| Stray Light Rejection | ±1% |
| Operating Temperature | −35 to +85 °C |
| Relative Humidity Range | 0–100% RH |
| Housing IP Rating | IP68 |
| Cable Length | 5 m |
| Sensor Diameter × Height | Φ30.5 × 37 mm |
| Weight | 140 g |
| Long-Term Drift | <2% per year |
| Nonlinearity | <1% |
| Directional Response | ±2% at 45°, ±5% at 75° |
| Temperature Coefficient | 0.1% / °C |
| Calibration Uncertainty | ±10% |
| Brand | Apogee |
|---|---|
| Origin | USA |
| Model | MS100 |
| Spectral Range | 380–780 nm |
| Spectral Resolution | 1 nm |
| FWHM | ~12 nm |
| Wavelength Repeatability | ±1 nm |
| PPFD Range | 0.1–3,500 µmol/m²/s |
| Illuminance Range | 5–190,000 lx |
| Illuminance Accuracy | ±5 % (Illuminant A, 2856 K, 20,000 lx) |
| Chromaticity Accuracy | ±0.0025 in CIE 1931 x,y |
| CCT Accuracy | ±2 % |
| CRI Accuracy | ±1.5 % |
| Diffuse Rejection | −25 dB |
| Integration Time | 6–1,000 ms |
| Operating Temperature | 0–35 °C (RH ≤70 %, non-condensing) |
| Storage Temperature | −10–40 °C (RH ≤70 %, non-condensing) |
| Display | 0.96″ 128×64 monochrome OLED |
| Battery | 700 mAh / 3.7 V rechargeable Li-ion |
| Weight (with battery) | 70 g ±5 g |
| Dimensions | 90 × 30 × 32.2 mm |
| Data Storage | microSDHC up to 32 GB (supports ≥120,000 Excel files) |
| Connectivity | Mini-USB 2.0, Bluetooth 3.0/4.0 (iOS & Android compatible) |
| Software | Apogee InSight (Windows, macOS, iOS, Android) |
