| Brand | Apogee |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Product Origin | Imported |
| Model | Cloudburst SG-400 Series |
| Output Interface | SDI-12 v1.4 (Modbus option planned) |
| Capture Area | 324 cm² (SG-400/SG-410) or 200 cm² (SG-420/SG-430) |
| Inlet Diameter | 8 in (20.3 cm) or 6.3 in (16 cm) |
| Precipitation Capacity | 900 mm (SG-400/SG-410) or 1500 mm (SG-420/SG-430) |
| Bucket Volume | 30 L |
| Heating Option | Optional (SG-410 & SG-430) |
| Accuracy (Cumulative) | ±0.1 mm (<5 mm), ±1% (>5 mm) |
| Accuracy (Rate) | ±5% (>2 mm/hr) |
| Resolution | 0.01 mm |
| Temperature Sensitivity | ±0.01 mm/°C |
| Long-Term Drift | <0.5%/year |
| Nonlinearity | <0.1 mm (SG-400/SG-420), <0.2 mm (SG-410/SG-430) |
| Sensor Type | Stainless Steel Strain-Gauge Load Cell |
| Power Supply | 5.5–26 VDC |
| Current Draw | 20 mA (non-heated), +2.1 A @24 VDC (heated) |
| Power Consumption | 240 mW (base), up to 50 W (heater active) |
| Operating Temperature | –20 to +60 °C |
| Humidity Range | 0–100% RH |
| Enclosure Rating | IP67 |
| Dimensions | Ø38 cm × H80 cm |
| Weight | 12 kg |
| Mounting | Compatible with 15.24 cm wooden posts or 10.16 cm metal pipes |
| Cable Length | 5 m standard |
| Origin | Norway |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | T-200B |
| Price Range | USD 1,400 – 7,000 |
| Measurement Range | 600 / 1000 / 1500 mm |
| Collection Area | 200 cm² |
| Sensitivity | 0.05 / 0.075 / 0.1 mm |
| Accuracy | ±0.1% FS |
| Repeatability | ±0.1 / ±0.1 / ±0.15 mm |
| Power Supply | 8–24 V DC, 15 mA |
| Heated Option | 24 V or 220 V AC |
| Output | Square Wave 0–5 V and SDI-12 |
| Operating Temperature | −40 °C to +60 °C |
| Humidity | 0–100% RH |
| Temperature Drift | 0.001% FS/°C |
| Housing Material | Anodized Aluminum |
| Dimensions (Ø × H) | 390 × 760 / 800 / 1000 mm |

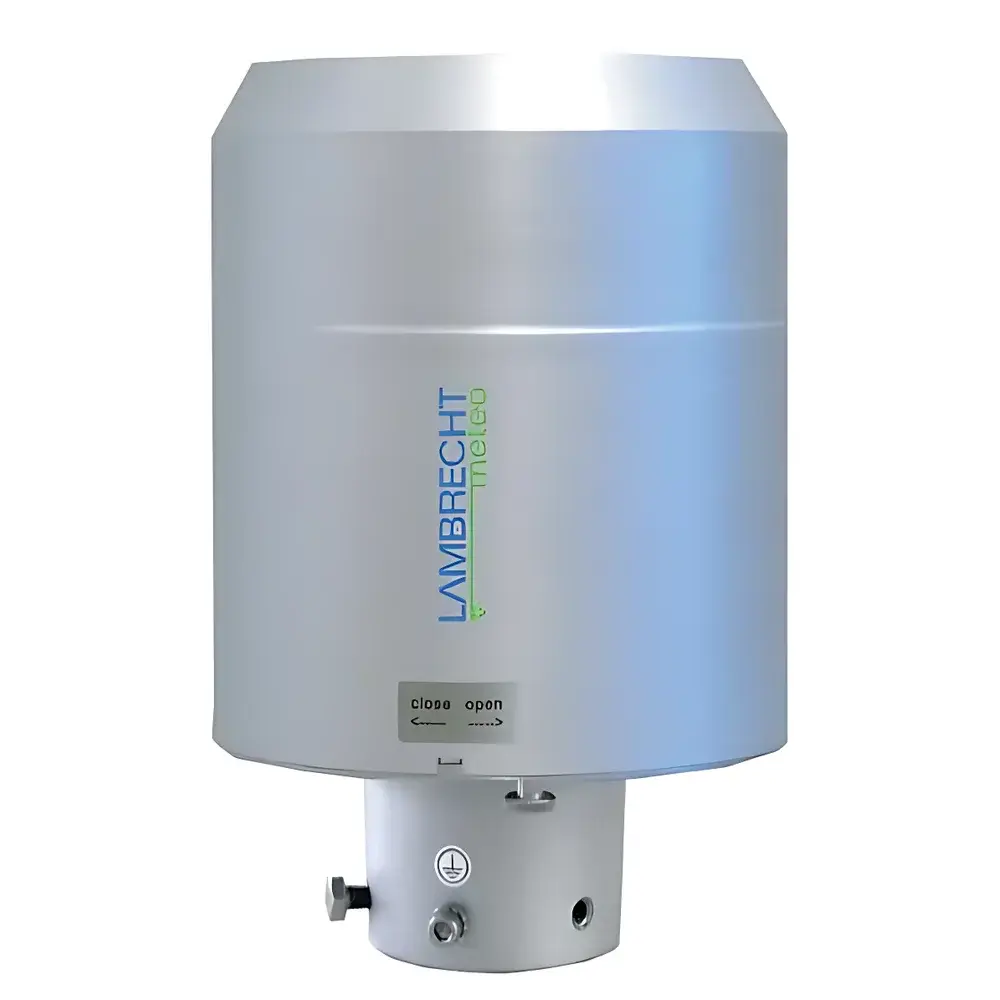

| Brand | Lambrecht |
|---|---|
| Origin | Germany |
| Model | 15184 |
| Measurement Principle | Weighing + Automatic Emptying |
| Resolution | 0.001 mm |
| Accuracy | ±0.1 mm/min or ±2% |
| Measuring Range | 0.005–10 mm/min (0–600 mm/h) |
| Catchment Area | 200 cm² |
| Heating Power | 80 W (funnel) + 60 W (outlet), 24 V DC |
| Output Options | SDI-12, RS-485 (ASCII/TALKER), dual pulse, 4–20 mA / 0–2.5 V / 0–5 V |
| IP Rating | IP67 |
| Dimensions | H 292 mm × Ø 159.6 mm |
| Weight | 3.5 kg |
| Compliance | WMO No. 8, VDI 3786 Bl. 7, EN 61000-2/-4, EN 61000-4-2/3/4/5/6/11, NAMUR NE-21 |
| Origin | Denmark |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |

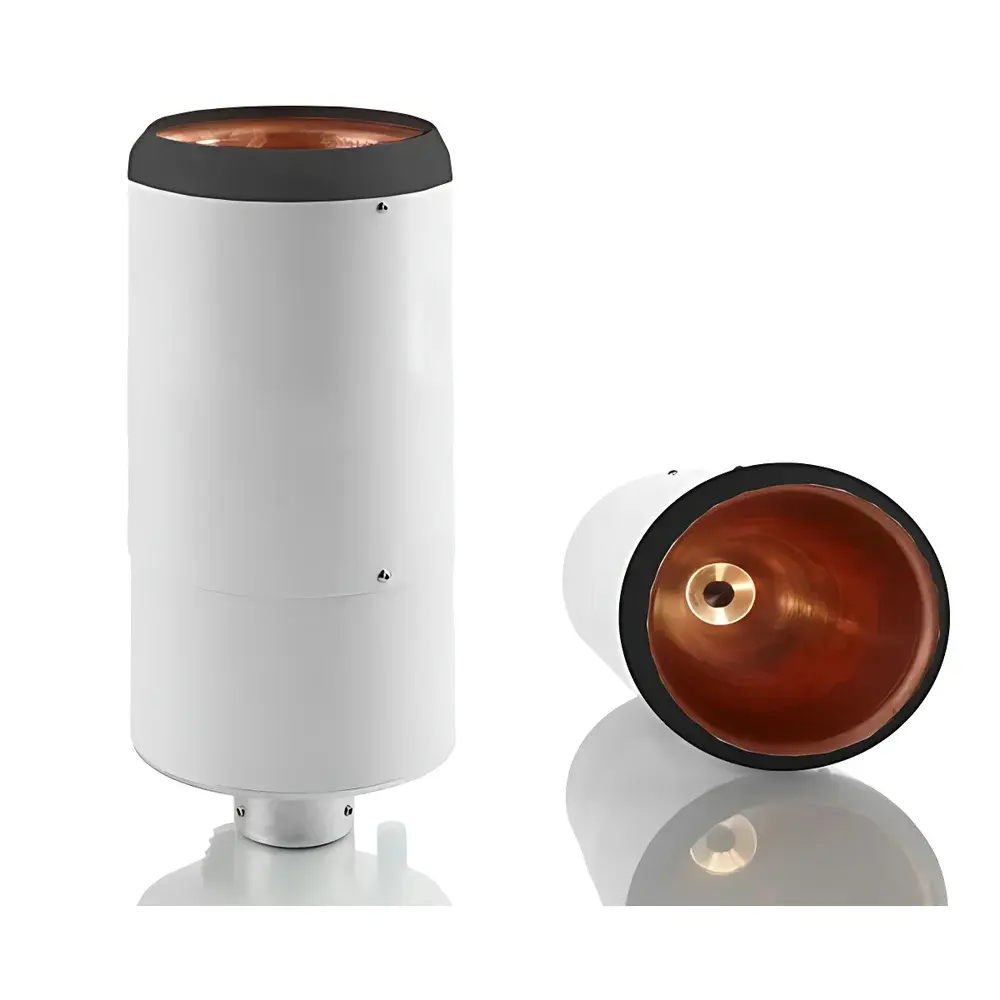

| Model | Rain-O-Matic |
| Price Range | USD 1,400 – 7,000 |
| Resolution | 0.1 mm / 0.2 mm / 0.25 mm / 0.5 mm (user-selectable) |
| Collection Area | 200 cm² (31 in²) |
| Splash Height | 290 mm (11.4 in) |
| Weight | 1300 g (45.9 oz) |
| Tipping Interval (for 300 mm tilt) | ~300 ms (σ = 7–14 ms, depending on resolution setting) |
| Filter Time Constant | ≤200 ms |
| Output | Reed switch (SPST, normally closed on pins 1–2 |
| Compliance | WMO Guide to Meteorological Instruments and Methods of Observation (WMO-No. 8), ISO 9060:2018 Class C (for precipitation measurement systems), EN 13029:2000 (rain gauge performance requirements) |
