| Brand | CMECO2 (Zhongjiao Jinyuan) |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | OEM Manufacturer |
| Country of Origin | China |

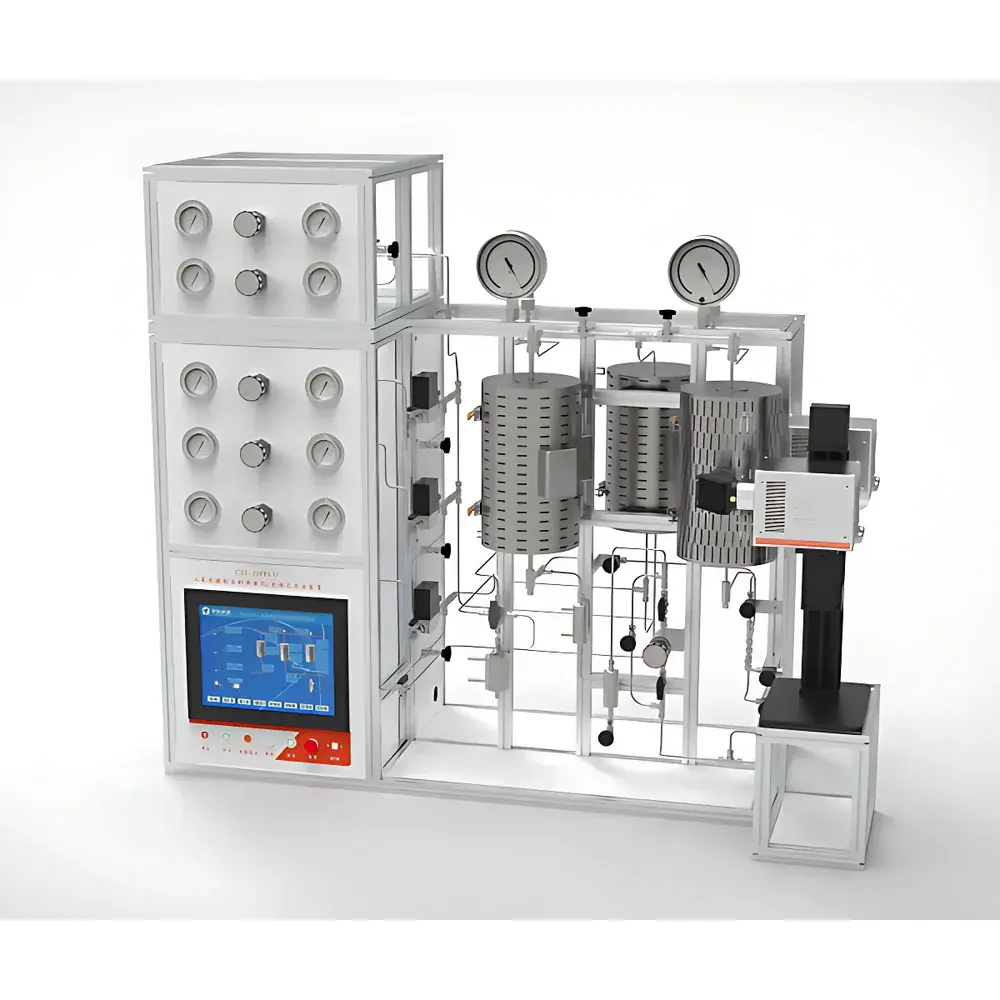

| Model | CMECO2-HPX Series |
| Pressure Range | Low-Pressure Mode < 0.6 MPa |
| Thermal Reactor Temp. | 0–800 °C |
| Photothermal Reactor Temp. | 0–800 °C |
| Vaporization Zone Temp. | 0–300 °C |
| Tubing Trace Heating Temp. | 0–200 °C |
| Liquid Flow Rate | 0.1–5 mL/min |
| Catalyst Bed Volume | < 5 mL |
| Frame Dimensions | 1130 × 550 × 1340 mm |
| Construction Material | ASTM A240 316L Stainless Steel & High-Strength Anodized Aluminum Extrusions |
| Control Interface | Industrial Touchscreen PC with Real-Time SCADA Software |
| Brand | CEA (China Education Goldsource) |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | OEM/ODM Producer |
| Country of Origin | China |
| Model | CEL-GPPCZ Custom Biomass Pyrolysis Reaction System |
| Pricing | Upon Request |
| Reactor Temperature Range | 0–1000 °C |
| Preheater Temperature Range | 0–700 °C |
| Tube Heating Jacket Temperature | 0–200 °C |
| Reactor Material | 310S Stainless Steel |
| Tubing Material | 316L Stainless Steel |
| Catalyst Bed Volume | < 400 mL |
| Operating Pressure | Atmospheric |
| Gas Flow Rate | 0–100 SLM (scalable gas channels) |
| Overall Dimensions | 1100 mm × 549 mm × 1664 mm |
| Mobility | Six swivel casters with locking mechanism |
| Control Interface | Industrial-grade touch-panel PC with integrated automation software |
| Safety Features | Over-temperature alarms at all thermal zones, interlocked emergency shutdown, proportional pressure relief valve, vacuum-compatible design |
