| Brand | CEL (Zhongjiao Jinyuan) |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Domestic |

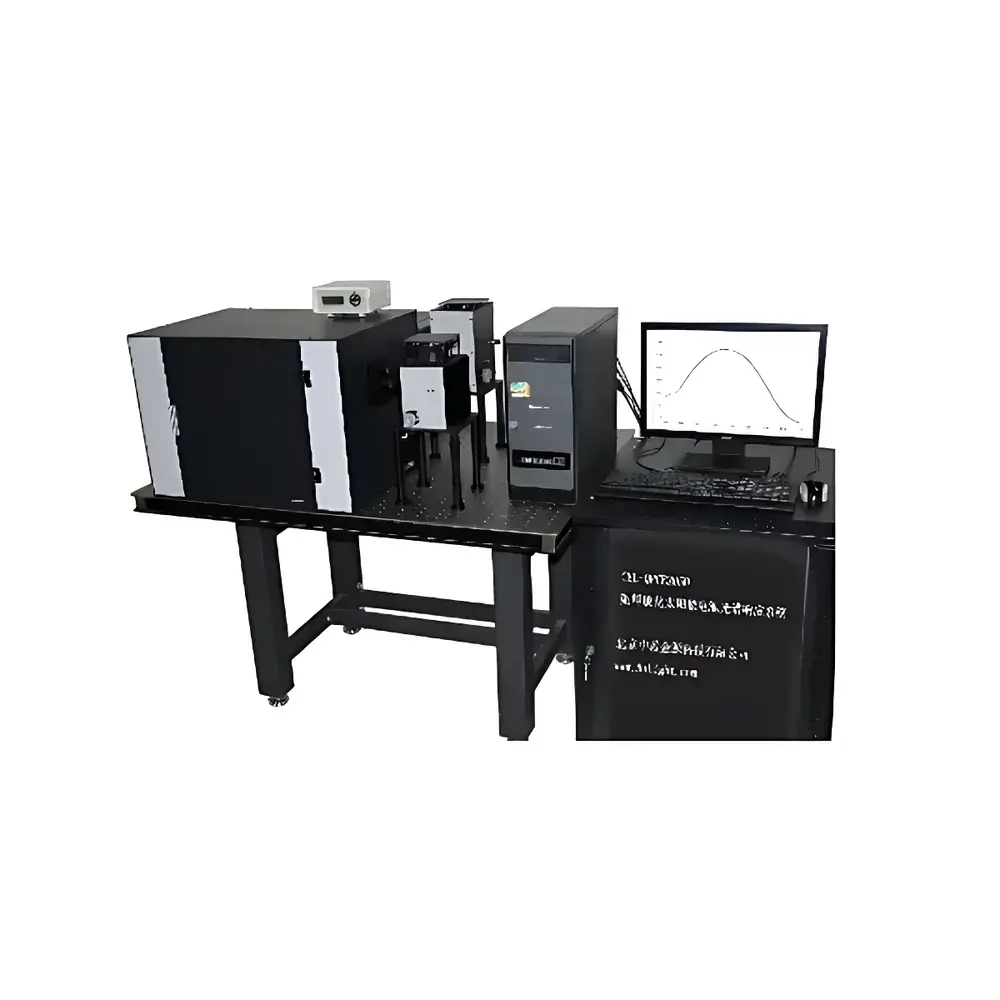

| Model | CEL-QPCE2050 |
| Light Source Type | Monochromatic + Broadband Bias Source |
| Illumination Mode | External Illumination |
| Spectral Range | 200–1100 nm |
| Wavelength Step Resolution | ≥1 nm (continuously adjustable) |
| Scan Mode | Fully Automated Sequential Scanning |
| QE/IPCE Repeatability | <0.3% (J<sub>sc</sub>) |
| Operating Mode | DC (Direct Current) |
| Chopping Frequency | 5–1000 Hz |
| Optional Temperature-Controlled Stage | 5–40 °C (±0.5 °C) |
| Bias Light Source | Standard Single-Channel White Light (Xenon-based, AM1.5G-equivalent, ~0.5 SUN) |
| Monochromator Focal Length | 300 mm (150 mm optional) |
| Compliance | ASTM E1021-12, IEC 60904-8, GB/T 6495.8–2002 |
| Brand | CEAULIGHT (CEL) |
|---|---|

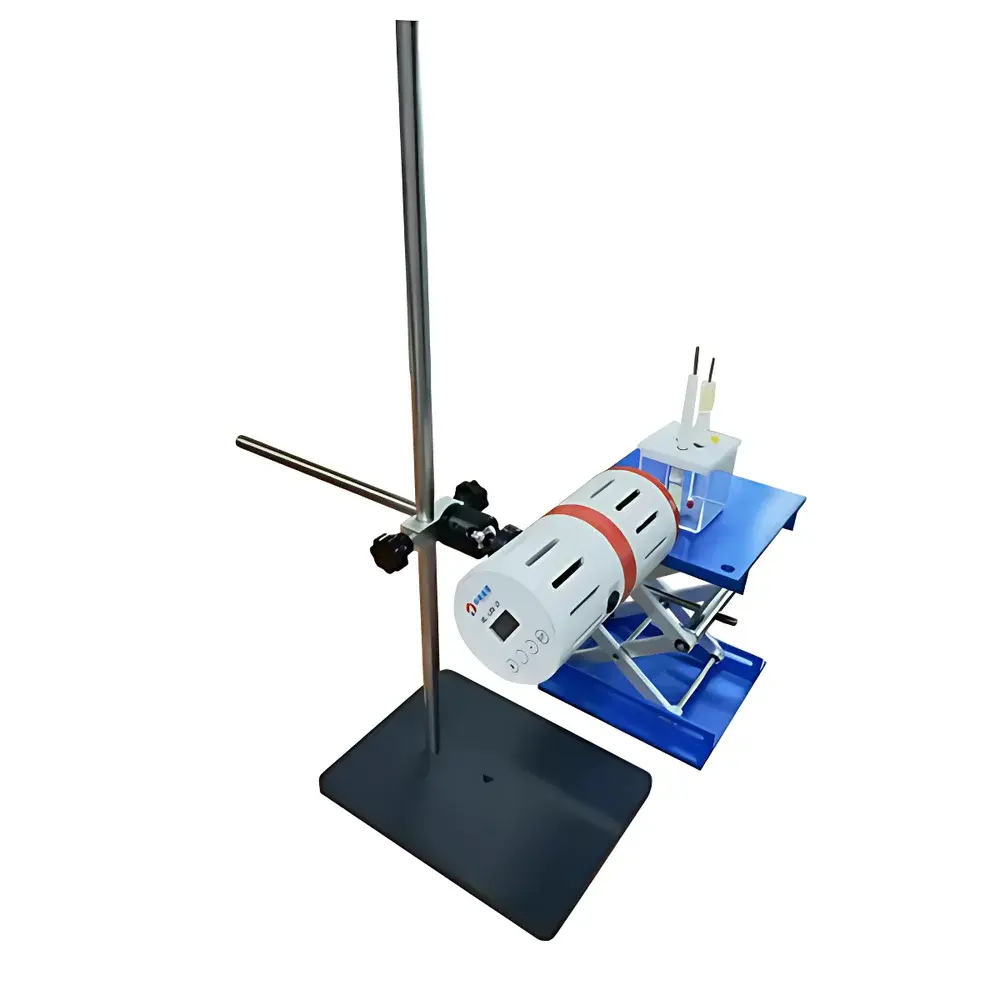

| Model | CEL-LED-25W |
| Origin | Beijing, China |
| Manufacturer Type | OEM Manufacturer |
| Light Source Type | Monochromatic Solid-State LED Array |
| Emission Wavelengths (Selectable) | 365, 395, 405, 420, 455, 470, 500, 520, 590, 620, 660, 740, 810, 850, 940 nm & White Light |
| Control Modes | Continuous Illumination / Programmable Pulsed Flash (10 preset frequencies) |
| Max. Optical Output Power | 25 W |
| Input Power | 30 W (AC 220 V to DC 24 V converter integrated) |
| Operating Current | <3.5 A |
| Emitting Aperture Diameter | 40 mm |
| Radiant Flux Density | ≤200 mW/cm² (measured with CEL-NP2000 radiometer |
| Rated Lifetime | ≥10,000 h (L70, except 365 nm UV LED) |
| Cooling | Separated Forced-Air Thermal Management (optical path isolated from airflow) |
| Mechanical Dimensions | 150 mm × φ72 mm |
| Standard Accessories | Manual Height-Adjustable Mount |
| Optional Accessories | LMP400 Motorized Dual-Axis Positioning Stage (400 mm vertical + horizontal travel), LB70 Photoreaction Chamber |
| Brand | CEA-Light |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | OEM Manufacturer |
| Product Category | Domestic |

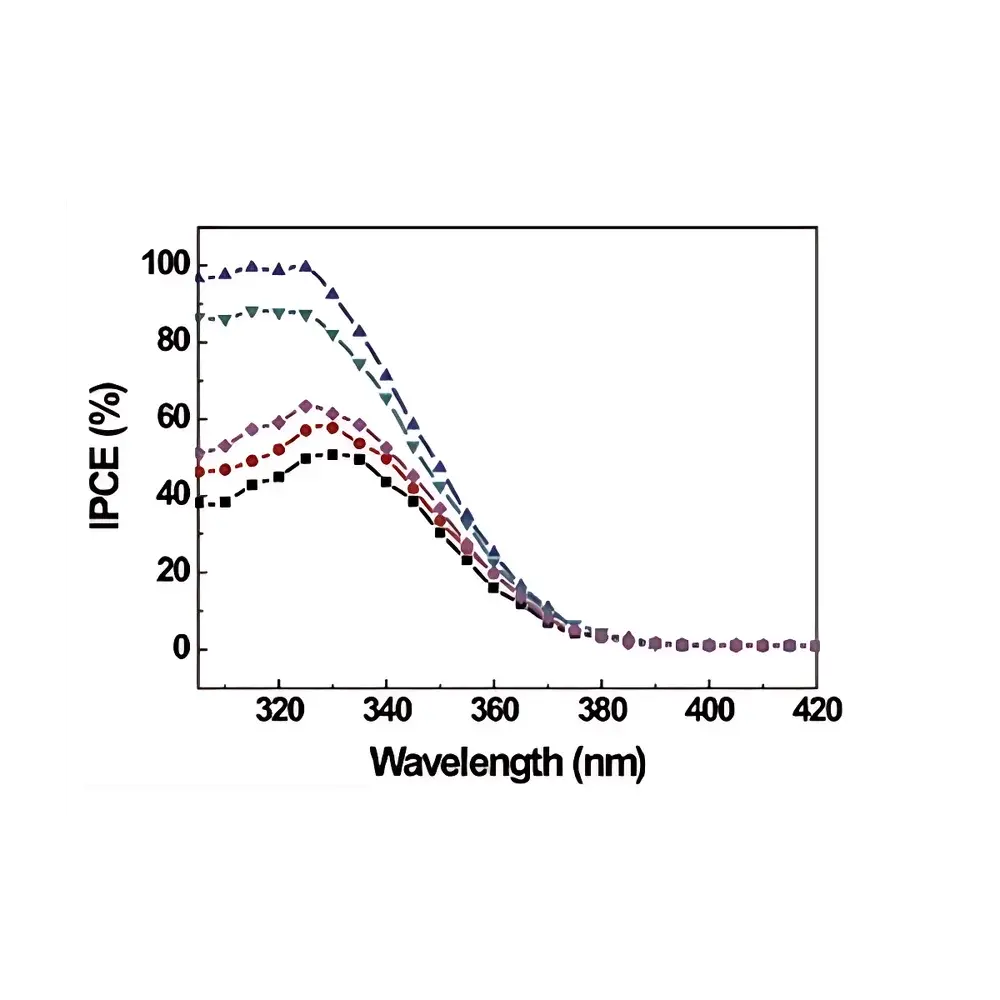

| Model | CEL-SPEC Surface Photovoltage Upgrade Module for QE/IPCE |
| Light Source Type | High-Stability Xenon Arc Lamp (500 W, OSRAM, Germany) |
| Illumination Mode | External Horizontal Beam Configuration |
| Spectral Range | 200–1100 nm |
| Spectral Resolution | ≤1.0 nm (300 mm Focal Length Spectrometer) |
| QE/IPCE Accuracy | Traceable to NIST-Traceable UV-Enhanced Calibrated Standard Source |
| Short-Circuit Current Repeatability | <0.3% (RSD) |
| AC Modulation Mode | Chopped Light, Frequency Range: 5–1000 Hz |
| Synchronization | Hardware-Triggered Acquisition Across Light Source, Spectrometer, and Potentiostat |
| Software Compatibility | Windows 7/8/10 |
| Optional Electrochemical Workstation | BioLogic SP-300 / ZIVE SP1 or ADMIRAL Squidstat Plus (with EIS up to 1 MHz, CV up to ±10 V, Current Range: 100 nA–1 A, 8 Decades) |
| Brand | CEAULIGHT (Zhongjiao Jinyuan) |
|---|---|
| Model | CEL-LED100HA-96 |
| Light Output Area | 108 mm × 90 mm |
| Irradiance Uniformity | <5% |
| Spectral Options | 365 nm–940 nm (FWHM ≤20 nm), White LED standard |
| Max Irradiance | <200 mW/cm² (measured with CEL-NP2000 radiometer) |
| Total Input Power | 240 W (AC 220 V ±0.01%) |
| LED Power Consumption | <200 W |
| Operating Current | <5.0 A (0.01 A resolution) |
| Minimum Lifetime | 10,000 h (except 365 nm) |
| Cooling | Separated forced-air cooling (optical path isolated from airflow) |
| Control Interface | Digital display showing real-time voltage and current |
| Optional Accessories | LMP400 motorized XYZ stage (400 mm vertical travel, horizontal/vertical irradiation capability) |
| Compliance | Designed for GLP-compliant photochemical workflows requiring traceable, stable, and wavelength-specific irradiation |
| Brand | CME |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | OEM Manufacturer |
| Product Origin | Domestic (China) |

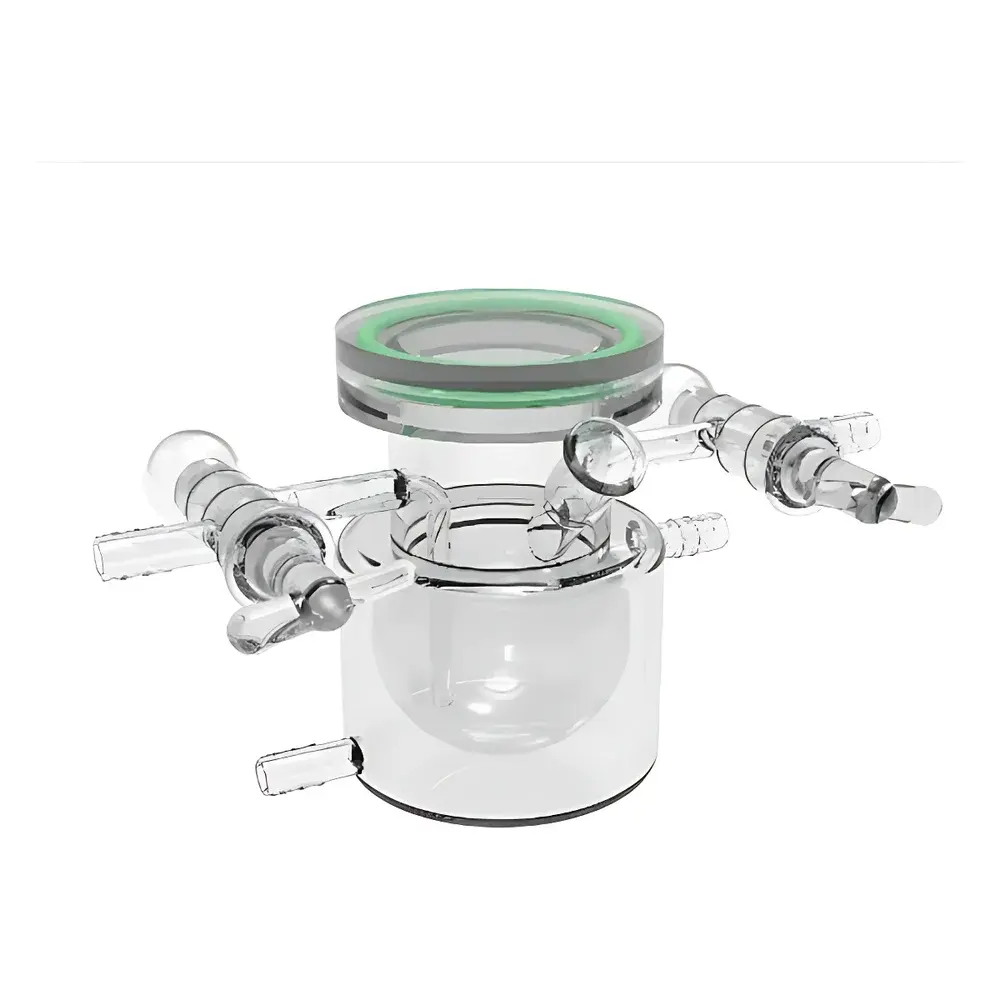

| Model | Online Reactor with Integrated Temperature Control (Standard Configuration) |
| Light Source Type | Customizable External Light Source (Xenon or Mercury Lamp Compatible) |
| Irradiation Mode | External Illumination |
| Reactor Volume | 50 mL |
| Working Solution Volume | 20–30 mL |
| Joint Standard | 28/30 Ground-Glass Spherical Joint (ISO 3722) |
| Sealing | Dual O-Ring Flange Seal (EPDM/FKM Optional) |
| Cooling Jacket Inlet/Outlet | 10 mm Barb Fitting |
| Temperature Control | Integrated Double-Wall Water Jacket with External Circulator Interface |
| Brand | CEAULIGHT (Zhongjiaojinyuan) |
|---|---|

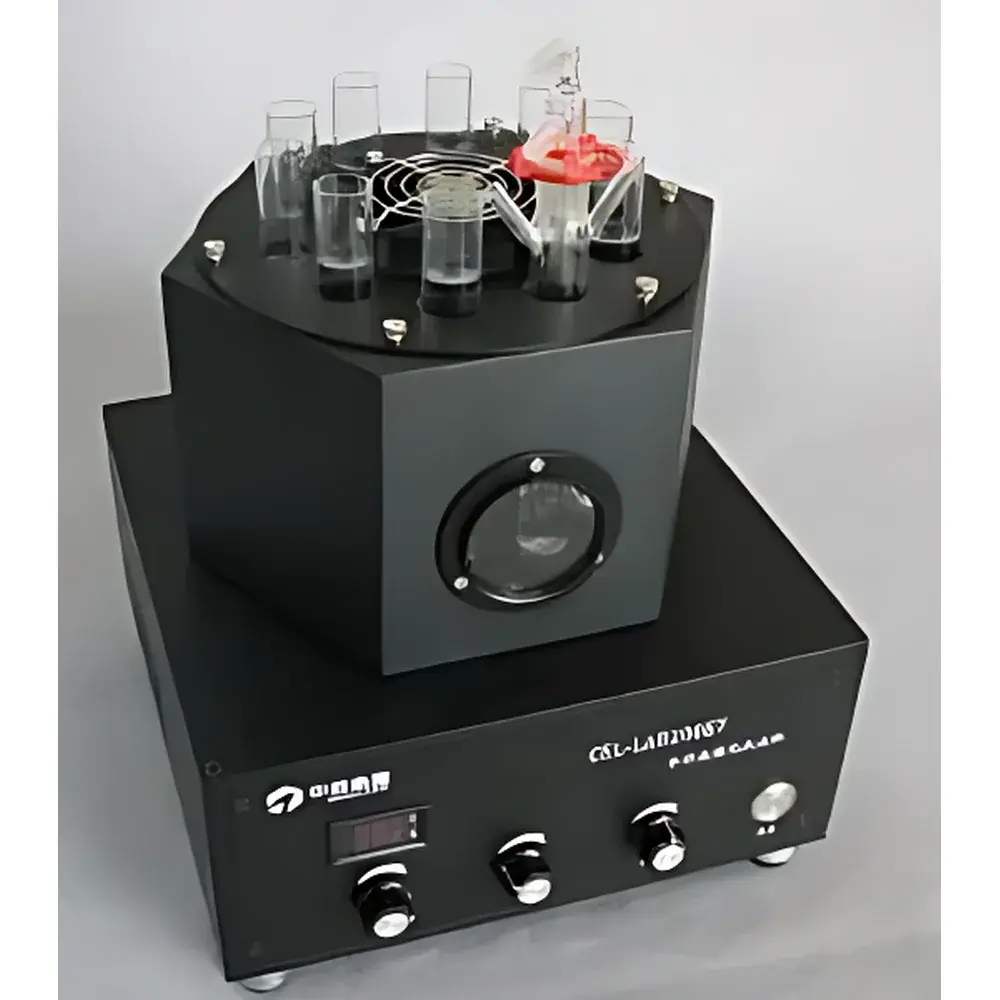

| Model | CEL-LAB200E7 |
| Light Source Type | High-Power Rotating LED Array (365–940 nm, 15 discrete wavelengths + white light & simulated solar spectrum) |
| Irradiation Mode | Internal coaxial radial illumination with rotational uniformity |
| Reaction Stations | 10-position parallel configuration |
| Reactor Material | Quartz (QRT50, 19/22 standard taper) with integrated temperature jacket, gas inlet/outlet, septum sampling port, and internal magnetic stirring |
| LED Power Range | 30–200 W per station, continuously adjustable |
| Rotation Speed | Motor-driven axial rotation of LED array (programmable RPM) |
| Cooling | Integrated forced-air thermal management |
| Control Architecture | Independent, synchronized control of irradiance, rotation speed, stirring speed, and temperature (via external chiller interface) |
| Input Power | 240 W, 220 V / 50 Hz |
| Compliance | Designed for GLP-compliant photochemical screening |
| Brand | CEL (China Education Goldsource) |
|---|---|
| Model | CEL-IW500 |
| Light Source Type | Tungsten-halogen lamp |
| Cooling Method | Forced water cooling |
| Input Voltage | 220 V AC |
| Operating Lamp Envelope Temperature | 200–1100 °C |
| Luminous Efficacy | 17–33 lm/W |
| Spectral Output Range | 350–2500 nm (continuous, broadband) |
| Rated Lifetime | ≥2000 h |
| Output Aperture | 50 mm × 50 mm |
| Illumination Geometry | External irradiation configuration |
| Optional Accessories | Visible-bandpass interference filters (discrete wavelength selection), dedicated light-shielding experimental enclosure with integrated temperature monitoring and remote process control |
| Brand | CEL (Zhongjiao Jinyuan) |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic |
| Model | CEL-PF300-T10 |
| Light Source Type | Xenon Arc Lamp |
| Illumination Mode | External Irradiation |
| Display | 7-inch Touchscreen Interface |
| Control System | Embedded Intelligent Controller with Fiber-Optic Power Feedback |
| Cooling | Low-Voltage Variable-Speed Fan with Thermal Delay Logic |
| Safety Design | Full-Low-Voltage Operation (≤24 VDC Control Circuitry) |
| Lamp Replacement | Tool-Free Hot-Swap Capable |
| Spectral Range (Ozone-Free) | 300–2500 nm |
| UV Output (<390 nm) | 2.6 W |
| Visible Output (390–770 nm) | 18.6 W, 5600 K, 5000 lm |
| IR Output (>770 nm) | 28.8 W |
| Total Radiant Output | 50 W |
| Input Power | 300 W (Ignition: 30 kV, Operating: 14 V DC) |
| Operating Current | 21 A (10–22 A range, recommended 18 A) |
| Lamp Lifetime | >1000 h (up to 6000 h under optimal conditions) |
| Power Stability | <±1% (with fiber-optic closed-loop feedback) |
| Adjustable Irradiance | 0–20 Sun (1 Sun = 1000 W/m², calibrated at 15 cm working distance using CEL-NP2000) |
| Programmable Modes | Manual, Fiber-Feedback Stabilized, Time-Programmed Intensity Ramp, Auto-Start/Stop, Remote Monitoring via Optional Software or Mobile App |
| Brand | CEL (China Education Goldsource) |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic |

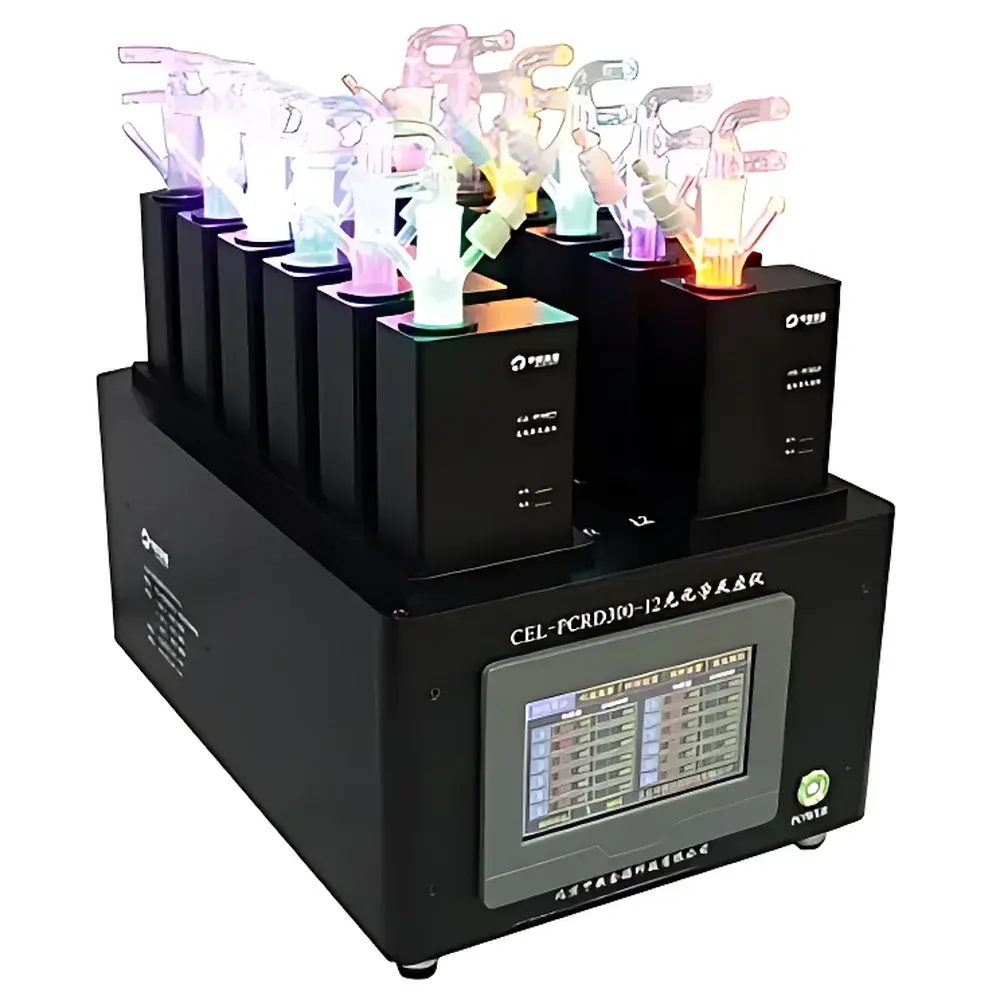

| Model | CEL-PCRD300-12 |
| Light Source Type | High-Power Tunable LED Array |
| Irradiation Mode | Side-Illumination Configuration |
| Number of Reaction Stations | 12 Independent Channels |
| LED Power per Channel | 25 W (DC 38 V, ±0.01%) |
| Total Input Power | 300 W (AC 220 V, ±0.01%) |
| Touchscreen Interface | 7-inch HD LCD (240 × 128 dpi) |
| Illuminated Area per Station | 100 mm × 20 mm (for 50 mL quartz tube) |
| Irradiance Uniformity | < 2% (measured across active irradiated surface) |
| Standard Wavelengths | 365, 395, 405, 420, 455, 470, 500, 520, 590, 620, 660 nm, and White LED |
| Optional Wavelengths | 740, 810, 850, 940 nm |
| Cooling Method | Passive/Convection (No Water Cooling Required) |
| Modular Lamp Housing | CEL-PCRS25 — Hot-Swappable LED Modules |
| Gas Control System | CEL-GDT-12 12-Channel Gas Distribution Unit with Independent Mass Flow Regulation |
| Sample Vessels | 12 × Quartz Reaction Tubes (50 mL standard |
| Temperature Management | Compatible with external cooling jackets or cryo-cold wells (optional) |
| Software Compatibility | Standalone touchscreen control |
| Brand | CEA-Light (Zhongjiaojinyuan) |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | OEM Manufacturer |
| Product Category | Domestic |
| Model | CEL-HXF(UV)300-M |
| Light Source Type | Short-Arc Xenon Lamp |
| Irradiation Mode | External Illumination |
| Input Power | 300 W (adjustable 180–320 W) |
| Optical Output Power Density | ≤20 Sun (1 Sun = 100 mW/cm² AM1.5G) |
| Operating Current | 14–21 A |
| Total Radiant Output Power | 50 W |
| UV Output Power (CEL-HXUV300-M variant) | 6.6 W (200–400 nm) |
| UV Output Power (CEL-HXF300-M variant) | 2.6 W (300–400 nm) |
| Visible Output | 5000 lm (CEL-HXF300-M), 4500 lm (CEL-HXUV300-M) |
| IR Output Power | 28.8 W (CEL-HXF300-M), 26.8 W (CEL-HXUV300-M) |
| Correlated Color Temperature | 5600 K (CEL-HXF300-M), 5050 K (CEL-HXUV300-M) |
| Lamp Window Diameter | 25.4 mm |
| Rated Lamp Life | ≥1000 h (under recommended ambient conditions) |
| Spectral Range | 300–2500 nm (CEL-HXF300-M), 200–2500 nm (CEL-HXUV300-M) |
| Light Collection | Ellipsoidal Reflective Collector |
| Beam Diameter at Target | ≥60 mm |
| Beam Divergence | Average 5° |
| Rotation Capability | Full 360° axial rotation of output beam |
| Cooling Method | Forced-air ducted thermal management |
| Safety Protection | Over-temperature cutoff |
| Control Interface | 4.3″ TFT color touch screen with programmable intensity cycling (up to 10 segments) |
| Communication Protocol | RS-485 for external system integration |
| Recommended Ambient Temperature | 20–30 °C |
| Recommended Relative Humidity | <45 % RH |
| Origin | Beijing, China |
|---|---|
| Manufacturer Type | Distributor |
| Origin Category | Domestic |
| Light Source Type | Other Light Source |
| Illumination Mode | Internal Illumination |

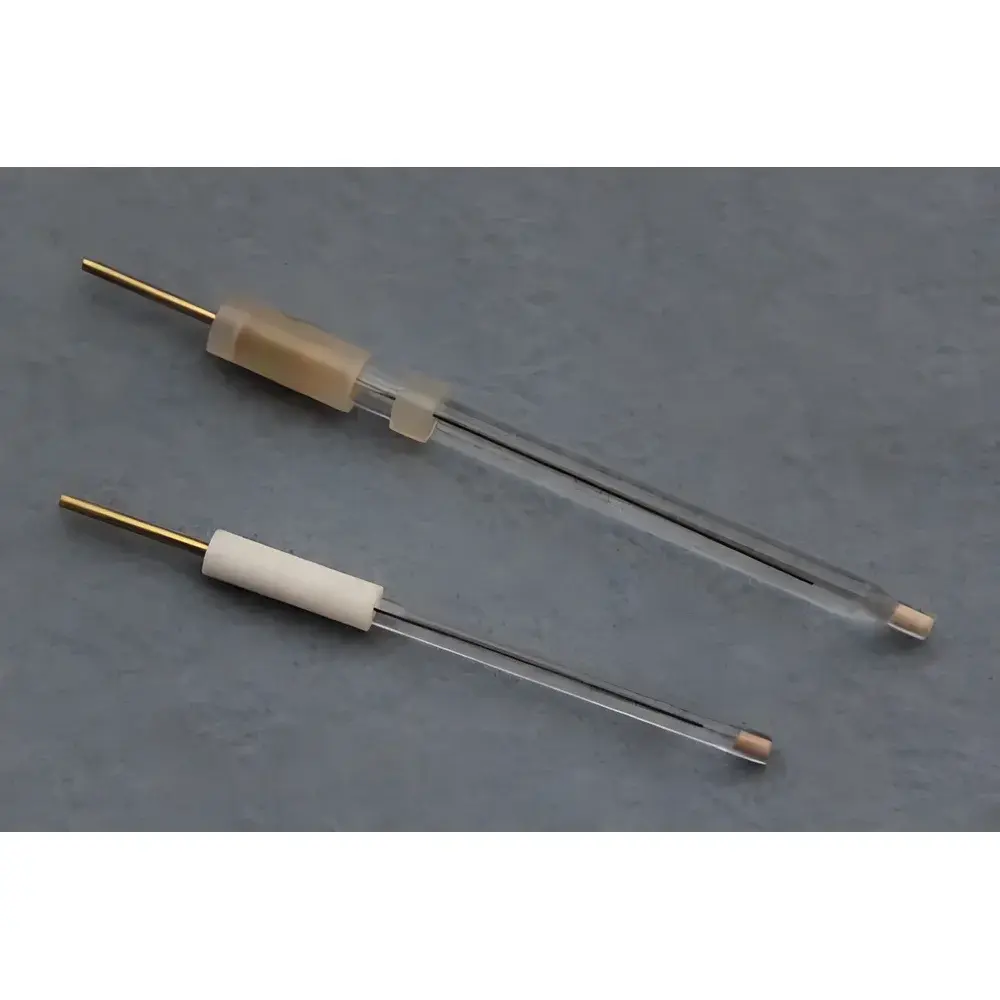

| Electrode Types | Ag/AgCl (R0302, R0303, R0305), Saturated Calomel (R0232) |
| Outer Diameter | 4 mm (R0302), 6 mm (R0303), 5/9 mm (R0232) |
| Internal Electrolyte | 3.5 mol/L KCl (R0302/R0303), Saturated KCl (R0305/R0232) |
| Construction Features | Removable fill port (R0302), side-fill port (R0303), powder-pressed Ag/AgCl element (R0305), classical Hg/Hg₂Cl₂ design (R0232) |
| Brand | CEAULIGHT |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | OEM Manufacturer |
| Product Category | Domestic |

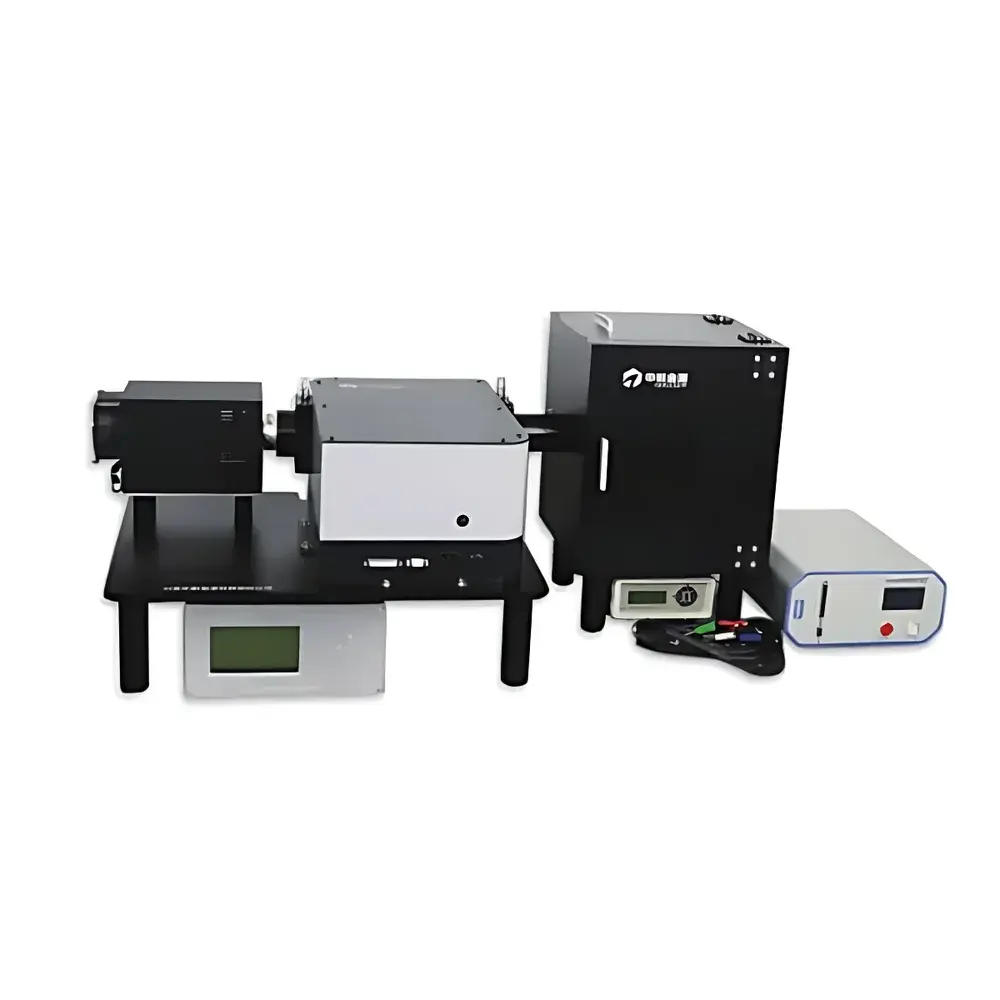

| Model | Photoelectrochemical Testing Solution |
| Pricing | Available Upon Request |
| Light Source Type | Tunable Monochromatic Xenon-Based Light Source |
| Illumination Mode | External Irradiation |
| Key Configurations | CEL-SLA (2.00 mW/cm²), CEL-SLF (10.00 mW/cm²), CEL-SLB (200.00 mW/cm²) |
| Spectral Range | 200–1600 nm |
| Bandwidth (FWHM) | 1–20 nm (adjustable) |
| Compatible Lamps | Xenon (CEL-HX, CEL-S500, CEL-S150), Deuterium, Tungsten-Halogen, Mercury |
| Primary Applications | Photoelectrochemistry, IPCE/ABPE Quantum Yield Analysis, Electrochemical Impedance Spectroscopy (EIS) under Illumination, Transient Photocurrent/Photovoltage Measurement |
| Brand | CEAULIGHT (Zhongjiao Jinyuan) |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | OEM Manufacturer |
| Product Category | Domestic |

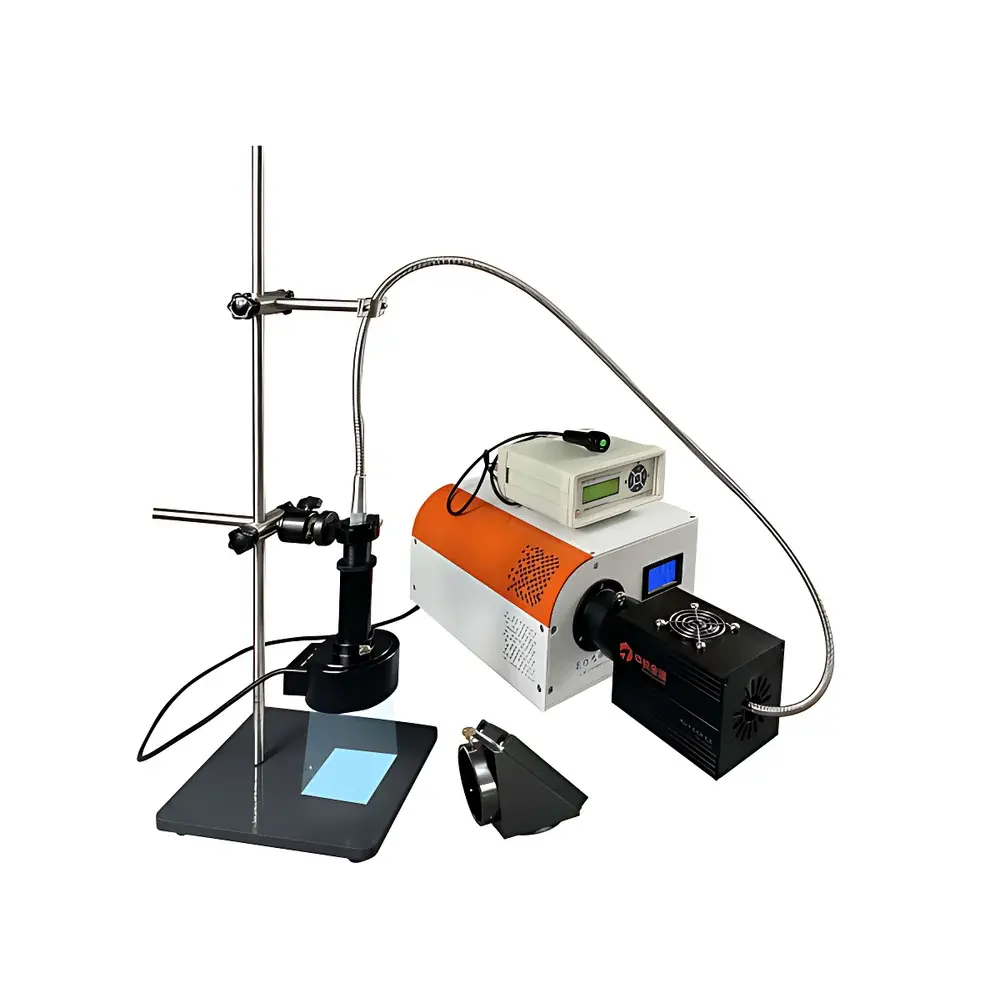

| Model | CEL-FES300 |
| Light Source Type | 300 W Short-Arc Xenon Lamp |
| Illumination Mode | External Irradiation |
| Spectral Output Range | 300–2500 nm (Ozone-Free) |
| Fiber-Coupled Square Beam Size | 10×10 to 60×60 mm (Continuously Adjustable) |
| Beam Uniformity (≤40 mm) | <5% |
| UV Output (<390 nm) | 2.6 W |
| Visible Output (390–770 nm) | 18.6 W, 5000 lm, 5600 K |
| IR Output (>770 nm) | 28.8 W |
| Optical Power Density Range | 0–20 Sun (1 Sun = 1000 W/m²) |
| Electronic Shutter Accuracy | ±0.01 s |
| Lamp Lifetime | >1000 h (up to 6000 h under optimal conditions) |
| Input Power | 300 W (Ignition Voltage: 15 kV |
| Operating Voltage | 14 V DC |
| Operating Current | 21 A DC) |
| Total Radiant Output | ~50 W |
| Brand | CEAULIGHT (Zhongjiaojinyuan) |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | OEM Manufacturer |
| Product Category | Domestic |
| Model | CEL-QPCE2010 QE/IPCE System |
| Light Source Type | Monochromatic Tunable Source with Chopped Xenon/Mercury Lamp |
| Illumination Mode | External Illumination |
| Spectral Range | 200–1100 nm |
| Wavelength Step Resolution | ≥1 nm, Continuously Adjustable |
| Scan Mode | Fully Automated Spectral Sweep |
| Repeatability | <0.3% (J<sub>sc</sub>) |
| AC Detection Mode | Lock-in Amplifier-Based Signal Recovery |
| Chopping Frequency Range | 5–1000 Hz |
| Temperature-Controlled Stage | 5–40 °C (±0.5 °C, Optional) |
| Bias Light Source | Optional Dual-Channel Configuration |
| Monochromator Options | 300 mm or 150 mm Focal Length |
| Brand | CEAULIGHT (Zhongjiaojinyuan) |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | OEM Manufacturer |
| Product Category | Domestic |
| Model | CEL-QPCE2050 |
| Light Source Type | Tunable Monochromatic Light + Bias Illumination (Xenon-based White Light) |
| Illumination Mode | External Illumination |
| Spectral Range | 200–1100 nm |
| Wavelength Resolution | ≥1 nm (continuously adjustable) |
| Scan Mode | Fully Automated, Continuous Monochromatic Scanning |
| Repeatability | <0.3% (J<sub>sc</sub>) |
| Operating Mode | DC Measurement Only |
| Chopping Frequency | 5–1000 Hz |
| Temperature Control Stage (Optional) | 5–40 °C (±0.5 °C) |
| Bias Light Intensity | ~0.5 SUN (AM1.5G spectrum) |
| Monochromator Focal Length | 300 mm or 150 mm (configurable) |
| Detection System | Keithley Digital Multimeter (High-Accuracy DC Current/Voltage Acquisition) |
| Compliance | ASTM E1021-12, IEC 60904-8, GB/T 6495.8-2002 |
| Sample Compatibility | Dye-sensitized solar cells (DSSCs), perovskite solar cells (PSCs), other single-junction photovoltaic devices compatible with DC-based QE characterization |
| Brand | CEAULIGHT (Zhongjiaojinyuan) |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Direct Manufacturer |
| Product Origin | Domestic (China) |
| Model | CEL-APR250H-3 / CEL-APR100H-3 |
| Light Source Type | Broadband UV–Vis Lamp (Xenon or Mercury Arc Compatible) |
| Irradiation Mode | External Illumination |
| Construction Material | Borosilicate Glass (3.3) |
| Cooling/Heating Jacket | Integrated Double-Wall Water Circulation Sleeve |
| Gas Handling | Bottom-Inlet Gas Delivery Tube with Inline Glass Stopcock |
| Sampling Ports | Two Standardized Septum-Piercing Inlets (GL14/GS14) |
| Optical Window | UV-Grade Fused Silica (≥185 nm Transmission) |
| Sealing | DIN 2769 Flange with Viton O-Ring |
| Reaction Volume | 100 mL (CEL-APR100H-3) / 250 mL (CEL-APR250H-3) |
| Operating Pressure | Ambient (1 atm), Non-Pressurized Configuration |
| Brand | CEA-Light (Zhongjiao Jinyuan) |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | OEM/ODM Manufacturer |
| Product Category | Domestic |
| Model | CEL-QPCE2030 QE/IPCE System for Multi-Junction Thin-Film Photovoltaics |
| Light Source Type | Broadband Continuous Xenon Arc Lamp with Spectral Homogenization |
| Illumination Mode | External Illumination Configuration |
| Spectral Range | 200–1700 nm |
| Wavelength Resolution | ≥1 nm adjustable step size |
| Scan Mode | Fully Automated Monochromator-Based Sequential Scanning |
| Repeatability | <0.3% (short-circuit current, J<sub>sc</sub>) |
| Bias Light Options | Up to Two Independent Bias Sources (Xenon or Halogen), Each with Motorized Filter Wheel (3 Short-Pass + 4 Long-Pass Imported Interference Filters) |
| Bias Voltage Range | ±3 V, Setting Accuracy: ±1 mV |
| Chopping Frequency | 5–1000 Hz |
| Temperature-Controlled Stage | 5–40 °C (±0.5 °C stability, optional) |
| Monochromator Focal Length | 300 mm (standard), 150 mm (optional) |
| Detection Method | Lock-in Amplifier-Coupled Low-Noise Current Measurement with Background Subtraction and Drift Compensation |
| Sample Compatibility | Single-, Dual-, Triple-, and Multi-Junction Thin-Film PV Devices (including GaInP/GaAs/Ge, Perovskite/Si, CIGS-based tandems) |
| Compliance | Designed to support ASTM E1021, IEC 60904-8, IEC 60904-9, and ISO 18592 test protocols |
| Brand | CEAULIGHT |
|---|---|

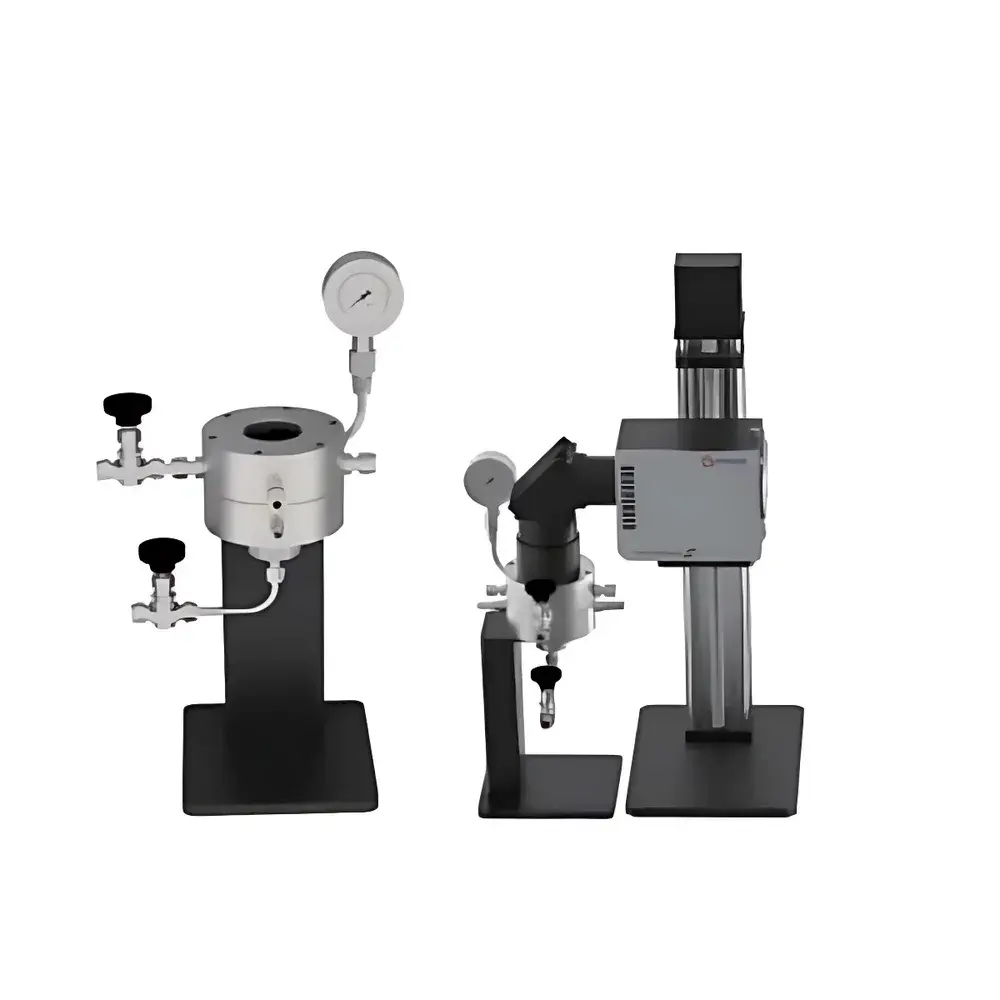

| Model | CEL-STU100 |
| Light Source Type | High-Intensity Xenon Arc Lamp |
| Irradiation Mode | External Illumination |
| Max Operating Temperature | 800 °C |
| Optical Window Material | Fused Silica (Quartz) |
| Window Transmittance | >95% (200–2500 nm) |
| Construction Material | ASTM A240 Grade 316L Stainless Steel |
| Sealing Method | Metal-Gasketed Flanged Interface |
| Thermal Insulation | Multi-Layer Ceramic Fiber Blanket (Surface Temp. <60 °C at 800 °C Internal) |
| Brand | CEL (China Education Goldsource) |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | OEM Manufacturer |
| Product Origin | Domestic (China) |
| Model | CEL-SPS1000 Surface Photovoltage Spectrometer (SPV/SPC/SPS) |
| Light Source Type | Multi-lamp Modular Source System (Xenon, Halogen, Deuterium) |
| Illumination Mode | External Irradiation Configuration |
| Voltage Detection Limit | >100 nV |
| Current Detection Limit | >100 pA |
| Phase Detection Range | –180° to +180° |
| Spectral Range | 200–1600 nm |
| Spectral Resolution | 0.1 nm |
| Wavelength Accuracy | ±0.1 nm |
| Monochromator Focal Length | 300 mm |
| Optical Design | Asymmetric Horizontal Czerny–Turner |
| Grating Size | 55 × 55 mm |
| Minimum Step Size | 0.0023 nm |
| Chopper Frequency Range | 20 Hz–10 kHz |
| Lock-in Amplifier Bandwidth | 1 mHz–102.4 kHz |
| Phase Resolution | 0.01° |
| Time Constant Range | 10 µs–30 ks |
| Filter Wheel | 6-position Automated, Standard Filters: 185–1600 nm |
| Light Source Power Control | 250–500 W (Xe lamp, software-regulated via USB) |
| Brand | CEAULIGHT |
|---|---|

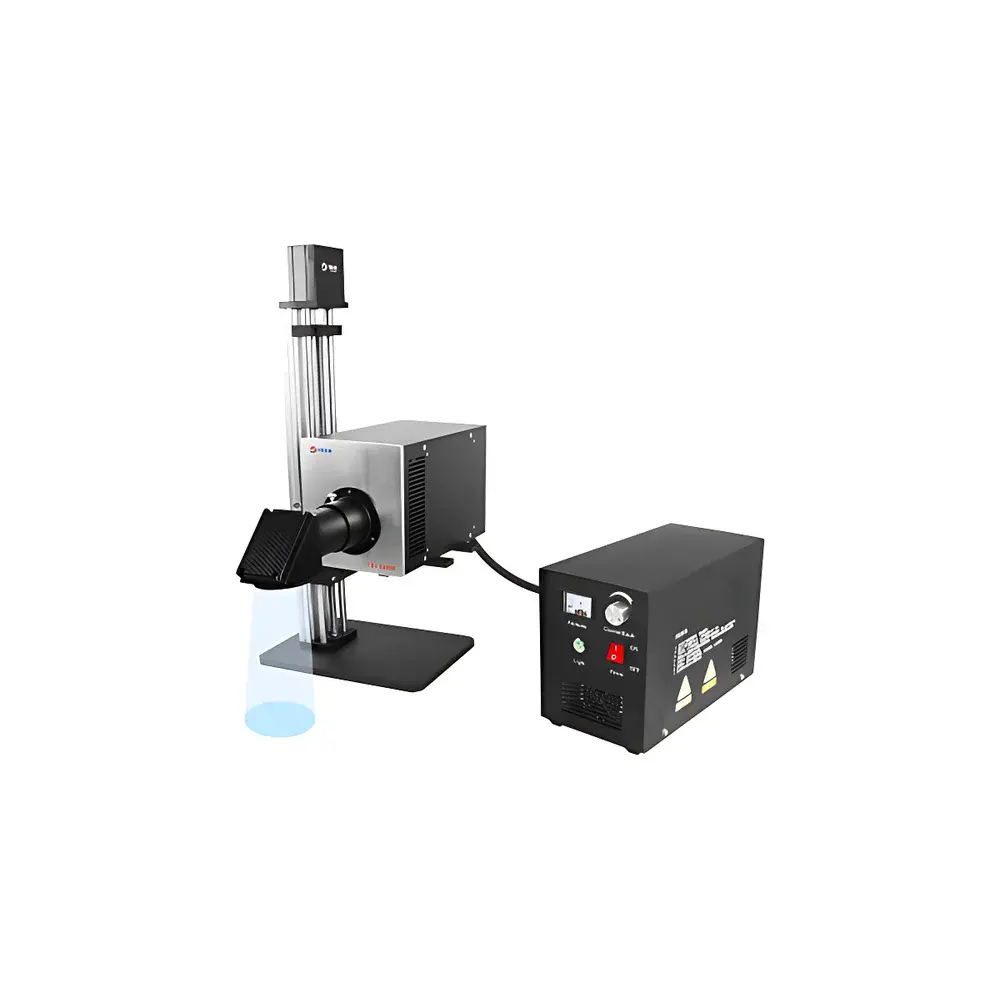

| Model | CEL-S500F |
| Light Source Type | 500 W Short-Arc Spherical Xenon Lamp |
| Illumination Mode | External Irradiation |
| Spectral Range | 300–1100 nm |
| Max. Power Density | 500–1500 mW/cm² (up to 2500 mW/cm² at focused spot) |
| Optimal Spot Diameter | 50 mm |
| Adjustable Spot Size | 20–100 mm via Lens Assembly |
| Spot Uniformity | High |
| Current Regulation Range | 15–25 A (300–500 W output) |
| Cooling Method | Forced Air Cooling |
| Lamp Housing Dimensions | 150 × 175 × 345 mm (W×H×L) |
| Power Supply Unit Dimensions | 155 × 205 × 300 mm (W×H×L) |
| Operating Ambient Temperature | −10 °C to +40 °C |
| Compliance | Compatible with CEAULIGHT M62 Series Optical Filters |
| Optional Accessories | LMP400 Motorized Height Adjustment Stage |
| Brand | CEL (China Education Goldsource) |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic |

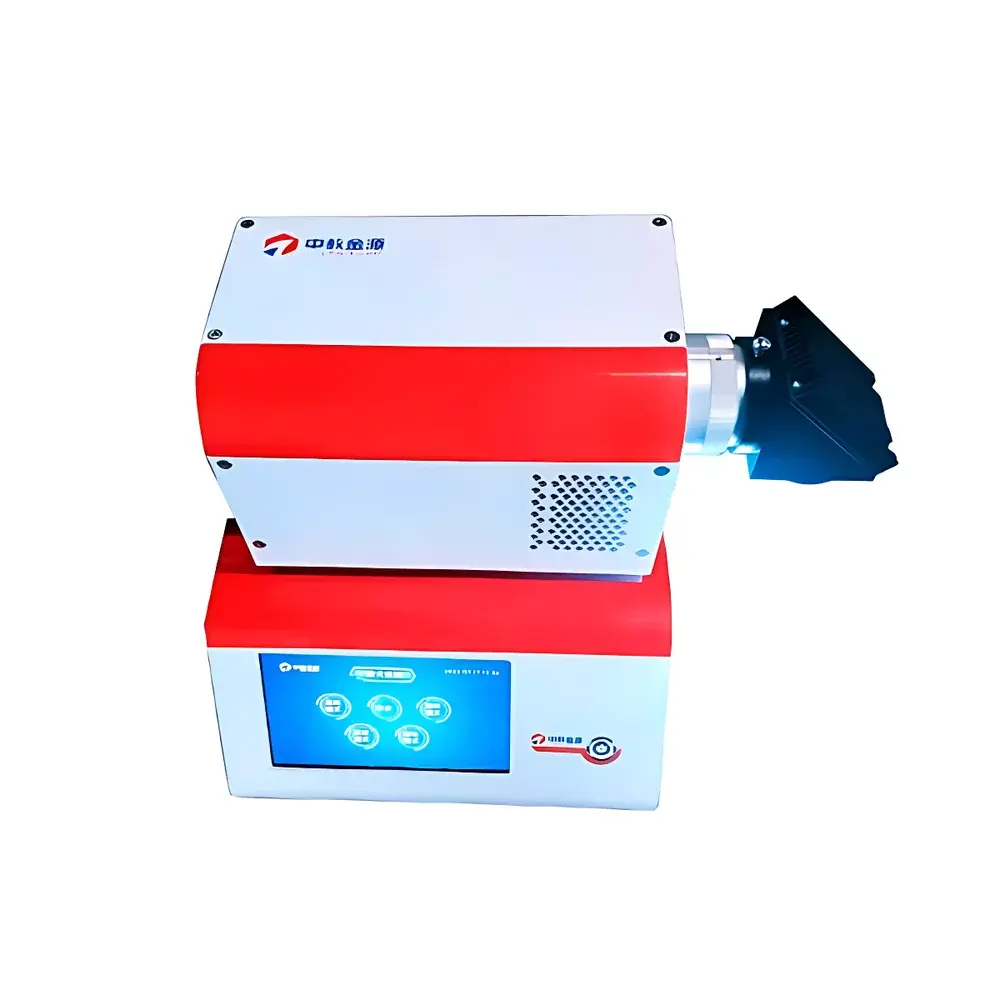

| Model | CEL-PE300-3A |
| Light Source Type | Xenon Arc Lamp |
| Illumination Configuration | External Irradiation |
| Spectral Classification | ASTM E927-19 Class AAA (3A) Solar Simulator |
| Uniformity | <5% (measured with calibrated reference cell) |
| Output Irradiance Range | 0.1–5 Sun (10–500 mW/cm², AM1.5G) |
| Beam Shape | Hexagonal (optional square) |
| Beam Diameter | 30–80 mm (distance-dependent) |
| Optical System | Fly’s-eye homogenizer lens array |
| Standard Filter | AM1.5G (ISO 9022-12 / IEC 60904-9 compliant) |
| Control Interface | 7-inch capacitive touchscreen (800×480 dpi) |
| Feedback Integration | Compatible with NP2000 optical power meter (real-time irradiance monitoring & closed-loop stabilization) |
| Safety Compliance | Dual-grounded chassis, high-voltage interlock, thermal cutoff, emergency stop |
| Brand | CEL (China Education Goldsource) |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Direct Manufacturer |
| Model Variants | CEL-LPH120-185, CEL-LPH120-254 |
| Light Source Type | Low-Pressure Mercury Lamp |
| Illumination Mode | External Irradiation |
| Output Wavelengths | 185 nm and 254 nm (selectable) |
| Rated Power | 120 W |
| Radiant Intensity | ≥50 mW/cm² (at 254 nm, measured at 10 cm distance) |
| Illuminated Area | 128 mm × 128 mm (uniform irradiance) |
| Lamp Geometry | Serpentine-shaped fused silica lamp tube |
| Lamp Lifetime | ≥5,000 hours |
| Operating Temperature | Up to 105 °C ambient |
| Lamp Current | 1200 mA |
| Envelope Material | Low-OH Synthetic Fused Silica |
| Dimensions (H×W×D) | 288 mm × 180 mm × 100 mm |
| Startup Method | Preheat ignition required |
| Compliance | Designed for laboratory-grade UV photolysis, photocatalysis, and sterilization applications under controlled environments |
| Brand | CEL |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | OEM Manufacturer |
| Product Category | Domestic |
| Model | CEL-SPCT Surface Photovoltage Upgrade Module for Perovskite & Dye-Sensitized Solar Cells (QE/IPCE) |
| Light Source Type | Customizable Monochromatic Light Source with Bias Illumination |
| Illumination Mode | External Illumination |
| Spectral Range | 200–1100 nm |
| Scan Mode | Fully Automated Continuous Scanning |
| Repeatability | <0.3% (J<sub>sc</sub>) |
| Measurement Mode | DC and AC Surface Photovoltage Analysis |
| Key Components | Keithley SourceMeter (SMU), Motorized Sample Stage, Optimized Optical Path with Calibration Traceability to NIST-Traceable Reference Cell |
| Brand | CEAULIGHT (Zhongjiao Jinyuan) |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | OEM/ODM Manufacturer |
| Product Category | Domestic |
| Model | CEL-FES300 |
| Light Source Type | 300 W Short-Arc Xenon Lamp |
| Illumination Mode | External Irradiation |
| Spectral Output Range | 300–2500 nm (ozone-free) |
| Fiber-Coupled Square Beam Dimensions | 10×10 mm to 60×60 mm (continuously adjustable) |
| Beam Uniformity (≤40 mm) | <5% |
| AM1.5G Spectrum Compliance | Integrated |
| UV Output (<390 nm) | 2.6 W |
| Visible Output (390–770 nm) | 18.6 W, 5000 lm, CCT 5600 K |
| IR Output (>770 nm) | 28.8 W |
| Total Radiant Power | 50 W |
| Input Power | 300 W (Ignition Voltage: 15 kV |
| Operating Voltage | 14 V DC) |
| Operating Current | 21 A (10–22 A range) |
| Lamp Lifetime | >1000 h (up to 6000 h under optimal conditions) |
| Electronic Shutter Accuracy | ±0.01 s |
| Light Stability (Fiber Output) | ±0.5% RMS over 8 h |
| Temperature-Controlled Cooling | Multi-point thermal monitoring with adaptive fan speed control |
| Optional Accessories | CEL-LMP400 Motorized Lift Stage, CEL-NP2000-2 High-Power Radiometer, Full-Line Quartz-Coated Bandpass & Cut-on/Cut-off Filters (e.g., UVIRCut400, AM1.5G, QD365, QD420, etc.) |
Show next
