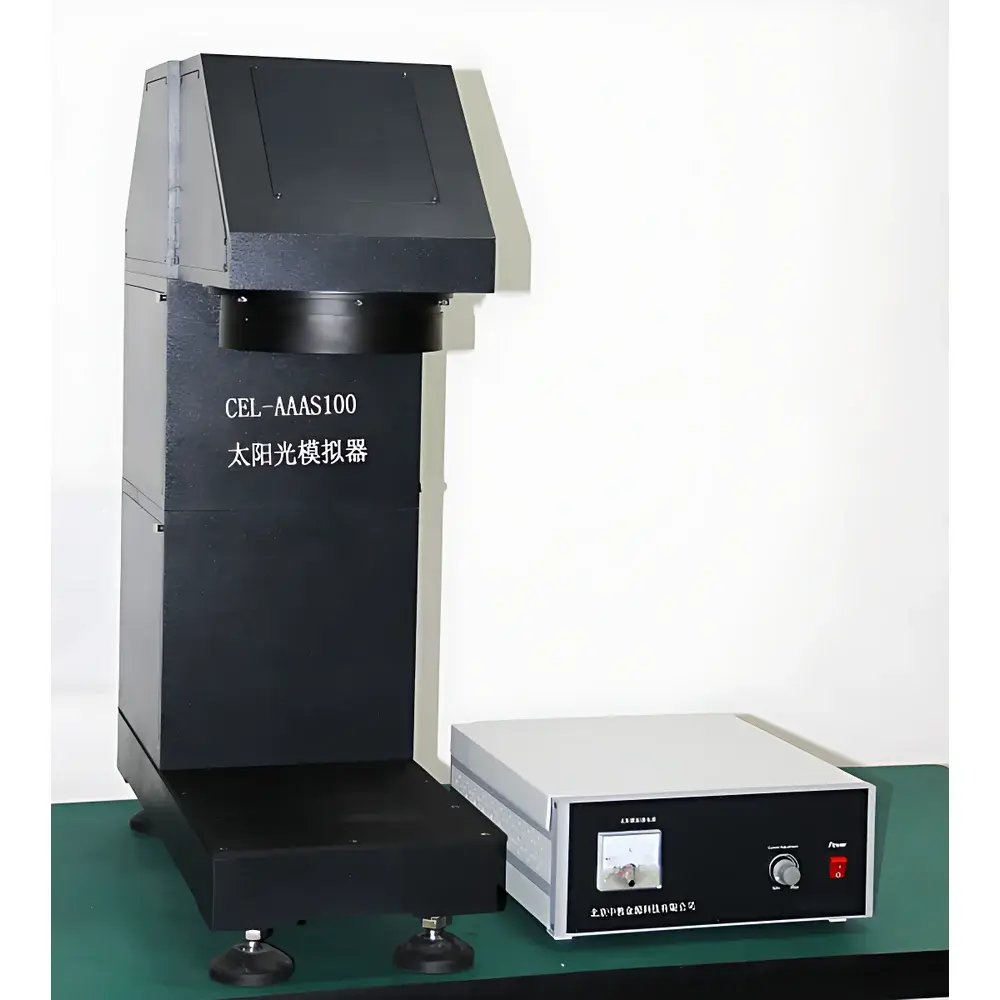

| Brand | CEAULIGHT |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | OEM/ODM Producer |
| Origin Category | Domestic (China) |
| Models | CEL-AAAS50, CEL-AAAS100 |
| Price | ¥155,800 |
| Trigger Mode | Steady-State |
| Brand | CEAULIGHT (Zhongjiaojinyuan) |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | OEM Manufacturer |
| Product Category | Domestic |
| Model | CEL-QPCE2030 |
| Pricing | USD 49,800 (FOB) |
| Trigger Mode | Steady-State Operation |
| Spectral Range | 200–1700 nm |
| Wavelength Resolution | ≥1 nm (continuously adjustable) |
| Scan Mode | Fully Automated Monochromator Sweep |
| Repeatability | <0.3% (short-circuit current, J<sub>sc</sub>) |
| Bias Light Options | Up to 2 independent bias sources (Xe or halogen), each with configurable optical filtering |
| Bias Voltage Range | ±3 V (resolution: ±1 mV) |
| Temperature Control Stage | 5–40 °C (±0.5 °C stability, optional) |
| Monochromator Focal Length | 300 mm (standard), 150 mm (optional) |
| Detection Modes | DC and AC (chopper frequency: 5–1000 Hz) |
| Stray Light Suppression | Patented multi-order elimination optical design |
| Signal Processing | Correlated detection for low-signal amplification and SNR enhancement |
| Sample Holder | Universal thin-film cell fixture with low-contact-resistance electrodes and minimal electromagnetic interference |
| Brand | CEL |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Direct Manufacturer |
| Origin Category | Domestic (China-made) |
| Model | CEL-QPCE2010 |
| Price | USD 41,800 (approx.) |
| Trigger Mode | Steady-State |
| Spectral Range | 200–1100 nm |
| Wavelength Step Resolution | ≥1 nm (continuously adjustable) |
| Scan Mode | Fully Automated Spectral Sweep |
| Repeatability | <0.3% (J<sub>sc</sub>) |
| Detection Method | Lock-in Amplifier-Based AC Modulation |
| Chopping Frequency | 5–1000 Hz |
| Temperature-Controlled Stage | 5–40 °C (±0.5 °C) |
| Optional Accessories | Dual Monochromators (300 mm & 150 mm focal length), Bias Light Source (2 channels), Integrating Sphere for Absolute Reflectance/Transmittance |
| Origin | Beijing, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic |

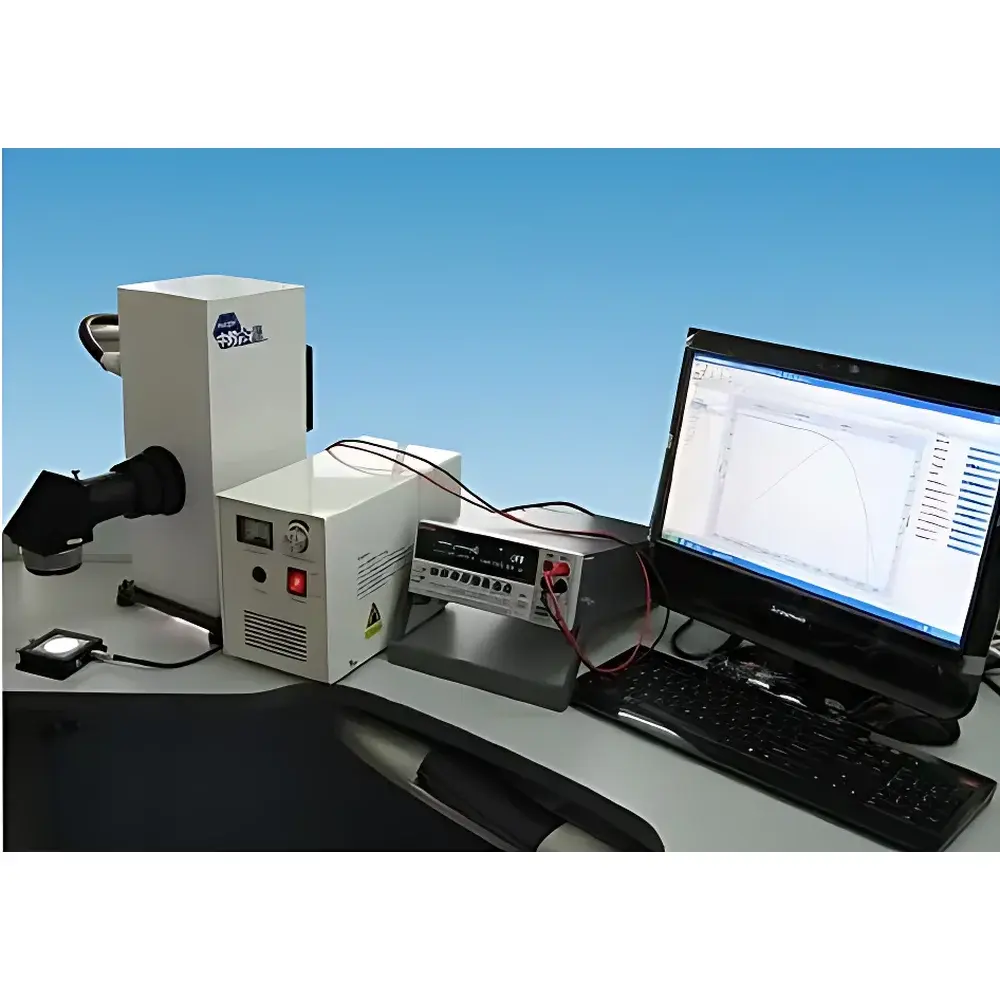

| Model | CEL-IV |
| Price | USD 22,800 (FOB) |
| Trigger Mode | Steady-State |
| Brand | CEAULIGHT (Zhongjiao Jinyuan) |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic |
| Model | CEL-QPCE2050 |
| Trigger Mode | Steady-State DC Operation |
| Spectral Range | 200–1100 nm |
| Wavelength Resolution | ≥1 nm (continuously adjustable) |
| Scan Mode | Fully Automated, Continuous Monochromatic Illumination |
| Repeatability | <0.3% (short-circuit current density, J<sub>sc</sub>) |
| Control Interface | PC-based Software with Auto-Calibration & Background Subtraction |
| Bias Light Source | Integrated White-Light Xenon Lamp (≈0.5 SUN, AM1.5G spectrum) |
| Monochromator | 300 mm or 150 mm focal length options |
| Sample Chamber | All-Reflective Optical Path (no transmissive optics) |
| Detection | Keithley Digital Multimeter (high-accuracy, high-speed DC current measurement) |
| Temperature Control Stage | Optional (5–40 °C, ±0.5 °C stability) |
| Compliance | ASTM E1021-12, IEC 60904-8, GB/T 6495.8–2002 |
| Brand | CEA |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | OEM Manufacturer |
| Country of Origin | China |
| Model | CEL-AFS1000 |
| Price Range | USD 14,000 – 42,000 |
| Trigger Mode | Pulsed Xenon |
| Spectral Class | IEC 60904-9 AM1.5G Class A |
| Illuminated Area | 1000 px × 1000 px (≈ 25.4 cm × 25.4 cm) |
| Irradiance Uniformity | ±2% |
| Long-Term Instability (LTI) | ±1% |
| Short-Term Instability (STI) | ±0.5% |
| Pulse Width | 10 ms |
| Lamp Lifetime | 200,000 flashes |
| Irradiance Range | 200–1200 mW/cm² (calibrated at 1000 mW/cm²) |
| Voltage Measurement Range | 0–1.000 V |
| Current Measurement Range | 0–0.2 A / 0–2.0 A / 0–12.0 A |
| Reverse Voltage Range | 0–20 V |
| Reverse Current Range | 0–5 A |
| Voltage Resolution | 1 mV |
| Current Resolution | 1 mA |
| Temperature Resolution | 0.1 °C |
| Measurement Repeatability | < ±0.5% |
| Test Cycle Time | < 2 s |
| Brand | CEL (China Education Goldsource) |
|---|---|
| Origin | Beijing, China |
| Manufacturer | Yes |
| Country of Origin | China |

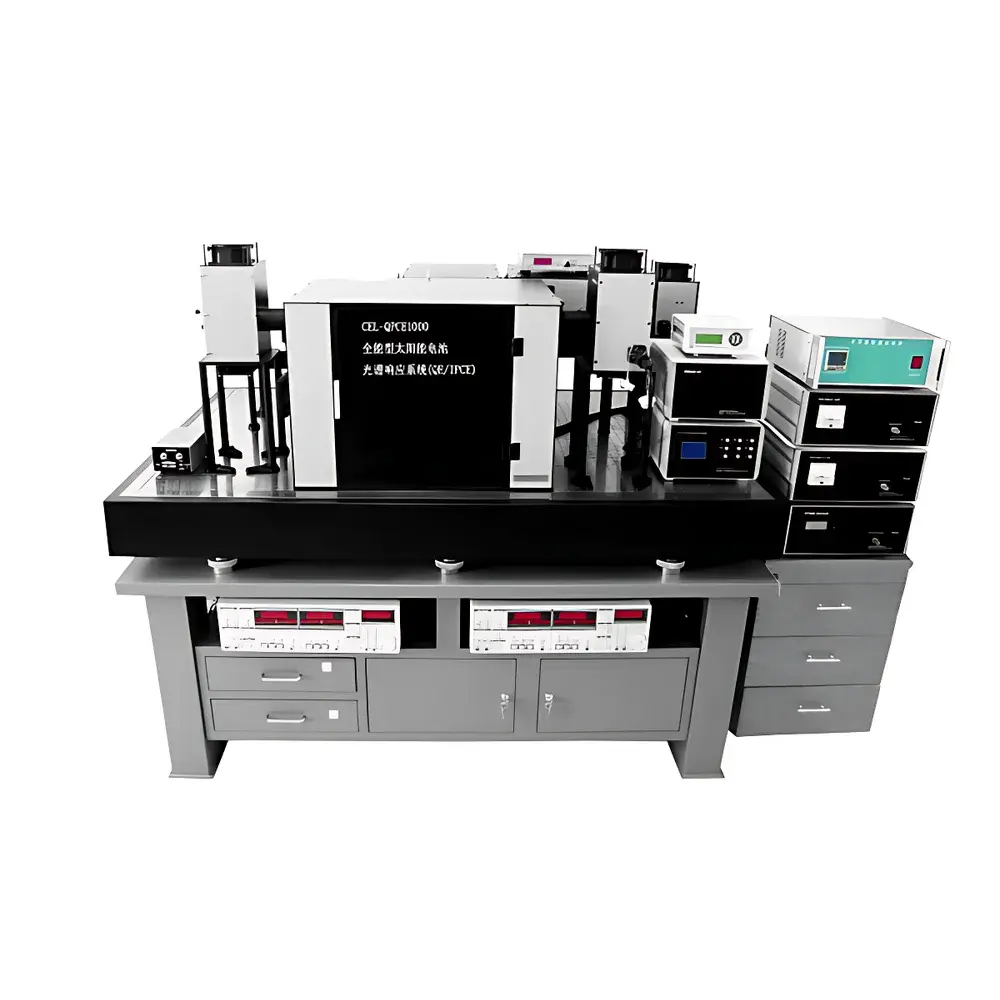

| Model | CEL-QPCE1000 |
| Trigger Mode | Steady-State |
| Spectral Range | 200–2500 nm (optional extension) |
| Wavelength Resolution | ≥1 nm adjustable |
| Scan Repeatability | <0.3% (short-circuit current density) |
| Operating Modes | AC & DC |
| Chopping Frequency | 5–1000 Hz |
| Temperature Control Stage | 5–40 °C (±0.5 °C stability) |
| Bias Light Options | Dual-channel, configurable for multi-junction cells |
| Monochromator | Single or dual monochromator configuration available |
| Optical Monitoring | Real-time reference beam feedback loop |
| Software | Fully automated acquisition, calibration, and spectral data processing suite |
| Brand | CNI |
|---|---|
| Origin | Japan |
| Manufacturer Type | Manufacturer |
| Origin Category | Imported |
| Model | AAA-Class |
| Trigger Mode | Steady-State |
| Effective Illuminated Area | 50 mm × 50 mm |
| Irradiance Non-Uniformity | <2% (Class A) |
| Temporal Instability | <1% (long-term, ≥1 h), <0.5% (short-term, Class A) |
| Spectral Mismatch | <±25% (Class A) |
| Compliant Standards | JIS C 8912, ASTM E927-05, IEC 60904-9 |
| Light Source | 150 W Xenon Arc Lamp |
| Lamp Lifetime | 1000 h |
| AM1.5G Filter | Included |
| Adjustable Beam Orientation | 4-Directional |
| Visual Monitoring Ports | Dual Quadrant Arc View Windows |
| Lamp Warm-up Indicator System | Integrated |
| Brand | CNI |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Direct Manufacturer |
| Product Origin | Domestic (China) |
| Model | SS-50A |
| Price Range | USD 14,000–42,000 |
| Operating Mode | Steady-State |
| Spectral Match (AM 1.5G) | 0.75–1.25 |
| Irradiance | 1200 W/m² |
| Beam Area | 50 mm × 50 mm |
| Spatial Uniformity | <5% |
| Intensity Stability (RMS) | <0.5% |
| Beam Collimation | ±4° (half-angle) |
| Classification | IEC 60904-9:2020 Class AAB |
| JIS C 8912 | 2013 Class AAB |
| Brand | CEL |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Manufacturer |
| Origin Category | Domestic |
| Model | CEL-QPCE2050 |
| Price | USD 36,800 (FOB) |
| Trigger Mode | Steady-State DC |
| Spectral Range | 200–1100 nm |
| Wavelength Resolution | ≥1 nm (continuously adjustable) |
| Scan Mode | Fully Automated Sequential Scanning |
| Repeatability | <0.3% (short-circuit current density, J<sub>sc</sub>) |
| Bias Light | Integrated AM1.5G white-light source (~0.5 SUN, ±5% uniformity) |
| Monochromator | 300 mm or 150 mm focal length options |
| Detection | Keithley 2400/2450 SourceMeter (IEEE-488 & USB-TMC compliant) |
| Temperature Control (optional) | 5–40 °C (±0.5 °C) |
| Chopping Frequency | 5–1000 Hz |
| Compliance | ASTM E1021-12, IEC 60904-8:2014, GB/T 6495.8–2002 |
| Brand | CEL (Zhongjiaojinyuan) |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Direct Manufacturer |
| Model | CEL-QPCE2030 |
| Trigger Mode | Steady-State Operation |
| Spectral Range | 200–1700 nm |
| Wavelength Resolution | ≥1 nm (continuously adjustable) |
| Scan Mode | Fully Automated Monochromator-Based Spectral Sweep |
| Repeatability | <0.3% (short-circuit current, J<sub>sc</sub>) |
| Operating Modes | DC and AC (chopped, 5–1000 Hz) |
| Bias Voltage Range | ±3 V (setting accuracy: ±1 mV) |
| Temperature Control Stage | 5–40 °C (±0.5 °C stability, optional) |
| Monochromator Focal Length | 300 mm or 150 mm (configurable) |
| Bias Light Sources | Up to 2 independent channels (Xe or halogen), each with dedicated filter sets |
| Bias Filters | 3 short-pass + 4 long-pass interference filters (imported) |
| Sample Compatibility | Single-junction, dual-junction, triple-junction, and higher-order thin-film solar cells (including GaInP/GaAs/Ge, perovskite/Si tandems, CIGS-based multijunctions) |
| Software | Integrated, fully automated acquisition and analysis suite with background subtraction, spectral deconvolution, J<sub>sc</sub> integration (AM1.5G), and layer-resolved QE/SR extraction |
