| Brand | ART Photonics |
|---|---|
| Origin | Germany |
| Model | FORO-L-3/5-F10 |
| Spectral Range | 3–5 µm |
| Lens Material | ZnSe |
| Lens Type | Plano-Convex |
| Focal Length | 10 mm |
| Numerical Aperture | 0.35 |
| Outer Diameter | 25 mm |
| Thread | M24×1 |
| Housing | Anodized Aluminum (Black) |
| AR Coating | Optimized for 3–5 µm |
| Compatible Connectors | SMA, FC/PC |
| Weight | ~45 g |
| Brand | ART Photonics |
|---|---|
| Origin | Germany |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | PIR Fiber |
| Spectral Range | 3–17 µm |
| Brand | ART Photonics |
|---|---|
| Origin | Germany |
| Model | CIR Fiber 1.5–6 µm |
| Spectral Range | 0.18–1.2 µm (UV-VIS) |
| Detector Type | CCD |
| Resolution | 30 |
| Sensitivity | 400 |
| Signal-to-Noise Ratio | 1001 |
| Core Diameter Options | 200–1500 µm |
| Numerical Aperture | 0.22 ± 0.02 (25° full acceptance angle) |
| Operating Temperature | −40 °C to +600 °C (copper-coated variant) |
| Connector Types | HP-SMA, D-80 |
| Cable Lengths | 1.5 m, 3.0 m (custom lengths from 5 cm to 50 m) |
| Cladding Material | Fluorine-doped fused silica |
| Core Material | High-OH⁻ or Low-OH⁻ fused silica |
| Jacketing Options | Nylon, Tefzel, acrylic, aluminum, copper |
| Protective Sheathing | PVC-coated stainless steel coil, silicone-coated stainless steel bend protection |
| Brand | Advanced Fiber Tools |
|---|---|
| Origin | Germany |
| Detector Type | CMOS |
| Spectral Range | 1500–2600 nm |
| Resolution | 2300 |
| Sensitivity | 2000 |
| Core Material | Low-OH Fused Silica |
| Cladding Material | Fluorinated Fused Silica |
| Coating Options | Acrylate (−40°C to +85°C), Silicone (−40°C to +180°C), Polyimide (−190°C to +385°C) |
| Numerical Aperture | 0.22 ± 0.02 |
| Core/Clad Ratio | 1.1, 1.2, or 1.4 |
| Biocompatibility | ISO 10993-compliant |
| Sterilization Compatibility | ETO, Steam, Electron Beam, Gamma |
| Radiation & Laser Damage Resistance | Yes |
| Brand | INSION |
|---|---|
| Origin | Germany |

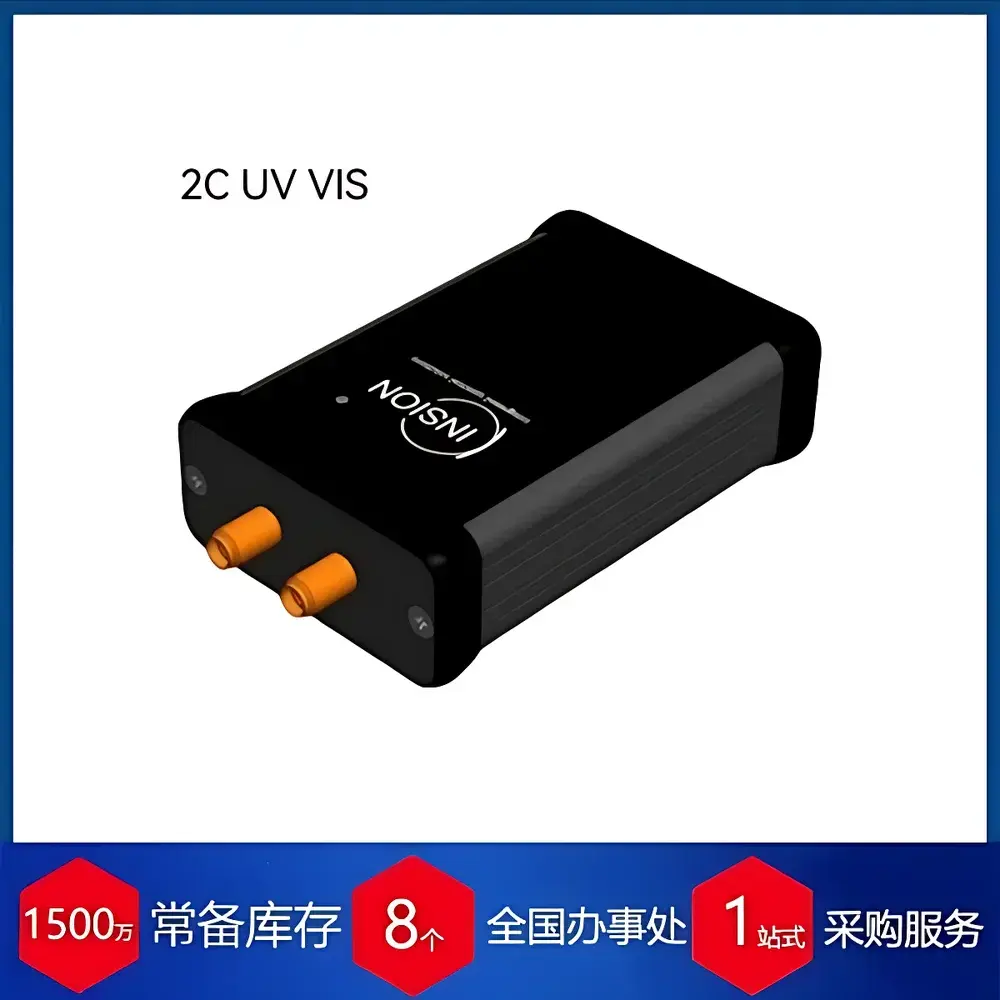

| Model | 2C UV VIS |
| Optical Architecture | Single-beam |
| Detector Type | Photodiode Array |
| Spectral Range | 2 × 350–1050 nm |
| Wavelength Accuracy | < 10 nm FWHM |
| Spectral Resolution | < 10 nm FWHM |
| Sensitivity | > 2.0 × 10¹⁵ counts·nm/W·s at 650 nm |
| Optical Interface | Dual SMA 905 connectors |
| Calibration | Factory-calibrated, no user recalibration required |
| Mechanical Stability | Solid-state design, no moving parts |
| Operating Temperature Range | 5–40 °C |
| Dimensions | ≤ 65 × 45 × 25 mm |
| Weight | < 120 g |
