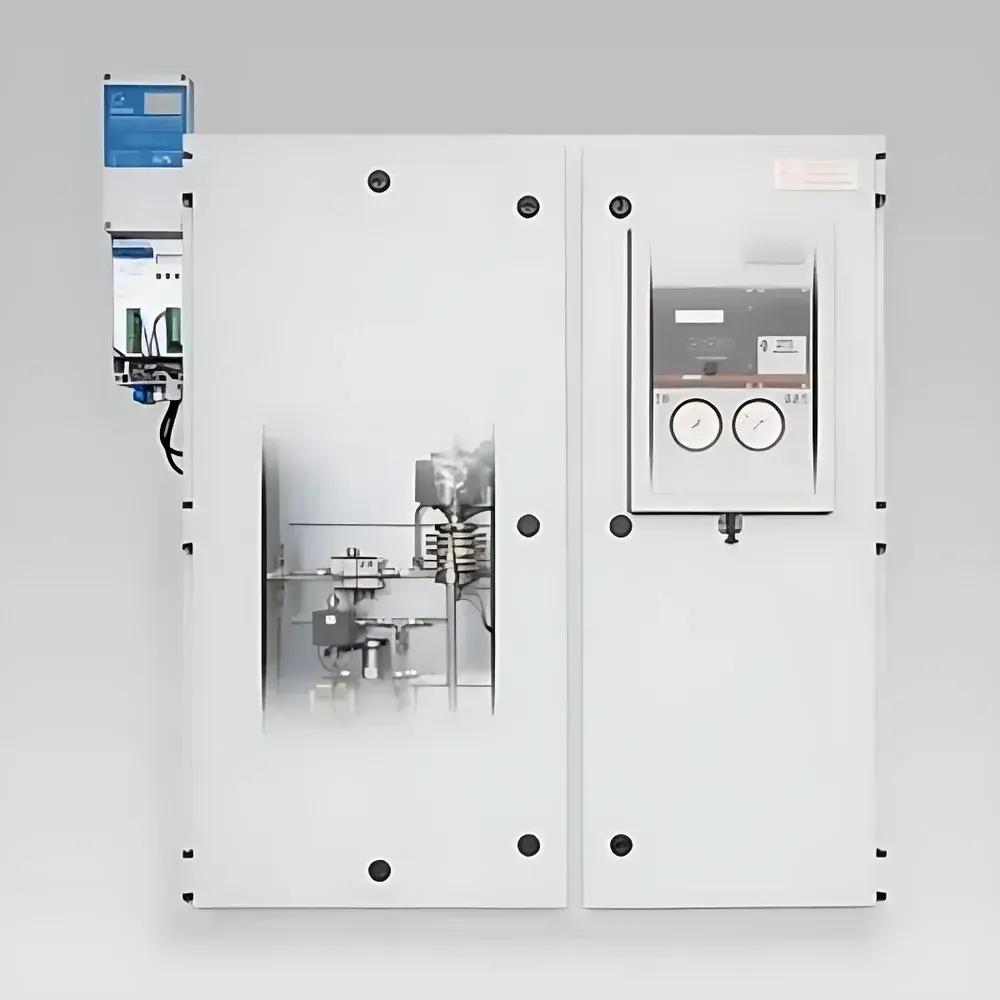

| Brand | AMS |
|---|---|
| Origin | Germany |
| Model | RHADOX 7100 |
| Explosion Protection | ATEX II 2G Ex pxb IIB+H2 T4 Gb X (Zone 1) / ATEX II 3G IIB+H2 T3 Gc (Zone 2) |
| Response Time (T90) | 10–30 s |
| Repeatability | ≤1.0% of measured value |
| Long-term Drift | ≤2% of full scale per month |
| Temperature Drift | <0.02% / K (relative to span end) |
| Air Demand Range | 1.5–30 m³ air/m³ gas |
| Wobbe Index Range | 5–120 MJ/m³ |
| Analog Output | 2 × 4–20 mA (galvanically isolated) |
| Display | 2×16-character backlit LCD + optional full-color status display |
| Operating Temperature | –5°C to +45°C (electronics), +5°C to +60°C (gas path) |
| Gas Inlet/Outlet | 6/12 mm stainless steel tubing or flanged connections |
| Sample Flow Rate | 20–100 Nl/h (process gas), 50–500 Nl/h (instrument air) |
| Gas Pressure | ≥0.1 bar(g), max 17 bar(g) |
| Instrument Air | ≥2 bar(g), max 8 bar(g) |
| Power Supply | 115/230 V AC, 50–60 Hz, 500 VA |
| Enclosure Rating | IP65 |
| Dimensions (H×W×D) | 1000×900×350 mm |
| Weight | ~100–125 kg (configurable) |
| Brand | ACM |
|---|---|
| Origin | Austria |
| Model | LR.14 |
| Measurement Principle | Critical Angle Refractometry |
| Brix Range | 0–75 °Brix |
| Process Temperature Range | 0–50 °C |
| Output Signal | 4–20 mA / HART / Modbus RTU |
| IP Rating | IP65/IP67 (sensor housing) |
| Wetted Materials | 316L stainless steel, sapphire prism, FKM or EPDM seals |
| Compliance | ATEX/IECEx optional, FDA-compliant wetted materials, CE marked |
| Brand | Kraemer Elektronik |
|---|---|
| Origin | Germany |
| Model | UTS 4.3 LAB |
| Gas Flow Rate | 2300 mL/min |
| Reactor Volume | 3 L |
| Maximum Number of Reactors per System | 12 |

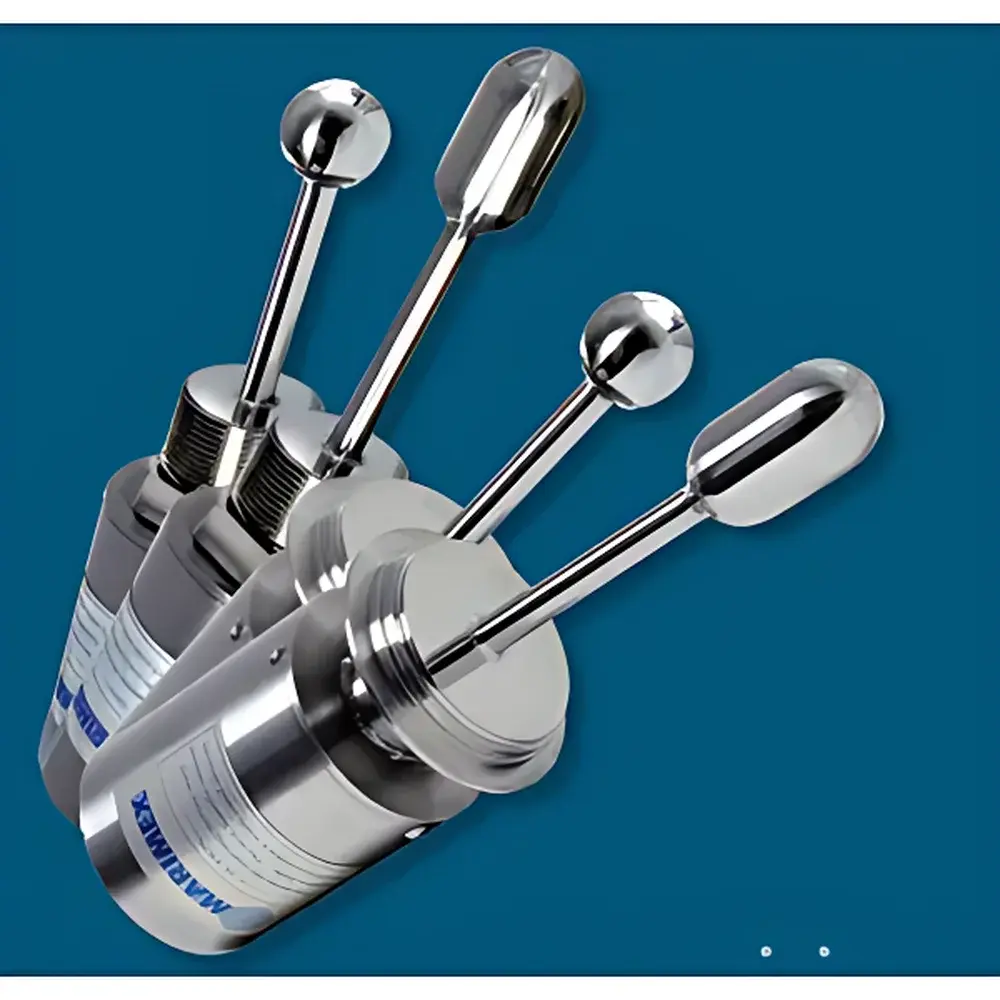

| Brand | Marimex |
|---|---|
| Origin | Germany |
| Model | VA-300X-ST |
| Measurement Range | 100–2,500,000 mPa·s·g/cm³ |
| Sensor Material | 1.4571 / 1.4404 (316Ti / 316L stainless steel) |
| Process Temperature | −10 °C to +130 °C (integrated Pt100 RTD) |
| Maximum Process Pressure | up to 64 bar (vacuum to positive pressure, configuration-dependent) |
| Fluid Velocity Tolerance | up to 5 m/s (installation-dependent) |
| Sensor Dimensions | Ø32 mm × 145 mm |
| Compliance | Designed for continuous industrial process monitoring in regulated environments |
