| Brand | b-plus |
|---|---|
| Origin | Germany |

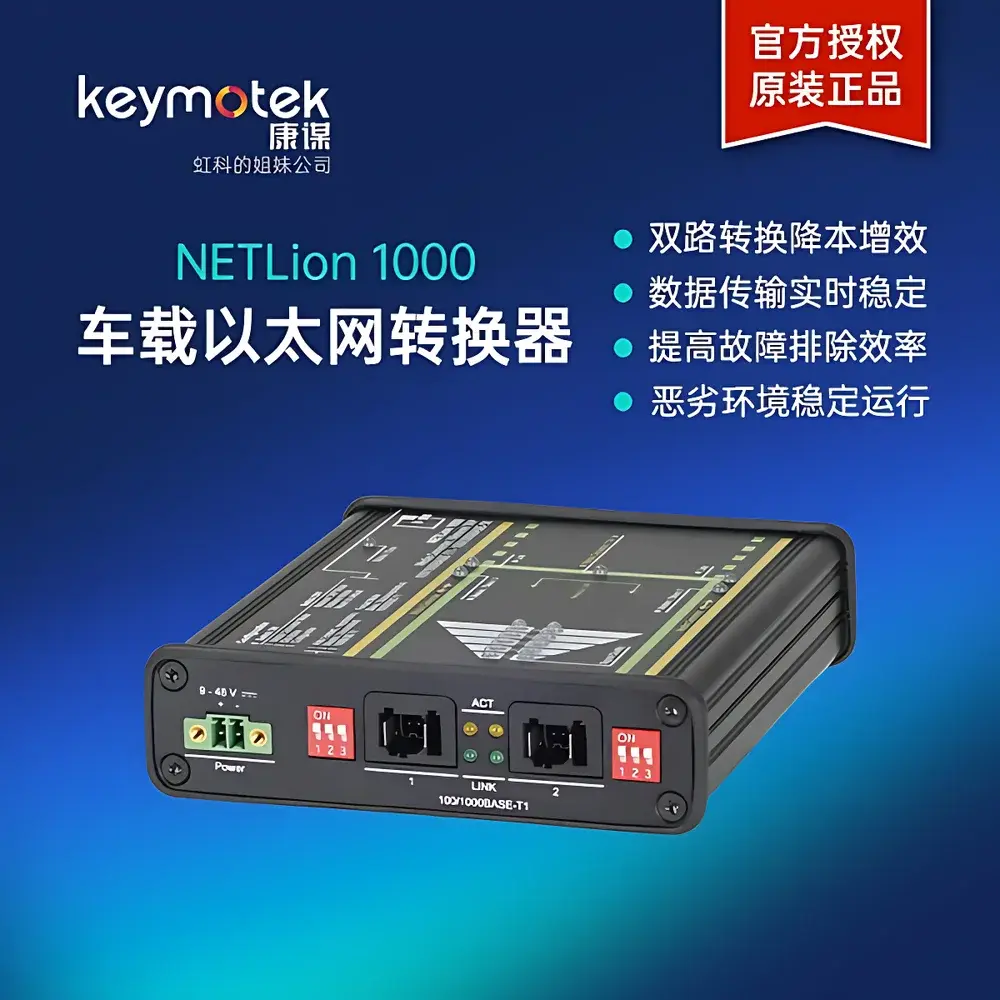

| Model | KM-B18005-NEL-001-0001 / KM-B18005-NEL-001-0002 |
| Interface Types | 100/1000BASE-T1 (Automotive Ethernet), 100BASE-TX, 1000BASE-T, MGMT Ethernet |
| Operating Modes | Media Conversion, Network TAP, PHY-layer Diagnostic Mode, Cable Certification Mode |
| Configuration | DIP-switch (standalone), Web-based GUI via MGMT port |
| LED Indicators | Link status, signal quality, mode status, fault conditions |
| Compliance Support | ISO 10605, IEEE 802.3bw (100BASE-T1), IEEE 802.3bp (1000BASE-T1), OPEN Alliance TC8/TC15 test requirements |
| Brand | b-plus |
|---|---|
| Origin | Germany |

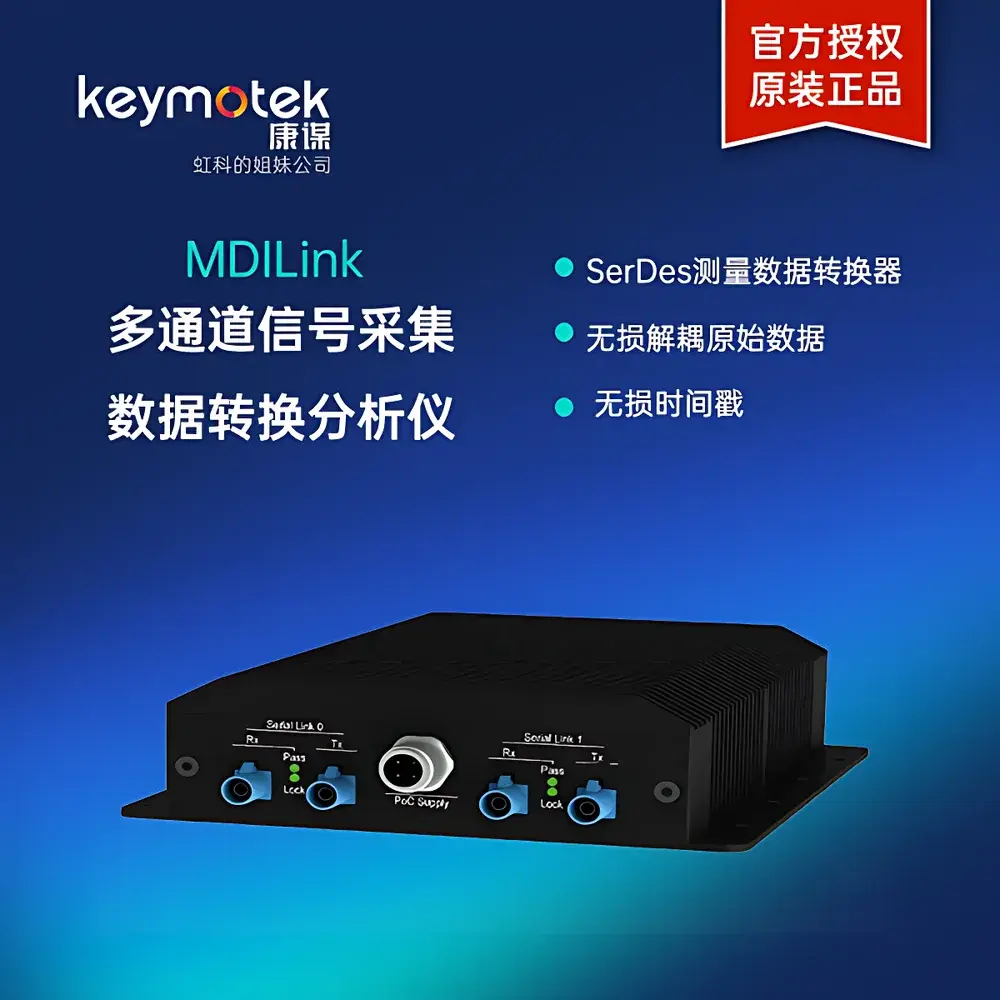

| Model | KM-B21671-MDI-001-0002 / KM-B21671-MDI-001-0003 / KM-B21671-MDI-001-0004 / KM-B21671-MDI-001-0007 |
| Certifications | IEEE 1588-2008 (PTP v2), IEEE 802.1AS-2020 |
| Operating Temperature | −20 °C to +70 °C |
| Storage Temperature | −40 °C to +85 °C |
| Enclosure Rating | IP20 |
| Dimensions (L×W×H) | 1597 mm × 140 mm × 38 mm |
| Power Supply | 8–32 V DC, crank-safe down to 6.5 V |
| Max Power Consumption | 25 W |
| Ethernet Interfaces | Dual 10GBASE-T (M12), 1× 1GBASE-T (M12), 1× 1GBASE-T management port |
| Sensor Triggering | Hardware-timestamped, PTP-synchronized internal trigger generator |
| Supported Protocols | CAN FD, FlexRay, CSI-2, FPD-Link III, GMSL, Automotive Ethernet (100BASE-T1/1000BASE-T1), 10GBASE-T |
| Software Integration | ADTF-compatible, RESTful API for third-party framework integration |
| Reverse Channel | I²C-based logging and configuration feedback |
| Origin | Canada |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |

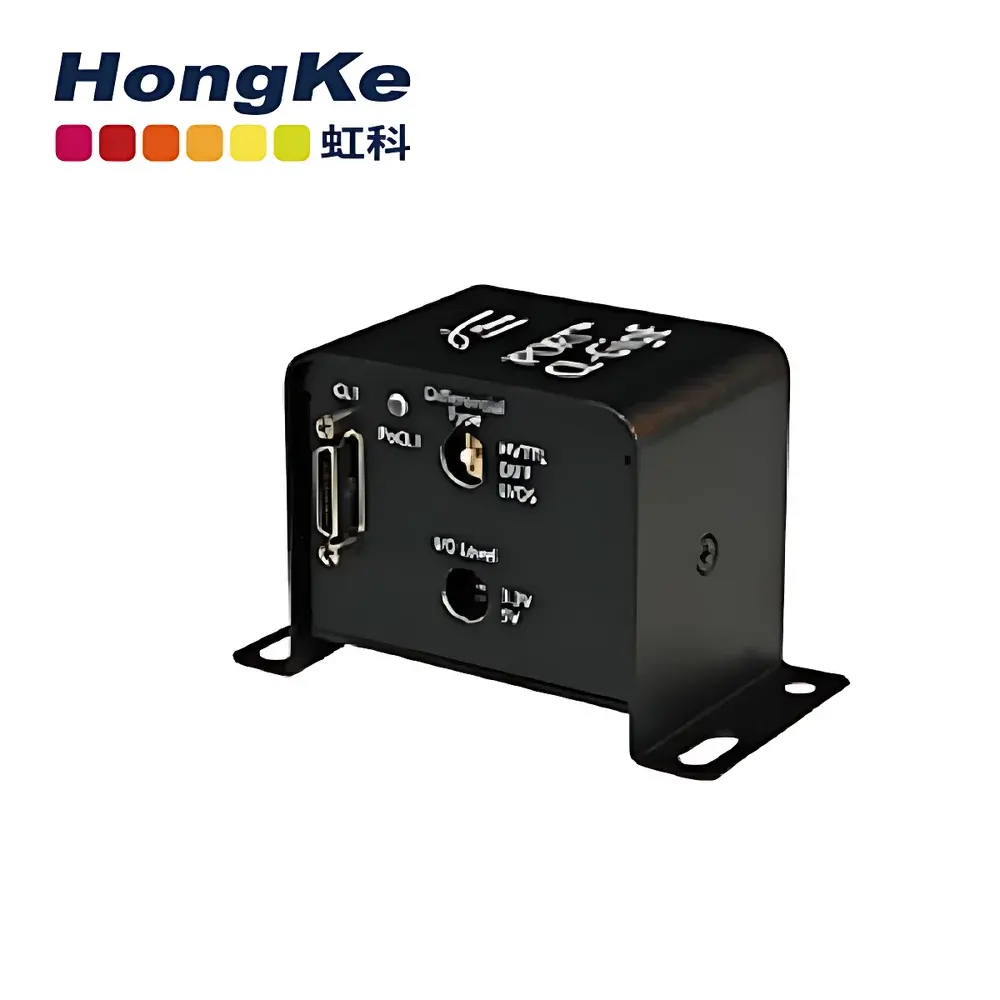

| Model | HKiPORT CL-GigE |
| Price Range | USD 1,400 – 4,200 (FOB) |
| Operating Temperature | -40°C to +60°C |
| Interface Compatibility | Camera Link Base (26-pin MDR), GigE Vision v2.0 compliant |
| Power Delivery | PoCL (Power over Camera Link) support |
| GPIO | 4-channel opto-isolated digital I/O |
| Form Factor | External ruggedized enclosure (industrial grade) |
| SDK | eBUS SDK v5.3+ (Windows/Linux x64, C/C++, .NET, Python bindings) |
| Certification | CE, FCC Class A, RoHS compliant |
| Brand | b-plus |
|---|---|
| Origin | Germany |
| Product Type | Imported Instrument |

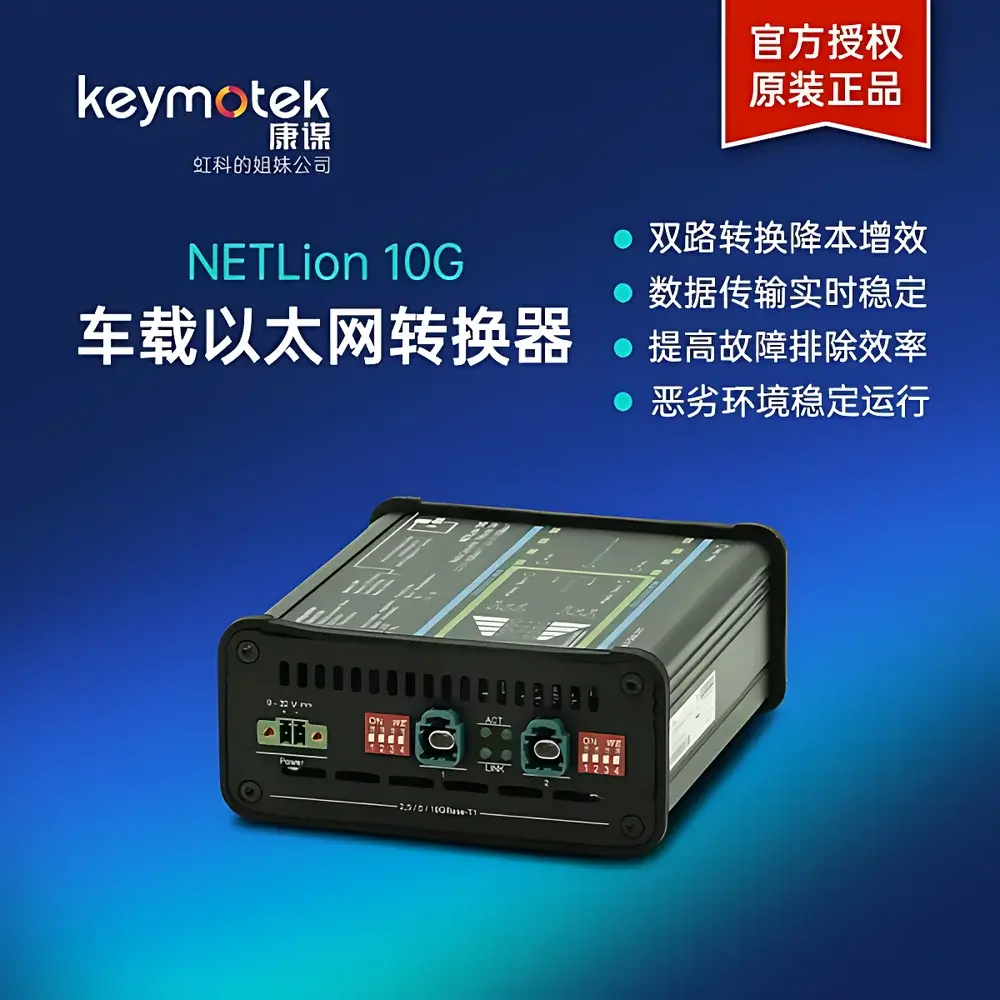

| Model Numbers | KM-B18085-NEL-001-0001, KM-B18085-NEL-001-0002 |
| Compliance | ISO 10605, ISO 11452-4, IEEE 802.3ch, IEEE 802.3cg (2.5/5/10BASE-T1), AUTOSAR-compliant interface architecture |
| Brand | HongKe (HONGKE) |
|---|---|
| Origin | Canada |
| Manufacturer Type | Authorized Distributor |
| Product Origin | Imported |
| Model | HKvDisplay HDI-Pro |
| Price Range | USD 1,400 – 4,200 (FOB Canada) |
| Interface | GigE Vision Input / HDMI 1.4 & DVI-D Output |
| Latency | < 35 ms end-to-end (typical, 1080p60) |
| Form Factor | PCIe Gen2 x4 Low-Profile Card |
| Power | +12 V DC via SATA-style connector |
| SDK Support | eBUS SDK v5.0+ (Windows/Linux x64) |
| Compliance | RoHS 3, CE, FCC Class B, GigE Vision 2.0, GenICam 3.x |
