| Brand | Vaunix |
|---|---|
| Origin | Italy |
| Model | LDA-302P-2 |
| Frequency Range | DC to 20 GHz |
| Interface | USB 2.0 |
| Attenuation Range | 0–63.5 dB in 0.5 dB Steps |
| Input/Output Impedance | 50 Ω |
| VSWR | ≤1.5 (up to 18 GHz), ≤1.7 (20 GHz) |
| Power Handling | +27 dBm (max, CW) |
| Operating Temperature | 0 °C to +50 °C |
| Dimensions | 63.5 × 44.5 × 14 mm |
| Weight | < 60 g |
| Compliance | RoHS 3, CE, FCC Part 15 Subpart B |
| Brand | Vaunix |
|---|---|
| Origin | Italy |
| Model | LDA-602 |
| Frequency Range | DC to 20 GHz |
| Interface | USB 2.0 |
| Attenuation Range | 0–63 dB in 1 dB steps |
| Insertion Loss | < 2.5 dB (typ. at 18 GHz) |
| VSWR | < 1.5 (up to 18 GHz) |
| Power Handling | +27 dBm (max, CW) |
| Operating Temperature | –10 °C to +60 °C |
| Compliance | RoHS 3, CE, FCC Part 15 Subpart B |
| Brand | Vaunix |
|---|---|
| Origin | Italy |
| Model | LDA-302P-2N |
| Frequency Range | DC to 20 GHz |
| Interface | USB 2.0 |
| Attenuation Range | 0–63 dB in 1-dB steps |
| Insertion Loss | < 2.5 dB (typ. at 20 GHz) |
| VSWR | < 1.5:1 (up to 20 GHz) |
| Power Handling | +27 dBm (max CW) |
| Operating Temperature | –10 °C to +60 °C |
| Connector Type | SMA Female (input/output) |
| Compliance | RoHS 2, CE, FCC Part 15 Class B |
| Brand | DesTest Instruments |
|---|---|
| Origin | USA |
| Model | TS-DAT64F |
| Frequency Range | 100 MHz – 6 GHz |
| Attenuation Range | 0–63 dB |
| Step Size | 0.25 dB |
| Max Input Power | +25.0 dBm |
| Insertion Loss (at 6 GHz) | < 7 dB |
| Return Loss | > 12 dB |
| Interface | USB (SCPI-compliant), Optional Ethernet |
| Dimensions | 2.75" × 1.25" × 2.15" |
| RF Connectors | Gold-plated SMA |
| Power Supply | Micro-USB (5 V DC) |
| Brand | Vaunix |
|---|---|
| Origin | Italy |

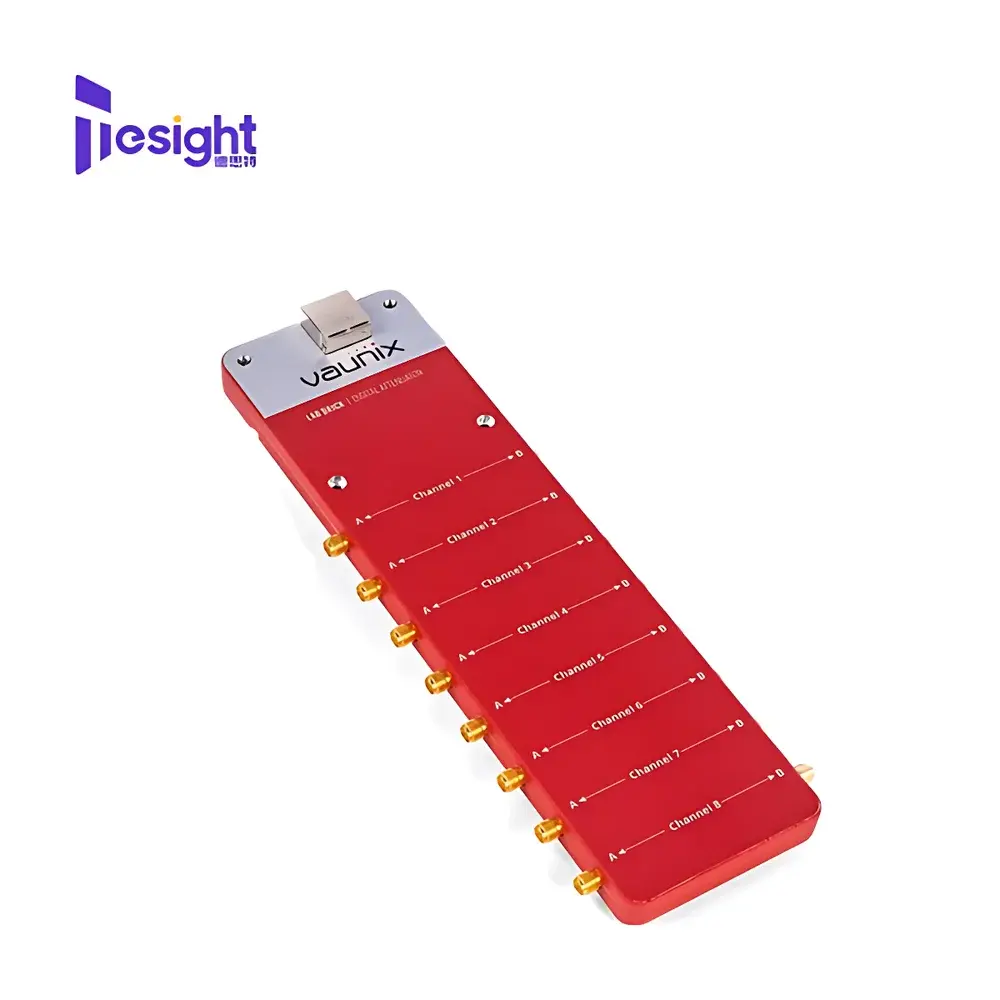

| Model | LDA-802-8-Ethernet |
| Frequency Range | Up to 20 GHz |
| Interface | Ethernet (IEEE 802.3) |
| Attenuation Range | 0–63 dB in 1 dB steps |
| Insertion Loss | < 2.5 dB (typ. at 20 GHz) |
| VSWR | ≤ 1.5:1 (DC–20 GHz) |
| Power Handling | +27 dBm (max, CW) |
| Operating Temperature | –20 °C to +70 °C |
| Compliance | RoHS 2, CE, FCC Part 15B |
