| Brand | Binzhenghong |
|---|---|
| Origin | Jiangsu, China |
| Manufacturer Type | OEM/ODM Producer |
| Country of Origin | China |
| Available Apertures | 0.15 mm (100 mesh), 0.25 mm (60 mesh), 0.5 mm (35 mesh), 1.0 mm (18 mesh), 2.0 mm (10 mesh), 4.0 mm (5 mesh), 5.0 mm, 9.5 mm, 10.0 mm, 22.4 mm |
| Diameter | 200 mm |
| Material | Stainless steel frame with PTFE-coated woven wire mesh |
| Compliance | Designed to meet HJ/T 557–2007 specifications for solid waste particle size analysis |
| Brand | Binzhenghong |
|---|---|
| Origin | Jiangsu, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic |

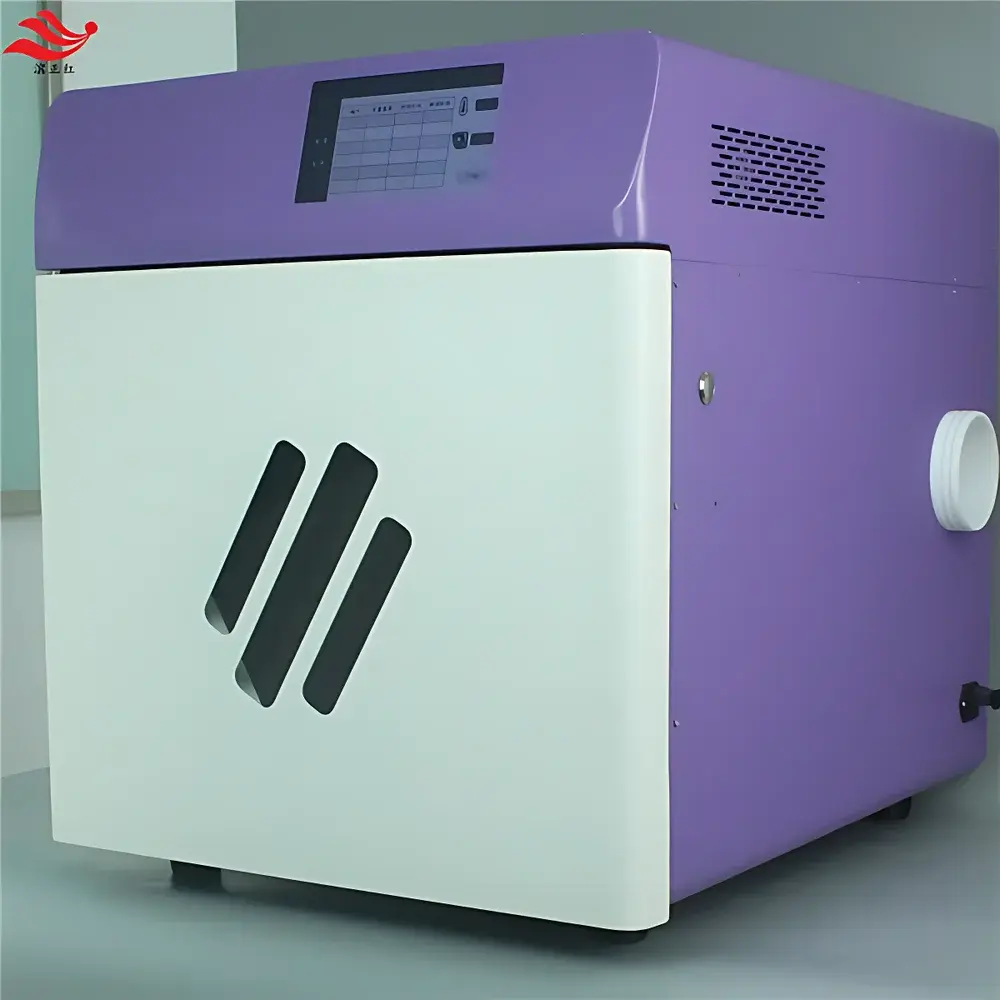

| Model | MD Series Microwave Digestion System |
| Pricing | Upon Request |
| Cavity Volume | 56 L |
| Microwave Frequency | 2450 MHz |
| Output Power | 0–1600 W (non-pulsed, continuous, dual-magnetron) |
| Max. Operating Pressure | 15 MPa (2200 psi) |
| Max. Operating Temperature | 300 °C |
| Digestion Vessel Capacity | 56 mL |
| Vessel Material | TFM inner vessel, PEEK outer vessel |
| Temperature Measurement | Non-contact mid-infrared, 0–300 °C, ±1 °C accuracy |
| Temperature Control Stability | ±1 °C |
| Turntable Speed | 10 rpm, 360° rotation |
| Ventilation Rate | 5 m³/min (corrosion-resistant centrifugal blower) |
| Display | 7-inch color touchscreen controller |
| Dimensions (W×D×H) | 520 × 640 × 590 mm |
| Weight | 61 kg |
| Cavity Construction | 304 stainless steel, seamless welding, 6-layer PFA coating |
| Safety | Multi-layer explosion-proof door with microwave shielding and auto-locking mechanism |
