| Brand | SOPTOP |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | Direct Manufacturer |
| Product Origin | Domestic (China) |
| Model | SZX12 |
| Total Magnification | 320× |
| Zoom Ratio | 12.5:1 |
| Working Distance | 50 mm |
| Objective Type | Continuous Zoom Objective |
| Illumination | LED |
| Brand | SOPTOP |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | Direct Manufacturer |
| Regional Classification | Domestic (China) |
| Model | SZN |
| Pricing | Upon Request |
| Total Magnification Range | 6.7×–134× |
| Objective Type | Continuous Zoom Objective |
| Illumination Options | Integrated LED (Top & Bottom), Optional Halogen or Fluorescent Illumination |
| Brand | SOPTOP |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | OEM/ODM Manufacturer |
| Country of Origin | China |

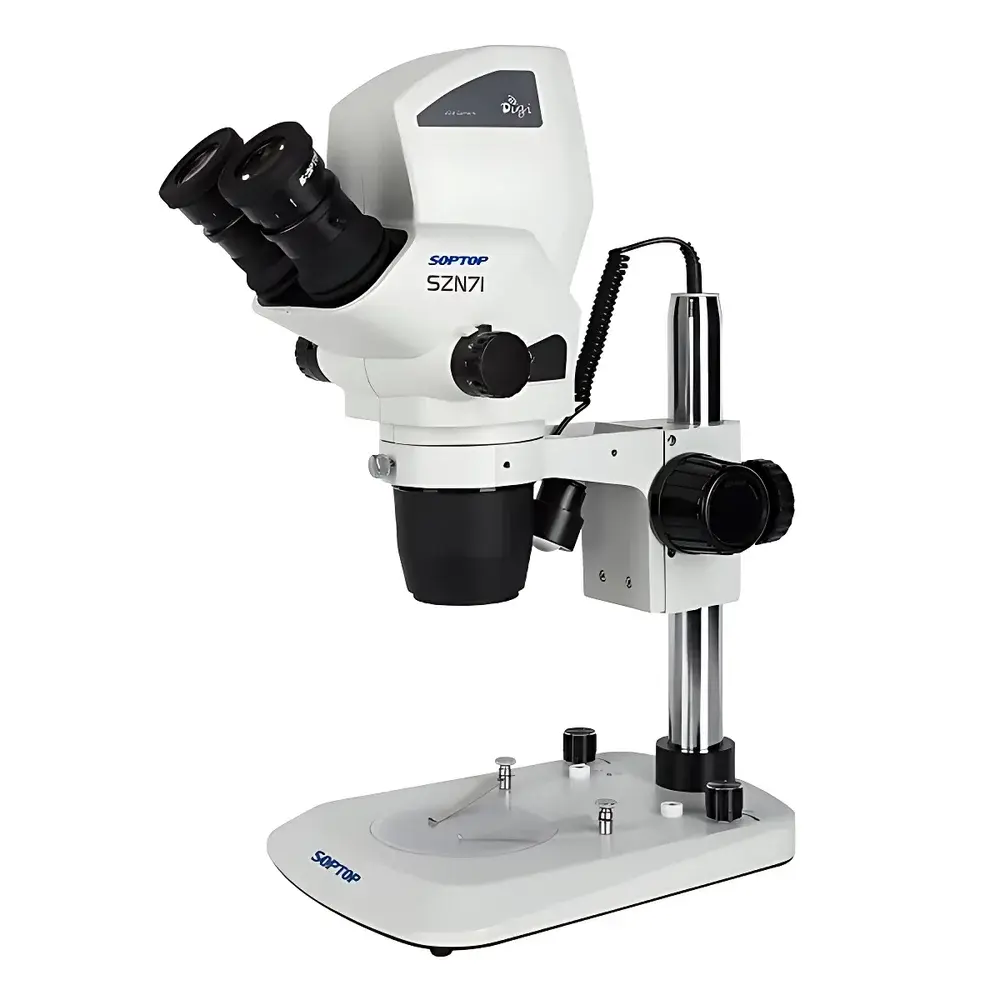

| Model | SZN71 |
| Pricing | Upon Request |
| Total Magnification Range | 2×–180× |
| Zoom Ratio | 12.5:1 |
| Objective Type | Continuous Zoom Objective |
| Illumination Options | Adjustable LED & Halogen Lighting |
| Working Distance | Up to 280 mm |
| Digital Integration | Built-in Wi-Fi-enabled imaging head |
| Software | SOPTOP MVImage Professional Image Analysis Suite (real-time preview, measurement, annotation, calibration, export) |
| Compliance | Designed for ISO 10934-1 (stereomicroscopy), ASTM E2917 (microscopic examination of electronic assemblies), and GLP-compliant documentation workflows |
| Brand | SOPTOP |
|---|---|
| Model | SZMN |
| Type | Continuous Zoom Stereo Microscope |
| Origin | Zhejiang, China |
| Manufacturer | SOPTOP Optics Co., Ltd. |
| Objective Type | Continuous Zoom Objective (0.7×–4.5×, 6.4:1 Zoom Ratio) |
| Working Distance | 30 mm – 165 mm (adjustable via auxiliary objectives) |
| Eyepiece Inclination | 45° fixed tilt |
| Eyepiece Rotation | 360° continuous |
| Interpupillary Adjustment | 55–75 mm |
| Eyepiece Diopter Adjustment | ±5 D per eyepiece |
| Illumination Options | LED (cold white, adjustable intensity) and Halogen (6V/10W, color temperature ~3200 K) |
| Standard Objective | 1× (WD = 100 mm) |
| Optional Objectives | 0.5×, 0.75×, 1.5×, 2× auxiliary lenses |
| Standard Eyepieces | 10× wide-field (22 mm field number), optional: 5×, 15×, 20× |
| Image Orientation | Erect, orthoscopic (true spatial representation) |
| Optical Coating | Multi-layer anti-reflection (AR) coating on all air-glass surfaces |
| Compliance | ISO 10934-1 (Stereo Microscopes — Part 1: Nomenclature and Metrological Characteristics), ISO 8578 (Microscopes — Requirements for Stereomicroscopes) |
