| Brand | SOPTOP |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Domestic |

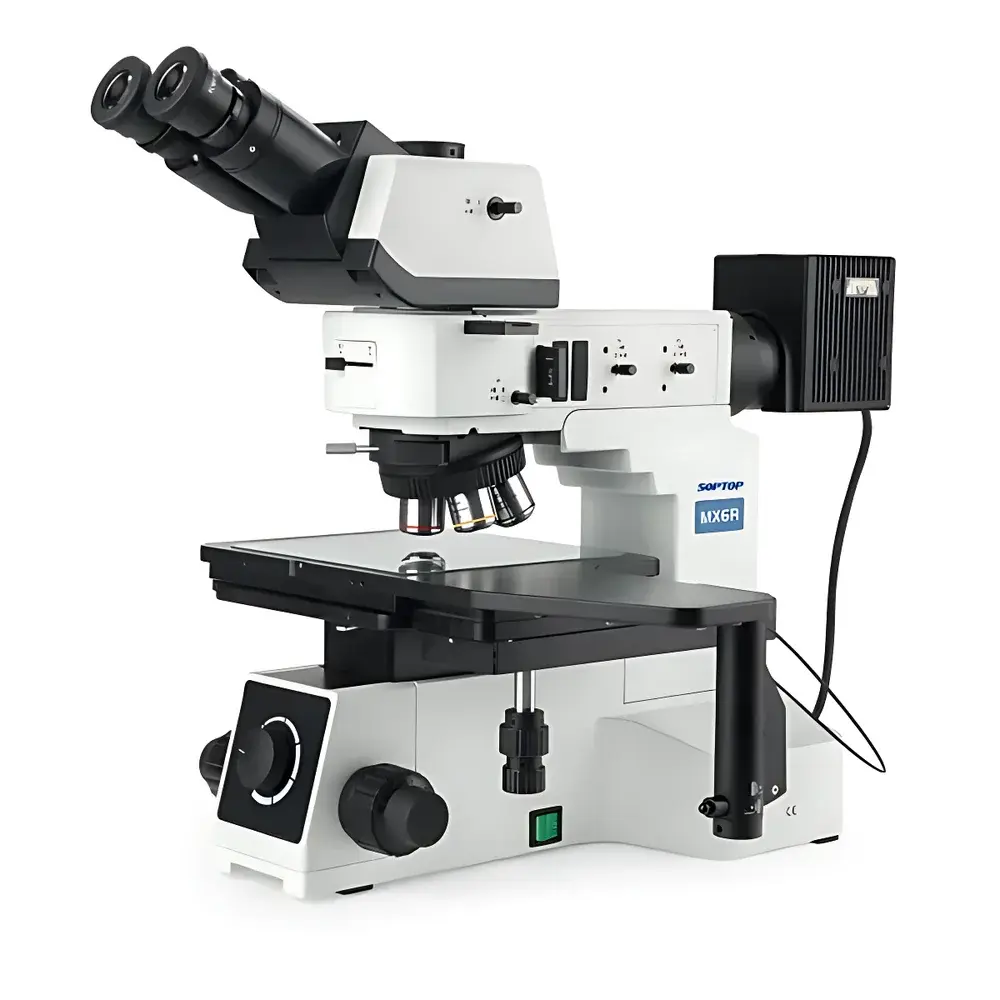

| Model | MX6R |
| Pricing | Upon Request |
| Configuration | Upright |
| Total Magnification Range | 50×–1500× |
| Eyepieces | High-Eye-Point Wide-Field Plan Eyepieces PL10×/22 mm, PL10×/23 mm, PL10×/25 mm, PL15×/16 mm |
| Objectives | 5×–100× (Long Working Distance, Semi-Apochromatic, Brightfield/Darkfield Dual-Mode) |
| Brand | SOPTOP |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | Direct Manufacturer |
| Product Type | Upright |
| Total Magnification Range | 50×–1000× |
| Eyepieces | High-eye-point wide-field plan eyepieces PL10×/20 mm with adjustable diopter and optional reticle |
| Objectives | 5×, 10×, 20×, 50×, 100× (long working distance, apochromatic-corrected) |
| Stage | 180 mm × 155 mm mechanical stage with center aperture (Ø12 mm), rotatable stage plate with ergonomic handle |
| Focusing Mechanism | Coaxial coarse/fine focus with low-position controls, fine focus graduation: 2 µm per division |
| Illumination | Reflected LED Köhler illumination (6 V/30 W halogen optional), brightness continuously adjustable |
| Observation Modes | Brightfield, Polarized Light |
| Trinocular Port | C-mount compatible (1× or 0.5× photo port magnification) |
| Compliance | ISO 10934-1 (Microscopy — Nomenclature of microscope components), ISO 9001 certified manufacturing |
| Brand | SOPTOP |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | Original Equipment Manufacturer (OEM) & Direct Producer |
| Product Category | Domestic |

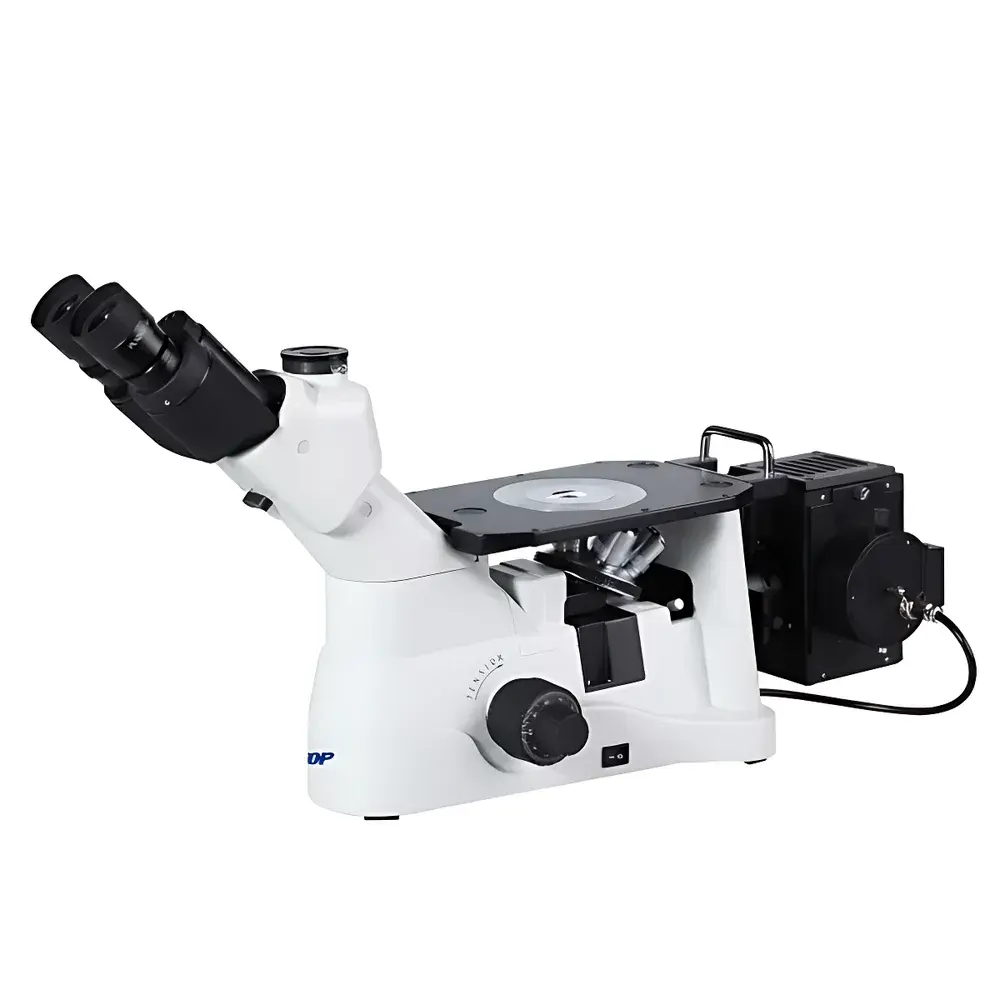

| Model | XD30M |
| Pricing | Available Upon Request |
| Configuration | Inverted |
| Integrated Image Analysis System | Yes |
| Total Magnification Range | 50×–1500× |
| Eyepieces | Wide-field Plan Eyepieces PL10×/22 mm and PL15×/16 mm, High-Eye-Point Design |
| Objectives | Infinity-Corrected Achromatic Metallurgical Objectives, 5×–100×, Long Working Distance, No Cover Slip Required |
| Brand | SOPTOP |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | Direct Manufacturer |
| Product Type | Upright |
| Total Magnification Range | 50×–1500× |
| Eyepieces | Wide-field Plan Eyepieces PL10×/22 mm and PL15×/16 mm |
| Objectives | 5×–100× LMPlan Long Working Distance Metallurgical Objectives |
| Illumination | 5 W Warm-White LED (3000–3300 K) with Köhler Illumination System |
| Optical Features | Adjustable Field & Aperture Diaphragms, Built-in Polarizer/Analyzer Slots, Optional Color Filter Slots, Oblique Illumination Capability |
| Ergonomics | 30° Inclined Trinocular Observation Tube with Pupillary Distance Scale |
| Included Tool | M4 Hex Key Stored On-Chassis |
| Brand | SOPTEC |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | Direct Manufacturer |
| Product Origin | Domestic (China) |
| Model | MX8R |
| Mounting Type | Upright |
| Total Magnification Range | 50×–1000× |
| Eyepieces | Widefield Plan Eyepieces PL10×/25 mm & PL10×/26.5 mm (High-Eyepoint) |
| Objectives | 5×–100× Semi-Apochromatic Long Working Distance Metallurgical Objectives |
| Observation Tube | Trinocular with Adjustable Beam Splitter Ratio (e.g., 0:100 / 20:80 / 50:50 / 100:0) |
| Stage | Triple-Layer Mechanical XY Stage with 300 mm Wafer Compatibility |
| DIC System | Nomarski Differential Interference Contrast Module |
| Frame | Low-Center-of-Gravity Rigid Metal Chassis |
| Optical Path | Infinity-Corrected, Wide-Beam Imaging System |
| Brand | SOPTOP |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | Direct Manufacturer |
| Product Type | Upright |
| Total Magnification Range | 50×–1000× |
| Eyepieces | High-Eyepoint Wide-Field Plan Eyepieces PL10×/25 mm |
| Objectives | 5×–100× |
| Wafer Compatibility | Up to 300 mm diameter |
| FPD Panel Support | Up to 17-inch LCD panels |
| Observation Angle Adjustment | 0°–35° continuous tilt |
| Stage Drive | Clutch-Engaged Mechanical Translation with Precision Linear Rails |
| Objective Turret | Motorized, Dual-Direction (Forward/Reverse), High-Repeatability Positioning |
| Aperture & Objective Control | Front-Mounted Electric Actuation |
| Illumination Modes | Brightfield, Darkfield, Polarized Light, Differential Interference Contrast (DIC) |
| Structural Design | Six-Point Low-CG Metal Chassis with Vibration-Damping Rigidity |
| Optional NIR Upgrade | Compatible with Broadband Infrared Cameras for Subsurface Imaging |
| Brand | SOPTOP |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | Original Equipment Manufacturer (OEM) & Direct Producer |
| Product Category | Inverted Metallurgical Microscope |
| Model | ICX41M |
| Imaging Analysis System | Integrated |
| Total Magnification Range | 50×–1500× |
| Eyepieces | Wide-field plano eyepieces PL10×/22 mm with adjustable diopter and optional reticle |
| Objective Lenses | Infinity-corrected long-working-distance achromatic metallurgical objectives (5×, 10×, 20×, 50×, 100×) |
| Optical System | Infinity-corrected optical path with parfocal, parcentric design |
| Observation Modes | Brightfield, Darkfield, Simple Polarization, Differential Interference Contrast (DIC) |
| Ergonomics | Low-hand-position controls, 360° rotating binocular head, front-mounted magnification indicator with embedded sensor |
| Construction | Fully metal chassis with corrosion- and wear-resistant surface treatment |
| Power Management | ECO infrared motion-sensing system for automatic standby/shutdown |
| Tool Storage | Internal compartment for standardized disassembly tools |
| Brand | SOPTOP |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Domestic |
| Model | MX4R |
| Pricing | Upon Request |
| Configuration | Upright |
| Total Magnification Range | 50×–1500× |
| Eyepieces | High-eye-point wide-field plan eyepieces PL10×/22 mm and PL15×/16 mm |
| Objectives | 5×–100× semi-apochromatic long-working-distance objectives |
| Brand | SOPTOP |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | Direct Manufacturer |
| Product Origin | Domestic (China) |
| Model | RX50M |
| Mounting Type | Upright |
| Total Magnification Range | 50×–1000× |
| Eyepieces | Widefield Plan Eyepieces PL10×/25 mm with High-Eye-Point Design |
| Objectives | Infinity-Corrected Semi-Apochromatic Metallurgical Objectives, 5×–100×, Long Working Distance, Reflected Brightfield/Darkfield/Polarized/ DIC Compatible |
| Observation Modes | Reflected Brightfield, Reflected Darkfield, Transmitted Brightfield, Reflected Polarized, Reflected DIC (Nomarski) |
| Viewing Head | Trinocular, Adjustable Beam-Splitting Ratio (e.g., 50:50 / 0:100), 25 mm Field Number |
| Polarizer System | Rotatable Analyzer (0°–360°), Fixed Polarizer |
| DIC Module | Optional SOPTOP-Developed Differential Interference Contrast Slider |
| Illumination | LED Reflected & Transmitted Köhler Illumination, Digital Voltage Display, Low-Position Intensity Control |
| Ergonomics | Left-Hand Coarse/Fine Focus, Integrated Illumination Control on Base |
| Brand | SOPTOP |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | Direct Manufacturer |
| Product Origin | Domestic (China) |
| Model | MX68R |
| Configuration | Upright |
| Total Magnification Range | 50×–1000× |
| Eyepieces | High-eye-point wide-field plan eyepieces PL10×/22 mm and PL10×/23 mm |
| Objectives | 5×–100× |
| Illumination Modes | Brightfield, Darkfield, Polarized Light, Differential Interference Contrast (DIC) |
| Wafer Compatibility | Up to 200 mm diameter |
| Structural Design | Full-metal frame with integrated ergonomic carrying handles |
| Objective Turret | Motorized, dual-direction (forward/reverse), high-repeatability positioning |
| Aperture Diaphragm & Objective Control | Front-panel motorized actuation |
| Optional Upgrade | NIR-compatible configuration (NIR-MX68R) for near-infrared imaging with broadband IR-sensitive cameras |
