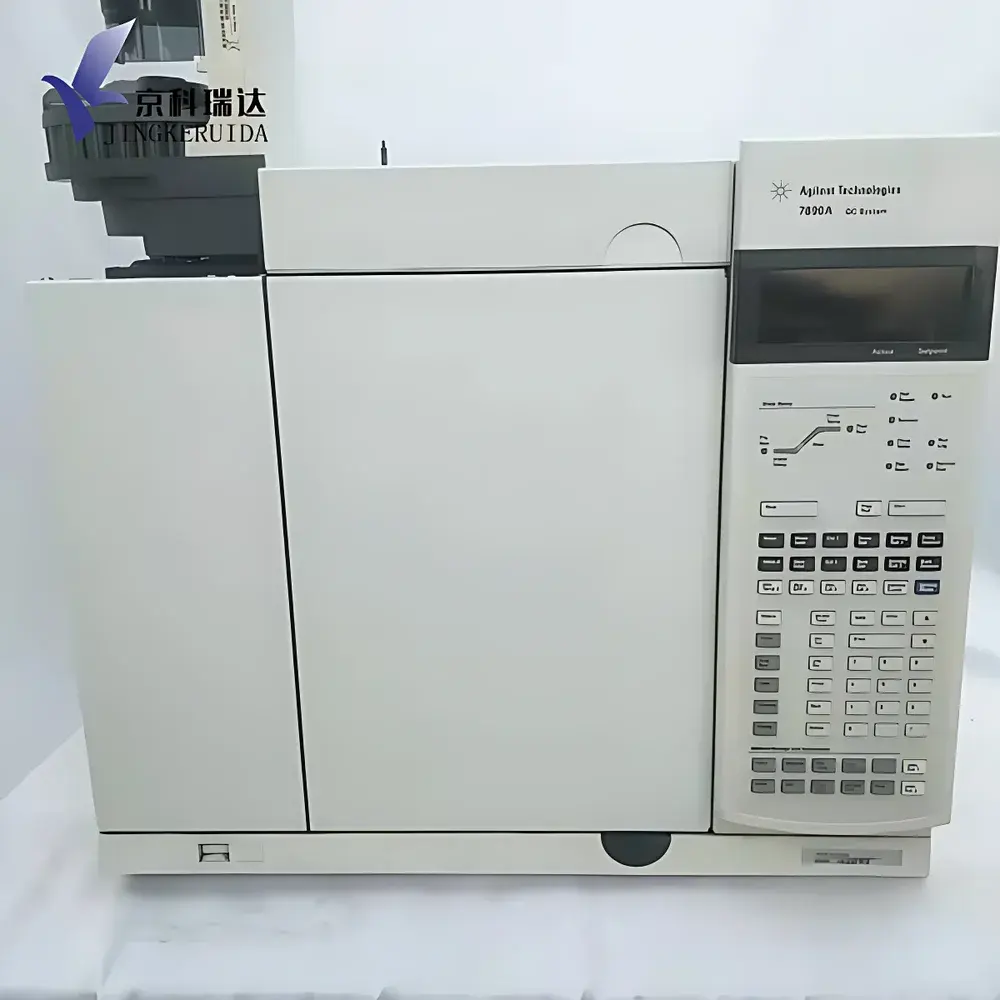

Agilent 7890 Gas Chromatograph (Refurbished)

Overview

The Agilent 7890 Gas Chromatograph (refurbished) is a high-performance, laboratory-grade analytical instrument engineered for precision, reliability, and long-term operational stability in regulated and research environments. Built upon Agilent’s proven GC architecture, the 7890 platform employs Electronic Pneumatic Control (EPC) across all gas flow paths—injectors, columns, and detectors—to deliver exceptional retention time reproducibility (< 0.0008 min) and peak area precision (< 1% RSD). Its thermally optimized oven provides rapid, linear heating rates up to 120 °C/min and precise temperature control within ±0.01 °C over a range of 35–450 °C, ensuring consistent retention indexing, symmetrical peak shapes, and accurate compound identification under gradient or isothermal conditions. The system supports advanced chromatographic techniques including column backflush, heart-cutting 2D-GC (GC-GC), and detector splitting—enabling robust analysis of complex matrices such as environmental extracts, petrochemical fractions, pharmaceutical impurities, and food volatiles.

Key Features

• Full-system EPC with up to 16 independent pressure/flow control channels, configurable via front-panel keypad or networked data system
• High-fidelity oven thermal management: ±0.01 °C stability, programmable ramp rates, and atmospheric pressure/temperature compensation for method portability
• Modular detector architecture supporting simultaneous operation of two inlets and up to three detectors—including FID, TCD, and optional third detector (e.g., NPD, ECD, or MSD interface-ready)
• Microfluidic Flow Technology (MFT) enabling leak-free, maintenance-free capillary connections inside the oven—validated for >10,000 thermal cycles
• Integrated diagnostics and resource monitoring: real-time hardware status, automated leak testing, firmware health logging, and event-driven service alerts
• Comprehensive time-based event programming: up to 550 user-defined events (e.g., valve switching, detector polarity reversal, oven ramp changes)
• Front-panel clock scheduler for delayed method initiation, instrument power cycling, or sequence triggering without external software

Sample Compatibility & Compliance

The Agilent 7890 GC accommodates a broad spectrum of sample introduction methods—including split/splitless, on-column, PTV, and gas-tight syringe injection—as well as compatibility with standard 0.1–0.53 mm ID fused-silica capillary columns. It meets essential regulatory requirements for quality-controlled laboratories: fully compliant with ASTM D3606, D5503, D6729; ISO 10301, 10378; and USP . When operated with Agilent OpenLab CDS or MassHunter software, the system supports audit trails, electronic signatures, and 21 CFR Part 11 compliance—including secure user access levels, method versioning, and immutable raw data archiving. All refurbished units undergo full functional validation per Agilent’s certified refurbishment protocol, including performance qualification (PQ) against factory specifications for retention time, sensitivity, linearity, and baseline noise.

Software & Data Management

The 7890 operates natively with Agilent OpenLab CDS (ChemStation Edition or CDS 2.x), offering seamless integration with autosamplers (ALS), GC-MS interfaces, and LIMS environments. Method setup, sequence definition, and real-time monitoring are accessible via intuitive graphical workflows. Advanced features include automatic baseline correction, peak deconvolution for co-eluting compounds, retention time locking (RTL) across instruments, and intelligent integration algorithms for trace-level quantitation. All detector signals are digitized at full dynamic range (e.g., FID: 10⁷), eliminating range-switching artifacts. Raw data files (.D format) are stored with embedded metadata—including instrument configuration, EPC setpoints, oven program, and diagnostic logs—ensuring full traceability for GLP/GMP audits.

Applications

This system is routinely deployed in environmental testing labs for VOC and SVOC analysis per EPA Methods 8260/8270; in petroleum refineries for hydrocarbon group-type analysis (ASTM D5186); in pharmaceutical QC for residual solvent testing (ICH Q3C); and in food safety labs for pesticide residue screening (AOAC 2007.01). Its dual-inlet capability enables parallel analysis of volatile and semi-volatile fractions, while microfluidic flow routing supports multi-dimensional separations without external switching hardware. The TCD option provides universal, non-destructive detection for permanent gases (O₂, N₂, CO, CH₄) and light hydrocarbons—ideal for catalyst evaluation or fermentation off-gas profiling.

FAQ

Is this unit covered by Agilent’s original warranty?
No—refurbished Agilent 7890 systems are supplied with a 12-month parts-and-labor warranty backed by the refurbishing partner, aligned with Agilent’s Certified Pre-Owned standards.
Can I integrate this GC with my existing LIMS or ELN?
Yes—the instrument supports standard ASTM E1381 and E1482-compliant data export protocols, and OpenLab CDS offers certified LIMS connectors for Thermo Fisher SampleManager, LabVantage, and STARLIMS.
What documentation is provided with the refurbished system?
Each unit ships with full PQ report, EPC calibration certificate, oven thermal mapping data, detector sensitivity verification, and complete service history log.
Does it support remote diagnostics and preventive maintenance alerts?
Yes—via LAN-connected OpenLab or Agilent Instrument Manager, users can monitor real-time EPC pressures, oven status, detector voltages, and initiate automated self-tests.
Are consumables and spare parts still available for the 7890 platform?
Yes—Agilent continues to manufacture and distribute all critical components, including inlet liners, septa, detector jets, EPC modules, and column nuts, with no end-of-life notice issued for this platform.
