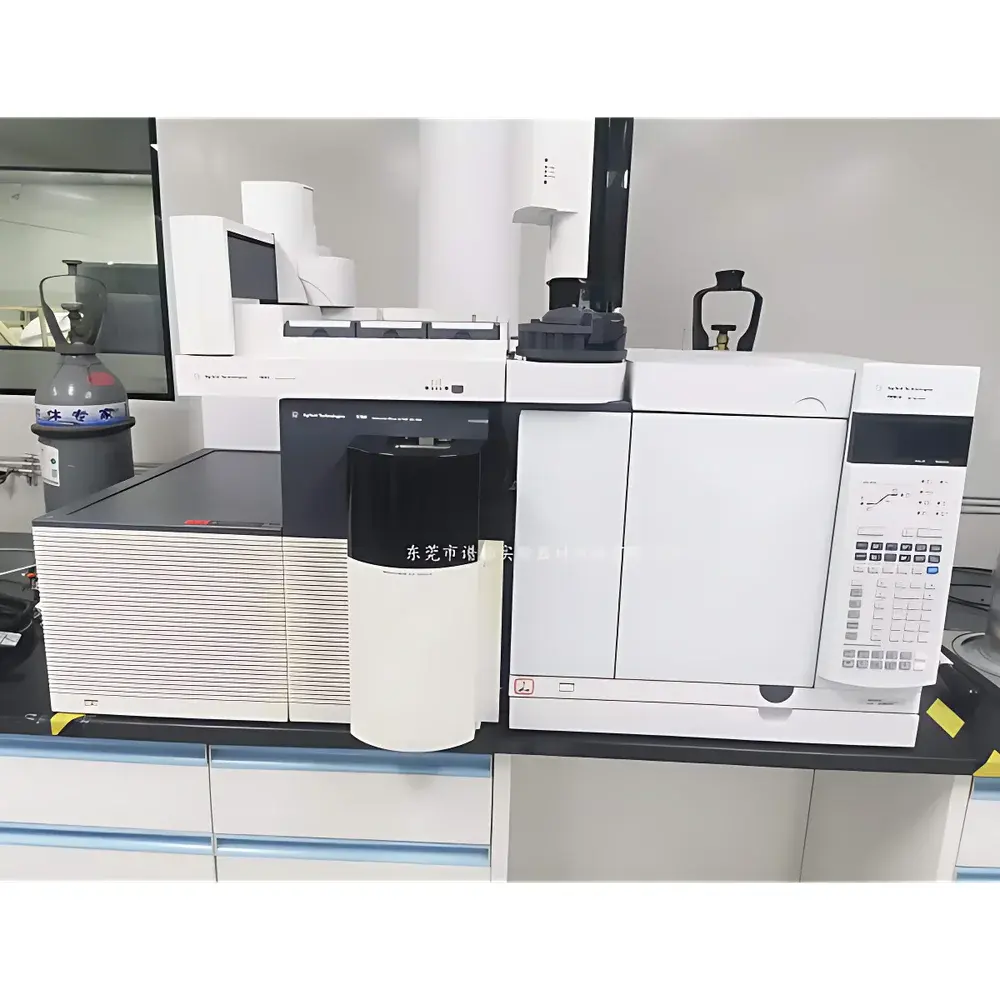

Agilent 7890A-7200 Q-TOF GC/MS System

Overview

The Agilent 7890A-7200 Q-TOF GC/MS System is a high-performance orthogonal time-of-flight mass spectrometer coupled to a robust, industry-standard Agilent 7890A gas chromatograph. Engineered for precision in both targeted and untargeted analysis, this hybrid instrument integrates a quadrupole mass filter with a high-resolution time-of-flight (TOF) mass analyzer—enabling simultaneous high-mass-accuracy full-scan acquisition and fast, sensitive MS/MS fragmentation. Its orthogonal acceleration geometry decouples ion injection velocity from flight time dispersion, significantly enhancing mass resolution (>25,000 FWHM at m/z 500) and mass accuracy (<3 ppm RMS error over 48 hours under routine operation). The system operates via electron ionization (EI) or chemical ionization (CI), with a removable, independently heated ion source enabling rapid switching between ionization modes without venting the mass spectrometer. Designed for structural elucidation, non-target screening, and quantitative confirmation in regulated and research environments, it serves as a cornerstone platform for metabolomics, environmental contaminant profiling, food authenticity testing, forensic toxicology, and natural product chemistry.

Key Features

• Orthogonal TOF architecture with dual-stage reflectron for improved resolution and sensitivity
• Independently heated, user-replaceable EI/CI ion source with minimal vacuum loss during mode switching
• High-temperature resistant hyperbolic quadrupole mass filter (up to 200 °C), minimizing low-temperature condensation and contamination
• Nitrogen-filled hexapole collision cell enabling efficient precursor ion selection and controlled fragmentation for MS/MS
• Thermally insulated flight tube with active temperature stabilization for consistent flight path conditions
• High-speed digitizer electronics supporting up to 32 GS/s data acquisition rate for transient signal capture
• GC/MS interface with auto-retract mechanism—maintains GC column alignment and thermal stability during ion source maintenance
• Modular vacuum system: three turbomolecular pumps (two for analyzer, one for ion source) plus rotary vane backing pump

Sample Compatibility & Compliance

The 7890A-7200 Q-TOF accommodates volatile and semi-volatile organic compounds across diverse matrices—including biological fluids, soil extracts, food homogenates, petroleum distillates, and air particulate filters—following standard derivatization or thermal desorption protocols. It supports compliance with internationally recognized analytical frameworks: ASTM D7622 (petroleum hydrocarbon fingerprinting), ISO 17025 (method validation requirements), USP (validation of compendial procedures), and EPA Methods 8270/1613/1694 for environmental analysis. Data integrity meets FDA 21 CFR Part 11 criteria when used with validated MassHunter Workstation configurations—including electronic signatures, audit trails, and secure user access controls. All hardware components are traceable to original Agilent manufacturing lot numbers and conform to IEC 61000-6-3 EMC standards.

Software & Data Management

Data acquisition, processing, and reporting are managed through Agilent MassHunter Workstation software (version B.08.00 or later), which provides integrated workflows for both qualitative and quantitative analysis. The software includes real-time deconvolution algorithms (AMDIS-compatible), accurate mass database searching (NIST, Wiley, METLIN, mzCloud), elemental composition prediction (within ±2 mDa tolerance), and automated peak integration with isotopic pattern matching. For regulatory applications, MassHunter supports GLP/GMP-compliant audit trail logging, method version control, and raw data encryption. Batch processing enables parallel analysis of hundreds of samples with customizable report templates compliant with LIMS interfaces (e.g., Thermo Fisher SampleManager, LabVantage). All raw data (.d files) are stored in vendor-neutral formats compatible with open-source tools such as OpenMS and MZmine.

Applications

This Q-TOF system delivers definitive identification and quantification in complex mixtures where conventional quadrupole or ion trap systems lack sufficient resolving power or mass accuracy. In metabolomics, it enables confident annotation of endogenous small molecules (<1,500 Da) using retention index–retention time–mass correlation. In food safety, it detects pesticide residues, mycotoxins, and adulterants at sub-ppb levels while confirming identity via exact mass and fragment ion spectra. Environmental labs apply it to identify emerging contaminants—including PFAS precursors, brominated flame retardants, and microplastic degradation markers—in wastewater and sediment. Forensic laboratories leverage its ability to distinguish structural isomers (e.g., THC vs. CBD, fentanyl analogs) based on diagnostic fragment ions and retention behavior. In petrochemical R&D, it resolves co-eluting hydrocarbon isomers in crude oil fractions without prior fractionation.

FAQ

Is this instrument factory-refurbished or dealer-certified used equipment?
This unit is a professionally serviced, second-hand Agilent 7890A-7200 Q-TOF GC/MS system, fully tested and calibrated by an Agilent-authorized distributor. All critical components—including ion source, quadrupole, collision cell, detector, and vacuum system—have undergone functional verification and performance qualification per Agilent Application Note 5991-4704EN.
What documentation accompanies the instrument?
Delivered with complete service history logs, original calibration certificates, MassHunter software license transfer documentation, and a signed Certificate of Conformance detailing post-service performance metrics (resolution, mass accuracy, sensitivity, and retention time stability).
Can the system be upgraded to support newer MassHunter versions?
Yes—the hardware architecture supports MassHunter Workstation versions up to B.10.x. Software upgrades require valid support contract activation through Agilent or authorized channel partners.
Does the one-year warranty cover vacuum pumps and detector replacement?
The comprehensive 12-month parts-and-labor warranty includes all core mass spectrometry components, including turbomolecular pumps, ion detector, and electronics modules—excluding consumables such as filaments, septa, and GC columns.
Is remote diagnostics and support available after installation?
Remote access is enabled via secure TLS-encrypted connection to Agilent’s Global Support Network. Diagnostic sessions require pre-authorized IP whitelisting and comply with ISO/IEC 27001 information security policies.
