Anton Paar Carbo 5100 / Carbo 6100 / Carbo 6300 Online CO₂ Sensors

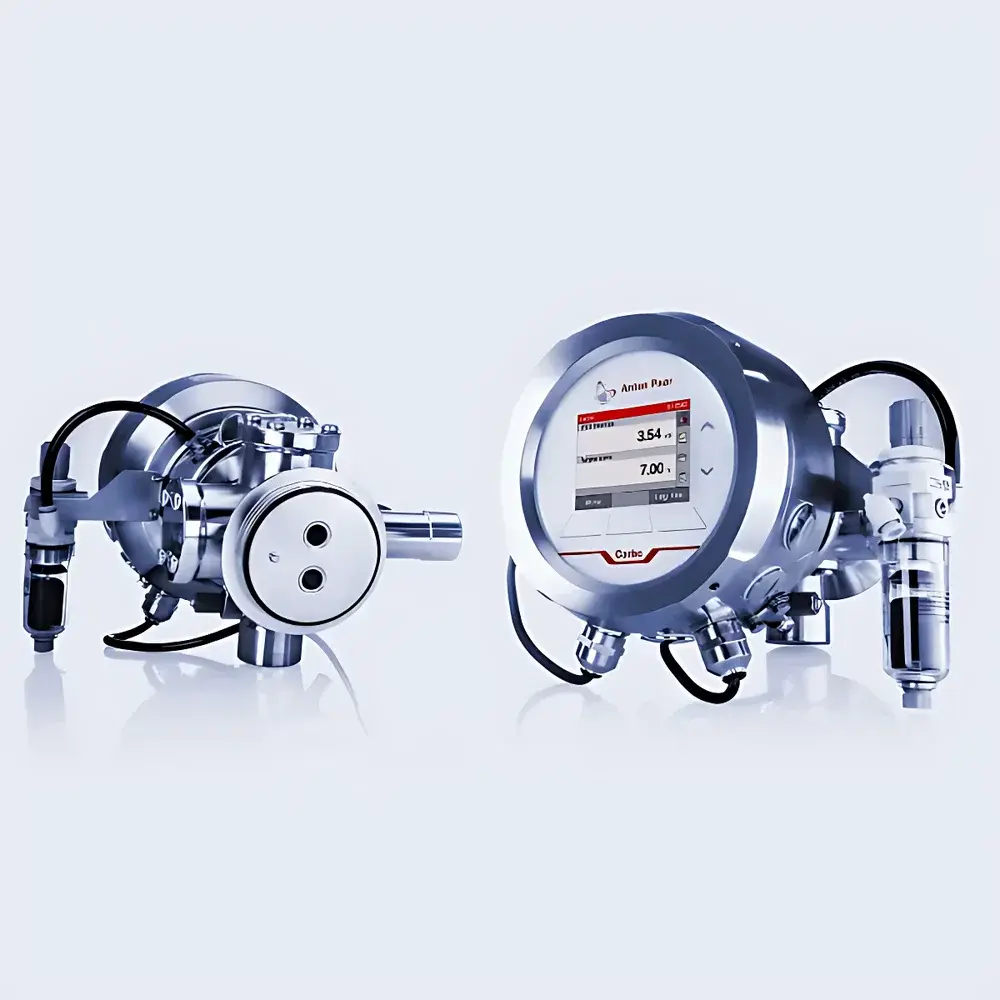

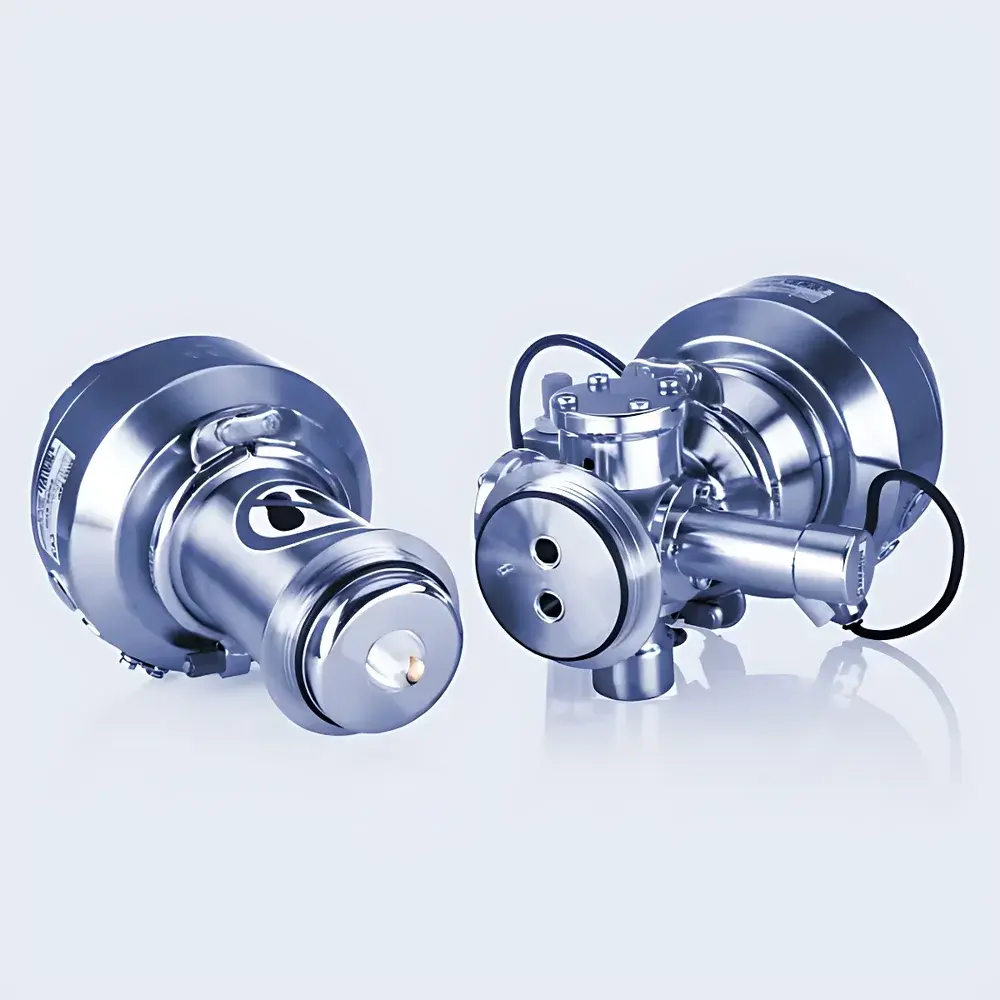

Overview

The Anton Paar Carbo 5100, Carbo 6100, and Carbo 6300 are industrial-grade online CO₂ sensors engineered for continuous, real-time measurement of dissolved carbon dioxide concentration in beverage production lines. These instruments operate on two complementary physical principles: the Carbo 5100 employs a validated pressure-based measurement method compliant with ISO 22627 and ASTM D512–19, while the Carbo 6100 and Carbo 6300 utilize optical absorption spectroscopy—specifically near-infrared (NIR) photometric detection—at wavelengths selectively sensitive to CO₂ hydration equilibria in aqueous solutions. All three models are designed for hygienic process environments, meeting EHEDG EL Class I requirements and supporting CIP/SIP protocols without recalibration. The system architecture integrates seamlessly into high-speed bottling, canning, and kegging operations, delivering stable, traceable CO₂ data essential for regulatory compliance (e.g., EU Regulation No. 1169/2011 on food information, US FDA 21 CFR Part 11 audit trails when paired with mPDS 5 or Pico 3000 software), quality assurance (QA), and closed-loop carbonation control.

Key Features

• Zero-maintenance operation for Carbo 6100 and Carbo 6300: No consumables, no moving parts, no periodic sensor replacement—reducing total cost of ownership (TCO) over 10-year service life
• Annual maintenance interval for Carbo 5100: Field-serviceable design with optional isolation valve adapter enabling hot-swap removal without process shutdown
• NAMUR NE 107-compliant self-diagnostic functionality: Real-time status reporting for sensor health, signal integrity, temperature drift, and cleaning cycle validation
• Sub-second response time: 4-second measurement interval (Carbo 6100/6300); 15-second interval (Carbo 5100), enabling dynamic feedback control of carbonation dosing valves
• Multi-gas capability: Patented dual-principle methodology (US Patent US-2021349036-A1) allows simultaneous quantification of CO₂, N₂, and N₂O in carbonated beverages—critical for nitrogenated stouts, nitro cold brew, and premium soft drinks
• Hygienic construction: EHEDG-certified wetted parts (316L stainless steel, EPDM/FKM seals), IP65/IP67 ingress protection, Varivent® N sanitary process connections

Sample Compatibility & Compliance

The Carbo series accommodates heterogeneous beverage matrices—including fruit pulp, suspended fibers, and particulate matter—without clogging or signal attenuation. Each model supports full-range operation across standard beverage pH (2.5–4.5), temperature (–5 °C to +40 °C process; up to +130 °C for CIP cycles), and pressure (up to 10 bar g). Carbo 6300 incorporates an integrated beverage-type recognition channel using multi-wavelength optical fingerprinting, automatically adapting calibration parameters for beer, wine, sparkling water, cola, and energy drinks. All units comply with EHEDG Guideline Doc. 8 (2022), FDA 21 CFR 110.40 (equipment design), and EC 1935/2004 for materials in contact with foodstuffs. Optional SIL2 certification per IEC 61508 is available for safety-critical carbonation control loops.

Software & Data Management

Data acquisition and configuration are supported via three interoperable platforms: the built-in touchscreen HMI (Carbo 6X00 series), Pico 3000 desktop software (Windows-based, GLP-compliant with electronic signatures), and mPDS 5 secondary display/controller. Communication protocols include analog 4–20 mA (HART-enabled), Modbus RTU/TCP, PROFIBUS DP, PROFINET IO, and EtherNet/IP—ensuring compatibility with Siemens PCS7, Rockwell FactoryTalk, ABB 800xA, and Emerson DeltaV DCS environments. Audit trail logging, user access levels (admin/operator/technician), and configurable alarm thresholds (high/low/deviation) meet GMP documentation requirements. Raw spectral data (Carbo 6X00) and pressure transients (Carbo 5100) are exportable in CSV/Excel format for statistical process control (SPC) analysis per ISO 7870-2.

Applications

• Real-time CO₂ monitoring in inline carbonation systems (e.g., Bühler, KHS, Krones fillers)
• Closed-loop control of CO₂ injection valves during batch changeovers and line start-up/shutdown sequences
• Verification of carbonation stability post-pasteurization or sterile filtration
• Quality release testing for canned beer, sparkling wine, functional beverages, and ready-to-drink cocktails
• Foreign gas verification in nitrogen-blended products (e.g., Guinness-style stouts, nitro coffee)
• Process validation for CIP cycle efficacy—CO₂ residual tracking confirms complete air purge prior to re-entry

FAQ

What is the difference between Carbo 5100 and Carbo 6100/6300 in terms of measurement principle?

The Carbo 5100 uses a pressure-based method measuring headspace equilibrium pressure after controlled thermal equilibration, whereas Carbo 6100 and Carbo 6300 employ non-invasive NIR optical absorption calibrated against gravimetric reference standards.
Can these sensors measure CO₂ in viscous or pulpy beverages such as smoothies or fruit nectars?

Yes—the flow cell geometry and acoustic damping design prevent sediment accumulation and ensure representative sampling even at low Reynolds numbers (< 2,000).
Is EHEDG certification applicable to all three models?

Carbo 6100 and Carbo 6300 hold full EHEDG EL Class I certification; Carbo 5100 conforms to EHEDG Guideline Doc. 8 but is not formally certified due to its mechanical pressure interface.
How does the system handle temperature fluctuations during CIP cycles?

All models incorporate dual-point PT100 temperature compensation; Carbo 6X00 units feature active thermal stabilization to maintain optical path consistency within ±0.1 °C during thermal transients.
Does the foreign gas measurement require additional hardware?

No—N₂ and N₂O quantification leverages the same optical platform (Carbo 6X00) or combined pressure/optical correlation algorithms (Carbo 5100 + Carbo 6X00 hybrid deployment), enabled by firmware v3.2+.
