Aolong X-ray Radiographic Inspection System Laser Positioning Device

Overview

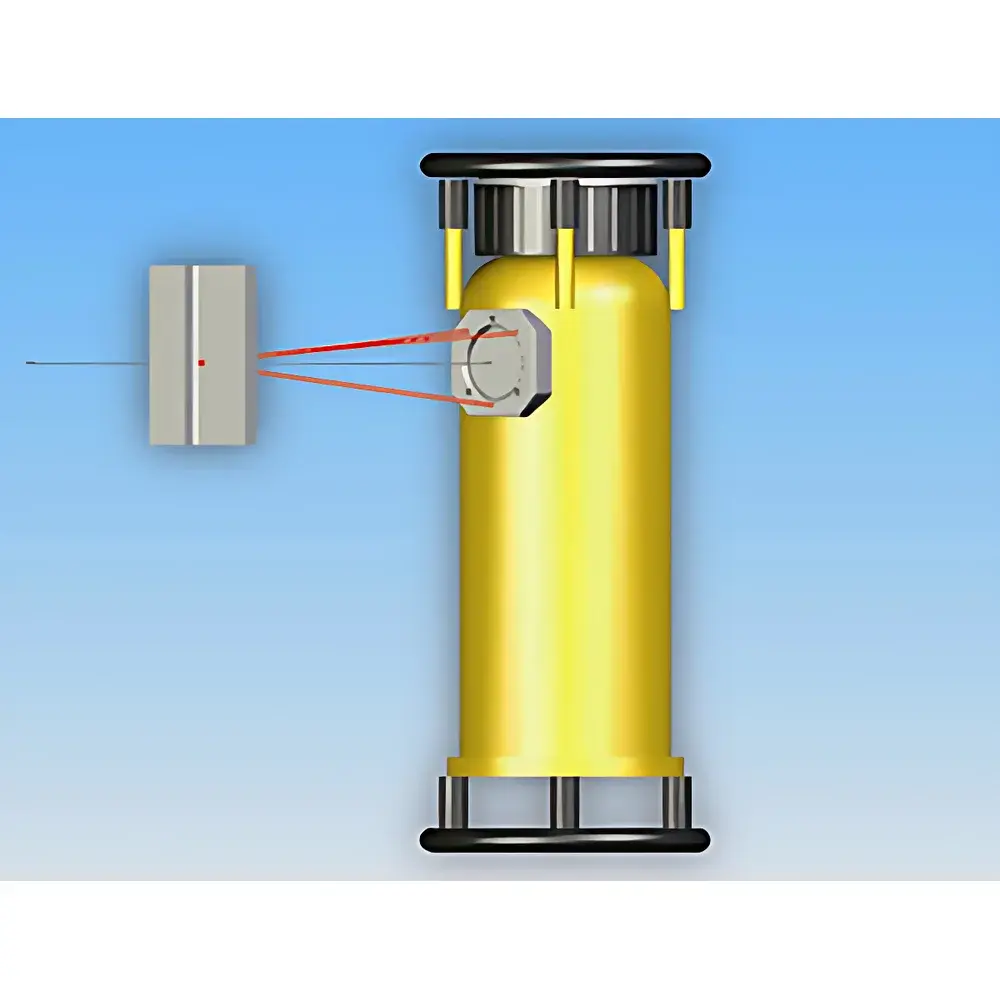

The Aolong Laser Positioning Device for X-ray Radiographic Inspection Systems is an engineered optical alignment accessory designed to integrate seamlessly with industrial X-ray radiographic inspection equipment. It operates on the principle of visible laser beam projection—typically using a Class II or IIIa diode laser (635 nm or 650 nm)—to establish a precise spatial reference point coincident with the X-ray focal spot. This co-axial alignment enables real-time visualization of the effective radiation center, ensuring consistent source-to-object distance (SOD) and source-to-detector distance (SDD), both critical parameters governing geometric unsharpness (U_g) in radiographic image quality per ISO 17636-1 and ASTM E94. The device does not emit ionizing radiation; rather, it serves as a non-invasive, repeatable setup aid that supports compliance-driven NDT workflows in aerospace, pressure vessel manufacturing, and pipeline integrity assessment.

Key Features

• Co-axial laser alignment calibrated to the X-ray tube focal spot, enabling sub-millimeter positional repeatability under standard thermal operating conditions.
• Adjustable mounting interface compatible with common X-ray tube housings (e.g., 3-inch and 4-inch flange standards per ISO 5725-2), supporting both stationary and manipulator-mounted systems.
• Integrated fine-tuning mechanism for horizontal/vertical beam offset compensation, facilitating rapid recalibration after tube replacement or mechanical repositioning.
• IP54-rated enclosure with passive thermal management, suitable for use in controlled industrial environments with ambient temperatures from 10 °C to 40 °C and relative humidity ≤80% non-condensing.
• No external power supply required — powered directly via low-voltage DC tap from the host X-ray generator control cabinet (typically 12–24 VDC).

Sample Compatibility & Compliance

The device is compatible with fixed-anode and rotating-anode X-ray inspection systems operating in the 100–450 kV range, including but not limited to Aolong’s own OL series and third-party systems meeting IEC 61331-1 mechanical interface specifications. It supports standard radiographic film, computed radiography (CR) plates, and digital detector arrays (DDAs) up to 43 cm × 43 cm active area. From a regulatory standpoint, the laser positioning function contributes indirectly to compliance with ISO 9712 (NDT personnel qualification), EN 462-1 (image quality indicator evaluation), and ASME BPVC Section V, Article 2 requirements for setup verification prior to exposure. While the device itself is not a radiation-emitting product, its use is documented within QA/QC procedures to satisfy traceability requirements under ISO 17025-accredited laboratories.

Software & Data Management

This is a hardware-only alignment tool with no embedded firmware, software stack, or data logging capability. Its integration into digital NDT workflows occurs at the procedural level: operators record laser alignment verification steps—including date, operator ID, system voltage/kV, and SOD measurement—as part of the radiographic technique sheet (RTS). When used alongside PACS-integrated imaging workstations or LIMS platforms (e.g., Siemens Teamcenter NDT or MISTRAS eVision), alignment confirmation timestamps may be cross-referenced with exposure metadata for full audit trail generation. No FDA 21 CFR Part 11 electronic signature functionality is applicable, as the device produces no electronic records.

Applications

• Precision weld inspection in ASME Section VIII pressure vessels, where consistent SOD ensures adherence to IQI sensitivity thresholds per ISO 19232-2.

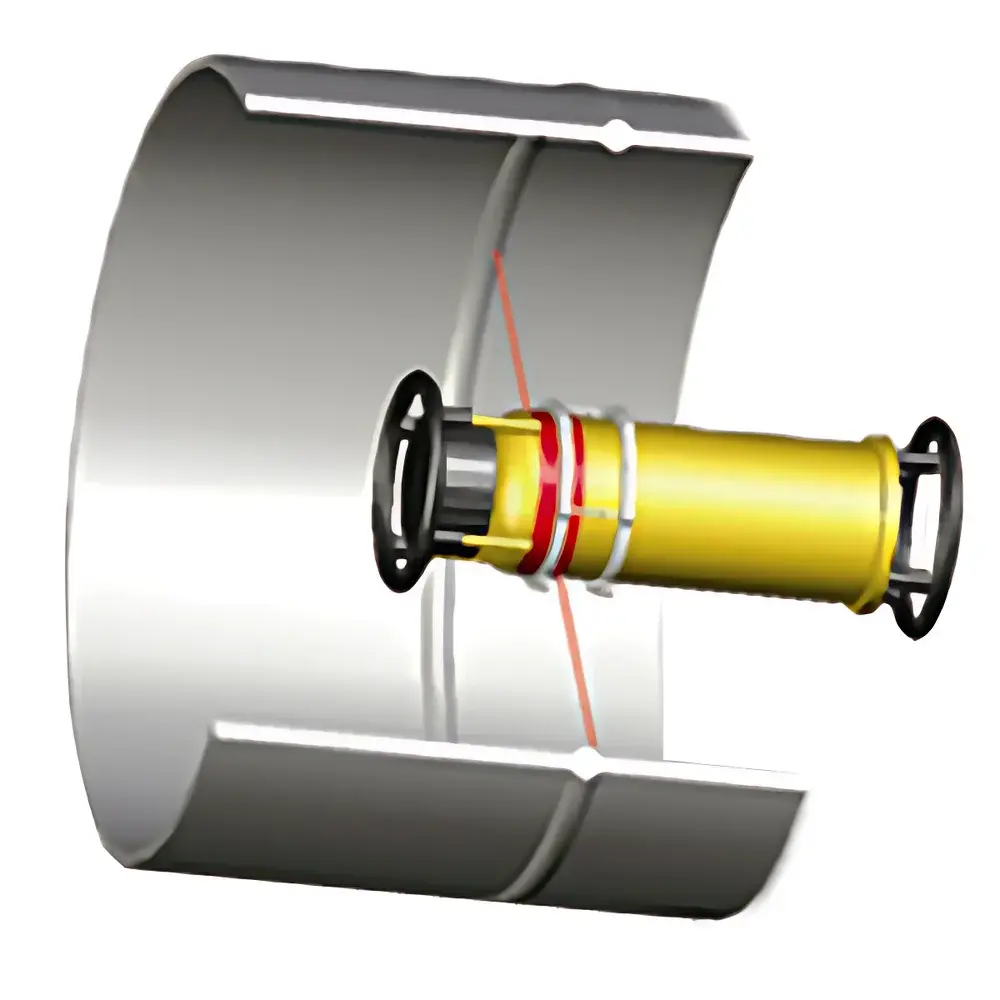

• Automated pipe girth weld scanning setups, where laser-guided positioning reduces manual alignment time by >60% compared to traditional pin-hole collimator methods.
• Pre-exposure validation in high-throughput casting inspection lines, minimizing film/detector rework due to geometry-related blurring.
• Educational and certification training environments, providing trainees with immediate visual feedback on focal spot positioning relative to test objects.
• Field service maintenance of portable X-ray systems, enabling rapid focal spot verification without disassembly or radiographic exposure.

FAQ

Is this device certified for use in nuclear-grade NDT applications?

No — it is not qualified to ASME NQA-1 or RCC-M requirements. It may be used in support of such inspections only when incorporated into a customer-approved procedure validated under their QA program.
Does the laser require periodic recalibration?

Yes — annual verification against a traceable optical alignment standard (e.g., autocollimator or coordinate measuring machine) is recommended per ISO/IEC 17025 Clause 6.5.2.
Can it be retrofitted onto legacy X-ray systems manufactured before 2010?

Yes, provided the tube housing includes a mechanically stable mounting surface and accessible low-voltage control bus. Custom bracket kits are available upon request.
What safety standards govern its laser classification?

Complies with IEC 60825-1:2014 for Class 2 or Class 3R lasers, depending on output power configuration; user must implement appropriate local laser safety controls per ANSI Z136.1.
Is technical documentation available in English?

Yes — full installation manual, mechanical interface drawings, and calibration certificate templates are supplied in English and Chinese upon order fulfillment.
