ASTM D1781-1998 Compliant Rolling Peel Adhesion Tester – Yuelian YL-1123 Universal Testing Machine
| Brand | Yuelian |
|---|---|
| Model | YL-1123 |
| Capacity Options | 5–2000 kgf |
| Force Resolution | 1/250,000 FS |
| Force Accuracy | ≤±0.5% |
| Travel Resolution | 0.005 mm |
| Max Travel | 700 mm (excl. grips) |
| Test Width | 350 mm |
| Speed Range | 0.5–500 mm/min |
| Power Supply | AC 220 V, 50–60 Hz, 4 A |
| Dimensions (W×D×H) | 95×58×151 cm |
| Weight | ~140 kg |
| Compliance | ASTM D1781-1998 (Rolling Peel Test for Adhesives) |
Overview
The Yuelian YL-1123 Universal Testing Machine is an electromechanical servo-controlled system engineered for high-reproducibility mechanical characterization of adhesive bonds, substrates, and laminated assemblies in accordance with ASTM D1781-1998 — the Standard Test Method for Rolling Peel Adhesion. This test method quantifies the peel resistance of pressure-sensitive adhesives (PSAs), structural tapes, and laminated composites under controlled angular displacement and constant-rate separation. The YL-1123 implements a precision rolling-drum geometry to maintain consistent peel angle (typically 180° or specified variants), minimizing bending moment interference and enabling measurement of true interfacial adhesion energy rather than substrate-dominated failure. Its closed-loop servo control architecture ensures stable velocity regulation across the full speed range (0.5–500 mm/min), critical for capturing rate-dependent viscoelastic responses in polymeric adhesives.
Key Features
- Full-computer servo control with real-time load and displacement feedback via high-stability load cell and optical encoder
- Configurable capacity options from 5 kgf to 2000 kgf, supporting both low-force PSA peel testing and high-load structural bond evaluation
- Force resolution of 1 part in 250,000 full scale and certified accuracy ≤±0.5% per ASTM E4 and ISO 7500-1
- Travel resolution of 0.005 mm and maximum stroke of 700 mm (excluding grip height), accommodating extended peel paths required for statistical data acquisition
- Integrated safety architecture: overload shutdown, specimen rupture detection, emergency stop button, programmable upper/lower limit stops, and mechanical over-travel protection
- Multi-unit force display and reporting: selectable units include kgf, g, N, kN, lbf, and ton (metric/short)
- Color LCD touchscreen interface with tactile soft keys; supports local operation without PC connection
Sample Compatibility & Compliance
The YL-1123 accommodates standardized rolling peel fixtures per ASTM D1781-1998, including precision-machined stainless-steel drums (diameter 25.4 mm ± 0.05 mm), adjustable mandrel holders, and interchangeable clamping systems for rigid and flexible substrates (e.g., PET film, aluminum foil, PVC sheet, coated paper). It supports specimens up to 350 mm wide and is compatible with ISO 29862, PSTC-107, and AFERA 4002 peel standards when configured with appropriate tooling. The system meets mechanical verification requirements of ISO 7500-1 Class 1 and is suitable for GLP-compliant laboratories conducting adhesive qualification per automotive OEM specifications (e.g., GMW14872, Ford FLTM BO 116-01) and medical device packaging validation (ISO 8510-2, ASTM F88).
Software & Data Management
The bundled Windows-based testing software provides complete test method definition, real-time curve plotting (load vs. displacement), automatic peak detection, and statistical analysis (mean, SD, CV%) across multiple replicates. Raw data export is supported in CSV, Excel (.xlsx), and PDF formats. Audit trail functionality logs user actions, parameter changes, and calibration events — aligning with FDA 21 CFR Part 11 requirements when deployed with electronic signature modules and system access controls. Calibration certificates traceable to NIST standards can be imported and associated with individual test records.
Applications
- Quantitative assessment of peel adhesion strength for pressure-sensitive tapes, labels, and medical transdermal patches
- Quality control of laminated packaging materials (e.g., food-grade pouches, pharmaceutical blister lidding)
- R&D of structural acrylic and rubber-based adhesives under variable peel rates and environmental conditioning
- Failure mode analysis (cohesive vs. interfacial vs. substrate failure) via synchronized video recording and load-displacement hysteresis evaluation
- Validation of adhesive performance after thermal aging, humidity exposure, or UV irradiation per ASTM D1002 and ISO 4587
- Mechanical property profiling of elastomeric films, nonwovens, and composite reinforcements in aerospace and automotive assembly
FAQ

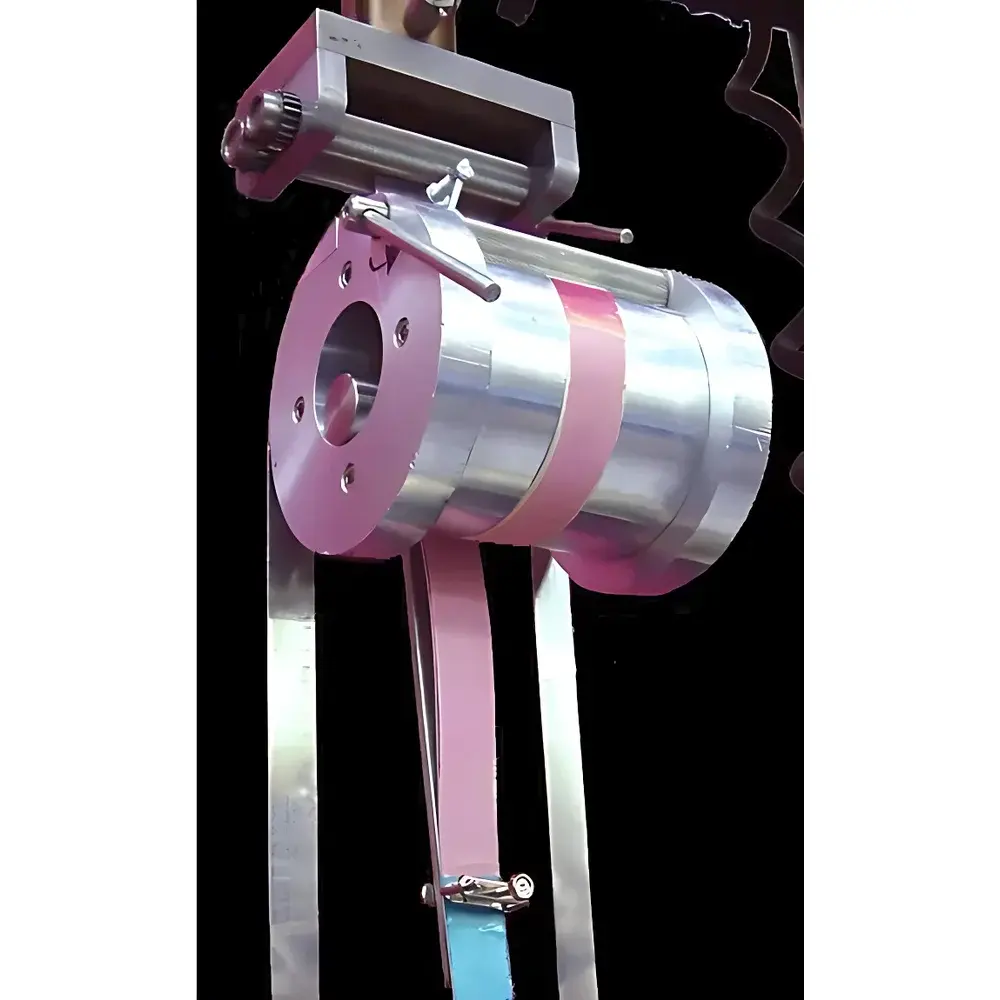

Does the YL-1123 meet ASTM D1781-1998’s dimensional and kinematic requirements for the rolling drum fixture?
Yes — the machine accepts ASTM-compliant rolling peel fixtures with 25.4 mm diameter drums and supports precise angular alignment via adjustable mounting brackets.
Can the system perform other ASTM/ISO tests beyond rolling peel?
Yes — with appropriate grips and software templates, it executes tensile (ASTM D638, ISO 527), compression (ASTM D695), flexural (ASTM D790), tear (ASTM D624), and shear (ASTM D1002) tests.
Is calibration documentation provided with the instrument?
Each unit ships with a factory calibration certificate traceable to national metrology institutes; optional UKAS-accredited recalibration services are available.
What operating system versions are supported by the control software?
The software is validated on Windows 10 and Windows 11 (64-bit); legacy support for Windows 7 is discontinued as of 2024.
How is data integrity ensured during long-duration peel tests?
The system employs non-volatile memory buffering and automatic recovery logging to prevent data loss during unexpected power interruption or communication drop.
