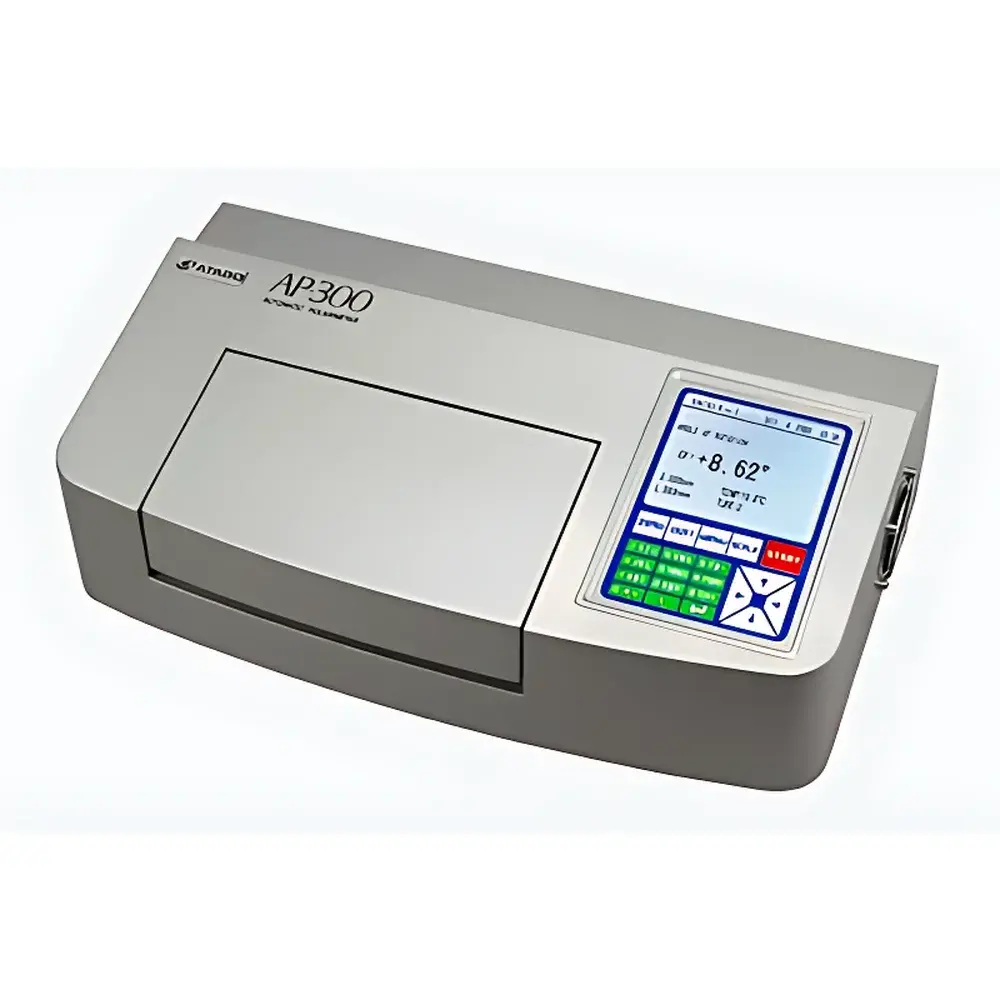

ATAGO AP-300 Pharmaceutical-Grade Automated Polarimeter with Temperature Control

Overview

The ATAGO AP-300 Pharmaceutical-Grade Automated Polarimeter is a precision optical instrument engineered for high-accuracy measurement of optical rotation in chiral compounds under controlled thermal conditions. Operating on the fundamental principle of polarimetry—where plane-polarized light rotates upon passage through an optically active medium—the AP-300 quantifies angular deviation (in degrees) to determine critical quality attributes including enantiomeric excess, concentration, specific rotation, and purity of pharmaceutical actives such as L-dopa, levofloxacin, and dextrose monohydrate. Designed specifically for regulated environments, the system integrates a Peltier-controlled thermostatic cell holder (standard) and supports optional integration with the ATAGO 60-C5 circulating water bath for ISO/IEC 17025-compliant temperature stabilization (±0.1°C over 15–40°C). Its 589 nm LED light source delivers spectral stability equivalent to the sodium D-line without lamp aging or warm-up drift, ensuring long-term baseline integrity essential for batch release testing and stability studies.

Key Features

• Automated measurement cycle with user-defined repeat count (1–99), real-time averaging, and statistical deviation reporting
• Dual-mode display: simultaneous readout of optical rotation (AR), International Sugar Scale (ISS), specific rotation ([α]), concentration (g/100 mL), and purity (%)
• Integrated temperature-controlled sample cell holder (Peltier-driven, range: 15–40°C, resolution: 0.1°C)
• Compliance-ready firmware with electronic signature support, audit trail logging, and user access levels per FDA 21 CFR Part 11 requirements
• High-resolution 0.001° angular resolution and repeatability validated per ISO 13122 and USP
• Compact benchtop architecture with robust aluminum alloy housing and anti-vibration optical path design
• USB interface for data export to LIMS or ELN systems; optional thermal printer (AP-300-D configuration) for GMP-compliant hardcopy records

Sample Compatibility & Compliance

The AP-300 accommodates standard 100 mm and 200 mm pathlength cells (including jacketed variants for external temperature control), supporting aqueous solutions, organic solvents (e.g., ethanol, chloroform), and viscous pharmaceutical syrups within defined viscosity limits (<500 mPa·s). It meets pharmacopoeial requirements for assay validation under USP (Optical Rotation), European Pharmacopoeia 2.2.7, and Japanese Pharmacopoeia XVIII. All measurement protocols align with ICUMSA Method GS7-12 for sucrose analysis and are traceable to NIST SRM 1973 (D-glucose standard). The system’s calibration verification procedure includes certified quartz control plates (±0.01° uncertainty) and documented annual recalibration intervals per ISO/IEC 17025 Clause 6.5.

Software & Data Management

The embedded firmware supports full 21 CFR Part 11 compliance: role-based user authentication (admin/operator/auditor), immutable audit trails recording timestamp, operator ID, parameter changes, and result modifications, plus electronic signatures for batch documentation. Measurement data—including raw angle values, temperature logs, and statistical summaries—is exportable in CSV format via USB mass storage mode. No proprietary software installation is required; data files are natively readable in Excel, LabArchives, or Veeva Vault QMS. For enterprise deployment, optional API integration enables automated data push to SAP QM or TrackWise via HTTP POST with TLS 1.2 encryption.

Applications

• Release testing of chiral APIs (e.g., determination of [α]D for ibuprofen, sertraline, and escitalopram)
• In-process monitoring of enzymatic resolution reactions and asymmetric synthesis batches
• Stability-indicating assay for degradation product detection (e.g., racemization kinetics in penicillin derivatives)
• Sugar content quantification in excipient blends per ICUMSA and AOAC methods
• Quality control of amino acids (L-lysine, L-glutamic acid), vitamins (ascorbic acid), and natural extracts (camphor, menthol)
• Educational use in university pharmaceutical sciences laboratories for stereochemistry instruction

FAQ

Does the AP-300 meet regulatory requirements for GMP manufacturing environments?

Yes — it is preconfigured for FDA 21 CFR Part 11 compliance, including electronic signatures, audit trail generation, and secure user access control. Installation Qualification (IQ) and Operational Qualification (OQ) protocols are available upon request.
Can the instrument measure samples below 15°C or above 40°C?

The integrated Peltier module operates between 15–40°C. For extended ranges (e.g., 5–60°C), the optional ATAGO 60-C5 circulating bath must be used with a jacketed cell.
Is calibration traceable to national standards?

Calibration is performed using NIST-traceable quartz control plates (SRM 1973 and custom-certified standards), with full calibration certificate issued per ISO/IEC 17025.
How is data integrity ensured during power interruption?

All measurements and audit logs are written to non-volatile flash memory in real time; no data loss occurs during unexpected shutdown.
What cell pathlengths are supported out-of-the-box?

Standard configurations include 100 mm and 200 mm cells; 50 mm and 500 mm options are available as accessories for low-concentration or high-viscosity applications.
