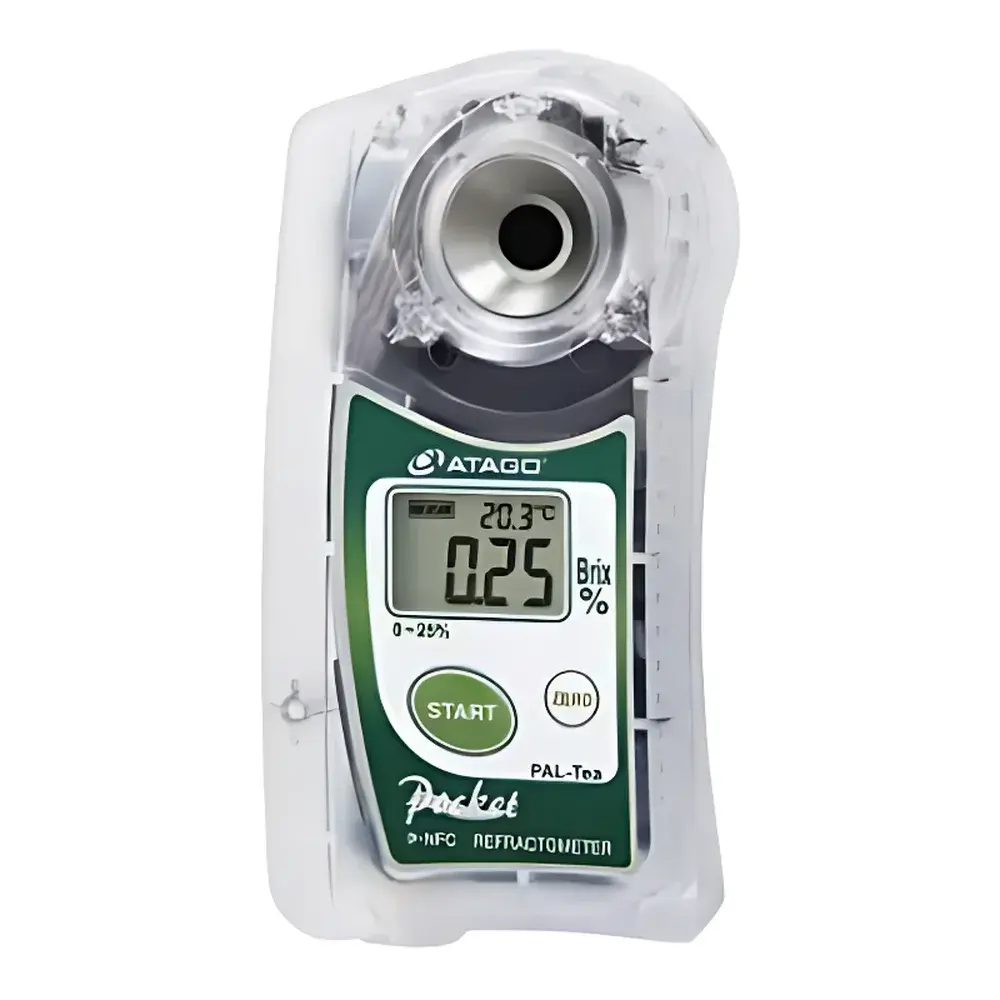

ATAGO PAL-Tea Portable Digital Refractometer for Low-Concentration Tea Solutions

Overview

The ATAGO PAL-Tea is a purpose-engineered handheld digital refractometer designed specifically for rapid, field-deployable quantification of soluble solids concentration—expressed as % Brix—in low-sugar tea-based beverages. It operates on the fundamental optical principle of critical angle refraction: incident light passing through a prism-sample interface undergoes angular deviation proportional to the sample’s refractive index, which correlates linearly with dissolved solute concentration under controlled temperature conditions. Equipped with ATAGO’s proprietary Automatic Temperature Compensation (ATC) system spanning 10–100°C, the PAL-Tea eliminates manual correction requirements across the full operational range of hot-brewed, pasteurized, or ambient-stored tea products—including green, oolong, black, and herbal infusions—without compromising measurement integrity. Its compact form factor and robust mechanical design support continuous use in high-humidity production environments, QC laboratories, and mobile quality verification scenarios.

Key Features

• Optimized optical path geometry for enhanced signal-to-noise ratio in low-Brix matrices (0.0–25.0%), minimizing baseline drift during repeated measurements of dilute tea extracts.
• True ATC calibration validated against NIST-traceable reference standards across the 10–100°C range, ensuring metrological consistency without external thermostatic control.
• IP65-rated enclosure provides dust-tight sealing and resistance to low-pressure water jets, enabling reliable operation in wet processing zones and near steam-intensive brewing stations.
• High-contrast backlit LCD display with 0.01% Brix resolution supports unambiguous reading under variable lighting conditions, including factory floor or outdoor distribution checkpoints.
• Low-power architecture powered by two standard AAA alkaline cells delivers >10,000 measurements per battery set, reducing operational downtime and eliminating dependency on charging infrastructure.

Sample Compatibility & Compliance

The PAL-Tea is validated for direct measurement of clarified, non-viscous, and minimally turbid tea solutions—including ready-to-drink (RTD) formulations, cold-brew concentrates, and hot infusion samples cooled to ≥10°C. It accommodates samples containing natural polyphenols, caffeine, and low-level plant-derived colloids, provided suspended solids are absent or filtered (e.g., via 0.45 µm syringe filtration). While not intended for highly viscous or emulsified tea-based dairy blends, its optical response remains stable across pH 3.5–6.8—the typical range of acid-stabilized tea beverages. The instrument complies with ISO 2173:2003 (fruit juice and related products), JIS K 0061 (refractometric analysis), and supports traceability frameworks required under ISO/IEC 17025-accredited testing environments. Routine calibration verification using certified sucrose reference solutions (e.g., 5.00%, 10.00%, and 20.00% Brix) satisfies internal QA audit requirements and aligns with GMP-aligned documentation practices.

Software & Data Management

The PAL-Tea operates as a standalone measurement device with no embedded data logging or wireless connectivity. However, its repeatable analog output behavior enables seamless integration into paper-based or electronic batch record systems. Users may manually transcribe readings into LIMS or Excel-based trend tracking templates. For enterprises requiring automated data capture, ATAGO’s optional PAL-Print accessory (sold separately) provides thermal-printed hardcopy records with timestamp and operator ID fields—supporting 21 CFR Part 11-compliant audit trails when paired with controlled access protocols and document retention policies. All firmware updates and calibration certificate templates are available via ATAGO’s global technical portal, accessible to registered distributors and end-user facilities.

Applications

• Real-time monitoring of extract concentration during tea infusion process validation and optimization.
• In-line verification of blending ratios prior to bottling or canning of unsweetened and lightly sweetened RTD teas.
• Supplier qualification testing for incoming tea concentrate shipments, ensuring contractual Brix specifications are met.
• Stability studies tracking soluble solids loss or gain during accelerated shelf-life testing at elevated temperatures.
• QC release testing of finished products against internal specifications aligned with Codex Alimentarius Standard CXS 223-2001 for tea beverages.

FAQ

Can the PAL-Tea measure tea with added milk or creamer?
No. Emulsified or opaque tea-milk mixtures scatter incident light and invalidate refractive index correlation; only clear, filterable solutions are suitable.
Is calibration required before each use?
Daily calibration using distilled water (0.00% Brix) and one mid-range certified sucrose standard is recommended for GLP-compliant operations; ATC stability allows extended calibration intervals under controlled environmental conditions.
Does the instrument require cleaning between samples?
Yes. A lint-free wipe with deionized water followed by gentle air drying is mandatory to prevent residue carryover and prism surface degradation.
Can it be used for non-tea applications like fruit juice or sports drinks?
While technically capable within its 0.0–25.0% Brix range, the PAL-Tea’s optical algorithm is optimized for tea-specific refractive behavior; for general-purpose use, ATAGO recommends the PAL-1 or PAL-BX series.
What is the warranty coverage for industrial use?
ATAGO provides a 12-month limited warranty covering material and workmanship defects under normal laboratory or production use, excluding prism damage from improper cleaning or mechanical impact.
