ROCKER Pilot100 Vacuum Controller

Overview

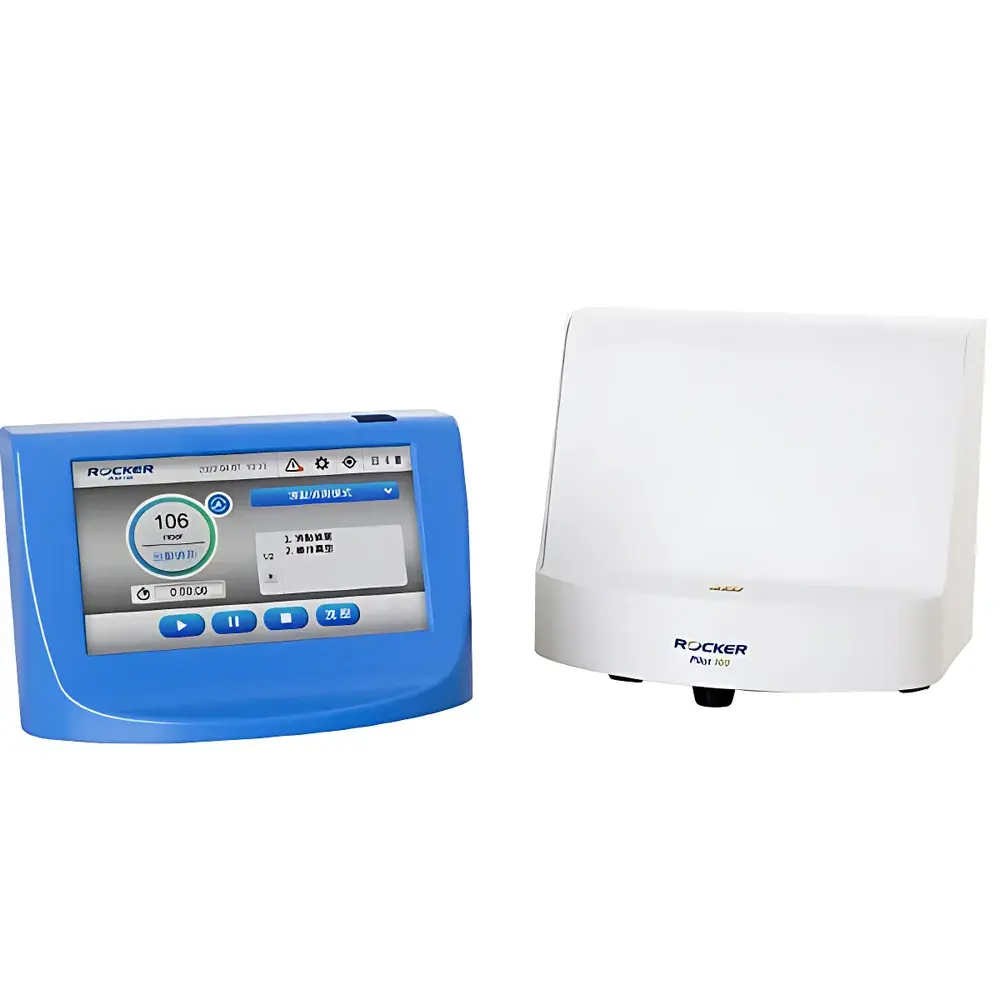

The ROCKER Pilot100 Vacuum Controller is an intelligent, microprocessor-driven vacuum regulation system engineered for precision pressure control in laboratory-scale evaporation, distillation, rotary evaporation, and gradient vacuum applications. Unlike basic analog gauges or single-function vacuum switches, the Pilot100 employs a capacitance manometer-based digital pressure sensor—providing stable absolute pressure measurement across its full 0–1100 mbar (abs) range. Its core functionality integrates real-time pressure monitoring, programmable setpoint control, automated bleed valve actuation, and dynamic boiling point detection—a proprietary algorithm that continuously analyzes pressure decay rate and thermal context to infer solvent volatility and maintain optimal evaporation conditions without manual intervention. Designed for integration into both standalone vacuum workflows and OEM vacuum systems, the Pilot100 operates as a closed-loop controller, accepting feedback from its internal sensor and modulating airflow via a fast-response solenoid valve to sustain user-defined vacuum levels with high reproducibility.

Key Features

• 7-inch capacitive touchscreen interface with intuitive graphical navigation—fully operable with lab gloves and resistant to common solvents and cleaning agents.
• Boiling Point Detection (BPD) algorithm: Automatically identifies solvent-specific vapor pressure inflection points during concentration, enabling adaptive vacuum hold without pre-programmed profiles.
• Integrated self-cleaning cycle: Periodically vents and repressurizes the sensing line to purge condensate and prevent drift—critical for long-duration or multi-solvent runs.
• Robust industrial-grade housing: UL94 V-0 flame-retardant polymer enclosure rated IP40 for dust resistance; suitable for benchtop use in GLP-compliant labs and light industrial environments.
• Configurable pressure units (mbar, hPa, torr, mmHg) and dual-range setpoint control (0–1013 mbar abs or 0–760 mmHg).
• Comprehensive safety architecture: Overpressure cutoff (>1100 mbar), sensor fault diagnostics, real-time error code display, and non-volatile event logging.

Sample Compatibility & Compliance

The Pilot100 interfaces seamlessly with standard vacuum tubing (ID 8–10 mm) and connects directly to vacuum pumps—including chemically resistant diaphragm pumps (e.g., Chemker 410/610 series) and oil-free scroll systems. Its sealed sensor design and inert wetted path (stainless steel sensor diaphragm, PTFE-sealed valves) ensure compatibility with aqueous, organic, and mildly corrosive vapors. The device complies with EU regulatory frameworks: CE marking per Machinery Directive 2006/42/EC and EMC Directive 2014/30/EU; RoHS 2011/65/EU for hazardous substance restriction; and IP40 ingress protection per IEC 60529. While not intrinsically safe for explosive atmospheres, it meets general-purpose laboratory electrical safety requirements under EN 61010-1.

Software & Data Management

The Pilot100 operates autonomously without PC dependency. All configuration, calibration, and operation occur locally via the embedded GUI. Pressure data is logged internally at user-selectable intervals (1–60 s) and retained in non-volatile memory for up to 72 hours of continuous recording. Export is supported via USB-C port (FAT32-formatted flash drive) in CSV format for traceability and QA review. Though no cloud connectivity or remote API is provided, the unit supports audit-ready operation: all parameter changes, setpoint adjustments, and fault events are timestamped and stored with unique session IDs—aligning with GLP documentation expectations and supporting 21 CFR Part 11 readiness when paired with validated lab information management systems (LIMS).

Applications

• Controlled vacuum distillation and fractional evaporation of heat-sensitive compounds (e.g., natural product extracts, pharmaceutical intermediates).
• Automated rotary evaporation where solvent boiling point shifts dynamically with concentration—leveraging BPD to prevent bumping or foaming.
• Gradual vacuum ramping in lyophilization pre-freeze stages or gel drying protocols.
• Process validation studies requiring documented pressure stability, repeatability, and deviation reporting.
• Integration into custom vacuum manifolds for multi-reactor parallel synthesis or environmental chamber conditioning.

FAQ

What vacuum pumps are compatible with the Pilot100?
The Pilot100 is pump-agnostic and works with any vacuum source delivering ≥0.5 L/min free-air displacement and capable of reaching ≤1 mbar ultimate pressure—commonly used with Chemker 410/610, KNF NP series, or Vacuubrand RC 6. Its solenoid bleed valve regulates inlet air, not pump speed.
Does the Pilot100 require periodic recalibration?
Yes. ROCKER recommends annual calibration against a NIST-traceable reference manometer. The unit supports two-point calibration (atmospheric and vacuum) via service mode, accessible through the GUI with authorized credentials.
Can the Pilot100 be mounted vertically or in confined enclosures?
Yes—its convection-cooled design and IP40 rating permit vertical orientation and installation in ventilated cabinets. Ensure ≥5 cm clearance around vents and avoid placement near heat sources exceeding 40 °C ambient.
Is the boiling point detection function validated for specific solvents?
The BPD algorithm is empirically tuned for common solvents (water, methanol, ethanol, acetone, ethyl acetate, hexane) but does not require solvent selection. It detects volatility shifts from first-principles pressure kinetics—not library matching—making it broadly applicable across unknown or mixed-solvent systems.
How is firmware updated?
Firmware updates are delivered as signed .bin files via ROCKER’s secure support portal. Updates are applied locally using a USB-C connection and require confirmation via the touch interface—no internet connectivity is needed on the device itself.
