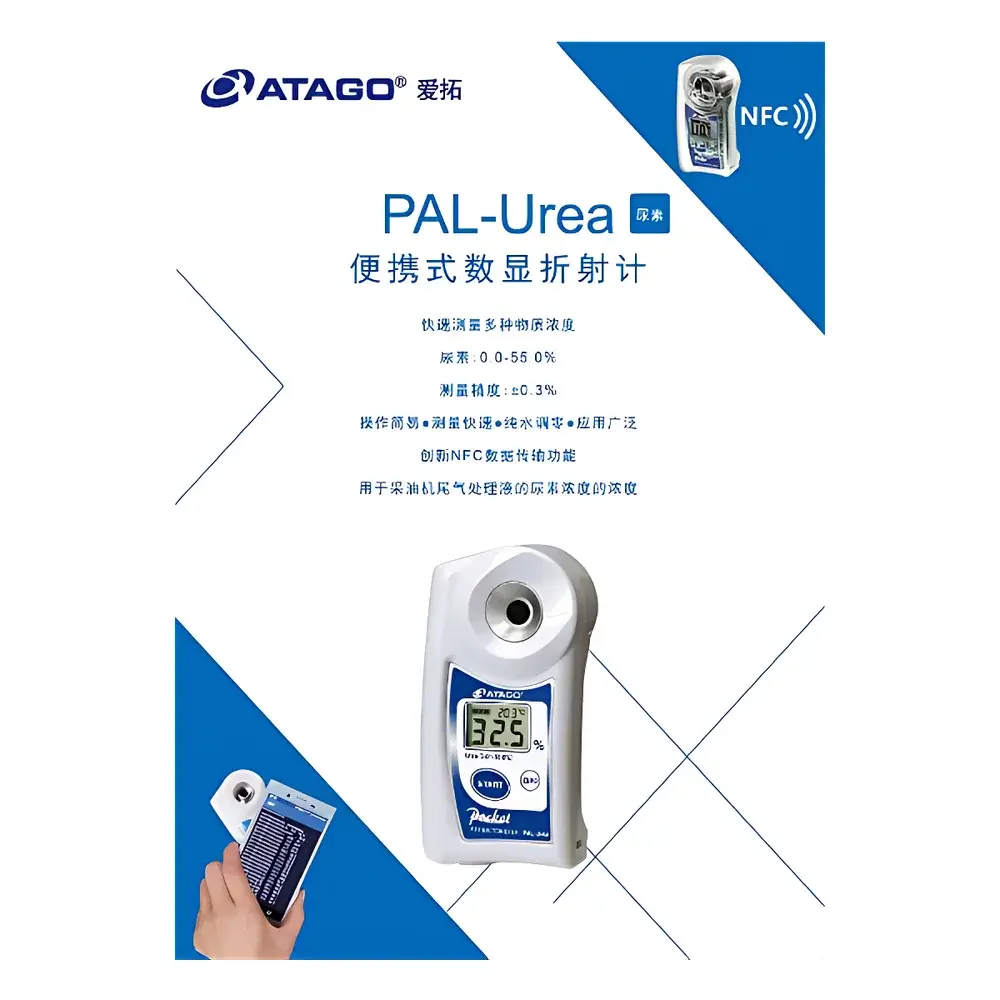

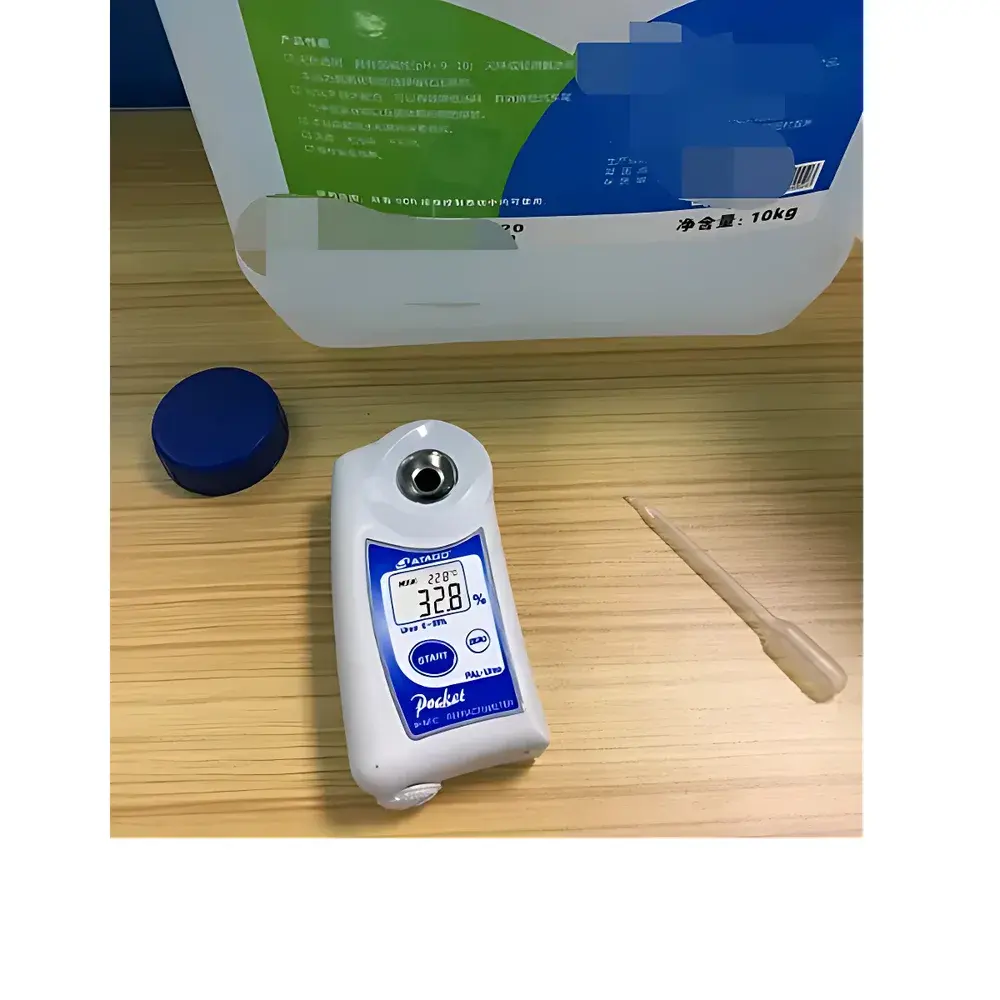

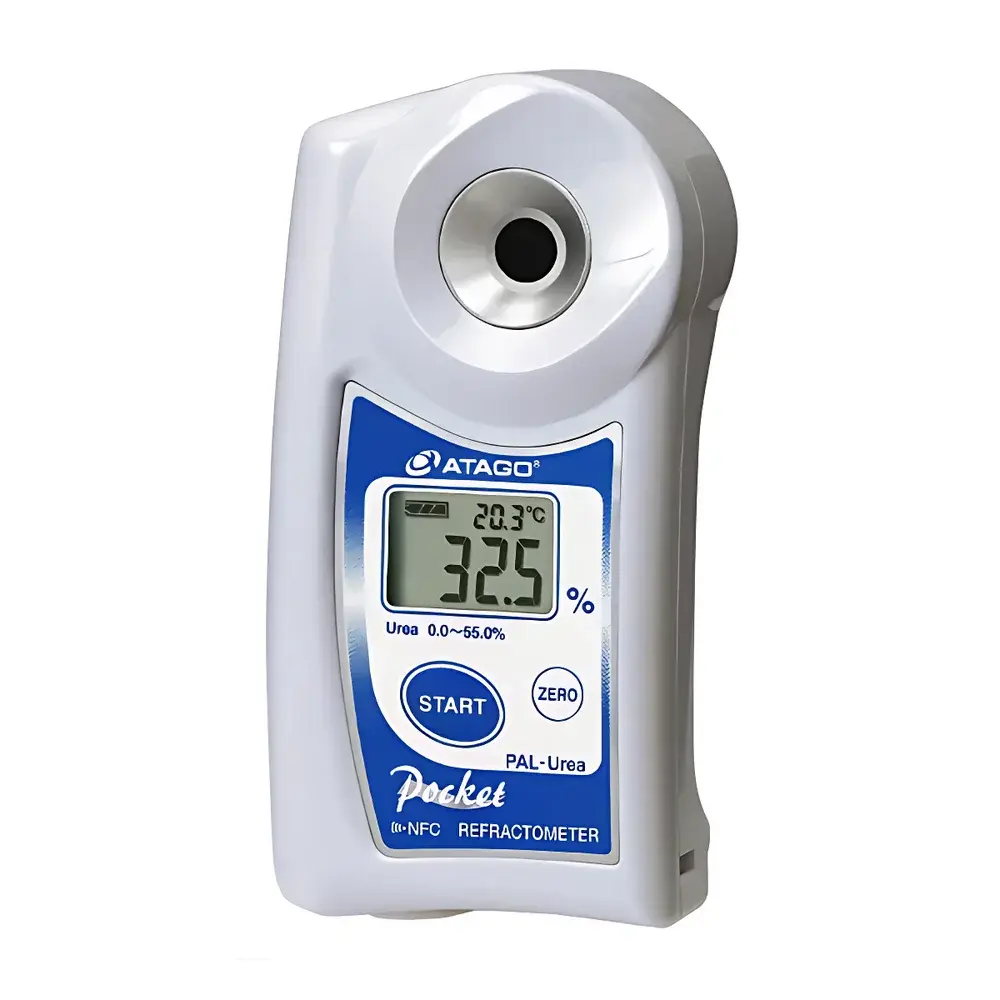

ATAGO PAL-Urea Portable Urea Concentration Refractometer

Overview

The ATAGO PAL-Urea is a precision-engineered handheld refractometer specifically designed for rapid, on-site determination of urea concentration in Diesel Exhaust Fluid (DEF), also known as AdBlue® in Europe and AUS 32 in ISO 22241 standards. It operates on the principle of critical-angle refractometry: light passes through a small sample placed on the prism surface, and the degree of refraction—directly correlated to solute concentration—is measured via an internal optical sensor array. The instrument automatically compensates for temperature variations (built-in Peltier temperature control ensures measurement stability at 20 °C or user-defined reference temperature), eliminating manual correction and enhancing field reproducibility. Unlike generic Brix refractometers, the PAL-Urea employs a factory-calibrated, non-linear urea-specific calibration curve traceable to NIST-traceable reference standards, ensuring compliance with ISO 22241-1 and GB 29518–2013 requirements for DEF quality control. Its primary application lies in verifying that DEF remains within the mandated 32.5 ± 1.5% w/w urea specification—critical for optimal Selective Catalytic Reduction (SCR) system performance and regulatory conformity in Euro VI and China VI emission-compliant vehicles.

Key Features

• Optimized optical path design with high-stability sapphire prism for abrasion resistance and long-term calibration retention
• Integrated Peltier temperature control system maintaining prism surface at 20 °C ± 0.2 °C, eliminating ambient thermal drift
• Dual-mode digital display showing real-time urea concentration (% w/w) and corresponding refractive index (n_D)
• Auto-zero function with built-in distilled water reference check routine prior to each measurement sequence
• IP65-rated enclosure for dust and water resistance—suitable for workshop, depot, and roadside inspection environments
• Battery-powered operation (rechargeable Li-ion, >1,000 measurements per charge) with USB-C charging interface
• No reagents, no consumables, no sample dilution required—measurement completed in <3 seconds

Sample Compatibility & Compliance

The PAL-Urea is validated exclusively for aqueous urea solutions meeting ISO 22241-1 purity specifications (e.g., absence of aldehydes, metals, and organic contaminants). It is not intended for use with contaminated, degraded, or non-aqueous DEF substitutes. Measurements are compliant with ISO 22241-2 Annex C (refractometric method) and aligned with GB 29518–2013 Clause 5.2 for routine field verification. While not a replacement for full laboratory analysis per ISO 22241-3 (e.g., HPLC for impurity profiling), it serves as a GLP-aligned first-line screening tool for QC technicians, fleet maintenance staff, and fuel distribution auditors. Data output supports traceability under ISO/IEC 17025-accredited quality systems when paired with documented calibration logs (calibration certificate included with each unit, valid for 12 months).

Software & Data Management

The PAL-Urea operates as a standalone instrument without proprietary software dependency. All measurement data—including timestamp, ambient temperature, prism temperature, and result—are stored internally (up to 1,000 records) and exportable via USB connection to CSV-compatible spreadsheets. No cloud connectivity or firmware updates are required; calibration parameters are embedded in read-only memory. For enterprise integration, optional ATAGO DataLink™ software (sold separately) enables batch reporting, statistical process control (SPC) charting, and audit trail generation compliant with FDA 21 CFR Part 11 requirements when deployed with electronic signature modules.

Applications

• Pre-delivery verification of DEF batches at distribution terminals and service stations
• Routine in-field checks during vehicle maintenance to prevent SCR system fouling from off-spec DEF
• Supplier qualification audits where DEF concentration deviation correlates with potential contamination or adulteration
• Root-cause analysis of SCR-related fault codes (e.g., P204F, P20EE) linked to low-concentration or hydrolyzed DEF
• Educational use in automotive engineering labs for teaching emission control fundamentals and fluid quality assurance protocols
• Regulatory inspection support for transport authorities enforcing China VI/Euro VI DEF compliance

FAQ

Is the PAL-Urea suitable for measuring urea concentration in undiluted industrial-grade urea solutions?
No. It is calibrated only for DEF-grade aqueous urea (32.5% nominal) per ISO 22241. Industrial or agricultural urea solutions often contain additives, stabilizers, or impurities that invalidate the optical model.
Does temperature compensation eliminate the need for sample equilibration?
Yes—the Peltier-controlled prism actively regulates temperature regardless of ambient conditions, enabling direct measurement of samples between 5 °C and 40 °C without pre-conditioning.
Can the instrument detect urea hydrolysis or formaldehyde contamination?
No. Refractometry measures total dissolved solids; it cannot distinguish chemical degradation products. Hydrolysis or contamination requires complementary testing (e.g., UV-Vis spectroscopy or HPLC).
How frequently must the instrument be recalibrated?
Annual recalibration against certified urea standards is recommended. Field verification using ATAGO’s included 32.5% w/w reference solution should be performed before each shift.
Is the PAL-Urea compatible with ISO 22241-3 laboratory validation protocols?
It is not a primary reference method per ISO 22241-3, but its results demonstrate strong correlation (R² > 0.998) with certified reference materials used in accredited labs, supporting its role in tiered verification workflows.
