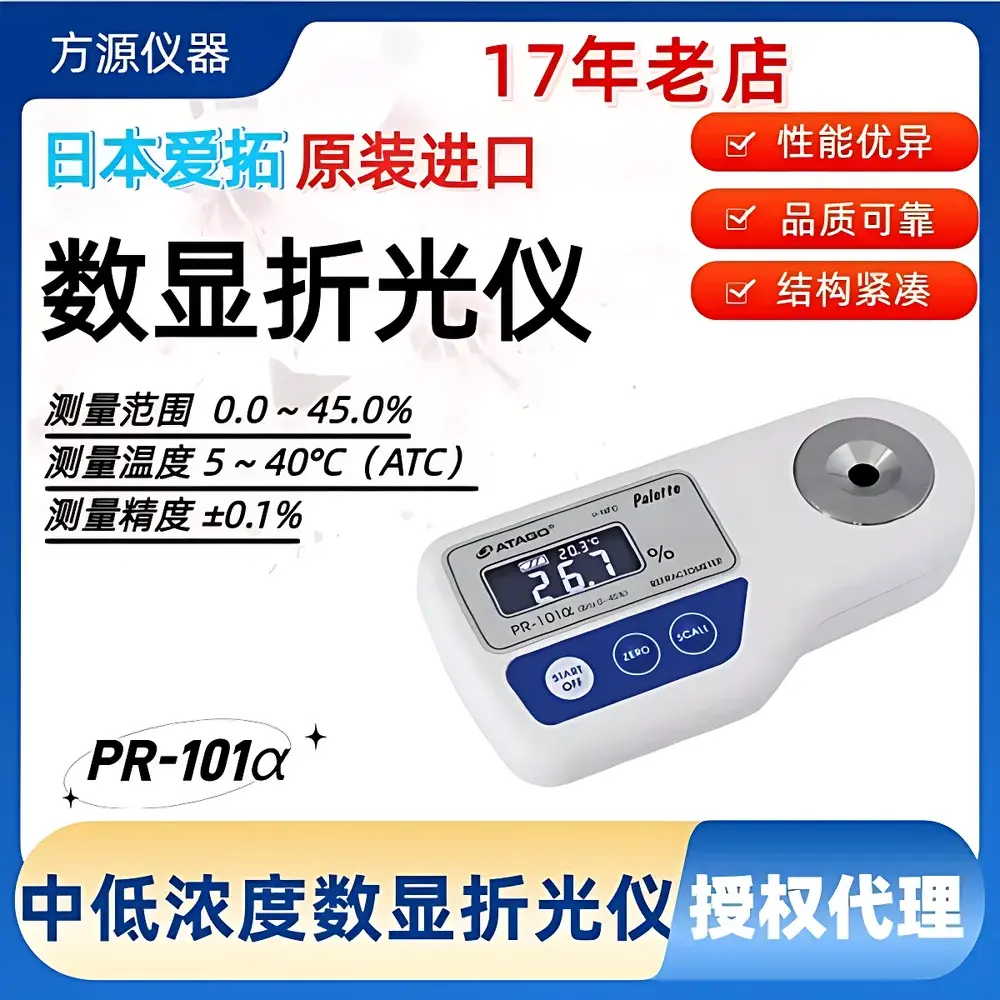

ATAGO PR-101α Digital Benchtop Refractometer for Low-to-Medium Concentration Measurement

Overview

The ATAGO PR-101α is a precision-engineered benchtop digital refractometer designed for reliable, repeatable measurement of low-to-medium concentration aqueous solutions—primarily expressed in % Brix units. It operates on the fundamental optical principle of total internal reflection: as light passes through a sample placed on the sapphire prism surface, its critical angle shifts proportionally to the solution’s refractive index, which correlates directly with solute concentration. This relationship is calibrated per internationally accepted standards (ISO 2173, AOAC 932.12, ASTM D1078) for sucrose-water systems, ensuring traceability and comparability across laboratories and production facilities. Unlike handheld analog units, the PR-101α integrates a high-resolution digital display, temperature-compensated optics, and a robust aluminum housing optimized for stable bench operation in QC labs, food & beverage R&D, and pharmaceutical excipient testing environments. Its compact footprint (145 × 105 × 125 mm) and low power consumption (DC 6 V, AC adapter included) support integration into regulated workflows without requiring dedicated HVAC or vibration isolation.

Key Features

• Digital LCD display with automatic zero-point calibration function for rapid startup and long-term baseline stability
• Automatic Temperature Compensation (ATC) across 5–40°C, eliminating manual correction tables and reducing operator dependency
• Sapphire prism surface offering exceptional scratch resistance, chemical inertness, and consistent optical performance over >100,000 measurements
• High-precision photodiode array detector coupled with microprocessor-controlled signal processing for ±0.1% Brix accuracy (at 20°C, standard sucrose solution)
• Benchtop form factor with non-slip rubber feet and integrated sample stage for secure placement of droplet or small-volume samples (minimum 0.3 mL)
• No external PC or software required for basic operation—fully self-contained measurement system compliant with GLP documentation requirements

Sample Compatibility & Compliance

The PR-101α is validated for transparent, homogeneous liquid samples with low turbidity and viscosity ≤500 cP—including fruit juices, soft drinks, syrups, dairy whey, saline solutions, glycol-based antifreezes, and pharmaceutical sugar excipients (e.g., dextrose, sucrose, maltose). It is not intended for opaque suspensions, emulsions, or highly viscous gels without prior dilution or filtration. All factory calibrations are performed using NIST-traceable sucrose reference standards. The instrument meets essential requirements for use in GMP-regulated environments: it supports audit-ready manual recordkeeping, includes a built-in calibration verification mode (using supplied 0% and 26.7% Brix reference fluids), and conforms to ISO/IEC 17025 metrological traceability frameworks when operated under documented SOPs.

Software & Data Management

While the PR-101α operates autonomously, optional RS-232 interface (via ATAGO’s dedicated communication cable) enables direct data export to LIMS or Excel via ATAGO’s free “Refractometer Data Logger” software (Windows-compatible). This software captures timestamped readings, operator ID fields, and environmental temperature logs—supporting 21 CFR Part 11 compliance when paired with user-defined electronic signatures and audit trail activation. Raw output includes Brix value, sample temperature, and instrument serial number—enabling full data lineage for internal audits or regulatory inspections. No cloud connectivity or proprietary firmware updates are required; all calibration and diagnostic functions remain accessible via front-panel controls.

Applications

• Quality control of incoming raw materials (e.g., corn syrup, invert sugar, honey) in confectionery and beverage manufacturing
• In-process monitoring of evaporation, blending, and fermentation stages where real-time Brix tracking informs endpoint decisions
• Stability testing of oral liquid formulations (syrups, elixirs) per USP dissolution and concentration consistency protocols
• Validation of cleaning-in-place (CIP) rinse water concentration to verify removal of residual sugars or surfactants
• Educational use in university chemistry and food science labs for teaching refractive index principles and solution thermodynamics

FAQ

Does the PR-101α require annual recalibration by an accredited lab?

No—routine user verification with supplied reference fluids is sufficient per ISO 2173 Annex B. Full recalibration is recommended only after physical impact, prism contamination, or drift exceeding ±0.2% Brix during verification.
Can it measure non-sucrose solutions like sodium chloride or ethylene glycol?

Yes, but Brix readings must be converted using application-specific conversion tables or third-party correlation models; the instrument’s default scale assumes sucrose equivalence.
Is the ATC function based on built-in thermistor or external probe?

It uses a high-stability thermistor embedded directly beneath the prism, ensuring millisecond thermal response and minimal lag between sample contact and compensation calculation.
What is the minimum sample volume required for accurate measurement?

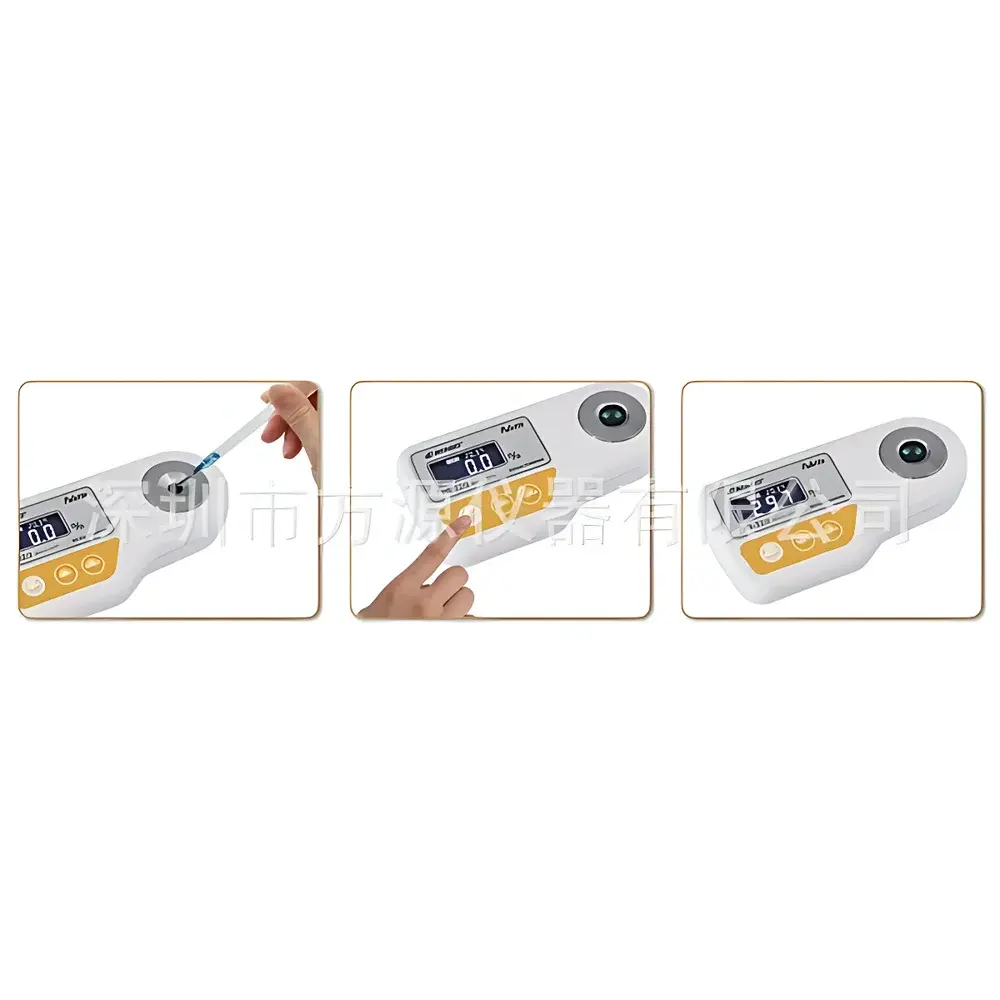

0.3 mL is sufficient when applied evenly across the prism surface; excess fluid is automatically wicked away by the capillary groove design.
Does ATAGO provide IQ/OQ documentation for GMP installation?

Yes—upon request, ATAGO supplies standardized Installation Qualification (IQ) and Operational Qualification (OQ) templates aligned with Annex 15 and FDA guidance, including test protocols and acceptance criteria.
