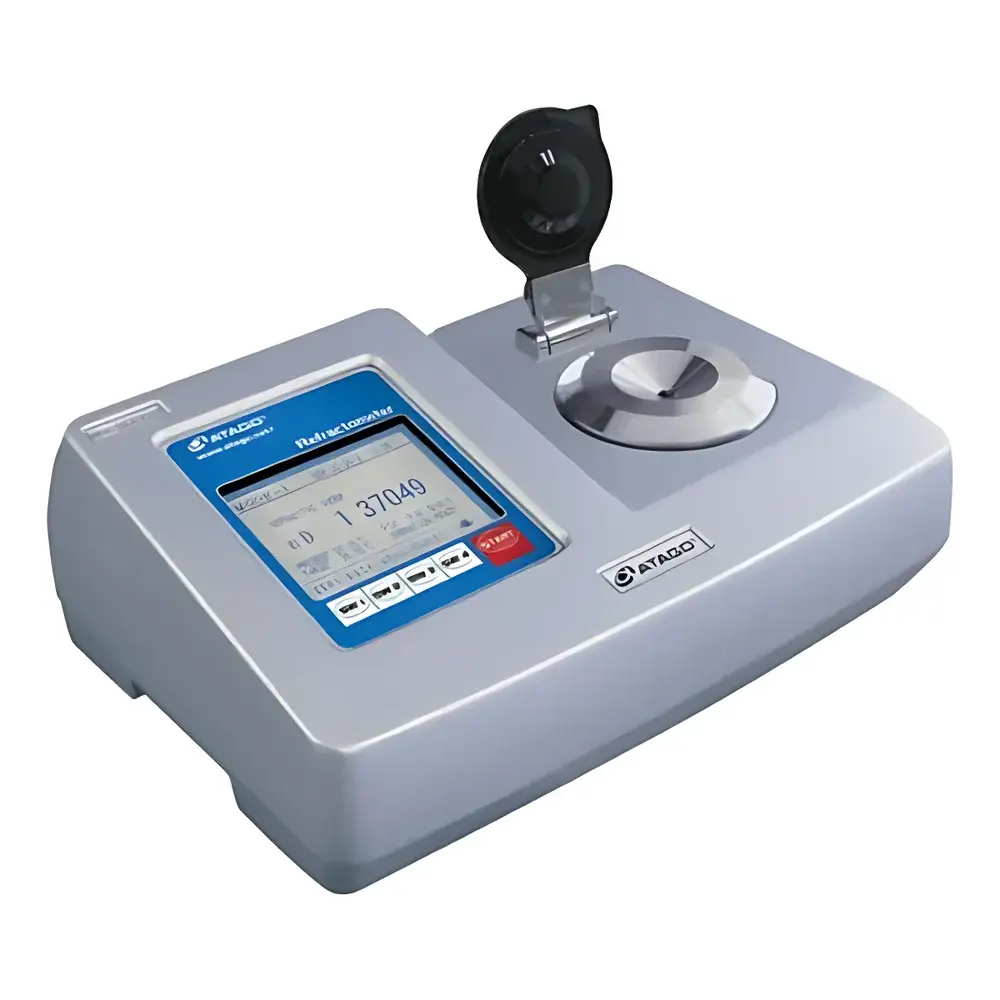

ATAGO RX-5000α Desktop Automatic Refractometer for Beverage Industry

Overview

The ATAGO RX-5000α Desktop Automatic Refractometer is a high-precision, temperature-controlled optical instrument engineered specifically for quantitative concentration analysis in beverage manufacturing and quality assurance laboratories. It operates on the principle of critical angle refractometry: incident light undergoes total internal reflection at the prism–sample interface, with the resulting critical angle directly correlated to the sample’s refractive index (nD). This index is then converted—via built-in calibration algorithms—to standardized concentration units including Brix (% w/w sucrose equivalent), making it indispensable for juice, soft drink, syrup, and fermented beverage production where rapid, repeatable, and traceable sugar content verification is mandated by internal SOPs and external regulatory frameworks such as ISO 21527, AOAC 932.12, and USP . Unlike manual or ambient-temperature refractometers, the RX-5000α integrates a solid-state Peltier thermoelectric module that actively regulates sample temperature within ±0.05°C across a programmable range of 5.00–60.00°C—eliminating dependence on external water baths and ensuring compliance with temperature-dependent measurement standards (e.g., ASTM D1218 for hydrocarbon refractive index).

Key Features

• Peltier-driven temperature control system enables precise, stable thermal conditioning of samples without auxiliary cooling/heating equipment
• High-resolution digital display with 0.00001 refractive index and 0.01% Brix resolution supports GMP-grade documentation requirements
• Synthetic sapphire prism and SUS 316 stainless steel sample cell ensure long-term corrosion resistance against acidic, sugary, and carbonated beverages
• Automatic temperature compensation (ATC) algorithm applies real-time correction to Brix readings based on measured sample temperature
• 60 user-definable scale configurations allow direct output in industry-specific units (e.g., % fructose, % glucose, °Bé, Plato, or custom concentration curves)
• RS-232C serial interface supports integration with LIMS, electronic lab notebooks (ELN), and automated QA reporting systems

Sample Compatibility & Compliance

The RX-5000α accommodates a broad spectrum of liquid samples common in beverage R&D and QC workflows—including clarified fruit juices, carbonated soft drinks, flavored syrups, dairy-based beverages, plant-based milks, and post-fermentation wort or wine must—provided they are optically homogeneous and free of suspended particulates exceeding ~5 µm. Its measurement range (nD: 1.32700–1.58000; Brix: 0.00–100.00%) covers low-sugar functional beverages through high-Brix concentrates and molasses derivatives. The instrument meets essential metrological criteria for regulated environments: temperature stability conforms to ISO 17025 calibration traceability requirements; refractive index accuracy aligns with NIST-traceable reference standards; and its hardware architecture supports audit-ready data integrity when deployed under FDA 21 CFR Part 11-compliant software environments.

Software & Data Management

While the RX-5000α operates as a standalone instrument with embedded firmware, its RS-232C port enables bidirectional communication with third-party data acquisition platforms. Raw measurements—including timestamped nD, Brix, temperature, and user ID—are exportable in ASCII format for downstream statistical process control (SPC) analysis using Minitab, JMP, or custom Python/Pandas pipelines. When integrated into validated laboratory networks, the device supports GLP/GMP-aligned workflows via configurable print-out templates (including instrument ID, operator code, sample ID, and calibration status) and optional barcode scanning peripherals. No proprietary software installation is required for basic operation; however, ATAGO’s optional “Refractometer Manager” suite (v4.2+) provides enhanced features such as multi-instrument fleet monitoring, calibration certificate generation, and deviation alerting.

Applications

• Batch release testing of finished beverages against Brix specifications per formulation documents
• In-process monitoring of evaporation, blending, and dilution steps in concentrate production lines
• Raw material verification of incoming fruit purees, sweeteners, and flavor bases
• Stability studies tracking sugar inversion or Maillard reaction progression during shelf-life testing
• Supporting HACCP critical control point (CCP) verification for sugar-based preservative efficacy
• Method transfer between QC labs and contract manufacturing organizations (CMOs) requiring identical measurement traceability

FAQ

Does the RX-5000α require external water circulation for temperature control?
No. It incorporates an integrated Peltier thermoelectric module capable of both heating and cooling the sample stage independently.
Can the instrument measure non-sucrose solutions like high-fructose corn syrup (HFCS) or artificial sweetener blends?
Yes—via user-defined scales calibrated against certified reference materials for specific solute chemistries.
Is the sapphire prism susceptible to scratching from abrasive particles in unfiltered juice samples?
Synthetic sapphire (Mohs hardness 9) resists scratching from typical beverage particulates; however, pre-filtration through 5-µm membrane filters is recommended for turbid samples.
How frequently must the instrument be recalibrated?
Daily verification with certified sucrose standard solutions (e.g., 10.00%, 40.00%, 70.00% w/w) is recommended; full calibration per ISO 8655-5 guidelines every 6 months or after mechanical impact.
Does the RX-5000α support networked data logging or Ethernet connectivity?
No native Ethernet or Wi-Fi; RS-232C remains the sole physical interface—but USB-to-serial adapters enable compatibility with modern PCs.
