Atmospheric Pollution Grid-Based Monitoring and Decision Support System

Overview

The Atmospheric Pollution Grid-Based Monitoring and Decision Support System is an integrated environmental intelligence platform engineered for high-resolution, real-time air quality surveillance across urban and regional scales. Unlike conventional sparse-monitoring networks relying on a limited number of reference-grade stations, this system implements a dense, spatially explicit grid architecture—typically deploying low-cost, calibrated micro-sensors at sub-kilometer intervals—to capture fine-scale heterogeneity in pollutant concentrations (e.g., PM₂.₅, PM₁₀, NO₂, SO₂, O₃, CO) and meteorological parameters (wind speed/direction, temperature, humidity, atmospheric pressure). Built upon principles of spatial interpolation, source apportionment modeling, and atmospheric dispersion simulation, the system transforms raw sensor data into actionable environmental intelligence. Its core function is to support evidence-based regulatory response—not merely reporting ambient concentrations, but enabling root-cause analysis, emission hotspot identification, and dynamic scenario evaluation under varying meteorological conditions. Designed for municipal ecological environment bureaus, regional air quality management centers, and industrial park environmental offices, it serves as a foundational infrastructure for transitioning from reactive compliance monitoring to proactive, data-driven air quality governance.

Key Features

• Dense grid deployment architecture with configurable node spacing (typically 500 m–2 km), enabling detection of localized pollution gradients undetectable by traditional monitoring networks.
• Multi-tiered sensor integration: interoperability with national-standard reference stations (e.g., EPA-equivalent PM/NO₂ analyzers), certified micro-sensors (ISO 12103-1 compliant particulate measurement modules), and mobile platforms (vehicle-mounted real-time monitoring units).

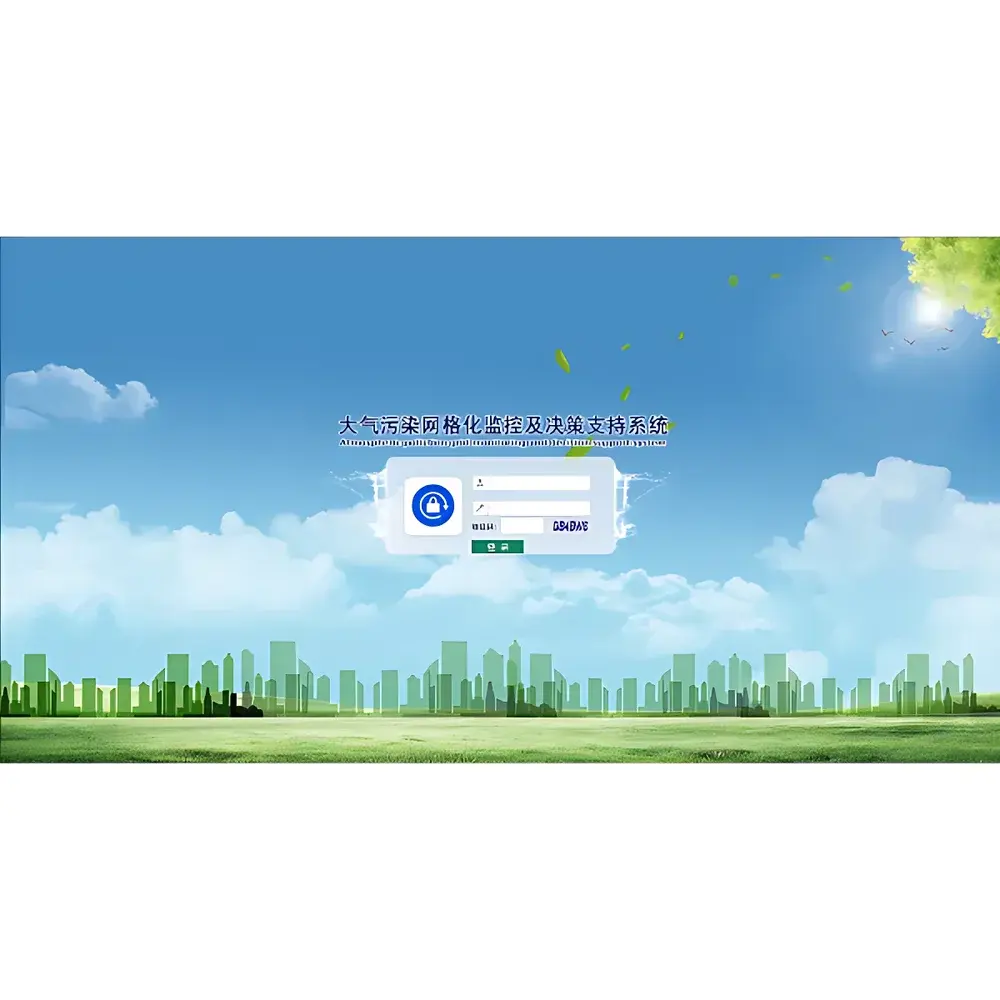

• Real-time GIS-enabled visualization dashboard with dynamic layering of pollutant concentration heatmaps, wind trajectory overlays, and historical trend analytics.
• Automated anomaly detection and tiered alerting system—configurable by pollutant type, concentration threshold, duration, and spatial persistence—integrated with SMS/email notification and API-based dispatch triggers.
• Cloud-native architecture supporting scalable data ingestion (>10,000 nodes), time-series compression, and edge-level data validation to ensure measurement integrity and reduce false positives.
• Modular operational management suite including remote diagnostics, calibration scheduling, power status monitoring, and field technician task assignment via mobile interface.

Sample Compatibility & Compliance

The system does not perform laboratory sample analysis; rather, it acquires and processes continuous ambient air measurements in situ. Sensor modules comply with Chinese Environmental Protection Standards (HJ 653–2013, HJ 93–2013) for PM monitoring and HJ 692–2014 for gaseous pollutants. Data acquisition protocols adhere to the Technical Specification for Air Quality Monitoring Networks (HJ 193–2013), ensuring traceability and metrological consistency. All software components meet national cybersecurity requirements (GB/T 22239–2019, Level 2). While not certified to ISO/IEC 17025 (as it is not a testing laboratory), the system supports GLP-aligned audit trails, user role-based access control, and immutable data logging—facilitating alignment with internal QA/QC procedures and regulatory review frameworks.

Software & Data Management

The platform operates on a secure, containerized cloud infrastructure with redundant storage and daily encrypted backups. Data ingestion follows a publish-subscribe model compliant with MQTT 3.1.1 and HTTP RESTful APIs. The analytical engine incorporates open-source libraries (e.g., Python’s PySAL for spatial autocorrelation, GDAL for geospatial raster processing) and proprietary algorithms for plume dispersion modeling (based on Gaussian puff assumptions) and receptor modeling (PMF and CMB variants). All reports—including daily air quality bulletins, source contribution assessments, and inter-annual trend summaries—are exportable in PDF, CSV, and GeoJSON formats. Full audit logs record user actions, configuration changes, and data processing events—supporting compliance with China’s Data Security Law and facilitating third-party verification during environmental inspections.

Applications

• Municipal air quality management: Identifying intra-urban pollution hotspots (e.g., traffic corridors, construction zones, industrial perimeters) to prioritize enforcement and mitigation investments.
• Regional joint prevention and control: Enabling cross-jurisdictional data sharing and coordinated response protocols during regional haze episodes.
• Industrial park environmental supervision: Continuous emissions correlation analysis between stack monitors and downwind grid nodes to verify compliance and detect fugitive releases.
• Tourism and public health communication: Public-facing air quality portals with real-time AQI display, historical comparisons, and multilingual accessibility—enhancing transparency and community engagement.
• Policy impact assessment: Quantifying pre- and post-intervention changes in baseline pollution levels following traffic restriction policies, coal-to-gas conversions, or green infrastructure projects.

FAQ

Is this system certified to international standards such as ISO 9001 or ISO 14001?

No—the system itself is not a certified product under ISO management standards; however, its deployment methodology and data handling workflows are designed to support organizations seeking ISO 14001 environmental management system certification.
Can the platform integrate with existing national or provincial environmental monitoring networks?

Yes—it supports standard data exchange protocols including XML-based HJ 212–2017 and MQTT-based telemetry, enabling bidirectional integration with provincial environmental information platforms and the national air quality monitoring network.
What level of technical support and maintenance is provided?

LiheRO offers SLA-backed remote monitoring, quarterly remote diagnostics, annual on-site calibration verification, and 24/7 incident response for critical system failures—subject to service contract terms.
Does the system support predictive modeling or forecasting capabilities?

It includes short-term (0–48 h) nowcasting using machine learning models trained on historical sensor data and local NWP outputs; long-term forecasting requires integration with external meteorological services.
How is data security and privacy ensured?

All communications use TLS 1.2+ encryption; stored data is AES-256 encrypted at rest; access controls follow RBAC principles; and no personal or PII data is collected or processed—only anonymized geotagged environmental measurements.
