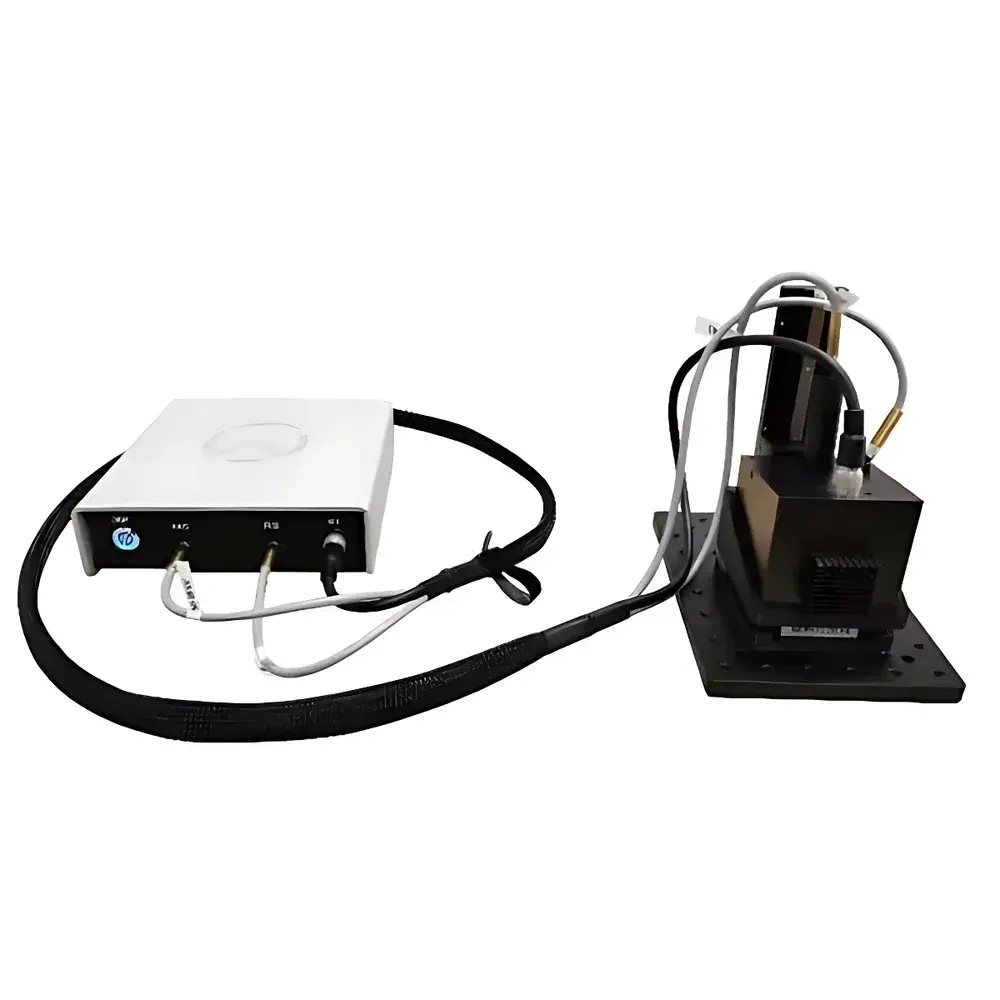

Auniontech SpectraEye Point Non-Contact Spectrophotometer

Overview

The Auniontech SpectraEye Point Non-Contact Spectrophotometer is an industrial-grade, compact spectrophotometric measurement system engineered for high-throughput, non-destructive color and spectral reflectance analysis in both laboratory and automated production environments. Operating on the principle of diffuse/8° (d/8°) geometry—compliant with ISO 7724-1, CIE No. 15, and ASTM E308—the instrument captures full spectral reflectance data across a broad 400–1000 nm range using a stabilized LED illumination source and a high-resolution linear CCD array detector. Its optical architecture incorporates dual-beam feedback compensation to minimize drift from thermal variation or source aging, ensuring long-term repeatability (<0.1 ΔE*ab inter-instrument agreement under controlled conditions). Unlike traditional contact-based benchtop spectrophotometers, the SpectraEye Point employs a fully isolated probe-head design that eliminates mechanical pressure, surface abrasion, or contamination risk—critical for delicate, hot, moving, or hygroscopic samples encountered in coating, printing, plastics, and pharmaceutical manufacturing.

Key Features

• Non-contact operation: Enables safe, repeatable measurement of fragile, textured, curved, or thermally sensitive surfaces without physical interaction.
• High-speed acquisition: Single-spectrum capture in ≤500 ms, supporting up to 172,800 measurements per 24-hour cycle—optimized for inline process monitoring and 100% inspection.

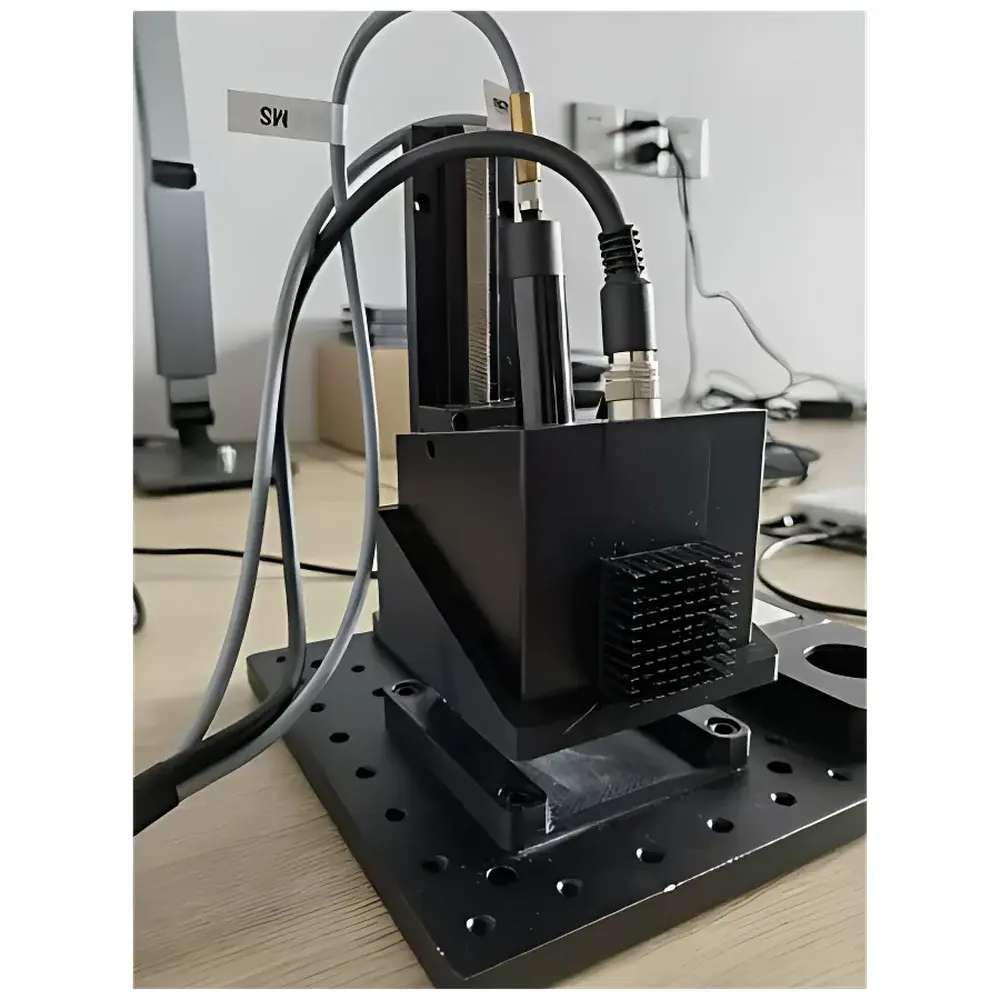

• Compact modular architecture: Separated probe head and main electronics unit allow flexible integration into robotic arms, conveyor-mounted fixtures, or custom enclosures with minimal footprint.
• Dust-resistant sealed probe: IP65-rated optical housing ensures operational reliability in harsh industrial settings—including high-dust, high-humidity, or temperature-fluctuating production lines.
• Φ2 mm small-area measurement: Precise targeting of micro-regions, printed dots, thin film patches, or heterogeneous material domains without spatial averaging artifacts.
• NIST- and NIM-traceable calibration: Factory-certified reference standards and built-in validation routines support compliance with ISO/IEC 17025 and internal quality audit protocols.
• LED light source with >10 million measurement lifetime: Eliminates lamp replacement downtime and maintains spectral stability over extended deployment periods.

Sample Compatibility & Compliance

The SpectraEye Point accommodates diverse sample types—including opaque solids, translucent films, powders, liquids (in cuvettes), and textured substrates—without requiring sample preparation or contact pressure. Its d/8° geometry with integrated specular component exclusion (SCE) mode aligns with ISO 13655 for accurate color evaluation of glossy or matte finishes. The system supports measurement of both absolute reflectance and relative color difference (ΔL*, Δa*, Δb*, ΔE*ab, ΔE*00) against user-defined standards. All firmware and software modules are architected to facilitate regulatory compliance: raw spectral data logging includes timestamp, operator ID, instrument serial number, and environmental metadata; audit trails meet FDA 21 CFR Part 11 readiness criteria when deployed with validated authentication and electronic signature workflows.

Software & Data Management

The SpectraEye Point ships with Auniontech’s proprietary SpectraControl Suite—a Windows-based application offering real-time spectral visualization, multi-parameter color space conversion (CIELAB, CIEXYZ, CIELCH, Yxy), and statistical process control (SPC) charting. The software provides native export formats including CSV, XML, and industry-standard CGATS.2. For system integrators, a comprehensive, documented C/C++ and .NET API enables bidirectional communication via TCP/IP or USB CDC protocols—supporting trigger synchronization, batch parameter upload, asynchronous result polling, and error-code-driven diagnostics. All software binaries undergo static code analysis and are compiled with deterministic build toolchains to ensure reproducibility across installations.

Applications

• Automotive paint and plastic trim color consistency verification during final assembly.
• Real-time spectral monitoring of inkjet and gravure printing processes for hue deviation detection.
• Pharmaceutical tablet coating uniformity assessment via reflectance mapping across tablet batches.
• Quality gate inspection of solar cell anti-reflective coatings and semiconductor wafer passivation layers.
• R&D spectral characterization of novel pigments, nanocomposites, and bio-based dyes in academic and industrial labs.
• Recycling stream sorting via spectral fingerprint classification of polymer types (e.g., PET vs. PP).

FAQ

Is the SpectraEye Point compatible with existing PLC or MES systems?
Yes—its open TCP/IP API and hardware trigger I/O (TTL-level) support direct integration with Siemens S7, Rockwell ControlLogix, and OPC UA-compliant manufacturing execution systems.
Does it require annual recalibration?
No scheduled recalibration is mandated; however, daily verification using supplied ceramic tile standards is recommended per ISO 9001 and internal SOPs. Full traceable recalibration services are available through Auniontech’s Shanghai service center.
Can it measure transparent or semi-transparent materials?
Yes—when used with optional transmission accessories (e.g., integrating sphere adapter or back-illuminated sample holder), it supports transmittance and haze measurement per ASTM D1003.
What spectral resolution does the system achieve?
The system delivers effective optical resolution of ≤3 nm FWHM across the 400–1000 nm range, optimized for colorimetric accuracy rather than ultra-high-resolution spectroscopy.
Is remote firmware update supported?
Yes—secure OTA updates are enabled via authenticated HTTPS endpoints, with rollback capability and SHA-256 checksum verification.
