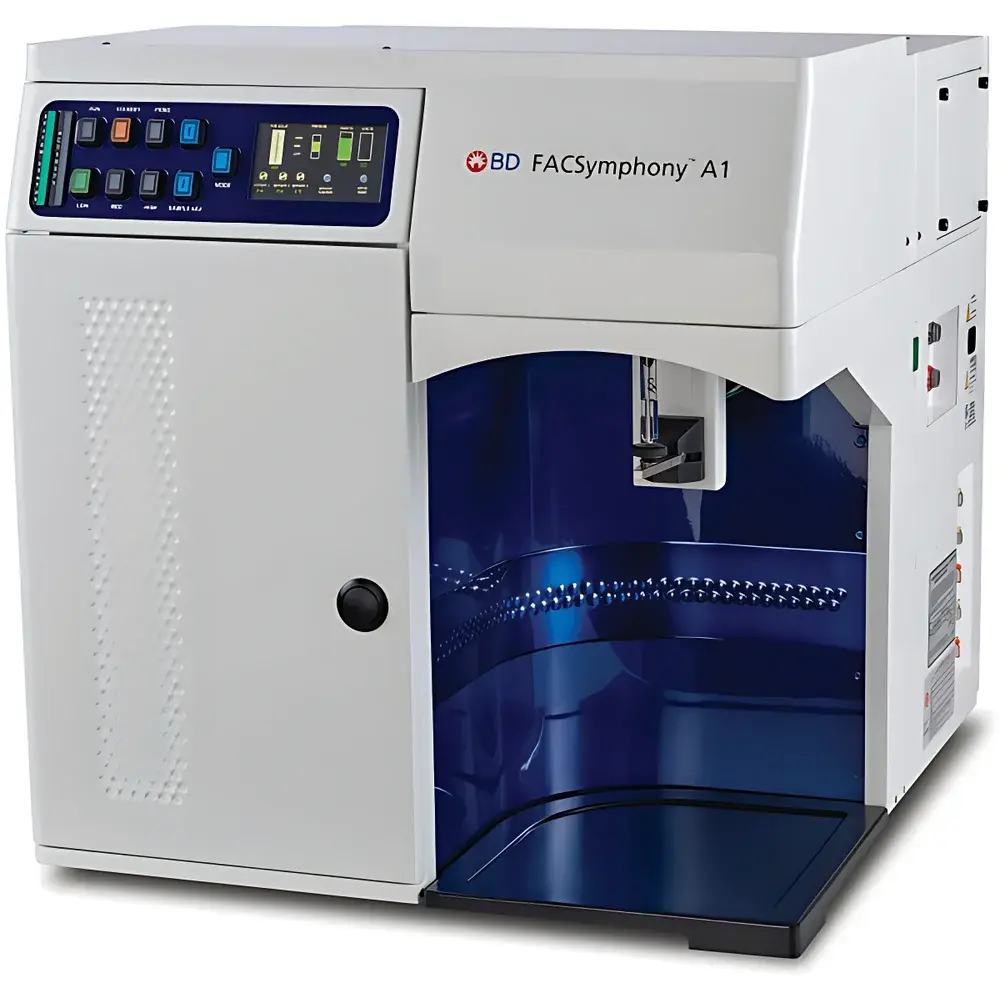

BD FACSymphony™ A1 Flow Cytometer

Overview

The BD FACSymphony™ A1 Flow Cytometer is a compact, high-performance benchtop flow cytometer engineered for precision multicolor immunophenotyping and small-particle analysis in core facilities, academic laboratories, and translational research settings. Built on the validated BD FACSymphony™ platform architecture, it employs hydrodynamic focusing combined with multi-laser excitation (typically including violet, blue, yellow-green, red, and near-infrared lasers) and spectrally resolved detection using high-quantum-efficiency photomultiplier tubes (PMTs) and advanced optical filtering. Its modular design supports up to 19 parameters—enabling robust 16-color panel configurations—while maintaining exceptional signal-to-noise ratio through low-noise electronics, thermally stabilized optics, and optimized laser beam geometry. The system is purpose-built for reproducible detection of rare cell subsets (e.g., antigen-specific T cells, regulatory NK populations, or circulating tumor cells) as well as submicron biological particles such as extracellular vesicles, viral particles, and exosomes when equipped with the optional BD Small Particle Side Scatter (SP SSC) detector.

Key Features

• Compact footprint designed for standard laboratory benchtop deployment without requiring dedicated infrastructure or external cooling.
• Integrated multi-laser optical path with precise spatial alignment and power stabilization for consistent excitation across all fluorochromes.
• Up to 19-parameter acquisition capability via configurable PMT voltage and spectral unmixing support in BD FACSDiva™ software.
• Optional BD SP SSC detector enables side scatter resolution down to 90 nm—validated using NIST-traceable silica and polystyrene nanobead standards.
• Pre-aligned, factory-optimized fluidics system with pressure-controlled sample introduction and sheath flow stability for long-term run reproducibility.
• Compliance-ready architecture supporting audit trails, electronic signatures, and user-access controls aligned with FDA 21 CFR Part 11 requirements when used with validated software configurations.

Sample Compatibility & Compliance

The BD FACSymphony™ A1 accepts standard 5-mL polystyrene or polypropylene tubes, 96-well plates (via optional plate loader), and custom sample containers compatible with BD’s universal sample introduction interface. It supports both fixed and live-cell suspensions—including fragile primary human PBMCs, dissociated tissue digests, and microorganism preparations—with minimal shear stress due to laminar flow optimization. All optical and fluidic components meet ISO 13485-certified manufacturing standards. The instrument complies with IEC 61010-1 (Safety Requirements for Electrical Equipment for Measurement, Control, and Laboratory Use) and IEC 60825-1 (Laser Safety). When operated with BD FACSDiva™ v10.0+ under documented SOPs, it supports GLP/GMP-aligned workflows including instrument qualification (IQ/OQ/PQ), calibration verification using BD CS&T and Rainbow calibration beads, and routine QC tracking per CLSI EP25-A guidelines.

Software & Data Management

Data acquisition, compensation, transformation, and visualization are fully supported by BD FACSDiva™ software—a CE-IVD and FDA-cleared platform offering real-time gating, template-based experiment setup, and automated QC reporting. Raw FCS 3.1/4.1 files are natively generated and interoperable with industry-standard analysis environments including FlowJo™ (v10.12+, cited >2,800 times annually in peer-reviewed immunology literature), Cytobank, and R/Bioconductor packages (e.g., flowCore, CytoNorm). BD FACSDiva™ includes built-in support for spectral unmixing, batch processing, and export of gated population statistics in CSV/Excel format. Audit trail functionality logs all user actions—including gate adjustments, voltage changes, and file exports—with timestamps and operator IDs. Data integrity is reinforced through encrypted local storage, role-based access control, and optional integration with enterprise LIMS systems via BD’s OpenAPI framework.

Applications

The BD FACSymphony™ A1 serves as a primary analytical tool in immunology, oncology, virology, and regenerative medicine research. Typical use cases include: high-dimensional immune monitoring of peripheral blood and tissue-infiltrating lymphocytes; characterization of dendritic cell maturation states using co-stimulatory marker panels; phenotypic mapping of CD56⁺/CD3⁻ NK subsets and CD56⁺/CD3⁺ NKT/γδT populations; detection of activation markers (e.g., CD38/HLA-DR) on cytotoxic T cells; quantification of phospho-protein signaling dynamics following cytokine stimulation; and high-sensitivity enumeration of extracellular vesicles in plasma or conditioned media. Its ability to resolve 90-nm particles enables rigorous EV subpopulation profiling—critical for biomarker discovery in neurodegenerative disease and liquid biopsy development.

FAQ

What is the minimum detectable particle size with the BD SP SSC option?
The BD Small Particle Side Scatter detector resolves biological and synthetic particles down to 90 nm under standardized acquisition conditions using calibrated nanobead references.
Is BD FACSDiva™ software included with the instrument purchase?
Yes—BD FACSDiva™ software is supplied with perpetual license and includes initial training, software updates for two years, and access to BD’s online knowledge base and technical bulletins.
Can the BD FACSymphony™ A1 be integrated with BD FACSAria™ III for sorting?
While the A1 itself does not perform cell sorting, its data acquisition and gating strategies are fully compatible with BD FACSAria™ III sorters via shared compensation matrices, template files, and FCS file exchange—enabling seamless transition from analysis to isolation.
Does the system support spectral flow cytometry?
No—the BD FACSymphony™ A1 is a conventional filter-based flow cytometer with digital signal processing and optional spectral unmixing in BD FACSDiva™; it is not a full spectral cytometer like the BD FACSymphony™ S6.
What regulatory documentation is provided for GxP environments?
BD supplies IQ/OQ protocols, calibration certificates, traceable bead lot documentation, and software validation packages compliant with FDA 21 CFR Part 11 and EU Annex 11 upon request.
