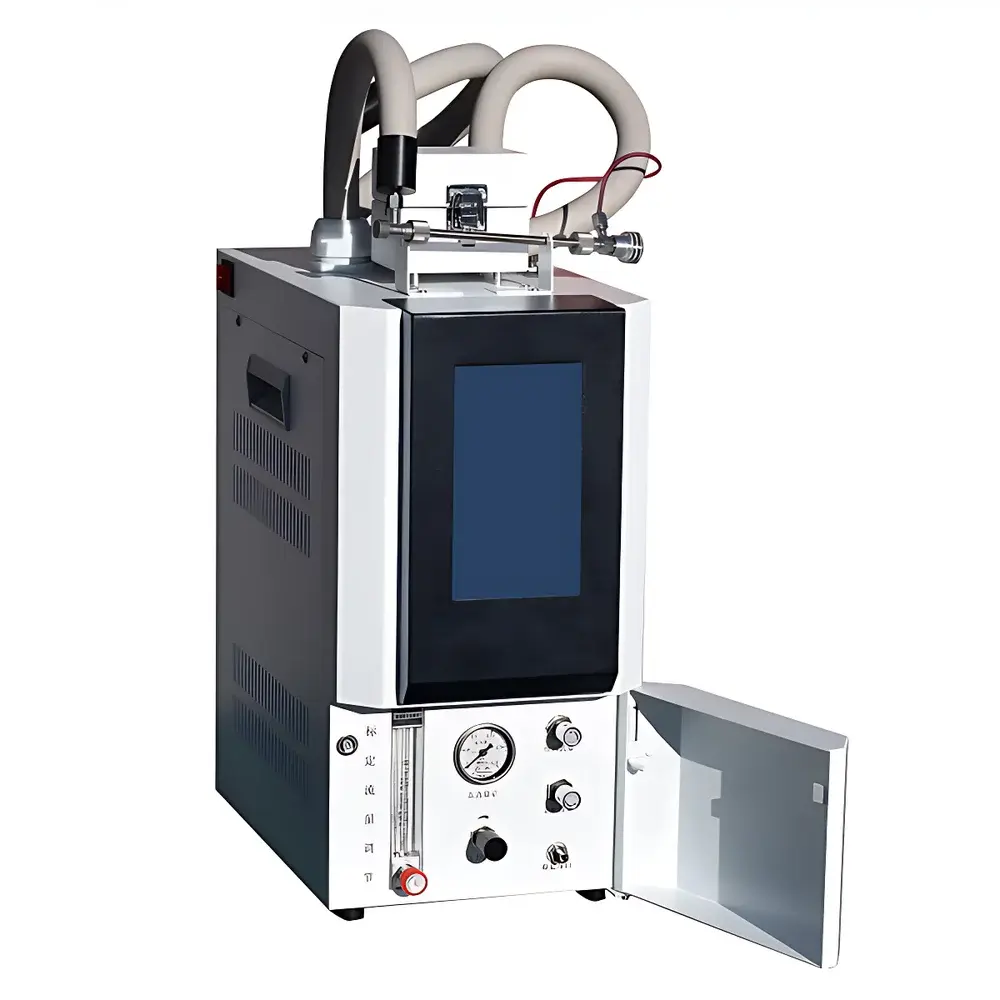

Beifen Sanpu ADTS-3430 Dual-Stage Thermal Desorber for Compliance with GB 50325-2020 Indoor Air Quality Testing

Overview

The Beifen Sanpu ADTS-3430 is a laboratory-grade dual-stage thermal desorber engineered for high-fidelity volatile organic compound (VOC) preconcentration and quantitative transfer to gas chromatography (GC) systems. Designed specifically to support analytical workflows compliant with GB 50325-2020 — the People’s Republic of China’s mandatory standard for indoor air quality control in civil construction projects — the ADTS-3430 implements sequential thermal desorption with cryogenic focusing to maximize sensitivity, reproducibility, and method robustness for trace-level VOC analysis. Its operational principle relies on two thermally isolated stages: first, controlled thermal desorption of analytes from sorbent tubes under inert carrier gas flow; second, rapid cryofocusing of desorbed vapors onto a micro-scale cold trap held at −35 °C, followed by instantaneous flash desorption into the GC inlet. This architecture minimizes band broadening, suppresses breakthrough, and ensures quantitative recovery across C₂–C₁₆ hydrocarbons, including benzene, toluene, ethylbenzene, xylenes (BTEX), and total volatile organic compounds (TVOC).

Key Features

• Dual-stage architecture with independent temperature control for desorption oven (ambient to 450 °C), cold trap (−35 °C to ambient), valve box (up to 200 °C), and transfer lines (up to 200 °C)
• Integrated tube aging and calibration standard simulation function for routine system validation and drift monitoring
• Automated direct injection into split/splitless GC inlets without manual intervention or external interfaces
• Programmable desorption parameters: desorption time, flash duration (adjustable from 1–30 s), cold trap hold time, and backflush sequence
• Stainless-steel fluidic path with electropolished internal surfaces to minimize adsorption and memory effects
• Onboard diagnostics and real-time status feedback via intuitive LED interface and RS-232/USB connectivity

Sample Compatibility & Compliance

The ADTS-3430 accommodates standard 6 mm OD × 89 mm length stainless-steel or quartz sorbent tubes packed with multi-bed media (e.g., Tenax TA, Carbopack B/C, Carboxen 1000). It supports both single-tube and sequential multi-tube operation (via optional autosampler integration). The instrument is validated for use in protocols aligned with GB 50325-2020 Annex D (Determination of TVOC and individual aromatic hydrocarbons in indoor air), as well as complementary international methods including ISO 16017-1:2000 and ASTM D6196-22. All thermal profiles, timing sequences, and system events are timestamped and logged to support GLP-compliant documentation. While not inherently 21 CFR Part 11–certified, its audit trail functionality enables integration into validated laboratory information management systems (LIMS) meeting GMP/GLP data integrity requirements.

Software & Data Management

The ADTS-3430 operates standalone or under host GC software control (e.g., BF-2002 TVOC Edition, compatible with GC-9860 series). Method files store complete thermal programs, including desorption ramp rates, cold trap equilibration dwell, flash heating profiles, and backflush durations. Raw event logs record temperature setpoints, actual readings, valve actuation times, and error codes in CSV format for external review. Optional firmware upgrades support SCADA-level integration via Modbus RTU for centralized lab automation environments. All configuration changes require operator authentication, and method locking prevents unauthorized parameter modification during routine analysis.

Applications

• Quantitative determination of BTEX and C₆–C₁₆ aliphatic/aromatic VOCs in indoor air samples collected on sorbent tubes (per GB 50325-2020 Section 6.7)
• Method development and validation for environmental monitoring laboratories accredited to CNAS CL01:2018 (ISO/IEC 17025)
• Quality control of building materials, adhesives, coatings, and furniture emissions in product certification testing
• Occupational hygiene assessments in manufacturing and office settings where solvent exposure limits must be verified
• Research applications requiring ultra-low detection limits (<0.1 µg/m³) for odorant profiling and source apportionment studies

FAQ

What standards does the ADTS-3430 directly support?
It is configured and validated for GB 50325-2020 Annex D procedures, with thermal profiles optimized for TVOC and BTEX quantification using 50-m capillary columns and FID detection.
Can the ADTS-3430 be used with non-Beifen GC systems?
Yes — it features universal GC interface compatibility via standard pneumatic and electrical triggers (TTL-level start signal, 24 VDC valve control), supporting Agilent, Shimadzu, Thermo Fisher, and other major GC platforms.
Is cold trap temperature stability verified across the full −35 °C to ambient range?
Yes — the Peltier-cooled trap maintains ±0.5 °C stability at −30 °C (typical operating point) over 10-minute hold periods, confirmed by NIST-traceable thermocouple calibration.
How is carryover minimized between analyses?
Through programmable post-desorption tube bake-out (up to 450 °C), high-flow inert gas purge of all transfer lines, and automated cold trap regeneration prior to each cycle.
Does the system include validation documentation for regulatory audits?
A comprehensive IQ/OQ protocol package is supplied, including temperature mapping reports, recovery rate verification data (≥99% for toluene, n-hexane, and m-xylene at 10 ng levels), and electronic logbook templates aligned with CNAS requirements.
