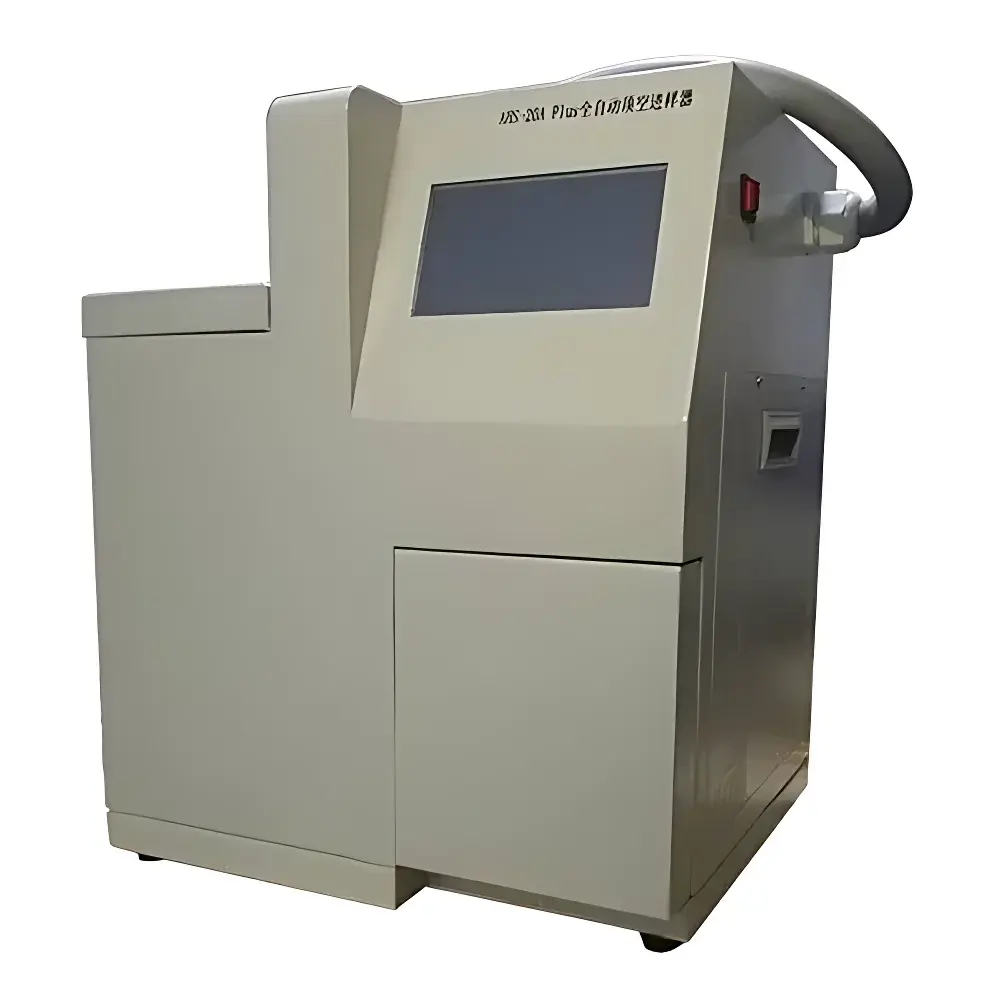

Beifen Sanpu ZAHS-20A Plus Fully Automated Headspace Sampler

Overview

The Beifen Sanpu ZAHS-20A Plus Fully Automated Headspace Sampler is an engineered solution for reproducible, high-throughput volatile organic compound (VOC) analysis in gas chromatography (GC) workflows. It operates on the principle of equilibrium headspace sampling: a sealed sample vial is heated to a defined temperature, allowing volatile analytes to partition into the vapor phase above the matrix (liquid or solid). Once thermodynamic equilibrium is reached, the vapor phase is pressurized and transferred via a heated, inert flow path directly into the GC injector—without liquid-phase contact or syringe-based handling. This method eliminates carryover, minimizes adsorption losses, and ensures compatibility with trace-level quantitation in compliance-driven environments such as environmental testing, pharmaceutical residual solvent analysis (per USP & ICH Q2(R2)), and food safety screening.

Key Features

• 20-position rotary sample carousel with automatic vial detection—skips empty or misaligned positions to prevent mechanical collision and ensure unattended operation.
• Triple-zone independent temperature control: sample oven, six-port valve housing, and transfer line—all heated to 220 °C standard (300 °C optional) with ±0.5 °C stability and 0.5% accuracy over full range.
• True positive-pressure sampling using inert, electronically regulated gas (N₂ or He), eliminating reliance on external air compressors or pneumatic drivers—enhancing lab safety and reducing infrastructure dependency.
• Deactivated flow path throughout: quantitative loop, valve internal surfaces, and transfer tubing use SilcoNert®- or Sulfinert®-treated fused silica and PTFE components to suppress active site adsorption and cross-contamination.
• Heated valve interface: the 6-port valve and its connection to the transfer line reside entirely within the thermal zone—eliminating cold spots that could cause condensation or fractionation of higher-boiling volatiles.
• Sub-millisecond timing resolution (1 ms) across all operational phases—enabling precise method development for fast-cycling applications such as high-throughput QC release testing.
• Integrated self-diagnostics: power-on system check, real-time motor position feedback, thermal fault monitoring, and hardware error logging compliant with GLP audit requirements.

Sample Compatibility & Compliance

The ZAHS-20A Plus accommodates standard 10 mL and 20 mL crimp-top headspace vials; custom configurations support 50 mL and 100 mL formats for low-concentration or heterogeneous matrices. It handles aqueous solutions, polymers, soils, pharmaceutical tablets, and packaged foods without modification. All operational parameters—including equilibration time, pressure ramp rate, and purge flow—are fully programmable and stored with timestamped metadata. The instrument supports 21 CFR Part 11-compliant data integrity when paired with validated GC data systems (e.g., Thermo Chromeleon, Agilent OpenLab CDS, Shimadzu GCsolution). Method validation documentation aligns with ASTM D7699 (standard practice for headspace analysis), ISO 11843-7 (detection capability for headspace-GC), and EU Pharmacopoeia 2.2.46.

Software & Data Management

Control is executed either locally via the intuitive 7-inch TFT LCD interface—featuring animated workflow guidance and bilingual (Chinese/English) menu navigation—or remotely via USB 2.0 using Beifen Sanpu’s proprietary HeadSpaceControl™ software. The software enables method cloning, batch queueing, audit trail generation (user login, parameter changes, run logs), and export of CSV-formatted raw timing and status data. All settings are saved in non-volatile memory with battery-backed clock synchronization. Optional EPC integration provides closed-loop pressure regulation with <±0.002 MPa repeatability—critical for method transfer between laboratories and long-term retention time stability.

Applications

• Residual solvent analysis in APIs and excipients (ICH Q3C Class 1–3 solvents)
• VOC profiling in drinking water per EPA Method 502.2 and 8260D
• Flavor and fragrance release kinetics in beverages and dairy products
• Off-gas testing of automotive interior materials (VDA 278)
• Moisture content estimation in hygroscopic powders via headspace humidity measurement
• Stability-indicating assays for oxidized lipids in nutraceutical oils

FAQ

Is the ZAHS-20A Plus compatible with Agilent and Thermo GC systems?
Yes—TTL-level trigger outputs and relay contacts enable seamless synchronization with all major GC platforms. GC start commands can be initiated either by hardware pulse or software handshake.
Can I validate this instrument under GMP conditions?
Yes—the system supports IQ/OQ documentation packages, electronic signature-ready audit trails (when used with compliant software), and configurable calibration logs traceable to NIST-certified references.
What maintenance is required for long-term reliability?
Routine tasks include quarterly verification of oven temperature uniformity, annual replacement of septa and O-rings, and biannual cleaning of the quantitative loop with methanol followed by nitrogen purge.
Does it support dynamic headspace or purge-and-trap configurations?
No—the ZAHS-20A Plus is designed exclusively for static equilibrium headspace sampling. For dynamic applications, Beifen Sanpu offers the ZAHS-P&T series as a dedicated alternative.
How is carryover mitigated between high-concentration and low-concentration samples?
Through programmable multi-stage purge cycles (up to 30 minutes), heated transfer line purging at >220 °C, and automated needle wash using inert carrier gas—validated to achieve <0.05% carryover for ethanol at 1000 ppm.
