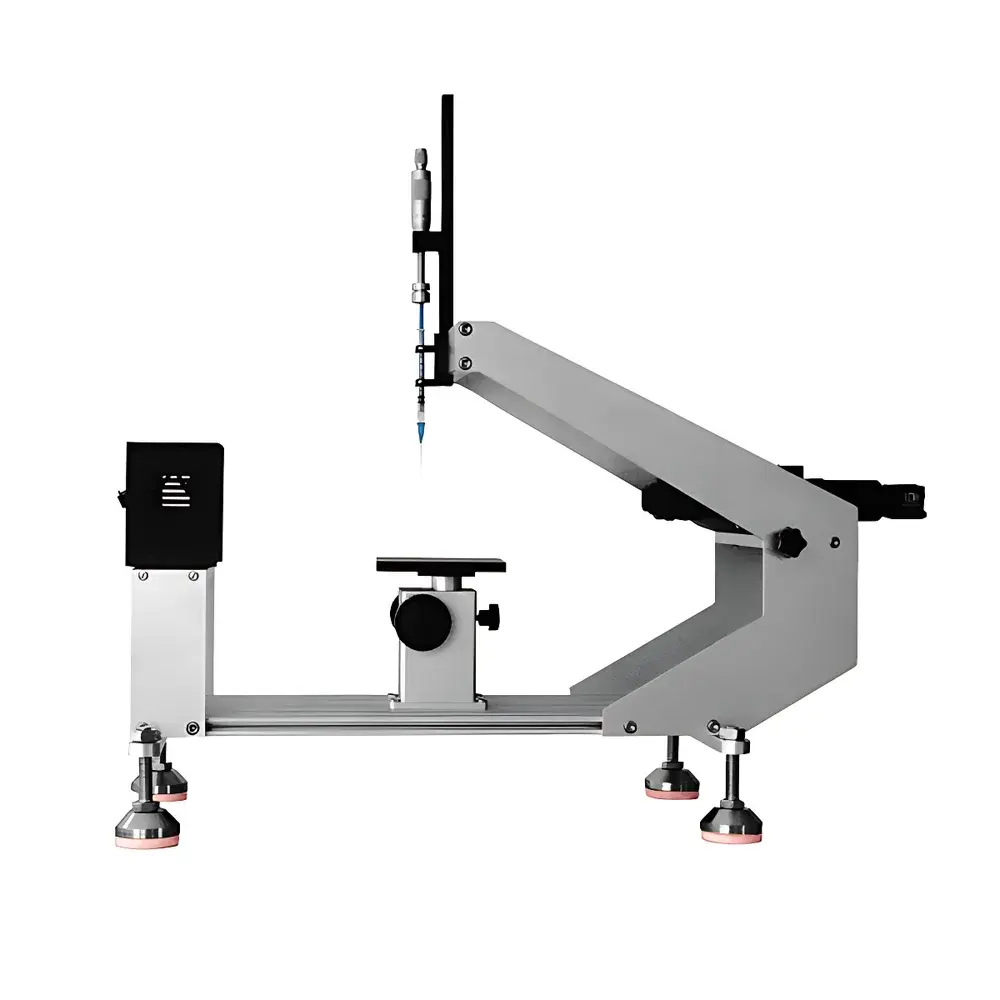

Betop Scientific ALPHA Standard Video-Based Optical Contact Angle Analyzer

Overview

The Betop Scientific ALPHA Standard Video-Based Optical Contact Angle Analyzer is a benchtop laboratory instrument engineered for precise, reproducible quantification of interfacial behavior at solid–liquid and liquid–air boundaries. It operates on the principle of optical silhouette imaging: a high-resolution industrial CMOS camera captures side-view droplet profiles under controlled LED cold-light illumination, while proprietary software applies physics-based fitting algorithms to determine contact angle values from the geometric contour of sessile or pendant drops. The system supports both static and dynamic measurements—including advancing/receding angles, roll-off (sliding) angles—and enables calculation of surface free energy components (e.g., via Owens–Wendt, Wu, or van Oss–Chaudhury–Good models), work of adhesion, and interfacial tension via pendant drop analysis. Its modular architecture integrates mechanical stability, ergonomic adjustability, and computational rigor—making it suitable for routine QC testing as well as advanced interfacial research in academic and industrial labs.

Key Features

• High-speed, high-resolution CMOS camera (≥1.3 MP, ≥100 fps) with adjustable tilt (±4°) and motorized focus for optimal droplet profile capture
• LED cold-light source with uniform intensity distribution and minimal thermal drift—ensuring stable imaging across extended measurement sessions

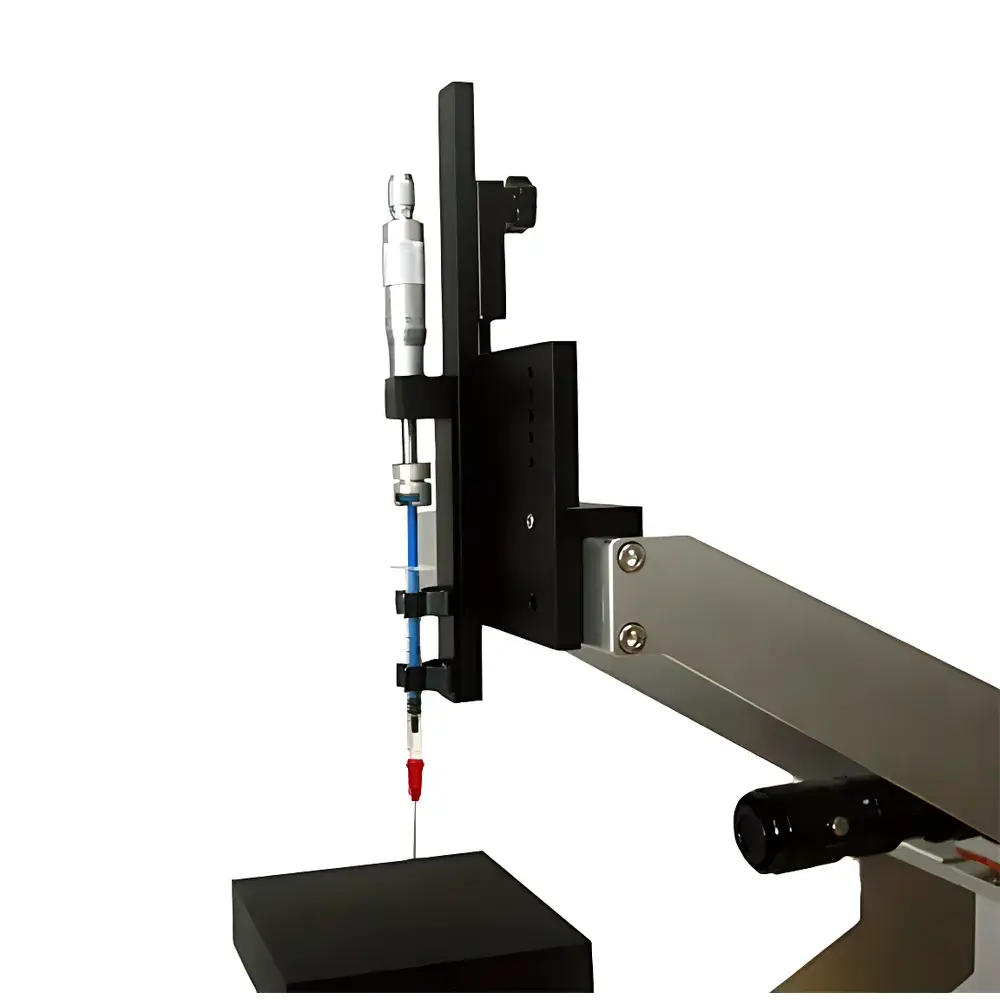

• Precision syringe pump module with 0.01 µL dispensing resolution and programmable deposition protocols (single/dual/multi-droplet, sequential, timed)
• Motorized XYZ sample stage (110 mm × 110 mm fixed platform) with manual fine-tuning capability and 1 kg load capacity
• Six built-in contact angle fitting methods: Circle, Ellipse, Young–Laplace (axisymmetric), SCA (Spline Curve Analysis), Tangent, and Polynomial—each selectable per measurement protocol
• Fully automated baseline detection and adaptive edge recognition algorithms that minimize operator dependency and improve repeatability across heterogeneous or textured surfaces
• Real-time video recording with timestamped frame indexing and post-acquisition frame-by-frame replay for precise selection of measurement instants
• Integrated interfacial tension calculation module compliant with pendant drop shape analysis theory (Young–Laplace equation solution)

Sample Compatibility & Compliance

The ALPHA accommodates samples up to 300 mm (W) × 200 mm (D) × 160 mm (H), enabling evaluation of large-area substrates such as coated wafers, printed circuit boards, polymer sheets, and functionalized textiles. Its open-stage design allows direct placement of irregular or non-planar specimens—provided they remain mechanically stable during imaging. The system meets fundamental requirements for ISO 19403-2 (contact angle measurement), ISO 19403-3 (surface free energy), and ASTM D7334 (surface energy of coatings). Optional software modules support 21 CFR Part 11 compliance—including electronic signatures, user access levels, and immutable audit trails—making it deployable in regulated environments governed by GLP or GMP frameworks.

Software & Data Management

The ALPHA is operated via Betop’s proprietary AnalySIS software suite, built on a modular, object-oriented architecture. It provides real-time image processing, batch measurement automation, and customizable reporting templates. All raw images, metadata (time stamp, environmental conditions, instrument settings), and intermediate calculation files are stored in a hierarchical project structure with version-controlled backups. Export options include CSV (for statistical analysis in MATLAB or Python), PNG/JPEG (annotated measurement snapshots), PDF (formatted lab reports), and XML (machine-readable structured data for LIMS integration). Software updates are delivered via secure HTTPS channels with SHA-256 signature verification.

Applications

• Quantitative assessment of plasma, corona, flame, or chemical surface treatments on polymers, metals, and composites
• Optimization of inkjet printing, adhesive bonding, and thin-film coating processes through dynamic wetting analysis
• Quality control of semiconductor wafers, display glass, and medical device substrates for cleanliness and hydrophobicity/hydrophilicity consistency
• Characterization of porous media (e.g., filters, membranes, battery separators) using Washburn analysis extensions
• Research into biomaterial–fluid interactions, including protein adsorption kinetics and cell adhesion thermodynamics
• Formulation development for surfactants, emulsions, and nanofluids via interfacial tension profiling

FAQ

What calibration standards are recommended for routine verification?
Certified reference slides with known contact angles (e.g., PTFE ≈ 110°, silicon wafer ≈ 75°, clean glass ≈ 20°) should be used weekly. A distilled water droplet (γ = 72.8 mN/m at 20°C) serves as primary interfacial tension reference.
Can the ALPHA perform temperature-controlled measurements?
Yes—when paired with an optional Peltier-heated/cooled stage (−10°C to 80°C, ±0.2°C stability) and environmental chamber accessory.
Is multi-user permission management supported?
Standard software includes role-based login (Operator, Supervisor, Administrator); audit trail and electronic signature modules require validated configuration and are available under GxP license.
How is droplet volume accuracy ensured over time?
Syringe pump calibration is traceable to NIST-certified volumetric standards; automatic zeroing and back-pressure compensation routines are executed before each sequence.
Does the system support third-party automation integration?
Yes—via TCP/IP API and LabVIEW-compatible DLLs for integration into robotic sample handling platforms or centralized lab automation systems.
