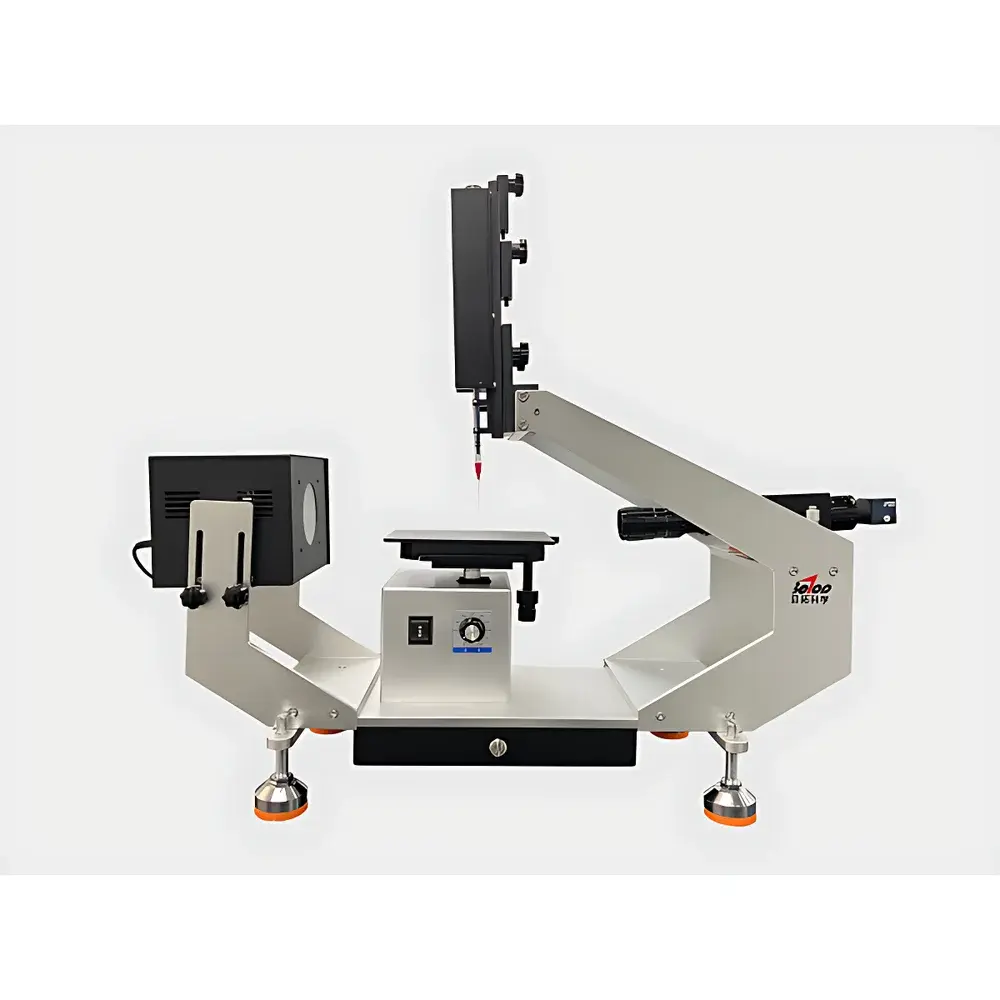

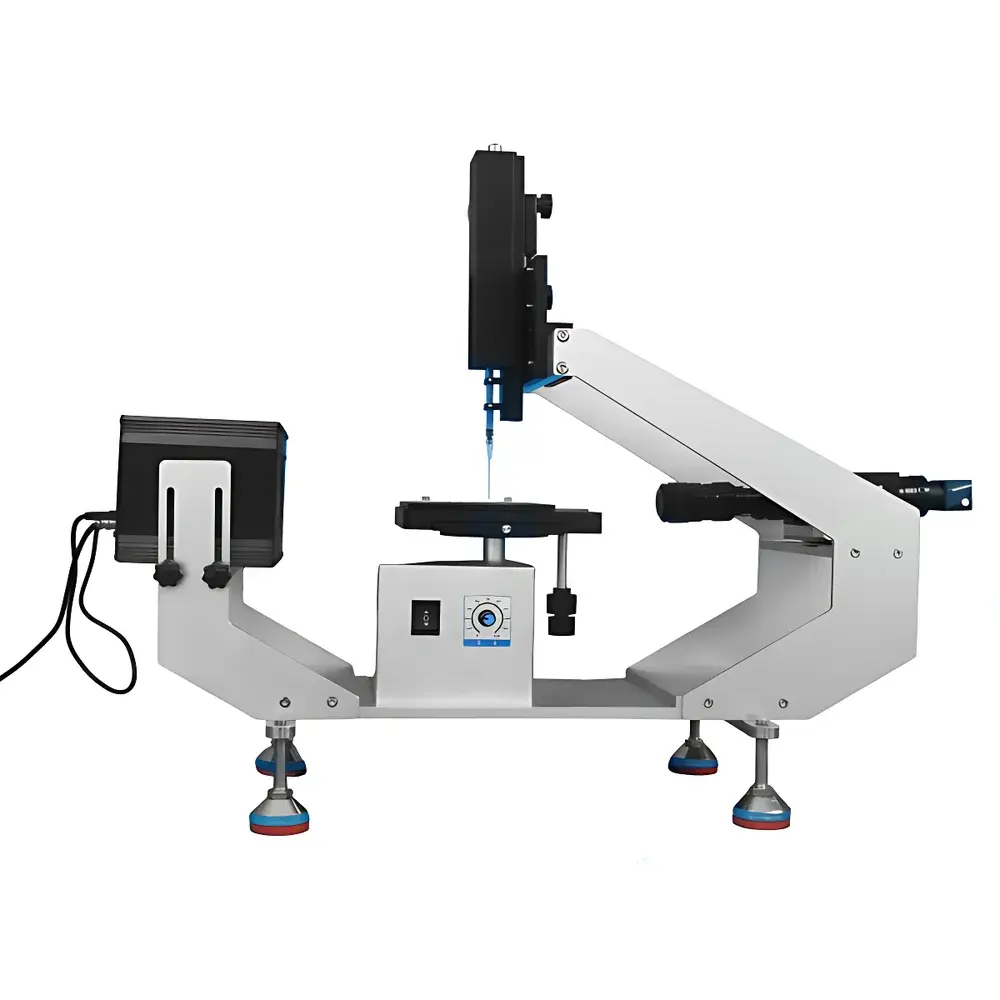

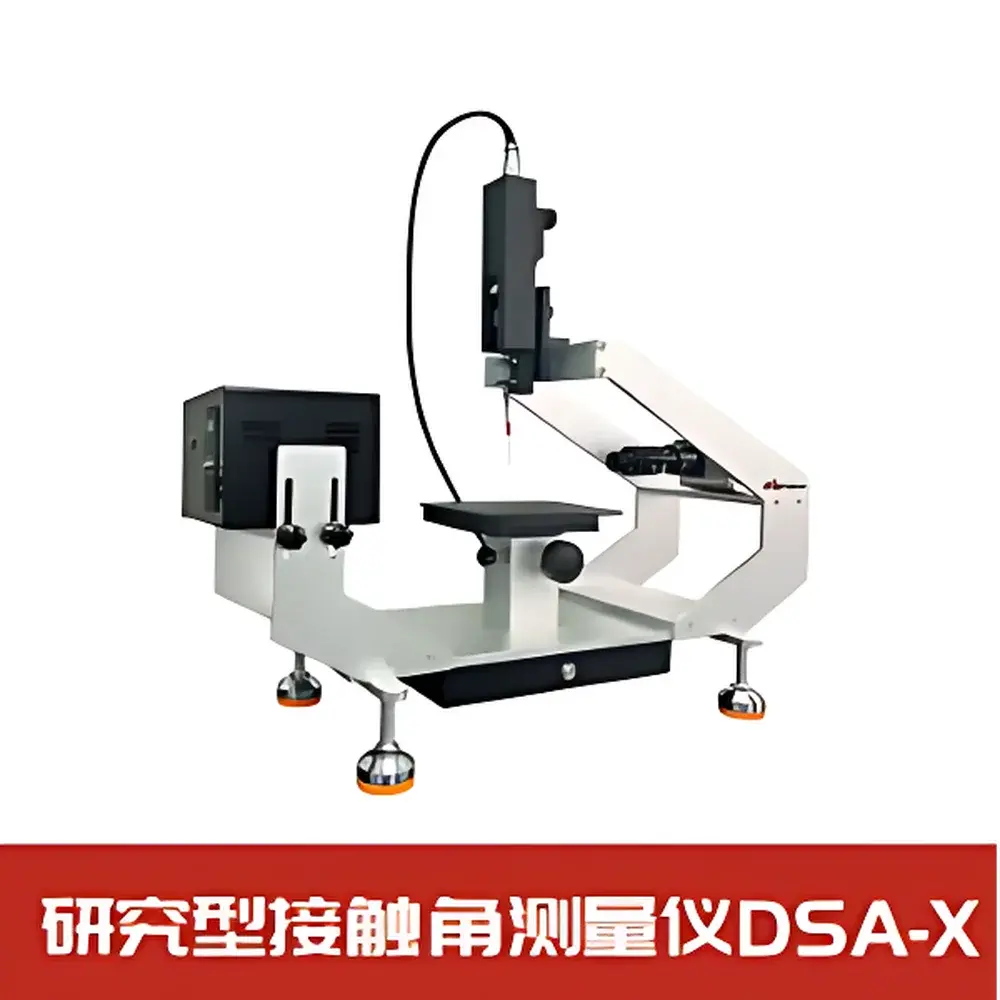

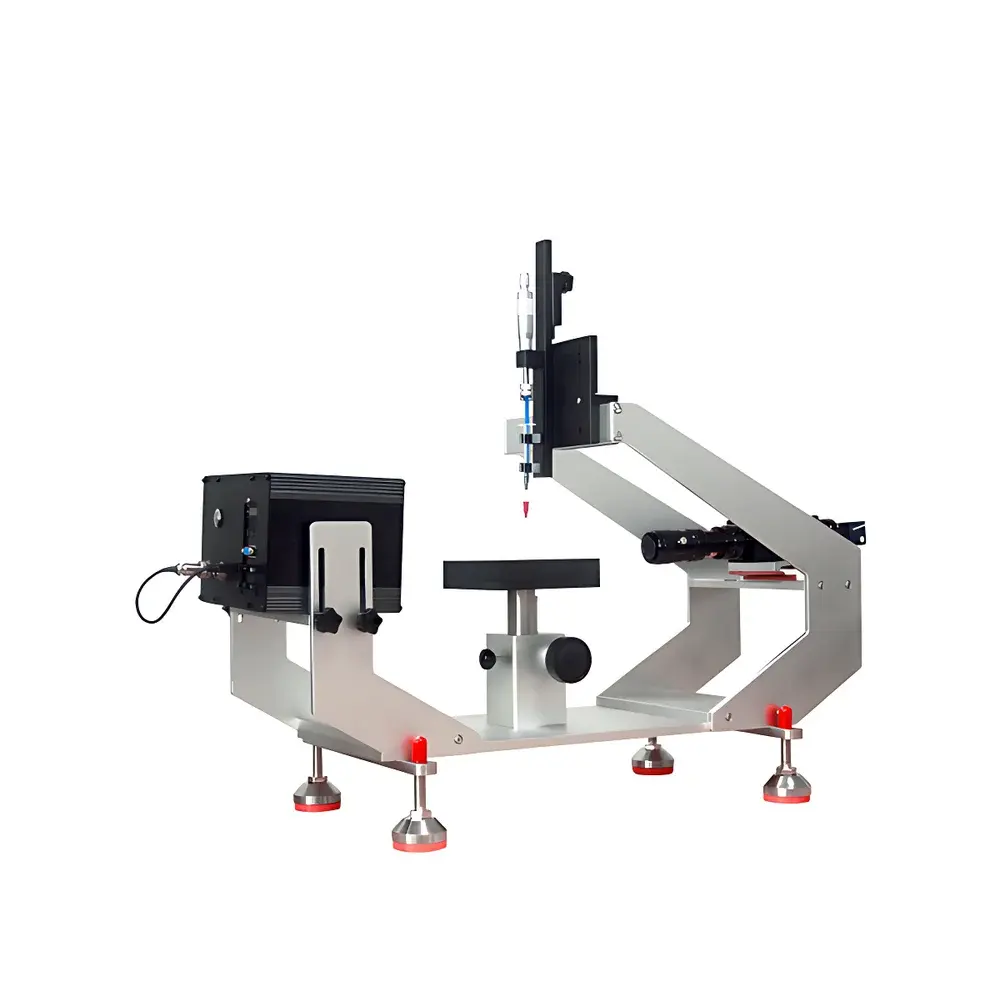

Betop Scientific DSA-X Optical Contact Angle Meter

Overview

The Betop Scientific DSA-X Optical Contact Angle Meter is a precision benchtop instrument engineered for quantitative characterization of solid–liquid and liquid–liquid interfacial behavior. It operates on the principle of optical drop shape analysis (DSA), leveraging high-resolution silhouette imaging under collimated LED illumination to extract contact angle values from sessile, pendant, or tilted droplets. The system captures dynamic wetting processes—including advancing/receding angles, roll-off angles, and time-dependent spreading—enabling rigorous evaluation of surface heterogeneity, anisotropy, and energy relaxation. Designed for ISO 19403-2 (contact angle) and ASTM D7334 (surface energy of solid surfaces by contact angle) compliance, the DSA-X supports GLP-aligned workflows through audit-trail-enabled software, timestamped image metadata, and exportable raw video sequences with frame-level annotation.

Key Features

• High-speed industrial camera (210 fps, 1300 × 1024 resolution) synchronized with programmable LED cold-light source for glare-free, low-thermal-drift imaging

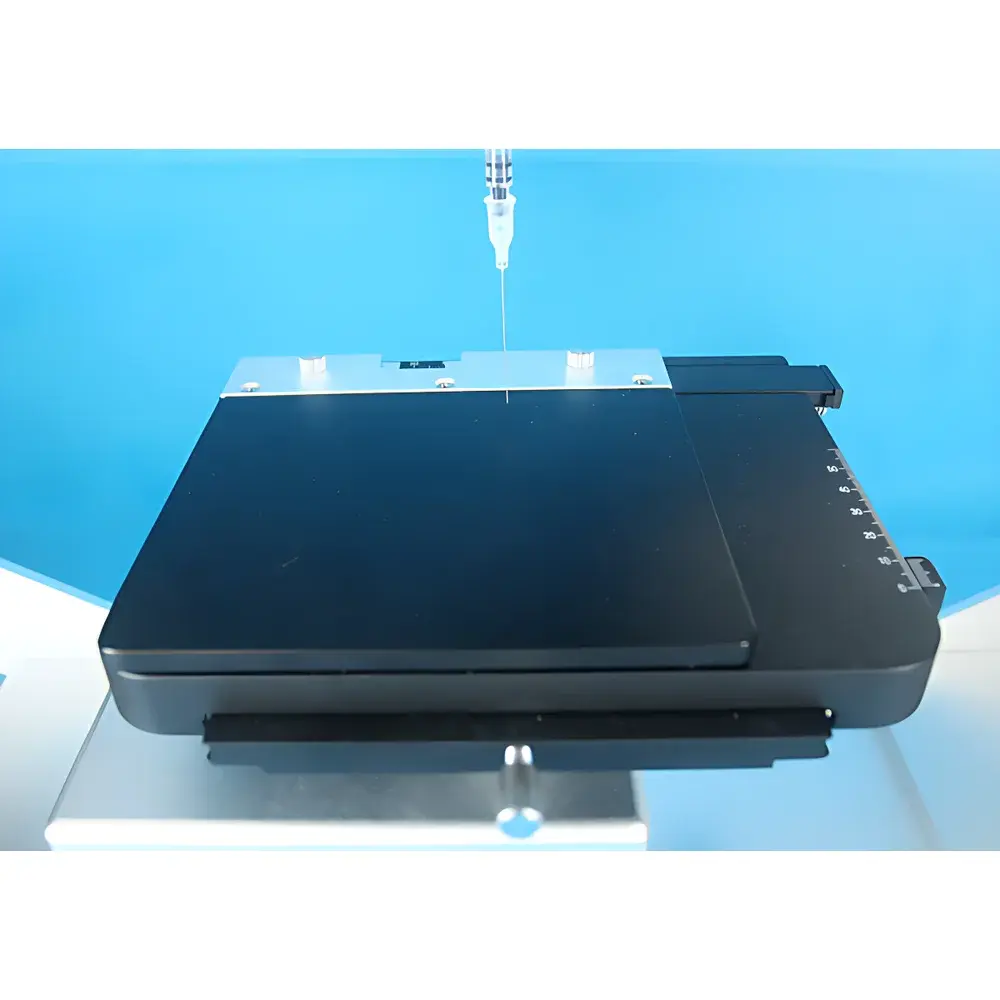

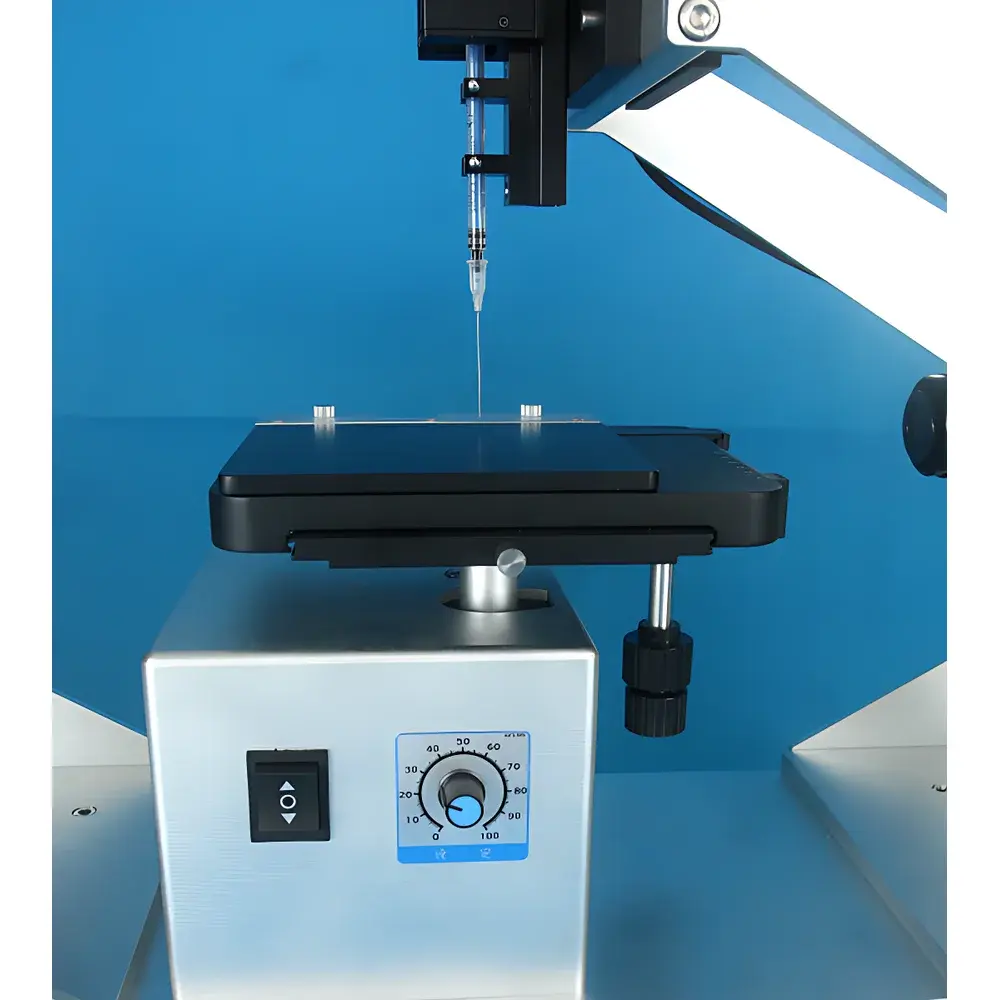

• Motorized XYZ sample stage with 100 mm × 100 mm × 50 mm travel range (optional extended Z-axis), enabling precise positioning of irregular or large-format substrates up to 300 × 500 × 160 mm
• Adjustable optical path with 0.7–4.5× zoom lens and fine-focus mechanism, optimized for both macro-scale textile samples and micro-patterned semiconductor wafers
• Automated syringe pump module with 0.01 µL dispensing resolution and bidirectional vertical/horizontal needle positioning (±100 mm)
• Six built-in contact angle calculation algorithms—Sessile Circle, Ellipse, Young–Laplace, Tangent, Polynomial, and Baseline-Independent SCA—each validated against NIST-traceable reference standards
• Integrated surface energy computation engine supporting OWRK, Fowkes, Wu, and van Oss-Chaudhury-Good models with user-defined probe liquid databases
• Real-time baseline auto-detection and adaptive edge recognition, robust against substrate texture, reflectivity variation, or ambient light fluctuation

Sample Compatibility & Compliance

The DSA-X accommodates diverse material classes including polymers, ceramics, metals, thin-film coatings, hydrogels, paper, and microstructured surfaces. Its modular design supports optional accessories such as vacuum-assisted sample holders for flexible films, motorized tilting stages (±90°, 0.1° step resolution) for roll-off and sliding angle quantification, and top-view optics for concave or recessed geometries. All hardware and firmware comply with IEC 61000-4 electromagnetic compatibility standards. Software architecture conforms to FDA 21 CFR Part 11 requirements for electronic records and signatures when configured with user role management, digital signature prompts, and immutable audit logs. Data output formats meet ISO/IEC 17025 documentation requirements for accredited testing laboratories.

Software & Data Management

DSA-X Control Suite v4.x provides a deterministic, scriptable interface for method-driven operation. Each experiment is stored as a structured project file containing calibrated images, metadata (camera settings, environmental temperature/humidity tags), numerical results, and annotated video clips. Batch processing enables automated multi-sample analysis with customizable pass/fail thresholds. Export options include CSV (for statistical process control integration), PDF reports with embedded traceable calibration certificates, and HDF5 files compatible with MATLAB and Python-based analysis pipelines. All data files are checksum-verified upon save; version-controlled method templates support SOP replication across multiple instruments in distributed R&D or QC environments.

Applications

• Quantitative assessment of plasma, corona, flame, or chemical surface treatments on polymeric films and packaging materials
• Adhesion performance modeling in automotive sealants, aerospace composites, and medical device bonding interfaces
• Wettability mapping of printed circuit board (PCB) solder masks and wafer-level dielectric layers
• Surface cleanliness verification via contact angle hysteresis analysis on stainless steel or silicon substrates pre- and post-cleaning cycles
• Formulation development of inkjet inks, functional coatings, and nanosuspensions where interfacial tension governs droplet stability and deposition fidelity
• Quality control of hydrophilic/hydrophobic membranes in filtration and biomedical applications

FAQ

What contact angle measurement methods does the DSA-X support?
Static sessile drop, dynamic advancing/receding angle via continuous dispensing, tilt-based roll-off angle, pendant drop for interfacial tension, and top-view analysis for non-planar surfaces.
Is the software compliant with regulatory data integrity requirements?
Yes—when deployed with password-protected user roles, electronic signature enforcement, and audit trail logging enabled, it satisfies FDA 21 CFR Part 11 and EU Annex 11 expectations.
Can the DSA-X measure surface energy of rough or porous substrates?
It computes apparent surface energy using standard models; for topographically complex samples, we recommend coupling with profilometry data and applying roughness correction factors per ISO 27448.
What calibration standards are supplied with the instrument?
NIST-traceable contact angle reference slides (10°, 45°, 90°, 120°) and certified surfactant solutions (e.g., SDS, Triton X-100) for interfacial tension validation.
How is environmental control integrated into measurements?
Optional enclosure modules support temperature (15–40°C) and humidity (20–80% RH) regulation; ambient sensor inputs are logged synchronously with image acquisition.
