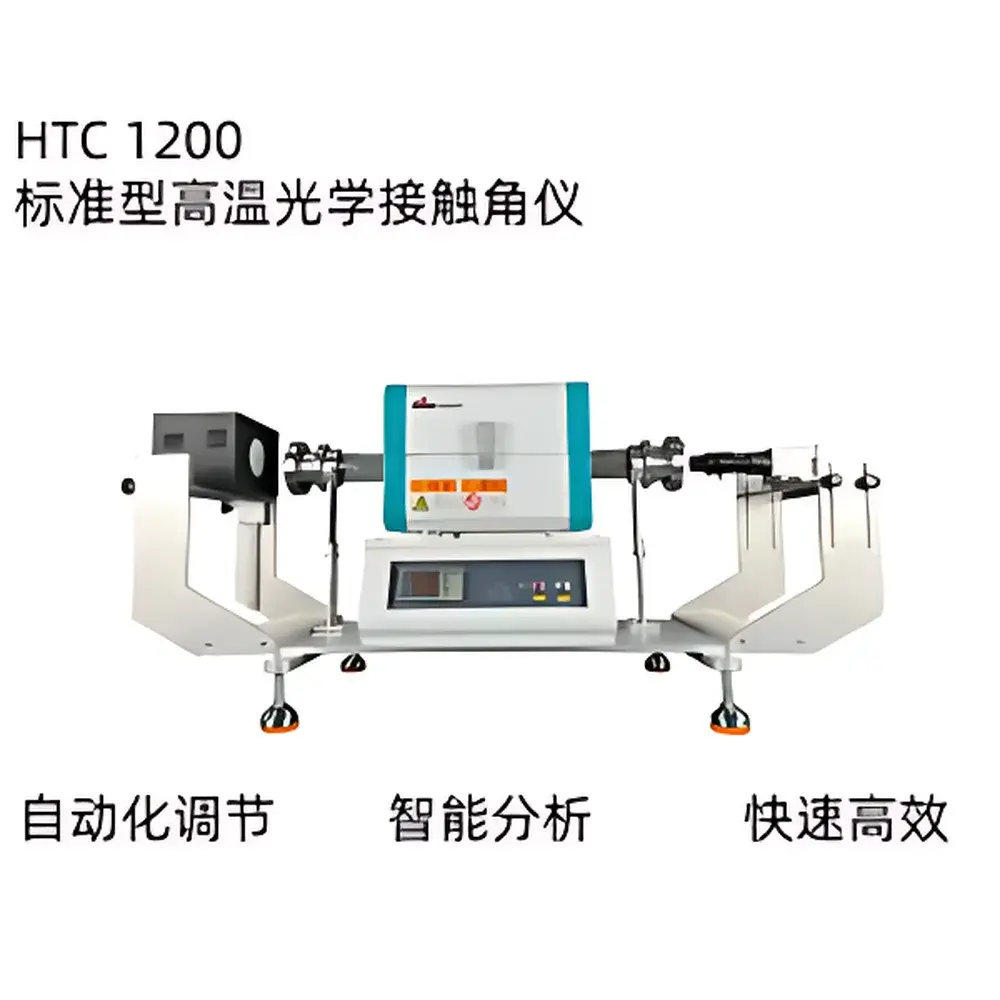

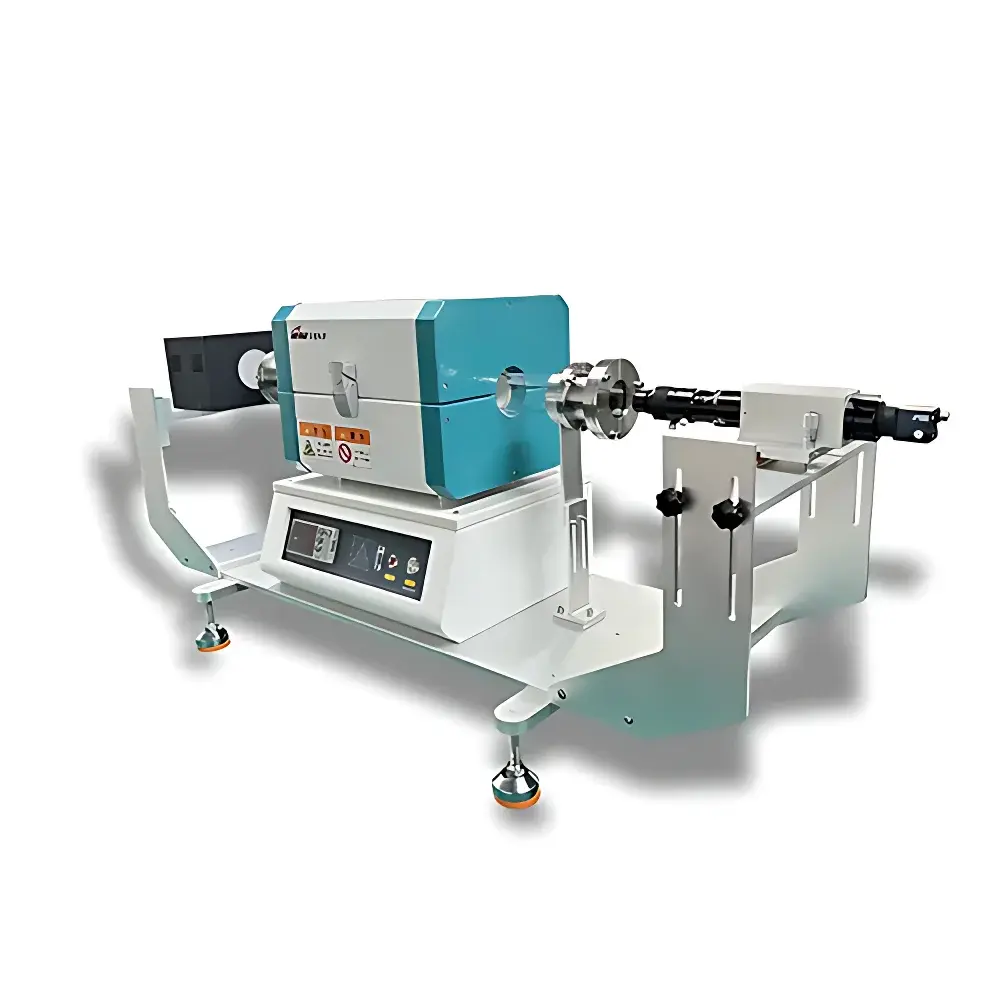

Betop Scientific HTC1200 High-Temperature Optical Contact Angle Analyzer

Overview

The Betop Scientific HTC1200 High-Temperature Optical Contact Angle Analyzer is an engineered benchtop system designed for quantitative in situ characterization of solid–liquid interfacial behavior under controlled thermal and atmospheric conditions. It operates on the principle of high-resolution optical sessile drop analysis combined with synchronized thermal profiling, enabling precise measurement of contact angle (θ), surface tension (γ_LV), and interfacial dynamics across temperature gradients from ambient to 1200 °C. The system integrates a programmable high-temperature furnace with inert gas or high-vacuum compatibility (down to 6.67 × 10⁻⁷ Pa), making it suitable for investigating wettability evolution in refractory ceramics, metallic alloys, molten salts, and advanced composites during heating, melting, spreading, and solidification processes. Its core architecture supports both static and dynamic contact angle acquisition—capturing time-resolved θ(t) or θ(T) profiles with sub-degree angular resolution and millisecond temporal fidelity.

Key Features

• Three-tiered high-temperature capability: Standard configuration supports up to 1200 °C (long-term use ≤1150 °C), with optional upgrade paths to 1650 °C and 2200 °C models (HTC1650/HTC2200)
• 30-segment programmable temperature control via embedded touchscreen interface or PC-based software, supporting ramp rates up to 15 K/min and dwell stability within ±1 °C at 1200 °C
• High-speed imaging subsystem: Industrial CMOS camera (1600 × 1200 px, 16-bit depth) acquiring at ≥227 fps, synchronized with thermal events for full-process video capture
• Optical path optimized for high-contrast imaging: Adjustable 0.7–4.5× continuous zoom lens with 12 mm focus travel and 470 nm narrow-band blue LED illumination (intensity continuously adjustable)
• Robust vacuum/inert atmosphere integration: Standard flanged chamber compatible with external turbomolecular pumps and gas purification units (Ar/N₂)
• Ergonomic all-in-one enclosure with integrated sample loading port, viewing window, and cable management—designed for Class 1000 cleanroom-compatible lab environments

Sample Compatibility & Compliance

The HTC1200 accommodates samples up to 5 × 5 × 5 mm in volume and 1 kg in mass on its precision-machined alumina-coated stage. Compatible substrates include single-crystal sapphire, polished tungsten carbide, high-purity graphite, and pre-sintered ceramic compacts. Molten phases tested include Al–Si eutectics, ZnO-based fluxes, Li₂O–B₂O₃ glasses, and rare-earth oxide melts. All thermal protocols comply with ASTM E1113 (Standard Guide for High-Temperature Contact Angle Measurement) and ISO 2137 (Petroleum Products – Determination of Penetration). Data acquisition and storage adhere to GLP/GMP principles; audit trails, user authentication, and electronic signature support are available via optional FDA 21 CFR Part 11-compliant software module.

Software & Data Management

The proprietary BetopVision™ software provides real-time image acquisition, automated droplet contour detection, and five validated fitting algorithms—including Young–Laplace, Circle, Ellipse, Spline, and Axisymmetric Drop Shape Analysis (ADSA)—for robust θ calculation under thermal distortion. Surface tension is derived using the pendant/sessile drop method with density-corrected Young–Laplace inversion. Software features include: automatic frame-by-frame θ tracking with left/right asymmetry reporting, time-stamped thermal overlay on video playback, customizable CSV export with metadata (T, t, θ, γ, pixel scale), batch processing for multi-sample sequences, and export-ready graphs compliant with journal submission standards (TIFF/PDF vector format). Raw video files (AVI/MKV) are stored with embedded EXIF tags containing temperature, pressure, and shutter parameters.

Applications

• Quantifying wetting kinetics of molten metals on ceramic substrates for metallurgical bonding process optimization
• Mapping solid–liquid interfacial energy evolution during reactive air brazing of SiC–SiC composites
• Determining softening and sintering onset temperatures via in situ contact angle inflection point analysis
• Evaluating slag–refractory compatibility in high-temperature metallurgical reactors
• Characterizing thermal hysteresis in phase-change materials during melt–freeze cycles
• Supporting thermodynamic modeling (e.g., Neumann equation, Fowkes theory) with experimentally constrained γ_SV, γ_SL, and γ_LV values

FAQ

What is the maximum operating vacuum level supported by the HTC1200?

The standard configuration achieves base pressures down to 6.67 × 10⁻⁷ Pa when paired with a certified turbomolecular pumping station and helium-leak-tested chamber.

Can the system measure contact angles on curved or irregularly shaped samples?

Yes—through manual ROI selection and custom baseline definition in BetopVision™, though optimal accuracy is achieved on flat, polished surfaces per ISO 2137 recommendations.

Is calibration traceable to NIST or other national metrology institutes?

Angular calibration uses certified glass reference wedges (±0.05° uncertainty); temperature calibration is performed with B-type thermocouples traceable to CNAS-accredited labs.

Does the software support automated calculation of surface free energy components?

Yes—via Owens–Wendt, Wu, and van Oss–Chaudhury–Good models, using user-input reference liquid data (water, diiodomethane, ethylene glycol).

What maintenance intervals are recommended for the high-temperature furnace and optical components?

Furnace insulation inspection every 200 operational hours; lens cleaning with spectroscopic-grade solvents after each vacuum cycle; annual recalibration of thermal sensors and camera geometry.
