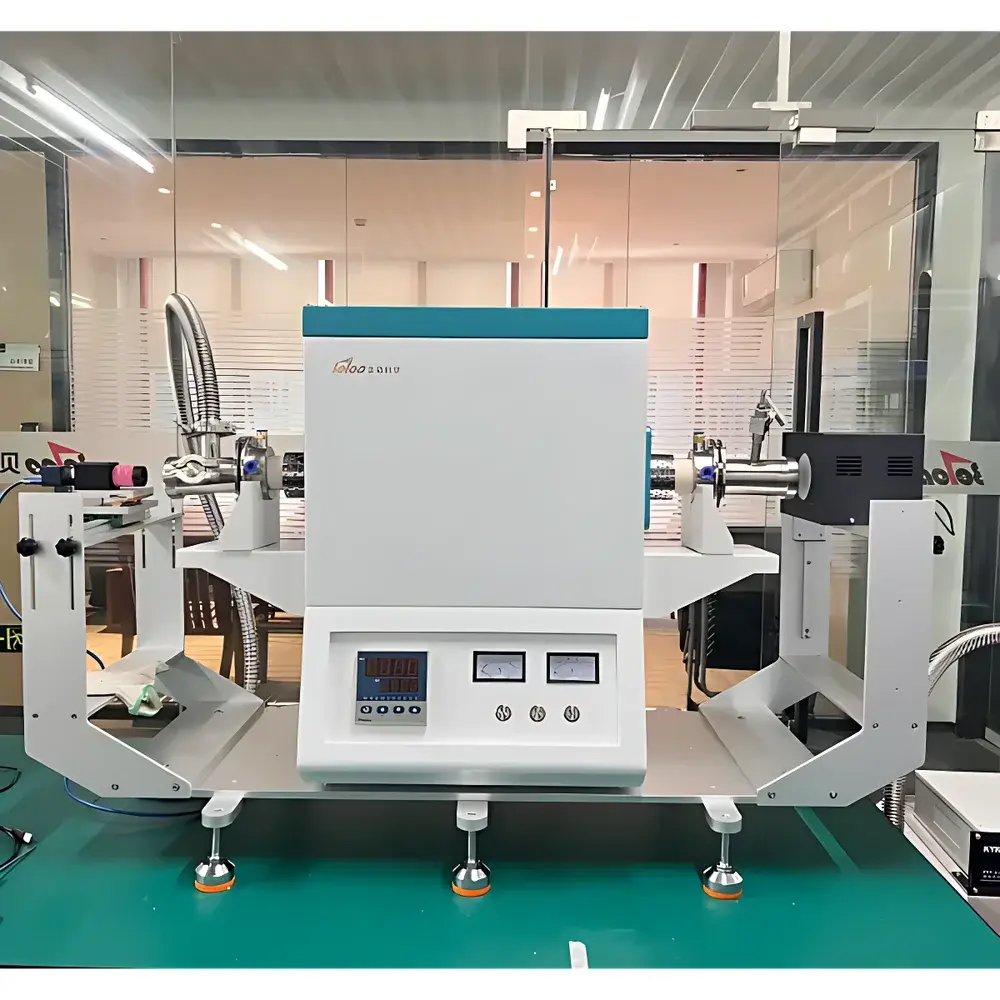

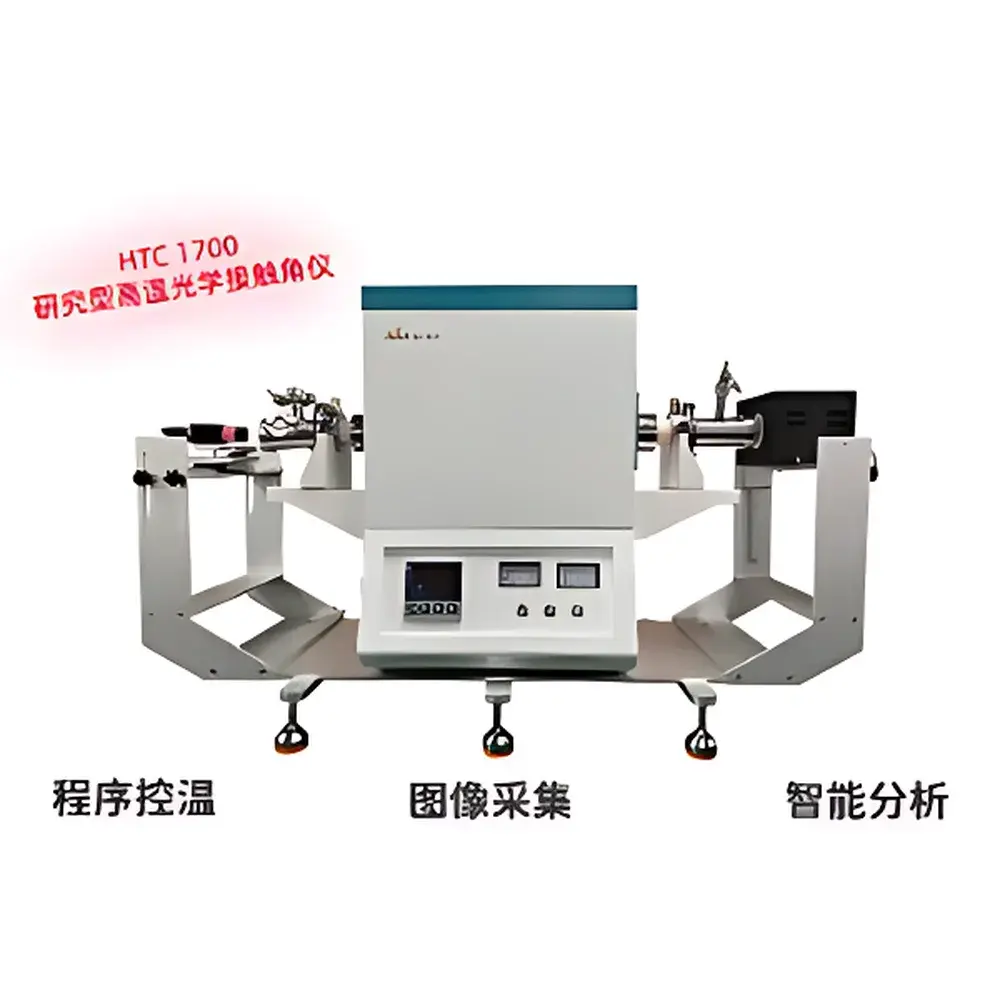

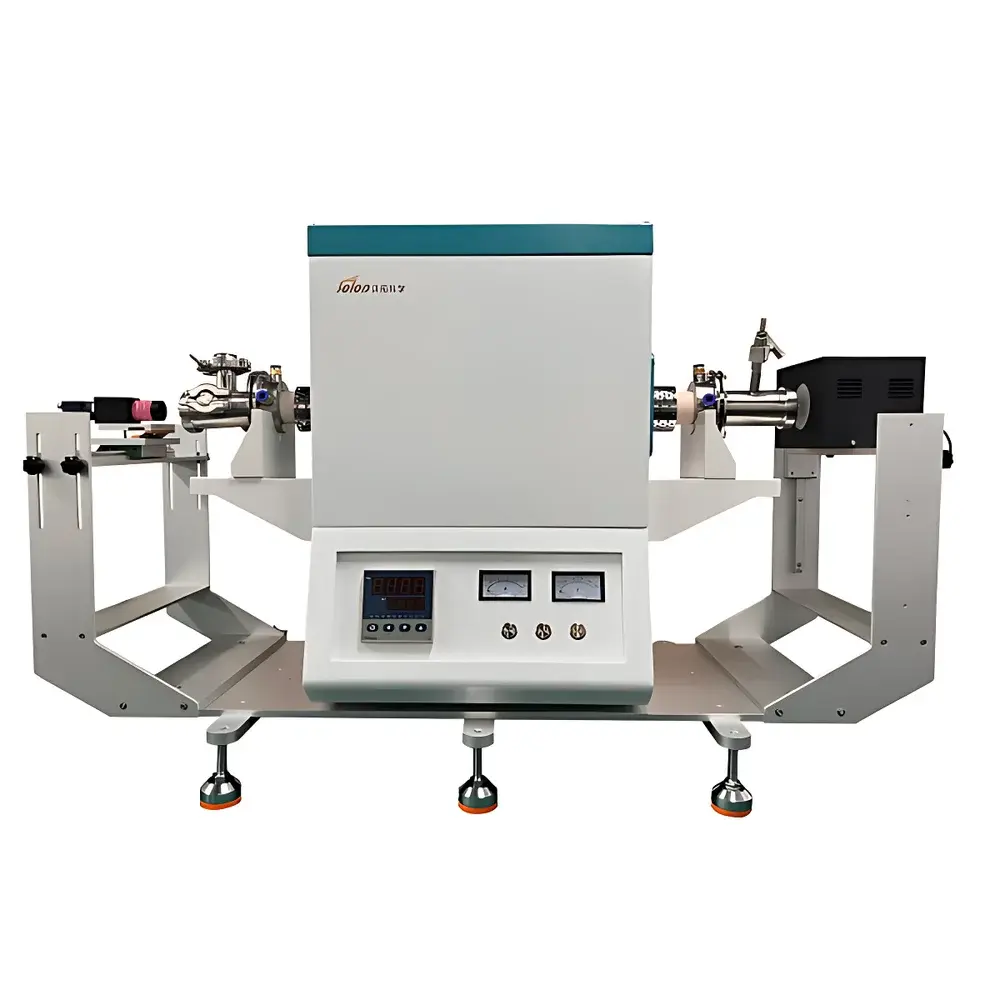

Betop Scientific HTC1700 High-Temperature Vacuum Contact Angle Analyzer

Overview

The Betop Scientific HTC1700 High-Temperature Vacuum Contact Angle Analyzer is an engineered solution for quantitative interfacial characterization of solid–molten phase systems under controlled thermal and atmospheric conditions. It operates on the principle of sessile drop methodology combined with high-speed optical imaging and precision thermometry, enabling dynamic measurement of contact angle (θ) evolution during heating, isothermal hold, and cooling cycles. Designed specifically for materials science laboratories investigating refractory metals, ceramic composites, nuclear fuel cladding materials, and high-performance alloys, the HTC1700 supports experimental protocols compliant with ASTM C1409 (Standard Test Method for Wettability of Ceramic Substrates by Molten Metals), ISO 20577-1 (Contact Angle Determination at Elevated Temperatures), and internal GLP/GMP documentation workflows requiring audit-trail-enabled temperature–angle correlation.

Key Features

• Programmable high-temperature furnace with dual-sensor temperature monitoring: tungsten–rhenium thermocouple (±1 °C accuracy) augmented by non-contact infrared pyrometry (±5 °C above 1000 °C), ensuring traceable thermal validation across the full 25–1700 °C operational range.
• Benchtop vacuum-compatible chamber capable of sustaining pressures down to 1 × 10⁻³ Pa, equipped with integrated gas inlet ports for argon or nitrogen purging—enabling oxidation-sensitive measurements on reactive systems such as TiAl, ZrB₂–SiC, or UO₂–ZrO₂ interfaces.
• Industrial-grade imaging subsystem: 1600 × 1200 CMOS sensor operating at ≥220 frames per second, paired with a motorized continuous zoom lens (0.7–4.5× magnification, 12 mm focus adjustment), optimized for diffraction-limited resolution of molten droplet contours even at extreme temperatures.
• 470 nm narrow-band blue LED illumination system with analog intensity control, minimizing thermal loading on samples while maximizing contrast between molten phase boundaries and substrate surfaces.
• Real-time contact angle computation engine supporting five standardized fitting algorithms (Circle, Ellipse, Young–Laplace, Spline, and Axisymmetric Drop Shape Analysis), with independent left/right edge detection and statistical averaging per frame—delivering sub-0.1° repeatability in static mode and time-resolved θ(t) profiles at user-defined intervals.

Sample Compatibility & Compliance

The HTC1700 accommodates compact specimens up to 5 mm × 5 mm × 5 mm in volume, mounted on a 15 mm × 15 mm ceramic stage rated for loads up to 50 g under thermal cycling. Compatible sample geometries include polished monocrystalline wafers, sintered green bodies, fiber-reinforced laminates, and pre-oxidized metal coupons. The system meets mechanical and electrical safety requirements per IEC 61010-1:2010 and incorporates fail-safe overtemperature cutoffs, pressure interlocks, and emergency venting pathways. All firmware and software modules comply with FDA 21 CFR Part 11 for electronic records and signatures, including timestamped audit logs for temperature setpoints, image capture triggers, and contact angle calculation parameters.

Software & Data Management

HTC-Suite v4.2 provides a unified interface for instrument control, synchronized video acquisition, and post-processing analytics. Users define multi-segment thermal profiles (up to 30 ramp/soak steps), configure frame rate and exposure duration, and initiate automated contact angle extraction across entire sequences. Output includes CSV-exportable time-series datasets containing θ_L, θ_R, droplet base diameter, height, volume, and surface tension-derived interfacial energy estimates (via Young–Dupré equation). Integrated reporting tools generate PDF summaries aligned with ISO/IEC 17025 documentation standards, including metadata on calibration history, environmental conditions, and operator credentials.

Applications

• Quantifying wetting kinetics of molten Al–Si alloys on SiC-coated graphite substrates for advanced heat exchanger development.
• Evaluating interfacial adhesion degradation in Ni-based superalloys exposed to transient thermal gradients simulating turbine blade service conditions.
• Mapping solid-state sintering onset temperatures via in situ observation of particle coalescence and neck growth in nanostructured Y₂O₃–ZrO₂ ceramics.
• Correlating contact angle hysteresis with surface roughness evolution during cyclic oxidation of Cr–Nb–C coatings in inert atmospheres.
• Validating thermodynamic models of oxide melt–refractory interactions in nuclear fuel cycle simulations (e.g., UO₂–MgO, PuO₂–CaO).

FAQ

What is the maximum sustained operating temperature for long-term experiments?
The HTC1700 is rated for continuous operation up to 1650 °C, with peak capability extending to 1700 °C for short-duration (<30 min) measurements.
Can the system operate under reducing atmospheres such as H₂–Ar mixtures?
Yes—gas compatibility extends to H₂ concentrations ≤5% in inert carrier gases; full hydrogen operation requires optional quartz-to-metal sealed feedthroughs and leak-tested chamber retrofitting.
Is third-party software integration supported (e.g., MATLAB, Python APIs)?
A documented RESTful API and DLL-based SDK are provided for custom automation scripts, enabling bidirectional communication with external data acquisition platforms.
How is thermal drift compensated during prolonged imaging sessions?
Real-time stage position correction is applied using closed-loop piezoelectric actuators synchronized with furnace expansion coefficients; software also applies geometric distortion mapping calibrated at three reference temperatures (25 °C, 1000 °C, 1600 °C).
Are calibration certificates traceable to national metrology institutes available?
NIST-traceable calibration reports for temperature sensors, optical magnification, and contact angle reference standards (certified sapphire wedges) are supplied with each unit and updated annually upon request.
