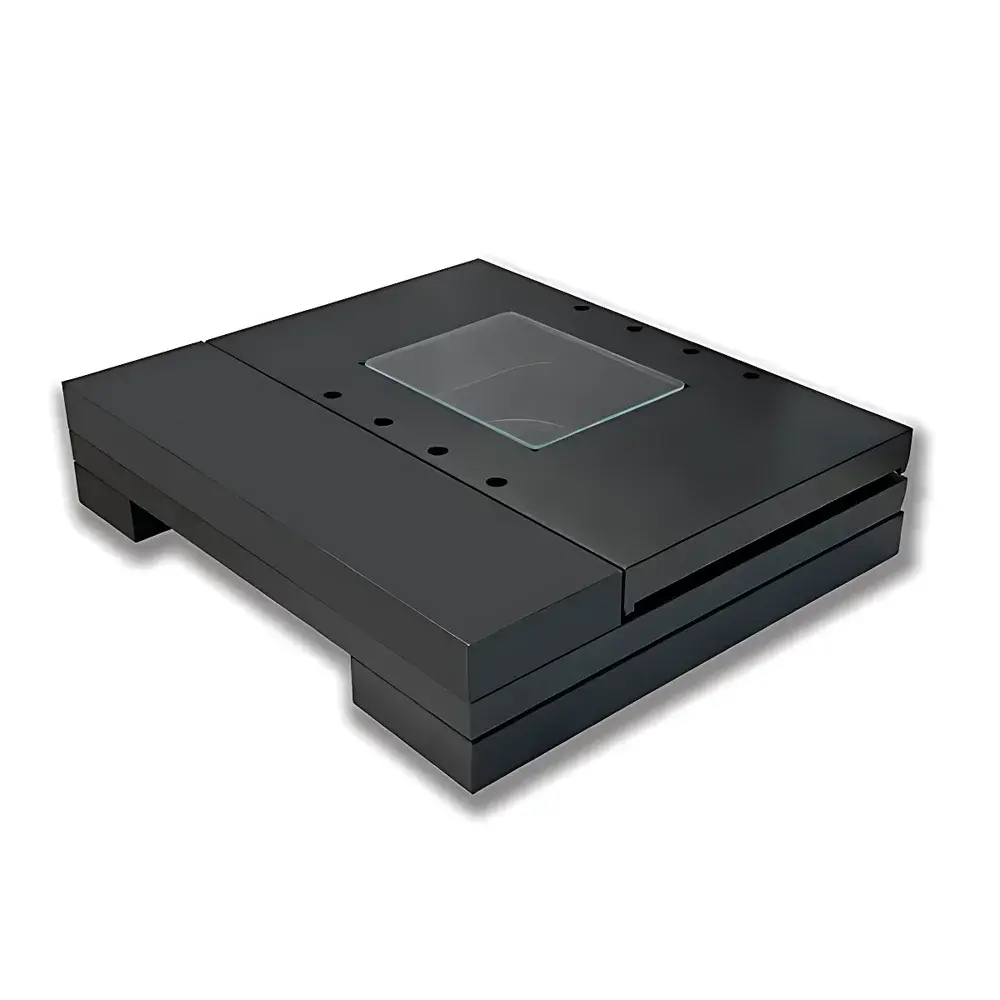

Betop Scientific XY8060 Motorized Microscope Stage

Overview

The Betop Scientific XY8060 Motorized Microscope Stage is a high-precision, bidirectional translation stage engineered for integration with upright and inverted optical microscopes in research-grade life science, materials characterization, and industrial inspection laboratories. Based on closed-loop stepper motor actuation and precision-ground linear guides, the stage delivers deterministic positional control via calibrated microstepping—enabling sub-micron resolution without reliance on external encoders. Its core architecture follows ISO 9283-compliant motion design principles, emphasizing minimal Abbe error, low thermal drift (<0.5 µm/°C over operating range), and mechanical rigidity suitable for long-duration time-lapse imaging or automated slide scanning workflows. The stage operates within ambient laboratory conditions (15–30 °C, <60% RH non-condensing) and is designed for continuous duty cycles under nominal load.

Key Features

• Ultra-low-profile top plate (height ≤ 22 mm), eliminating physical interference with high-NA objective lenses during rotation or turret indexing—critical for multi-angle fluorescence imaging and confocal alignment.
• Expanded sample mounting surface (230 mm × 200 mm) accommodates standard microscope slides, custom specimen holders, multi-well plates (e.g., 96-well format), and large-section histology arrays without adapter modification.
• Modular Z-axis upgrade path: Optional XYZ8050 configuration integrates a piezo-assisted lead-screw Z-stage (50 µm travel, <2 µm/mm accuracy) for true 3D volumetric navigation—fully synchronized with XY motion via shared controller firmware.
• Native compatibility with major microscope platforms: Nikon Eclipse Ci/Ei series, Olympus BX/IX series, Zeiss Axio Imager/Axio Observer, and Leica DMi8/DM6 B—achieved through standardized mechanical footprint (M4 threaded holes on 25-mm grid) and electrical interface abstraction.
• Real-time motion monitoring via integrated Hall-effect position feedback; supports both open-loop command execution and closed-loop correction modes depending on application latency requirements.

Sample Compatibility & Compliance

The XY8060 stage supports sample carriers conforming to ANSI/ISO 8547 (microscope slide dimensions) and ASTM E2015 (specimen mounting standards for optical microscopy). Its 10 kg payload capacity ensures stable operation with heavy objectives (e.g., water-dipping 60×/1.2 NA lenses), motorized condensers, or auxiliary hardware such as environmental chambers. All electronics comply with IEC 61326-1 (EMC for laboratory equipment) and IEC 61010-1 (safety requirements for electrical equipment). Mechanical components meet RoHS 2011/65/EU and REACH SVHC criteria. Device firmware implements audit-ready logging per GLP/GMP-aligned protocols when used with validated host software.

Software & Data Management

The stage ships with Betop MotionSuite v3.2—a cross-platform application supporting Windows, Linux, and macOS—for manual jog control, coordinate-based absolute positioning, and script-driven multi-point acquisition sequences. It exposes a documented ASCII command set over USB virtual COM port and RS-485, enabling native integration with Micro-Manager 2.0+, LabVIEW 2020 SP1+, and Python (via PySerial or custom ctypes wrappers). All motion commands generate timestamped log entries (ISO 8601 format) containing position, velocity, timestamp, and error flags—facilitating traceability in regulated environments. Optional FDA 21 CFR Part 11 compliance package includes electronic signature support, role-based access control, and immutable audit trails.

Applications

• Automated whole-slide imaging (WSI) for digital pathology, where repeatable 60 × 55 mm traversal enables seamless mosaic stitching of tissue sections at 20×–40× magnification.
• Live-cell time-lapse microscopy requiring sub-second repositioning between predefined ROIs—leveraging <0.005% unidirectional repeatability to maintain spatial fidelity across 24+ hour acquisitions.
• Micro-manipulation workflows integrating with patch-clamp rigs or optical tweezers, where coordinated XY-Z motion synchronizes sample translation with laser targeting or electrode approach.
• Materials science applications including grain boundary mapping, thin-film thickness profiling via focus-stacking, and in situ thermal/mechanical testing under optical observation.
• Quality assurance in semiconductor metrology labs performing wafer-level defect review using brightfield/darkfield illumination modes.

FAQ

Is the XY8060 compatible with third-party microscope automation software?
Yes—its ASCII command protocol is fully documented and has been validated with Micro-Manager, NIS-Elements (via custom DLL wrapper), and HALCON-based machine vision systems.
What is the maximum acceleration the stage can sustain without loss of step?
At full load (10 kg), the recommended acceleration limit is 0.5 g (4.9 m/s²) to maintain positional integrity; higher values require dynamic load characterization per application.
Can the stage be operated in vacuum or inert gas environments?
No—the standard version uses lubricated linear guides and standard stepper motors not rated for vacuum or corrosive atmospheres; custom vacuum-compatible variants are available upon request.
Does the controller support TTL-triggered motion synchronization?
Yes—the rear-panel DB9 connector provides dedicated TTL input/output lines for frame-triggered movement, shutter synchronization, and external event stamping.
How is calibration traceability maintained across instrument lifetime?
Each unit ships with a factory calibration certificate referencing NIST-traceable interferometric verification; users may perform field recalibration using optional Betop Calibration Target Kit (Cat. No. BT-CTK-01).
