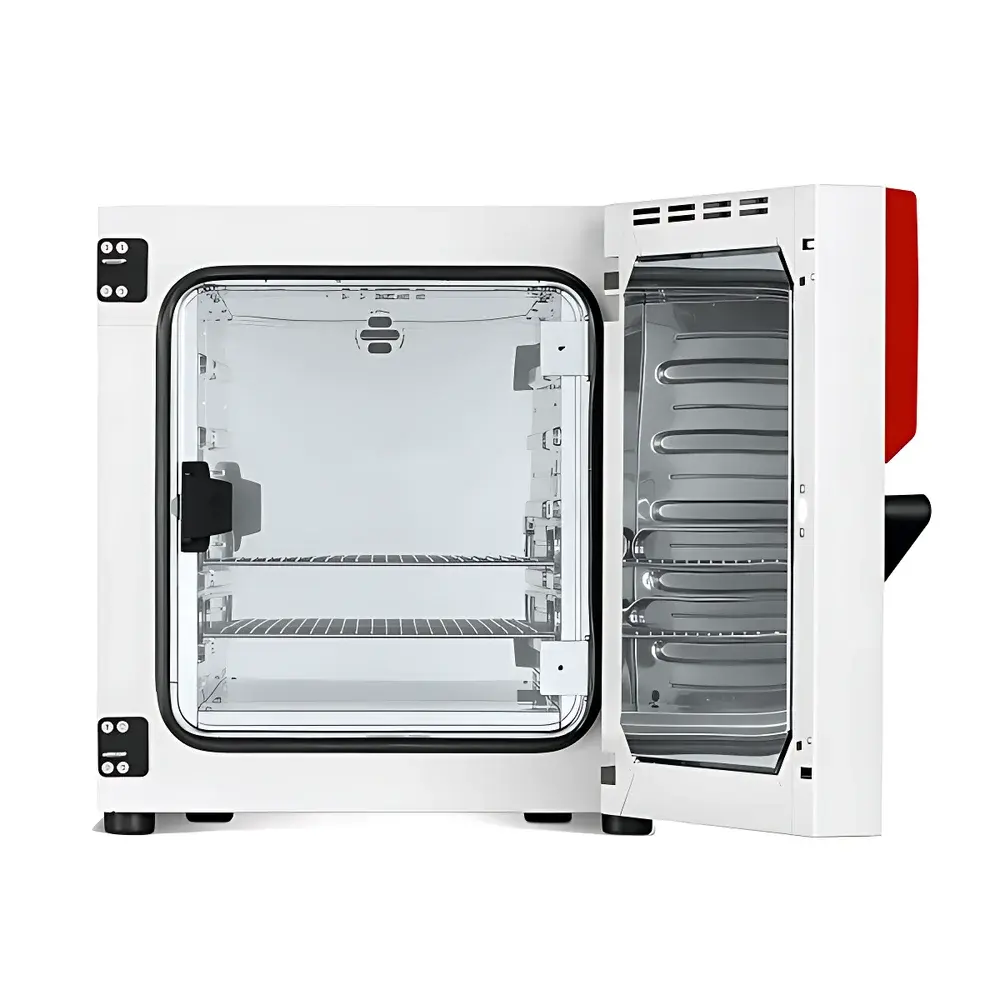

BINDER BD56 Biochemical Incubator
| Brand | BINDER |
|---|---|
| Origin | Germany |
| Manufacturer | BINDER GmbH |
| Product Type | Imported Biochemical Incubator |
| Model | BD 56 |
| Heating Method | Water-Jacketed |
| Air Circulation | Natural Convection |
| Temperature Range | RT + 5 °C to 100 °C |
| Temperature Stability at 37 °C | ±0.1 °C |
| Temperature Uniformity at 37 °C | ±0.3 °C |
| External Dimensions (W × D × H) | 560 mm × 565 mm × 625 mm |
Overview
The BINDER BD56 Biochemical Incubator is a precision-engineered, water-jacketed incubation system designed for stable, reproducible thermal environments in life science laboratories. Built upon BINDER’s decades-long heritage in climate-controlled instrumentation, the BD56 employs passive thermal mass stabilization via its integrated water jacket—ensuring minimal temperature overshoot, reduced energy consumption, and exceptional resistance to ambient fluctuations. Unlike forced-air systems, natural convection eliminates mechanical vibration and airflow-induced desiccation, making it ideal for sensitive microbiological cultures, enzyme assays, and long-term cell maintenance where mechanical stress or moisture loss must be strictly minimized. The unit complies with DIN 12880 Class 3.1 for incubator performance certification, confirming its suitability for GLP-compliant applications requiring traceable thermal validation.
Key Features
- Water-jacketed thermal architecture delivering high thermal inertia and stability—critical for uninterrupted microbial growth and thermolabile reagent storage.
- Natural convection air circulation ensures silent, vibration-free operation without fan-induced turbulence or evaporation artifacts.
- LCD controller with intuitive menu navigation, real-time temperature display, and adjustable setpoint resolution of 0.1 °C.
- Double-glazed inner door made of safety glass (ESG) minimizes condensation while enabling unobstructed visual monitoring without thermal disturbance.
- Chromated stainless-steel shelves—individually height-adjustable and removable for flexible load configuration and thorough cleaning.
- Dual-stage temperature safety system: independent mechanical thermostat (DIN 12880 Class 3.1) plus optical/audible alarm for overtemperature events.
- Ergonomically contoured handles and optimized footprint (560 × 565 × 625 mm) support seamless integration into standard lab cabinetry and biosafety workflows.
Sample Compatibility & Compliance
The BD56 accommodates Petri dishes, culture flasks (up to 2 L), multiwell plates, and glassware up to 150 mm in height. Its non-corrosive interior chamber (electropolished stainless steel) resists degradation from repeated ethanol or hydrogen peroxide decontamination cycles. The incubator meets DIN EN 61000-6-3 (EMC emission standards) and DIN EN 61000-6-2 (immunity), ensuring electromagnetic compatibility in shared instrument environments. For regulatory workflows, its temperature control architecture supports IQ/OQ documentation packages, and the controller logs enable audit-ready records compatible with 21 CFR Part 11–aligned data management protocols when interfaced with validated LIMS platforms.
Software & Data Management
While the BD56 operates via an embedded microcontroller without direct PC connectivity, its controller supports optional analog output (0–10 V) for external data logging systems. All temperature parameters—including setpoint, actual value, deviation limits, and alarm status—are continuously displayed and stored in non-volatile memory for ≥100 hours. Optional BINDER C-Control software (via RS485 adapter) enables remote monitoring, trend visualization, and export of CSV-formatted temperature logs—facilitating compliance with ISO/IEC 17025 and ISO 9001 quality management requirements.
Applications
- Microbiological cultivation of mesophilic and thermophilic strains (e.g., E. coli, Bacillus subtilis, Aspergillus niger) under tightly controlled thermal conditions.
- Enzyme kinetics studies requiring stable sub-40 °C environments with negligible thermal drift.
- Storage and conditioning of heat-sensitive biological reagents, antibodies, and diagnostic kits.
- Pre-incubation of samples prior to PCR, ELISA, or chromatographic analysis where thermal history impacts assay fidelity.
- Environmental simulation for stability testing of pharmaceutical intermediates per ICH Q1A(R2) guidelines.
FAQ
Is the BD56 suitable for CO₂-dependent cell culture?
No—the BD56 is a non-CO₂, ambient-air incubator. It lacks gas regulation hardware and is intended for applications where atmospheric CO₂ levels are not critical.
Can the water jacket be filled with antifreeze solution for extended operation below 0 °C ambient?
No—the water jacket is designed exclusively for deionized water; antifreeze compromises thermal conductivity and may corrode internal components.
Does the BD56 support validation protocols required for GMP environments?
Yes—its Class 3.1 safety thermostat, documented temperature uniformity/stability performance, and controller logging capability align with core GMP Annex 11 and EU GMP Chapter 4 expectations for equipment qualification.
What is the maximum recommended load volume for maintaining ±0.3 °C uniformity at 37 °C?
Uniformity specifications assume ≤70% chamber loading (i.e., no more than 5 standard-sized shelves fully occupied with standard culture vessels). Overloading degrades natural convection efficiency.
How frequently should the water jacket be refilled or serviced?
Under normal use, the sealed water jacket requires no routine refilling; however, annual visual inspection for leakage and biocide treatment (e.g., silver ion cartridges) is recommended to prevent biofilm formation.
