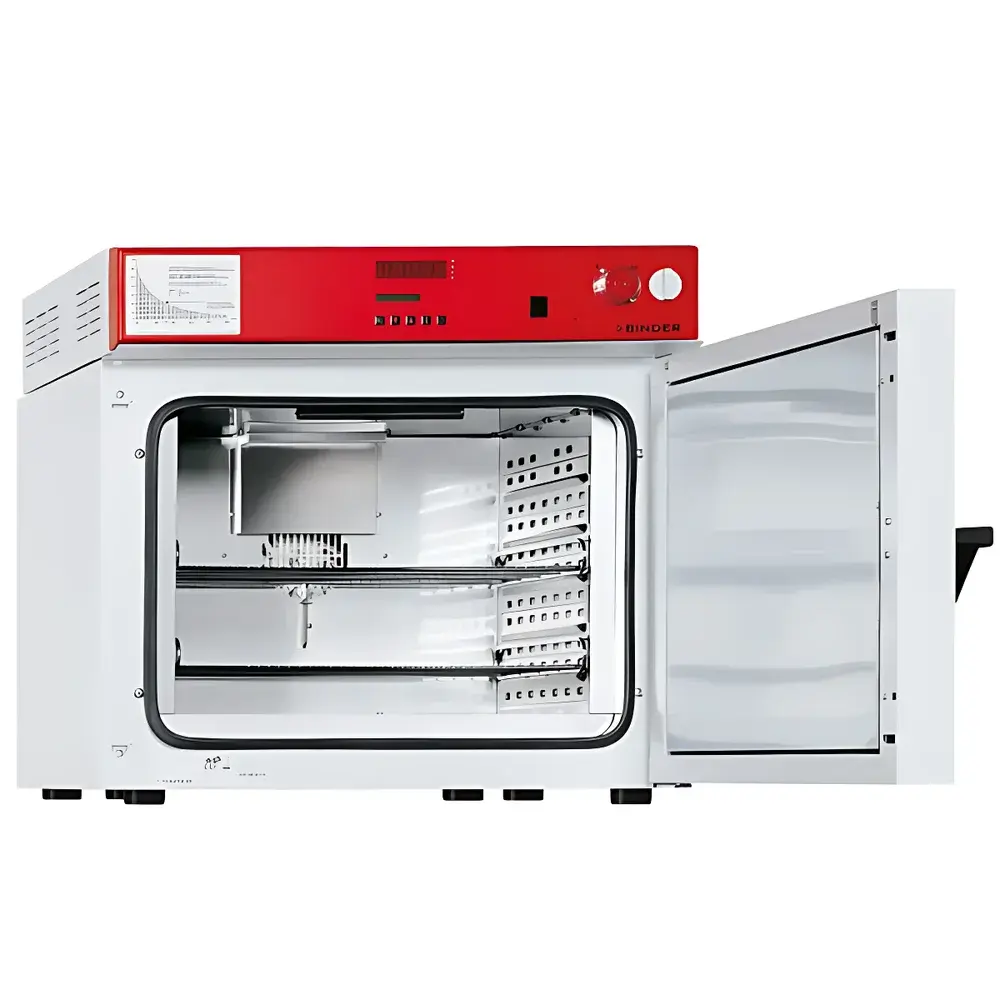

BINDER FDL115 Safety Drying Oven for Solvent-Containing Samples

Overview

The BINDER FDL115 Safety Drying Oven is a certified explosion-protected laboratory oven engineered for the controlled thermal treatment of samples containing flammable solvents, coatings, paints, and volatile organic compounds (VOCs). Designed in strict accordance with EN 1539:2010–08 (Industrial thermoprocessing equipment – Safety requirements for drying ovens and烘箱 used for processing materials containing flammable substances), this unit integrates dual safety architecture—mechanical temperature limitation and active fresh-air monitoring—to prevent ignition hazards during operation. Its core thermal management relies on BINDER’s proprietary APT.line™ preheating chamber technology, which ensures uniform heat distribution across the entire working chamber by pre-warming incoming air before circulation. This eliminates cold spots and significantly reduces process time while maintaining reproducible thermal profiles from ambient +5 °C up to 300 °C. The chamber is constructed from silicon-free stainless steel, delivering particle-free environments essential for coating validation, pharmaceutical stability testing, and electronics component curing.

Key Features

• Explosion-protected design certified to EN 1539:2010–08 for safe handling of solvent-laden samples
• APT.line™ preheating chamber technology for rapid, homogeneous heating and improved temperature stability (±0.5 °C)
• Dual-stage independent temperature safety system (DIN 12880 Class 2) with optical alarm and automatic heater cutoff
• Real-time programmable controller supporting interval programming and ramp/soak profiles
• Two chrome-plated adjustable shelves with 30 kg load capacity each; total max. load: 60 kg
• Integrated fresh-air monitoring system with audible and visual alarms, plus automatic heating interruption upon airflow deviation
• Replaceable M6-class particulate filter for continuous supply of clean, conditioned intake air
• RS 422 interface for external data logging and integration into centralized lab management systems
• Silicon-free, electropolished stainless-steel interior chamber compliant with ISO 14644-1 Class 5 cleanroom particulate requirements

Sample Compatibility & Compliance

The FDL115 is validated for applications involving solvent-based paints, lacquers, adhesives, polymer dispersions, and moisture-sensitive electronic assemblies where residual VOCs pose ignition risks. Its maximum permissible solvent load (6.65 g under standardized EN 1539 test conditions: T = −180 °C, M = 100 g/mol, U = 40 g/m³, K = 0.5) provides quantifiable operational boundaries for risk assessment. All safety-critical functions—including airflow verification, overtemperature protection, and door-open response—are independently verified and documented per DIN 12880:2007. The unit supports GLP-compliant workflows through traceable calibration records, audit-ready event logs, and optional 21 CFR Part 11–enabled software packages when paired with BINDER’s ecoControl suite. It meets CE marking requirements and conforms to IEC 61000-6-3 (EMC) and IEC 61000-6-2 (immunity) standards.

Software & Data Management

While the FDL115 operates via an embedded microprocessor-based controller with intuitive membrane keypad navigation, its RS 422 serial interface enables seamless connection to PC-based monitoring platforms. When integrated with BINDER’s ecoControl software (optional), users gain access to full audit trails—including timestamped temperature setpoints, actual chamber readings, alarm events, fresh-air status, and door-opening history. All data are stored in CSV or XML format with SHA-256 hash integrity verification, satisfying FDA 21 CFR Part 11 requirements for electronic records and signatures. The system supports automated report generation aligned with ISO/IEC 17025 documentation protocols and can be configured for scheduled calibration reminders based on usage frequency and environmental exposure.

Applications

• Curing of automotive and aerospace coatings under controlled solvent-evaporation conditions
• Stability testing of pharmaceutical formulations containing ethanol, acetone, or isopropanol
• Drying of printed circuit boards (PCBs) post-solder paste application
• Thermal conditioning of composite prepregs prior to autoclave layup
• Residual solvent removal from lithium-ion battery electrode coatings
• Accelerated aging studies of elastomers and sealants exposed to VOC-rich atmospheres
• Preparation of reference standards for GC-MS analysis requiring solvent-free matrix integrity

FAQ

Is the FDL115 suitable for use with Class I, Division 1 hazardous locations?
No—the FDL115 is certified to EN 1539 for industrial drying applications involving flammable vapors, but it is not rated for NEC Class I, Division 1 or ATEX Zone 1 environments. It is intended for laboratory and pilot-scale manufacturing settings where ventilation and procedural controls supplement intrinsic safety.
What maintenance intervals are recommended for the M6 fresh-air filter?
BINDER recommends inspecting the filter every 200 operating hours and replacing it every 6 months or after 1,000 hours—whichever occurs first—under typical solvent-drying conditions. Filter replacement requires no tools and takes less than 90 seconds.
Can the oven be validated for IQ/OQ/PQ according to GMP guidelines?
Yes. BINDER provides factory-issued IQ/OQ documentation templates and supports third-party PQ execution using calibrated PT100 sensors traceable to NIST standards. Full validation kits—including thermocouple mapping reports and alarm response verification protocols—are available upon request.
Does the APT.line™ technology affect energy consumption compared to conventional ovens?
Although initial power draw is higher during ramp-up due to preheating mass, overall energy efficiency improves by ~18% over a full 8-hour drying cycle at 150 °C, as verified per DIN EN 60068-3-5, owing to reduced recovery time after door openings and tighter temperature control.
Is remote monitoring supported via Ethernet or Wi-Fi?
The standard FDL115 includes only RS 422. For TCP/IP connectivity, users must specify the optional ecoNet module at time of order, enabling SNMP-based network integration and real-time web dashboard access.
