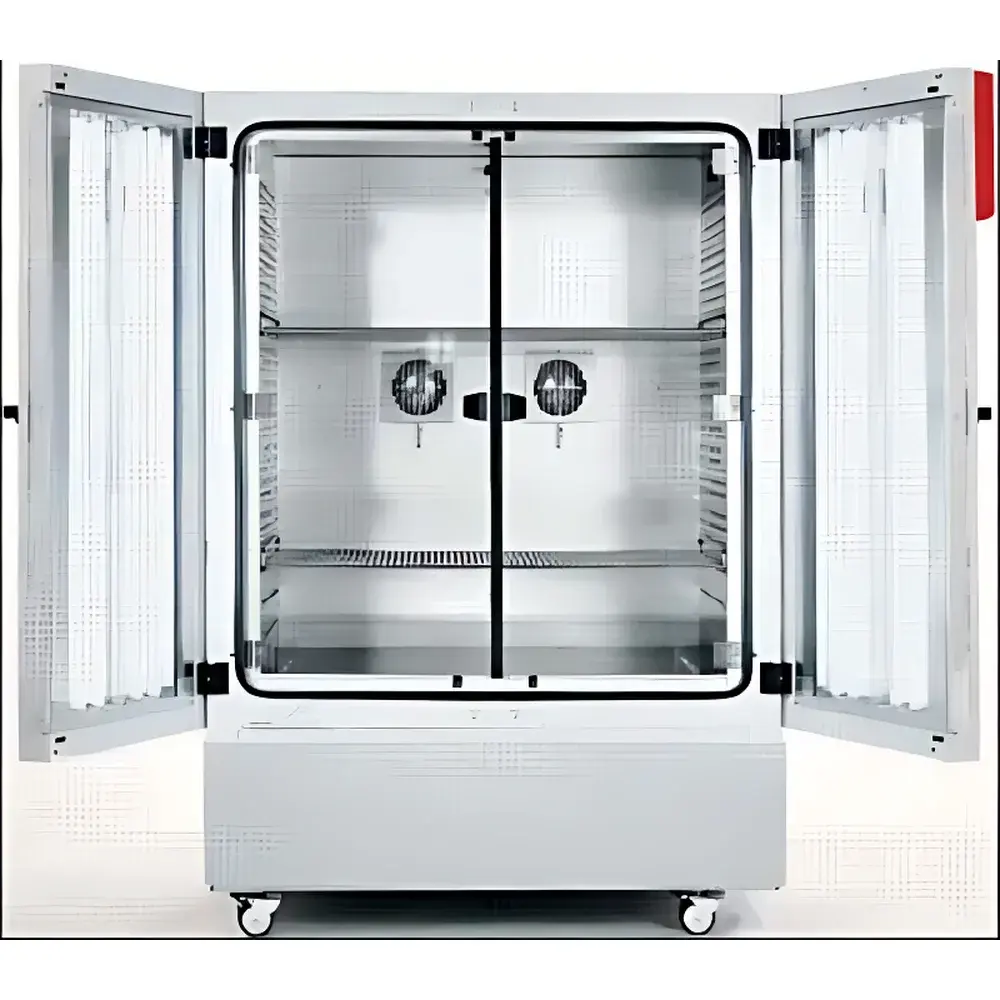

BINDER KB23 / KB53 / KB115 / KB240 / KB400 / KB720 Biochemical Incubators

Overview

The BINDER KB Series Biochemical Incubators are precision-engineered environmental chambers designed for stable, reproducible temperature control in life science laboratories. Operating on a dual-mode thermal management principle—combining forced-air convection with DCT® (Direct Cooling Technology) and APT.line® preheating—the KB series delivers exceptional thermal homogeneity (<±0.3 °C at 37 °C) and rapid recovery after door opening. Unlike conventional incubators relying solely on resistive heating and passive cooling, the KB platform integrates active refrigeration (R134a) and intelligent airflow modulation to maintain tight setpoint adherence across its full operating range of −10 °C to 100 °C (KB23: 0 °C to 100 °C). This enables reliable performance in applications requiring sub-ambient stabilization—such as enzyme kinetics studies, cold-adapted microorganism culture, or low-temperature storage of sensitive reagents—while retaining full capability for standard mammalian cell incubation protocols.

Key Features

• APT.line® preheating technology with DCT® direct cooling ensures uniform chamber temperature distribution and minimizes thermal gradients during ramping and steady-state operation.
• MP programmable controller supports two independent 10-segment programs or one consolidated 20-segment program, with fully adjustable ramp rates, dwell times (up to 999:59 h per segment), and conditional termination logic (e.g., temperature-dependent shutdown).
• Adjustable fan speed (0–100%) allows optimization of airflow intensity for heat-sensitive samples or low-evaporation requirements without compromising uniformity.
• Dual-stage safety system: Independent Class 3.1 overtemperature protection (per DIN 12880) with visual and audible alarm, plus electronic monitoring of refrigeration circuit integrity.
• Tempered interior glass door enables non-intrusive observation while minimizing heat loss and condensation formation.
• Digital temperature setpoint resolution of 0.1 °C, with real-time display of actual chamber temperature, setpoint, and deviation.
• RS422 interface compliant with BINDER’s APT-COM® software suite for remote monitoring, data logging, audit trail generation, and compliance reporting under FDA 21 CFR Part 11 (when configured with appropriate IT infrastructure).

Sample Compatibility & Compliance

The KB series accommodates a broad spectrum of sample formats—from Petri dishes and multiwell plates to flasks, tubes, and custom bioreactor vessels—within internal volumes spanning 23 L (KB23) to 720 L (KB720). All models feature corrosion-resistant stainless-steel interiors, smooth-welded corners, and removable shelves (standard: two 304 stainless-steel trays). The absence of internal seams or crevices facilitates cleaning and decontamination, supporting ISO 13485-aligned quality systems. Units are CE-marked and manufactured under BINDER’s ISO 9001 and ISO 13485 certified quality management system. When operated with validated procedures and integrated into a documented IT environment, the KB series supports GLP and GMP workflows—including electronic record retention, user access control, and change management traceability via APT-COM®.

Software & Data Management

APT-COM® is BINDER’s native PC-based control and documentation software, enabling bidirectional communication via RS422. It provides real-time graphical visualization of temperature profiles, automated export of CSV-formatted log files, configurable alarm notifications (email/SNMP), and secure user authentication (role-based permissions). Audit trails capture all parameter changes, manual interventions, and system events with timestamps and operator IDs—meeting ALCOA+ principles for data integrity. Optional integration with laboratory information management systems (LIMS) or enterprise resource planning (ERP) platforms is supported through standardized OPC UA or Modbus TCP gateways (requires external middleware configuration).

Applications

• Microbial and fungal culture under controlled low-temperature conditions (e.g., Listeria monocytogenes growth studies at 4 °C).
• Enzyme activity assays requiring precise sub-37 °C thermal stability.
• Long-term stability testing of biologics, vaccines, and diagnostic reagents per ICH Q5C guidelines.
• Cell line maintenance where transient hypothermic exposure improves viability during passaging.
• Environmental simulation for ecotoxicology studies involving cold-water species or cryotolerant algae.
• Pre-incubation conditioning of biosensors, microfluidic chips, and assay cartridges prior to functional testing.

FAQ

What is the minimum operating temperature for the KB23 model?
The KB23 operates from 0 °C to 100 °C; all other KB models (KB53 through KB720) support the full −10 °C to 100 °C range.
Is the KB series suitable for GLP-compliant laboratories?
Yes—when deployed with APT-COM® in a validated network environment, the system supports electronic signatures, audit trails, and data integrity controls aligned with OECD GLP Principles and FDA 21 CFR Part 11.
Can the incubator be integrated into a centralized building management system (BMS)?
Via optional RS485-to-BACnet/IP or Modbus TCP gateways (third-party hardware), the KB series can transmit temperature status, alarms, and operational states to facility-level BMS platforms.
Are additional shelves or accessories available?
Yes—BINDER offers supplementary stainless-steel shelves, humidity trays (for select models), CO₂-ready retrofit kits, and validated calibration services through authorized service partners.
What refrigerant is used, and does it comply with current environmental regulations?
R134a is employed—a zero-ozone-depletion-potential (ODP = 0) hydrofluorocarbon compliant with EU F-Gas Regulation (EU) No 517/2014 and EPA SNAP program requirements for laboratory equipment.
